Radiometer ABL80 FLEX Service Manual – Edition 8 (Code 990-736) – PDF

Description

Radiometer ABL80 FLEX Service Manual – Edition 8 (Code 990-736) – PDF DOWNLOAD

DESCRIPTION

This is the complete factory ABL80 FLEX Service Manual, Edition 8, Code 990-736, covering ABL80 FLEX and ABL80 FLEX CO-OX analyzers.
It includes detailed servicing instructions, fluidics and electrical diagrams, annual maintenance procedures, troubleshooting charts, complete parts lists, and all sub-assembly replacement procedures used by authorized Radiometer technicians.

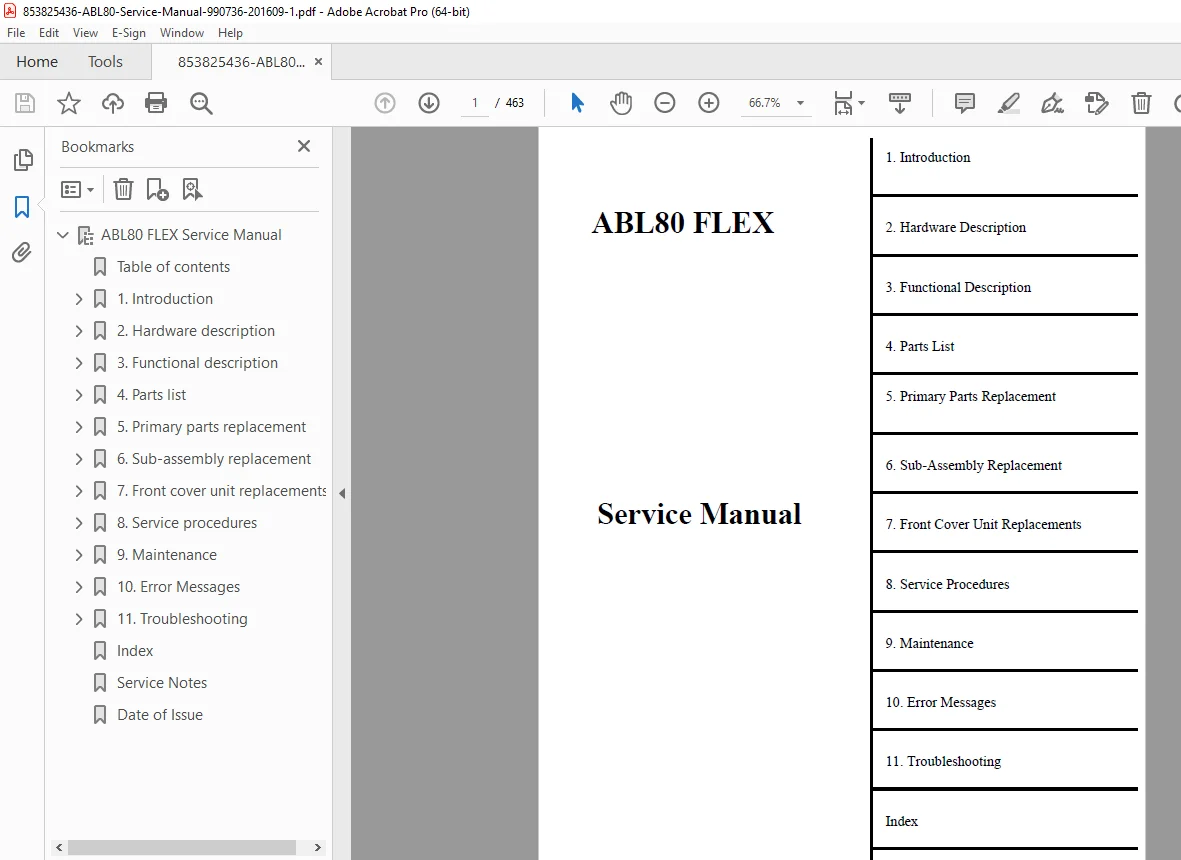

Table of Contents

1. Introduction

• Overview

• Warnings and cautions

• Service policy

• ABL80 identification

2. Hardware Description

• Overview

• ABL80 FLEX analyzer – front view

• ABL80 FLEX CO-OX analyzer – front view

• ABL80 analyzers – rear view

• Sensor cassettes – front and rear views

• Solution pack

3. Functional Description

• Overview

• Normal fluidics – ABL80 FLEX

• Normal fluidics – ABL80 CO-OX

• Major components – all ABL80 analyzers

• Major components – FLEX analyzer

• Major components – CO-OX analyzer

• ABL80 connections

  • Fluidics connections – FLEX

  • Fluidics connections – CO-OX

  • Electrical connections – FLEX

  • Electrical connections – CO-OX

  • Electrical block diagrams

• Power supply

  • Analyzer power

  • Battery management

4. Parts List

• Overview

• Computer units

• Units

• External parts

• Parts

• Printer unit

• Display unit

• Computer unit (FLEX / CO-OX)

• Front cover unit (FLEX / CO-OX)

• Boards & cables

• CO-oximeter

• Front cover assembly

• Recommended tools

• Recommended parts & hardware

• CF card versions

5. Primary Parts Replacement

• Getting started

• Back cover

• Battery pack

• Power harness cable

• Power supply

• SP door latch unit

• Waste pump head

• Waste pump assembly

• Main distribution board

• Spine board

• iButton assemblies

• Manifold unit

• Main frame & base housing

• Handle, feet, O-rings

6. Sub-Assembly Replacement

• Printer unit & boards

• Computer unit removal

• EMI enclosure

• Cooling fans

• Compact flash memory

• Internal barcode scanner

• Base board assembly

• Display unit, screen, hinges, cables

• Touch panel

7. Front Cover Unit Replacement

FLEX:

• Front cover removal

• Roller assembly & motor

• Sensor luer assembly

• Cassette post

• Sensor board & cables

• Waste drain

• Tubing

• Barcode lens

CO-OX:

• Spectrometer assembly

• Hemolyzer assemblies

• Peristaltic pump

• Inlet luer assemblies

• CO-OX analog boards & sensor boards

8. Service Procedures

• Security settings

• Service screens

• Battery

• Utilities

• Touch panel calibration

• Exporting data

• Reset SP

• RADIANCE vs AQURE

• Logging

• Language

• Option keys

• RiliBÄK

• Software upgrade

• tHb calibration

• Zero check

• Windows access

9. Cleaning, Disinfection & Maintenance

• Annual service (FLEX & CO-OX)

• Analyzer cleaning

• Waste path disinfection

• ABL80 cleaning tool

• Long-term storage

10. Error Messages

• System messages

• General error messages

• CO-OX error messages

• Result messages

11. Troubleshooting

• Reference tables: problems, causes & corrective actions

• Guidelines

• 1-wire circuit testing

• System cycle issues

• Multiple & single parameter issues

• Air contamination

• CO-OX troubleshooting guidance

• Service test interpretation

• Spectrometer & hemolyzer diagnostics

• Manual QC faults

• Service test default values

Index

Service Notes

Date of Issue
