Range Rover Classic 1970-1985 Repair Operation Manual Including Five Speed & Automatic Gearbox Supplement

Description

Range Rover Classic 1970-1985 Repair Operation Manual

This is the official factory repair operation manual for the Range Rover Classic, covering all models from 1970 to 1985. Published by Land Rover Limited and based on the original factory workshop data, this comprehensive manual provides skilled mechanics with the efficient repair and maintenance procedures required for these iconic 4×4 vehicles. The manual includes a full supplement for the five-speed manual gearbox and automatic transmission, making it an essential resource for anyone restoring or maintaining a classic Range Rover.

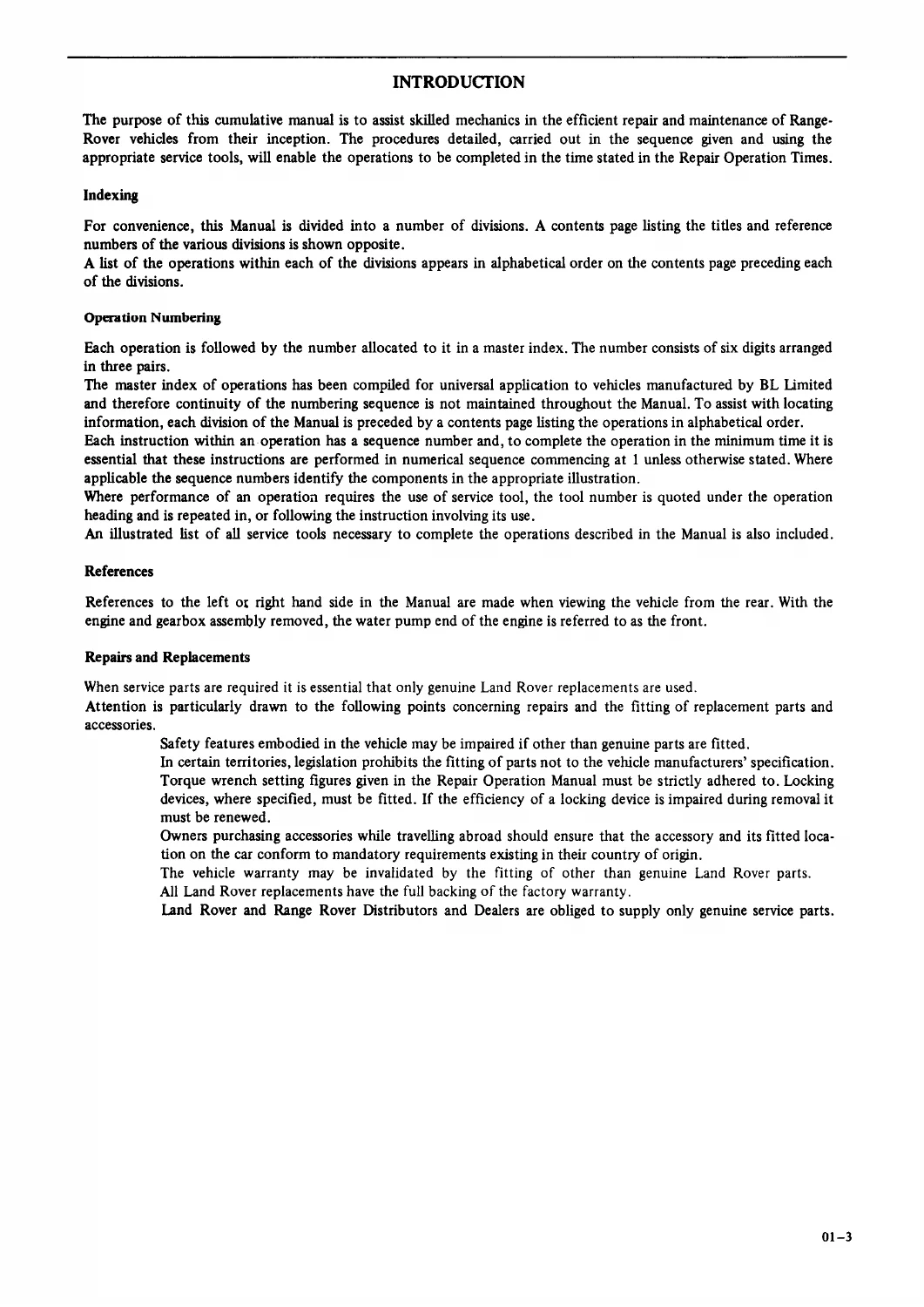

The manual is structured for quick reference, with operations numbered and grouped by division. Each procedure includes the recommended service tools, torque settings, and clear step-by-step instructions. Whether you need to overhaul the 3.5 litre V8 engine, rebuild a differential, or diagnose electrical faults, this Range Rover Classic workshop manual delivers the exact factory procedures used by Land Rover dealers.

File Details

• Manual Type: Factory Repair Operation Manual (Official Land Rover Publication)
• Models Covered: Range Rover Classic – all models 1970 to 1985
• Engines: 3.5 litre V8 (carburetted) – 8.13:1, 8.25:1 and 9.35:1 compression ratios
• Transmissions: Four-speed manual (synchromesh), five-speed manual (supplement), automatic gearbox (supplement), two-speed transfer box
• Publication Details: Rover Group Limited, 1985. Published under licence by Brooklands Books Limited
• Language: English
• File Format: PDF

Chapters Covered

• General Specification Data: Complete vehicle specifications including engine, transmission, suspension, brakes, electrical and dimensions
• Engine Tuning & Torque Settings: Carburettor tuning procedures (Zenith 175 CD-SE), ignition timing, valve timing, and comprehensive torque tables

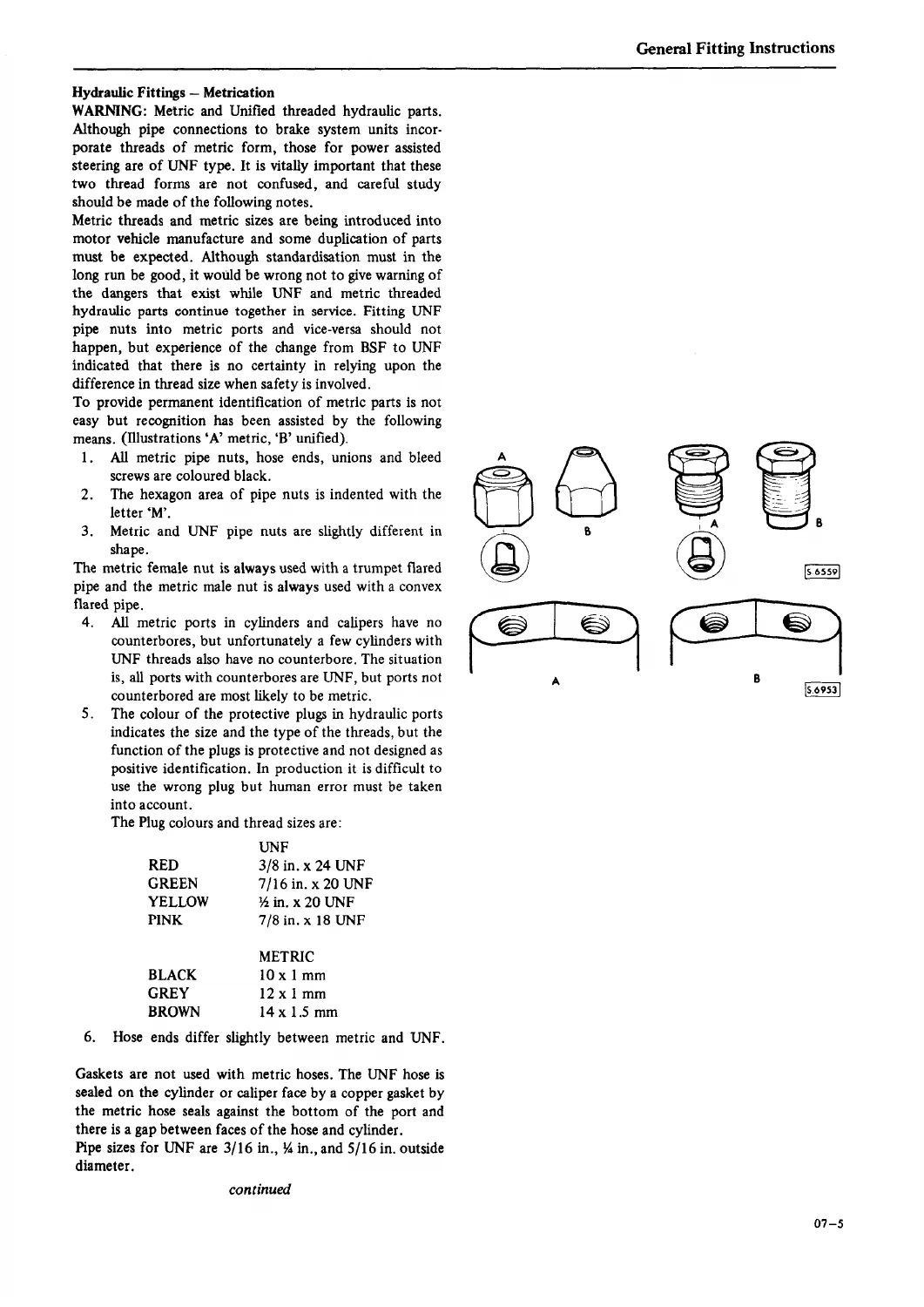

• General Fitting Instructions: Professional workshop practices, safety precautions, metric/UNF thread identification, bearing and seal installation
• Recommended Lubricants, Fuel & Fluids: Capacities and specifications for all fluids including anti-freeze concentrations
• Maintenance: Complete service schedules (6,000, 12,000 mile and Australia ADR 27A schedules) with detailed inspection and service procedures
• Engine: Complete V8 engine overhaul – cylinder heads, valves, camshaft, timing chain, pistons, connecting rods, crankshaft, oil pump, engine removal/refitting
• Emission and Evaporative Control: Air injection system, crankcase breathing, evaporative loss control, EGR valve (Australia), air intake temperature control
• Fuel System: Zenith carburetters (manual choke and auto choke), fuel pump, fuel tank, throttle linkage, filters
• Cooling System: Radiator, water pump, thermostat, fan belt, expansion tank, coolant draining and filling
• Manifold and Exhaust System: Induction and exhaust manifolds, exhaust pipes and silencer
• Clutch: Clutch assembly, master cylinder, slave cylinder, release bearing, hydraulic system bleeding
• Gearbox – Synchromesh: Complete overhaul of four-speed manual gearbox including mainshaft, layshaft, selectors, and transfer gearbox (front output, differential lock, speedometer drive)
• Propeller Shafts: Front and rear propeller shaft removal, overhaul and lubrication
• Rear Axle and Final Drive: Differential, axle shafts, hub bearings, oil seals
• Front Axle and Final Drive: Swivel pin housings, CV joints, differential, axle shafts
• Steering: Manual and power steering (Adwest Varamatic), steering box, track rod, wheel alignment
• Front Suspension: Front forks, shock absorbers, springs, suspension arms
• Rear Suspension: Rear springs, shock absorbers, Boge Hydromat self-levelling unit, suspension linkage
• Brakes: Disc brakes (front and rear), transmission brake (handbrake), servo unit, master cylinder, pad replacement, fluid renewal
• Wheels and Tyres: Steel and alloy wheels, tyre pressures and maintenance
• Body: Panels, doors, tailgate, bonnet, seats, seat belts
• Heating and Ventilation: Heater system, controls, air distribution
• Air Conditioning: System components and servicing precautions
• Wipers and Washers: Windscreen, tailgate and headlamp wipers, washer system
• Electrical: Alternator (Lucas 16ACR, 18ACR, 25ACR), starter motor, battery, wiring diagrams, lighting, instruments, switches
• Optional Equipment: Additional factory-fit accessories
• Service Tools: Illustrated list of all factory service tools
• Supplement – Automatic Gearbox: Complete additional section for automatic transmission models

This Range Rover Classic factory repair manual is far more than a simple owner’s handbook. It is the comprehensive technical reference used by Land Rover dealerships. It provides detailed specifications for every major component, including the 3.5 litre V8 engine, the four-speed and optional five-speed manual gearboxes, the two-speed transfer box, and both axles. The manual includes precise torque wrench settings, wear limits, and inspection criteria essential for professional-quality repairs. With this Range Rover Classic workshop manual, you can confidently undertake everything from routine servicing to a full chassis restoration.

What This Manual Covers

• Full V8 Engine Overhaul: Complete disassembly and reassembly of the 3.5 litre engine including cylinder heads, camshaft, timing chain, pistons, connecting rods, and crankshaft
• Transmission & Driveline Service: Overhaul of four-speed and five-speed manual gearboxes, automatic gearbox, transfer box, front and rear differentials
• Suspension & Steering: Front and rear suspension overhaul, Boge self-levelling unit, manual and power steering box rebuild
• Brake System Overhaul: Master cylinder and caliper seal renewal, disc and transmission brake service
• Electrical Diagnosis: Testing procedures for the charging system, alternator, starter motor, and all lighting circuits
• Body & Trim: Panel removal, door adjustments, seat belt inspection, and tailgate mechanism

Why This Manual Matters

The Range Rover Classic is an iconic vehicle, and maintaining one to the highest standard requires the correct technical information. This official factory manual provides the exact procedures and specifications used by Land Rover technicians, ensuring repairs are carried out correctly and safely. Using the original manufacturer’s data prevents guesswork, saves time, and helps avoid costly mistakes. Whether you are a professional mechanic restoring a classic or an enthusiastic owner performing your own maintenance, this Range Rover Classic repair manual is an indispensable tool. It gives you the confidence to tackle any job, from a simple oil change to a complete engine rebuild.
