RAUCH AXERA H 1101/1102 AXERA H EMC 1101/1102 Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD

Description

RAUCH AXERA H 1101/1102 AXERA H EMC 1101/1102 Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD

FILE DETAILS:

RAUCH AXERA H 1101/1102 AXERA H EMC 1101/1102 Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD

Language : English, German & French
Pages : 301
Downloadable : Yes
File Type : PDF

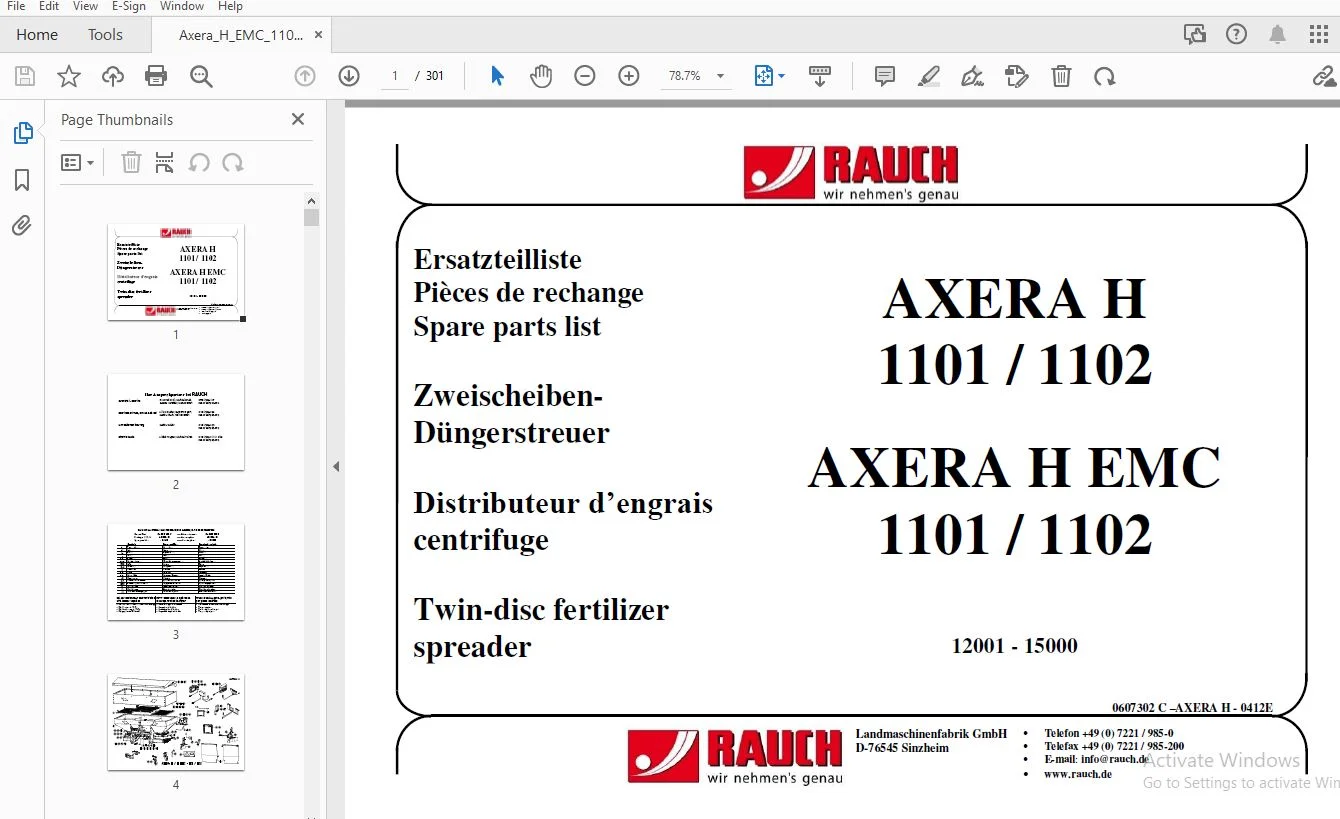

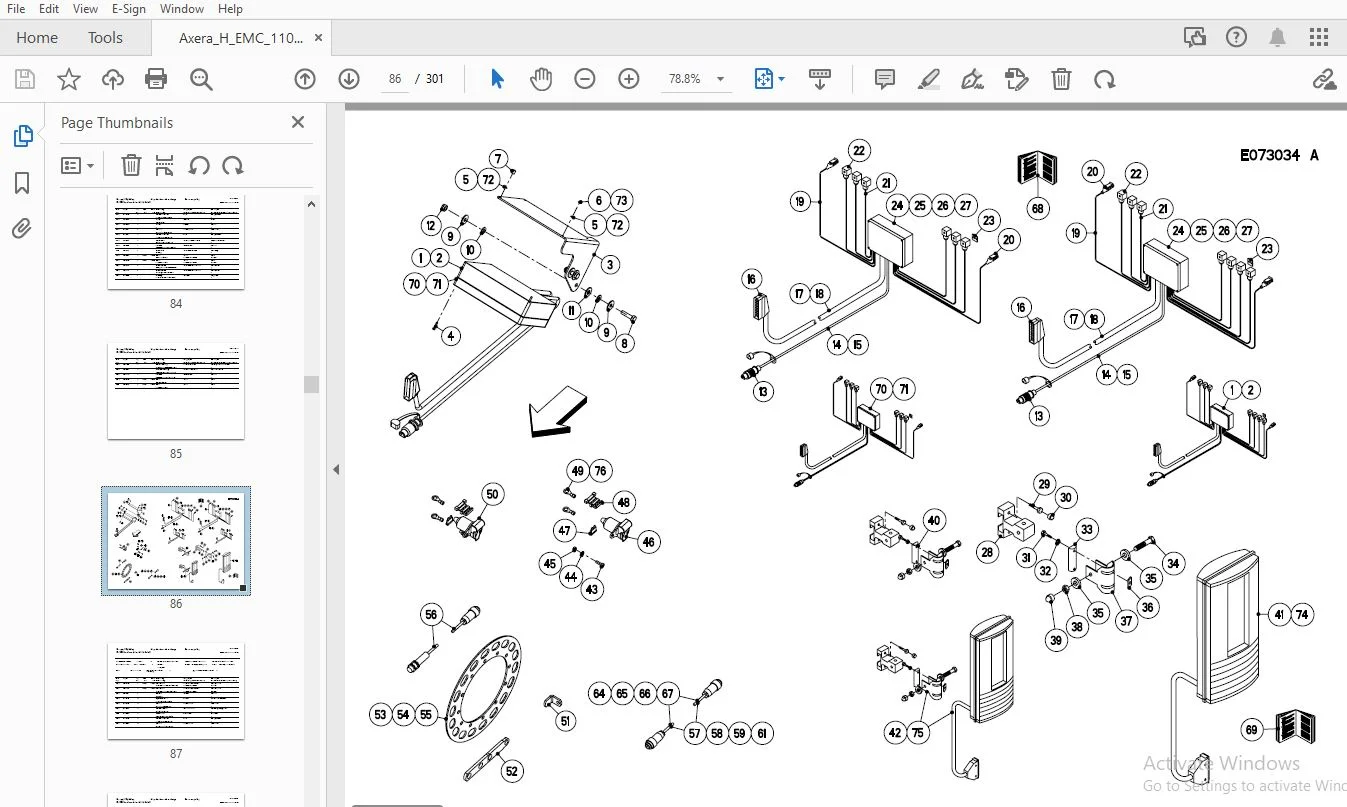

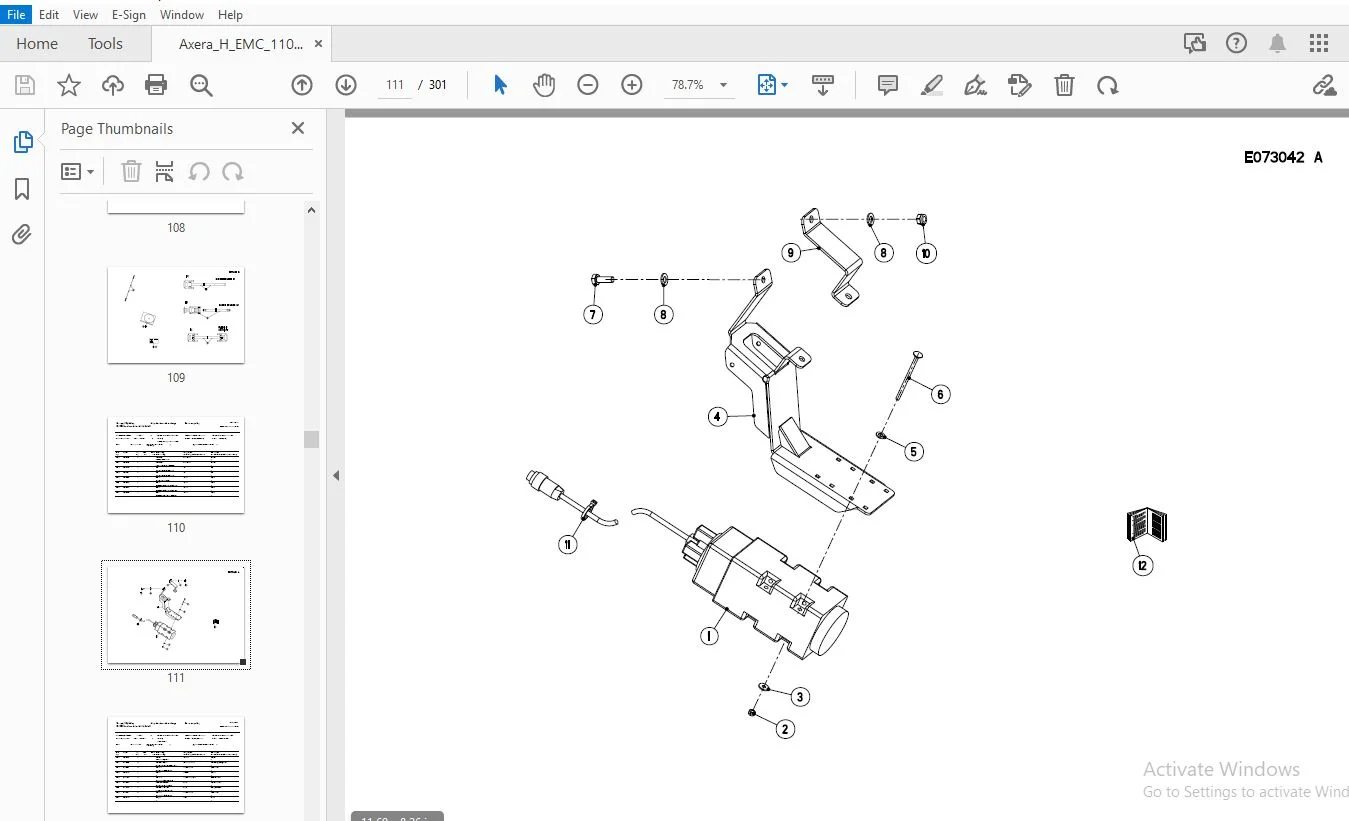

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

RAUCH AXERA H 1101/1102 AXERA H EMC 1101/1102 Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD

• Hopper (Behaelter):
  • Part Number: E073001 B
  • Description: Hopper assembly for AXERA H series.
• Safety Screen (Schutzgitter):
  • Part Number: E073057 B
  • Description: Protective grille.
• Brackets (Schutzbuegel):
  • Variants:
    • E083002 A: Early series 12001 – 12326.
    • E073038 A: Series 12327 – 13630.
    • E073072 A: Series 13631 – 15000.
• Stirring Shaft (Ruehrwerkswelle):
  • Part Number: E073027 A
  • Description: Stirring shaft for AXERA H.
• Hydraulic Motor Console (Konsole):
  • Variants for motor sizes and series:
    • E073030 A & E073058 A: Standard motor console (Series split at 13069).
    • E073039 A & E073059 A: EMC versions.
• Hydraulic Components:
  • Valve Block: E073031 B.
  • Hydraulic Tube: E073060 A (AXERA H), E073061 B (AXERA H EMC).
  • Oil Filter: E073032 A.
• Electrical Components:
  • Electrical Actuator: E073009 A.
  • Electric Remote Control: E073033 A (C1 type).
  • Computer Systems:
    • Quantron L: E073034 A.
    • Quantron P: E073040 A, E073062 C (Series split at 12432).
    • GPS-Control Matrix: E073075 A.
• Spreading Discs (Wurfscheibe):
  • Variants:
    • D 4H-VxR: For 12-42m (E073013 A).
    • D 5H-VxR: For 12-16m (E073014 A).
    • D 6H-Harnstoff: For 18-28m (E073065 B).
    • D 7H-VxR: Up to 36m, Kali (E073076 A).
• Hopper Cover (Behaelterabdeckung):
  • Variants:
    • AP 10/11: E073044 A.
    • AP 250: E084004 A.
    • AP 280: E084005 A.
• Extensions (Aufsatz):
  • Multiple sizes and variants (B 310-B 910, GLB series, GL series).
• Lighting Components (Beleuchtung):
  • With Warning Panels: E083008 A (BLW 11).
  • Without Warning Panels: E073051 A (BLO 3).
  • Advanced Lighting Systems: E083011 A.
• Boundary Spread Limiter (Grenzstreueinrichtung):
  • Variants for different spread ranges: GSE 5 (E073052 A), GSE 11 (E073073 A).
• Remote Control Systems:
  • Electric Remote Control: E073053 B.
  • Hydraulic Remote Control: E073074 A (FHZ 11).
• Additional Components:
  • Parking Stand: E073019 A.
  • Parking Rollers: E073020 A.
  • Mudguard: E073017 A (SFG 4).
• Wiring Diagrams (Schaltplan):
  • Variants include configurations with/without DS for Quantron L/P and AXERA.
• Hydraulic Diagrams:
  • AXERA H: E073037 A.
  • AXERA H EMC: E073066 A.
• Instruction Manuals:
  • Installation Instructions: Stromregler (E073067 A).

S.S 11/24
