Rauch Axis 30.1 40.1 Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD

Description

Rauch Axis 30.1 40.1 Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Rauch Axis 30.1 40.1 Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD

Language : English, German & French
Pages : 166
Downloadable : Yes
File Type : PDF

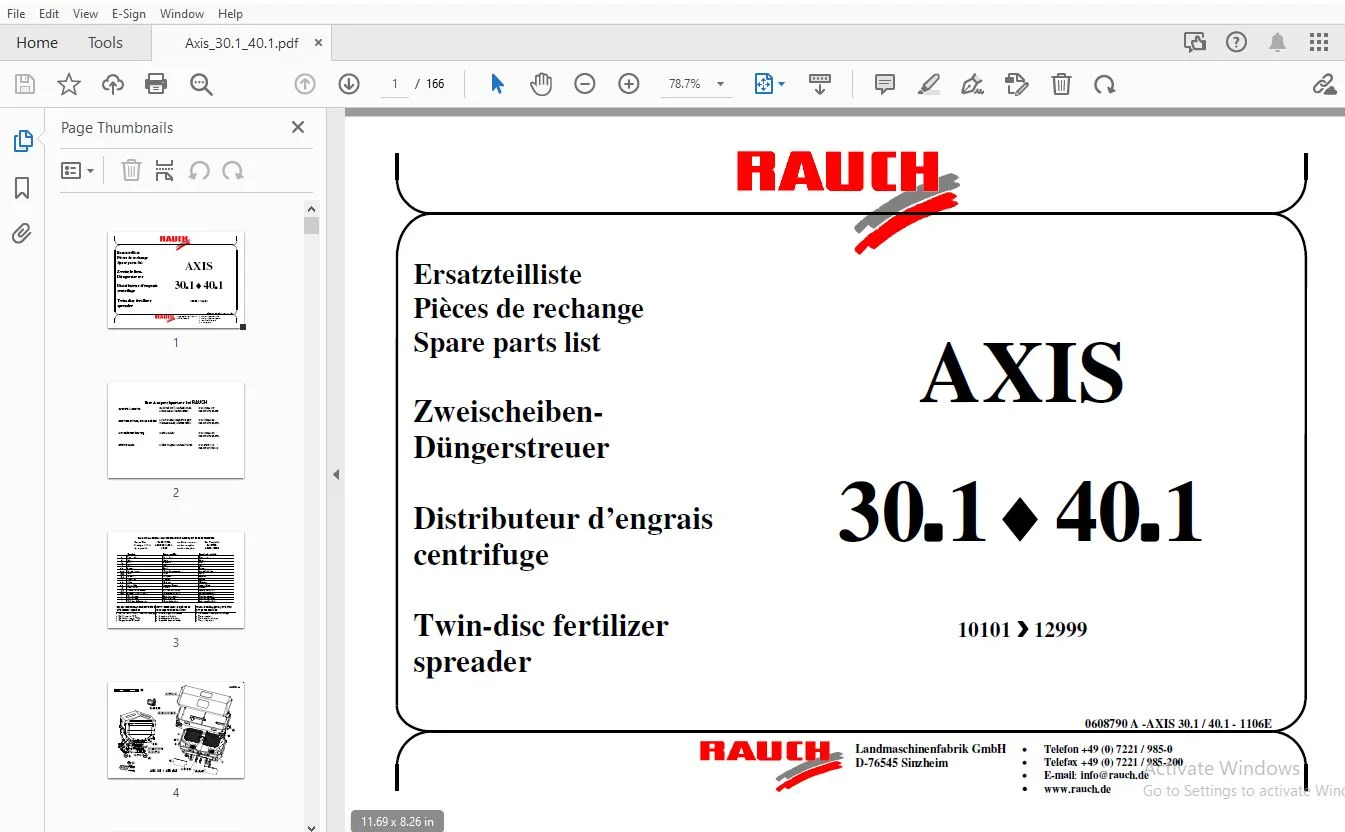

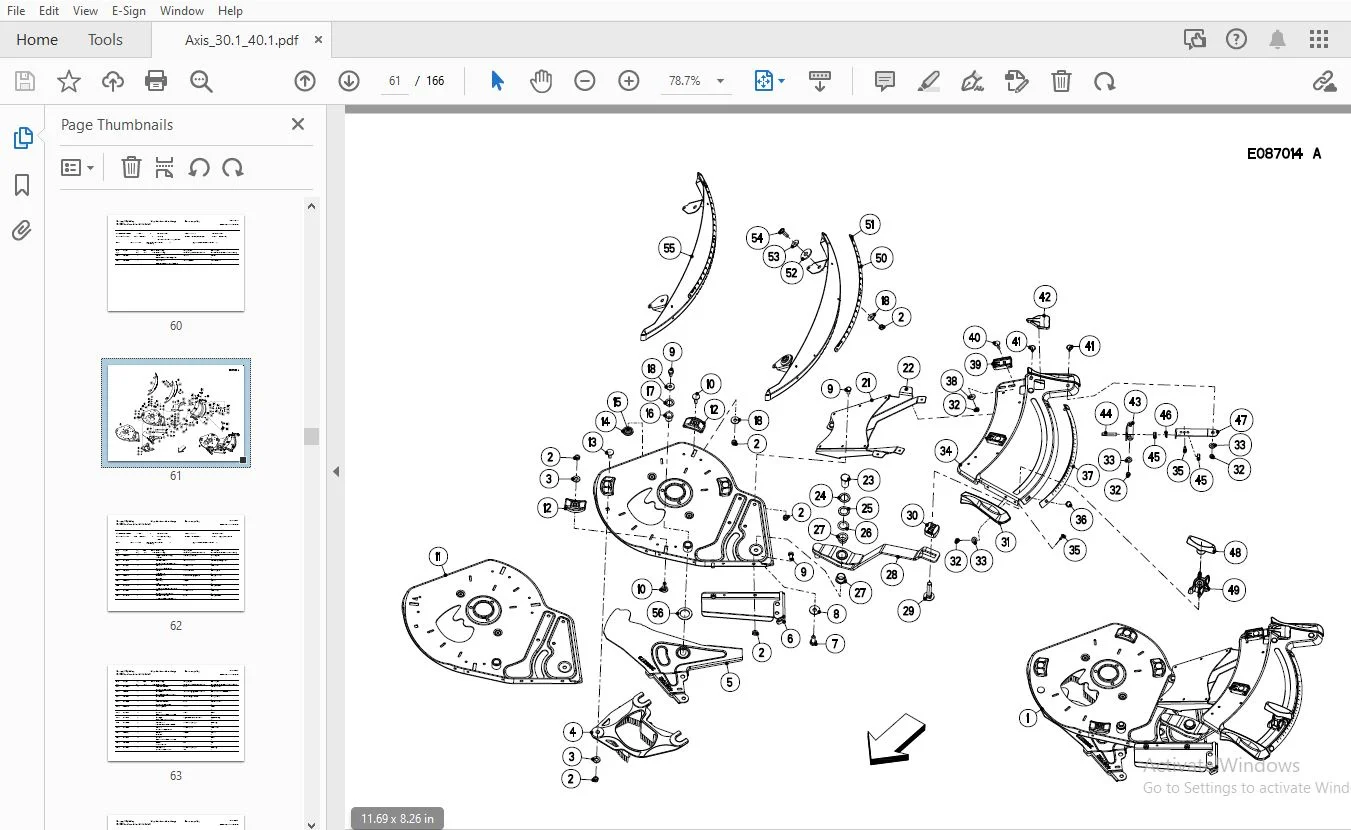

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Rauch Axis 30.1 40.1 Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD

• Hopper (Behaelter):
  • Part Number: E087001 A
  • Description: Hopper assembly for AXIS 30.1 / 40.1 series.
• Sieve (Einfuellsieb):
  • Part Number: E087002 A
  • Description: Input sieve for filtration.
• Bracket (Schutzbuegel):
  • Part Number: E087003 A
  • Description: Protective bracket for AXIS 30.1 / 40.1 series.
• Agitator (Ruehrwerk):
  • Variants:
    • E087004 A: For earlier series 10101 – 11814.
    • E087049 A: For later series 11815 – 12999.
• Gearbox (Getriebe):
  • Variants:
    • E087005 A: Gearbox assembly.
    • E087006 A: Gearbox, drive components.
    • E087007 A: Gearbox, driven components.
• Remote Control (Fernbedienung):
  • Hydraulic Remote Control:
    • E087008 A: Single-acting hydraulic control (EW).
    • E087009 A: Double-acting hydraulic control (DW).
  • Electrical Actuator:
    • E087010 A & E087048 A: Quantron E versions.
• Computer Systems (Rechner):
  • Part Number: E087011 A
  • Description: Quantron E computer for system management.
• Update and Sensor Kits (Teilesatz):
  • Update Kit: E087012 A
  • Speed Sensor Kit: E087013 A
  • GPS Sensor Kit: E087046 A
• Adjustment Devices (Verstelleinrichtung):
  • Left Side: E087014 A
  • Right Side: E087015 A
• Protectors and Discs:
  • Disc Protector: E087016 A
  • Spreading Discs:
    • E087017 A – E087021 A: Various spread ranges (yellow, red, green, orange).
• Blade Kits (Wurffluegelsatz):
  • Anti-Limaces Slug Killer Kits:
    • E087050 A: Z14-L/R for S2/S4 discs.
    • E087051 A: Z16-L/R for S6 discs.
    • E087052 A: Z18-L/R for S8 discs.
• Extensions (Aufsatz):
  • Various hopper extensions for increased capacity:
    • L 603: E087023 A.
    • L 800: E087024 A.
    • L 1500: E087025 A.
    • XL variants (1103, 1300, 1800).
• Hopper Covers (Behaelterabdeckung):
  • Standard Cover: E087028 A (AP-L 25).
  • Extension Covers: APE-L 25, AP-XL 25, APE-XL 25.
• Lighting Systems (Beleuchtung):
  • Basic Systems: BLO 25 + BLW 25.
  • Advanced Systems: BLF 25-vorne (with warning signs).
• Mudguards (Schmutzfaenger):
  • Part Number: E087032 A
  • Description: SFG 25.
• Parking Accessories:
  • Parking Rollers: E087033 A (ASR 25).
• Stickers and Identification (Aufkleber):
  • Part Number: E087054 A
  • Description: AXIS 30.1 / 40.1 branding stickers.
• PTO Drive Shafts (Gelenkwelle):
  • Variants:
    • E0875259 A: SD 05, 3/8″x810xD30.
    • E0875260 A: T-S-SD05.
    • E0875379 A: SD05KNP8x32x38.

S.S 11/24
