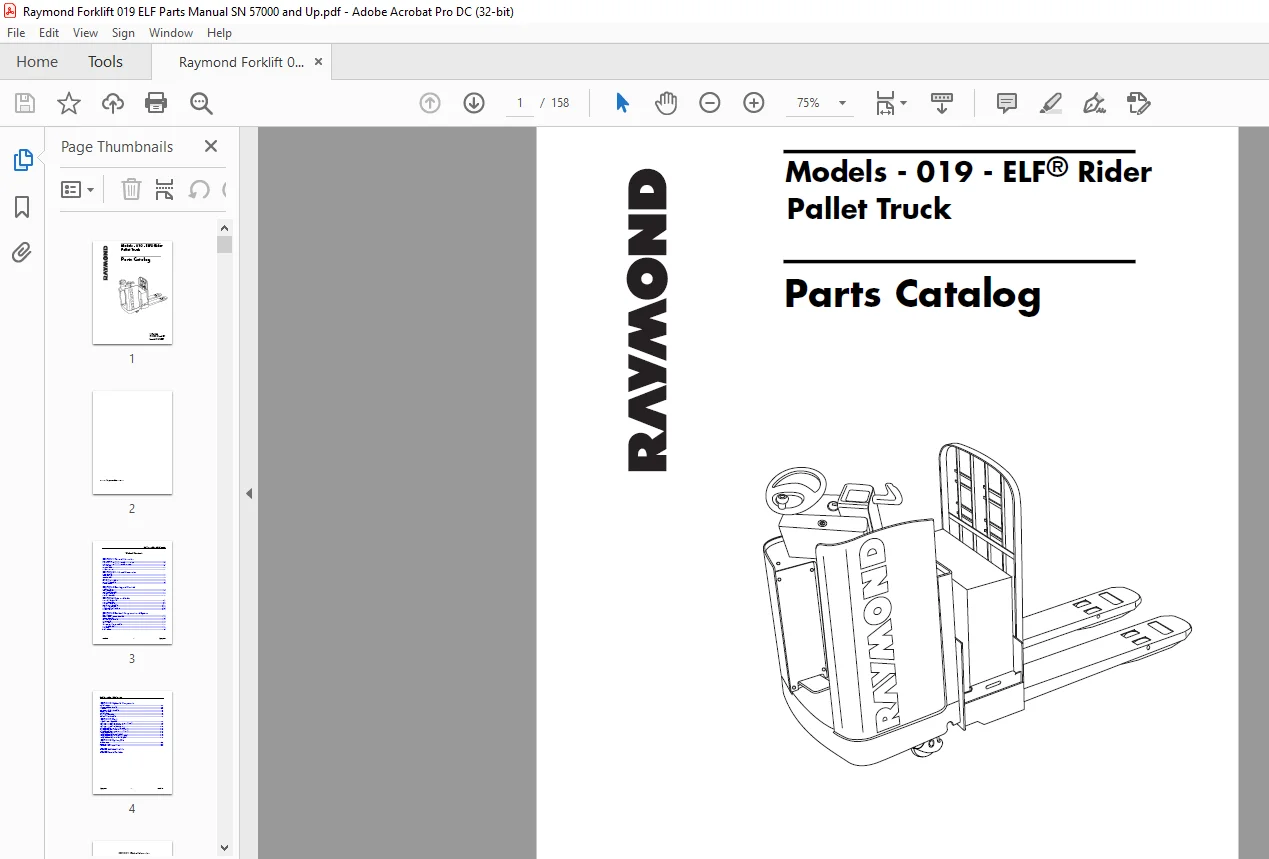

Raymond Forklift 019 ELF Rider Pallet Truck Parts Catalog Manual SN 57000 and up – PDF DOWNLOAD

Description

Raymond Forklift 019 ELF Rider Pallet Truck Parts Catalog Manual SN 57000 and up – PDF DOWNLOAD

FILE DETAILS:

Raymond Forklift 019 ELF Rider Pallet Truck Parts Catalog Manual SN 57000 and up – PDF DOWNLOAD

Language : English
Pages : 158
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Raymond Forklift 019 ELF Rider Pallet Truck Parts Catalog Manual SN 57000 and up – PDF DOWNLOAD

To Our Customer :
The Part Numbers in this Parts Catalog were correct at the time your truck was manufactured. It is our
policy to constantly improve our products, therefore, part numbers may continue to change. When
ordering parts, verify part numbers through your Dealer’s Parts Catalog, which is kept up to date. Also note
that Illustrations of assemblies and components may not necessarily conform to the exact installation as they
appear on your truck.
Tips for Ordering Parts:
In addition to Part Number and Description, have available:
• The model number and serial number of the truck
• Pertinent specifications such as mast height, battery voltage, drive motor type, etc.
• Pertinent name plate data
• Applicable installation or assembly numbers
• Accurate Part Number
Using This Catalog:
This Catalog contains navigational aids to help you locate specific parts information.
• Use Section 1 to decide where to start your search for information. The overall
locator views define the technical configuration of the Catalog and tie the figures in
the Catalog to the engineering database.
• Use the Table of Contents to locate assemblies and subassemblies by name.
• Use the Alphabetical Index (by Part Name) and the Numerical Index (by Part
Number) to locate individual parts.
• Determine configuration differences with the “Used On” codes contained within the
Parts List. The “Used On” code attaches a part number to a wide range of design
variables such as operating voltage, battery size, steering type, mast height and
extension speed, fork carriages, color and size of tires, guide wheel specs, etc.

TABLE OF CONTENTS:

Raymond Forklift 019 ELF Rider Pallet Truck Parts Catalog Manual SN 57000 and up – PDF DOWNLOAD

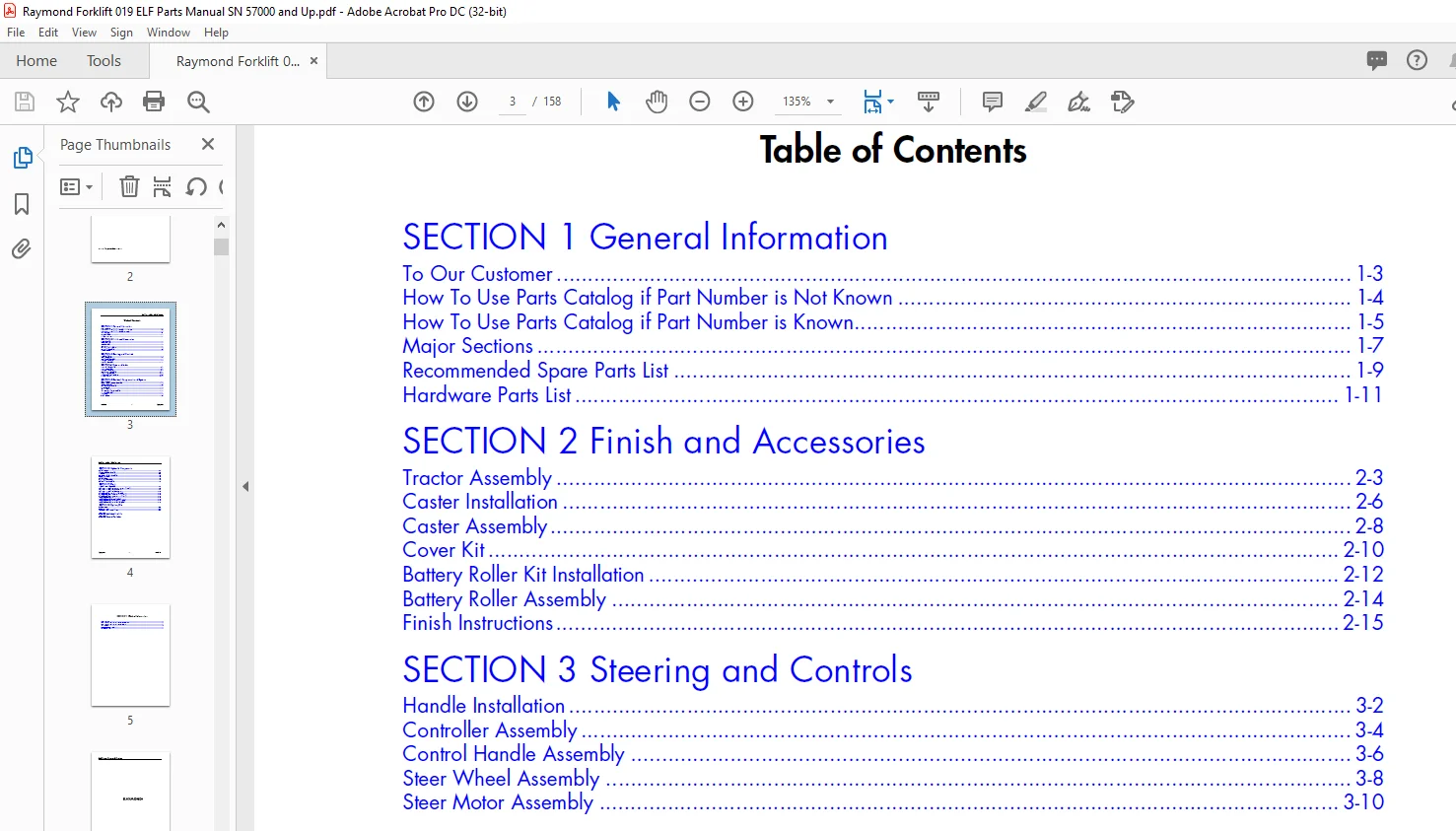

SECTION 1 General Information
To Our Customer 1-3
How To Use Parts Catalog if Part Number is Not Known 1-4
How To Use Parts Catalog if Part Number is Known 1-5
Major Sections 1-7
Recommended Spare Parts List 1-9
Hardware Parts List 1-11
SECTION 2 Finish and Accessories
Tractor Assembly 2-3
Caster Installation 2-6
Caster Assembly 2-8
Cover Kit 2-10
Battery Roller Kit Installation 2-12
Battery Roller Assembly 2-14
Finish Instructions 2-15
SECTION 3 Steering and Controls
Handle Installation 3-2
Controller Assembly 3-4
Control Handle Assembly 3-6
Steer Wheel Assembly 3-8
Steer Motor Assembly 3-10
SECTION 4 Drive and Brake
Drive and Brake Assembly 4-3
Drive Unit Assembly 4-6
Drive Wheel Assembly 4-8
Lower Drive Unit Assembly 4-10
Drive Unit Subassembly 4-12
Brake Assembly with Deadman 4-14
Brake Installation 4-16
SECTION 5 Electrical Components and Systems
Electrical System 5-3
Forward/Reverse Contactor Assembly 5-12
Contactor Assembly 5-14
Battery Connector Assembly 5-16
Ignition Switch 5-18
Meter Installation 5-19
Maintenance Tool, programmable 5-20
Horn Assembly Installation 5-21
Drive Motor 5-22
Auxiliary Motor 5-24
Model 019 Walkie – Table of Contents
4/12/2007 ii 1072452A
SECTION 6 Hydraulic Components
Hydraulic System 6-2
Lift Pump and Motor Assembly 6-5
Lift Cylinder 6-8
Steer Pump and Motor Assembly 6-10
Reservoir Assembly 6-12
Hydraulic Motor 6-13
Orbitrol Valve Assembly 6-14
Shaft and Flange Assembly 6-16
SECTION 7 Mast
Fork and Tractor Subassembly 7-2
Under Carriage Installation, 6K Up To 60 in Fork Length 7-5
Under Carriage Installation, 6K Over 60 in 7-9
Under Carriage Installation, 8K Over 60 in 7-13
Pull Rod Assembly Up To 60 in Fork Length 7-16
Pull Rod Assembly For 6K Over 60 in Fork Length 7-18
Pull Rod Assembly For 8K Over 60 in Fork Length 7-19
Load Wheel Assembly, 6K 7-20
Load Wheel Assembly 8K Single Wheel 7-22
Load Wheel Assembly, 8K Tandem, Split Wheel 7-24
Load Wheel Assembly, 8K Tandem Full Wheel 7-26
SECTION 8 Options/Kits
Auxiliary Power 8-2
Battery Top Tray 8-4
Load Backrest and Tray Installation 8-5
APPENDIX Alphabetical Parts Index
APPENDIX Numerical Parts Index

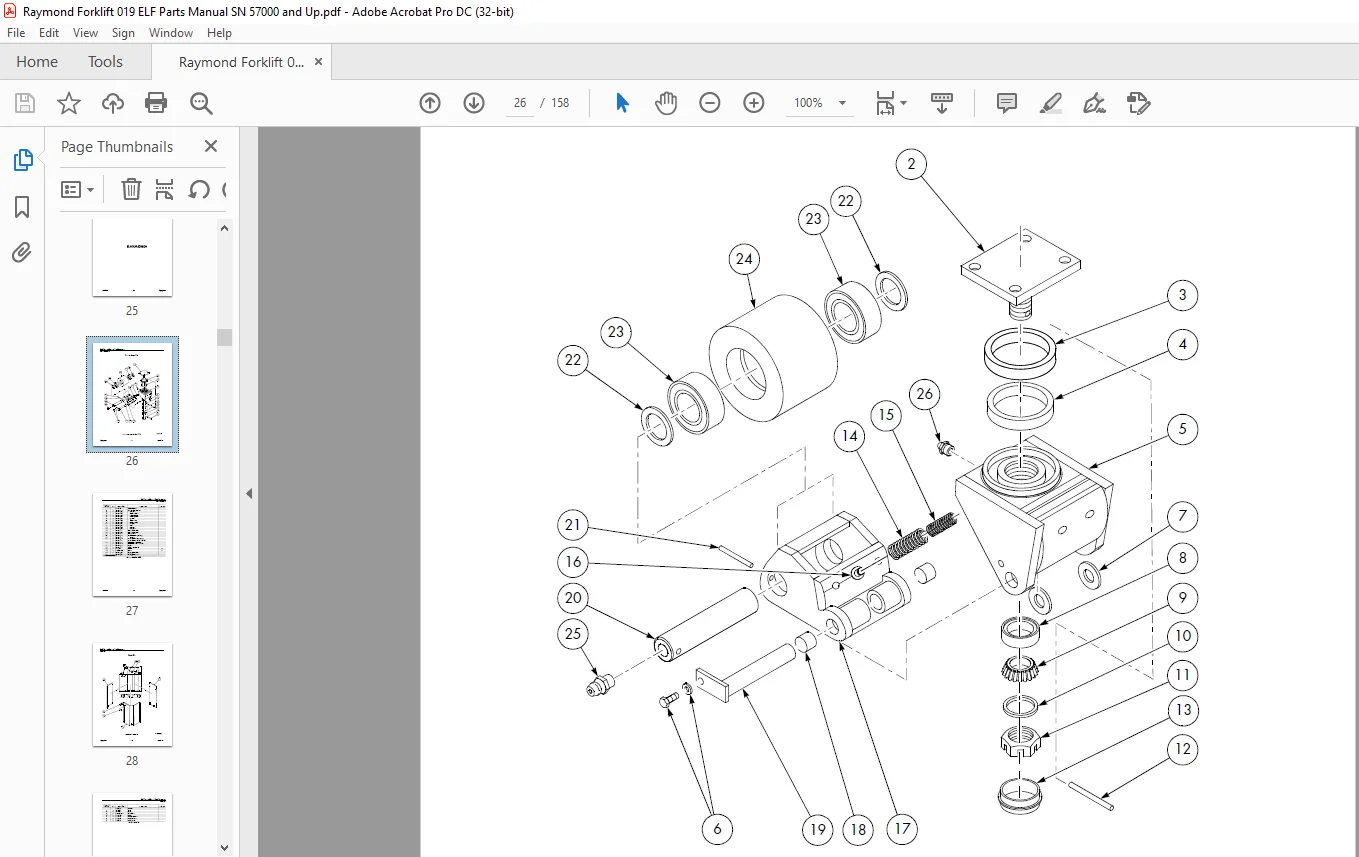

IMAGES PREVIEW OF THE MANUAL:
