Raymond Forklift 111 112 113 114 Walkies Parts Catalog Manual SN 12590 and Up – PDF DOWNLOAD

Description

Raymond Forklift 111 112 113 114 Walkies Parts Catalog Manual SN 12590 and Up – PDF DOWNLOAD

FILE DETAILS:

Raymond Forklift 111 112 113 114 Walkies Parts Catalog Manual SN 12590 and Up – PDF DOWNLOAD

Language : English
Pages : 243
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Raymond Forklift 111 112 113 114 Walkies Parts Catalog Manual SN 12590 and Up – PDF DOWNLOAD

To our Customer:

• The Part Numbers in this Parts Catalog and Advance Change supplement were correct at the time your truck was manufactured. It is our policy at Raymond to constantly improve our products, therefore, part numbers may continue to change.
• When ordering parts, verify part numbers through your Raymond Dealer’s Parts Catalog, which is kept up to date. Also note that Illustrations of assemblies and components may not necessarily conform to the exact installation as they appear on your truck. Supplemental information is provided where lack of similarity to illustrations could impair your ability to rapidly identify replacement parts.

Tips for  Ordering Parts:

In addition to Part Number and Description, have available:
• The model number and serial number of the truck
• Pertinent specifications such as mast height, battery voltage, drive motor type, etc.
• Pertinent name plate data
• Applicable installation or assembly numbers (Included in the Family Tree)
• Accurate Part Number (check Advance Change Data)

Using This Catalog:
This Catalog contains new and revised navigational aids to help you locate specific parts information.

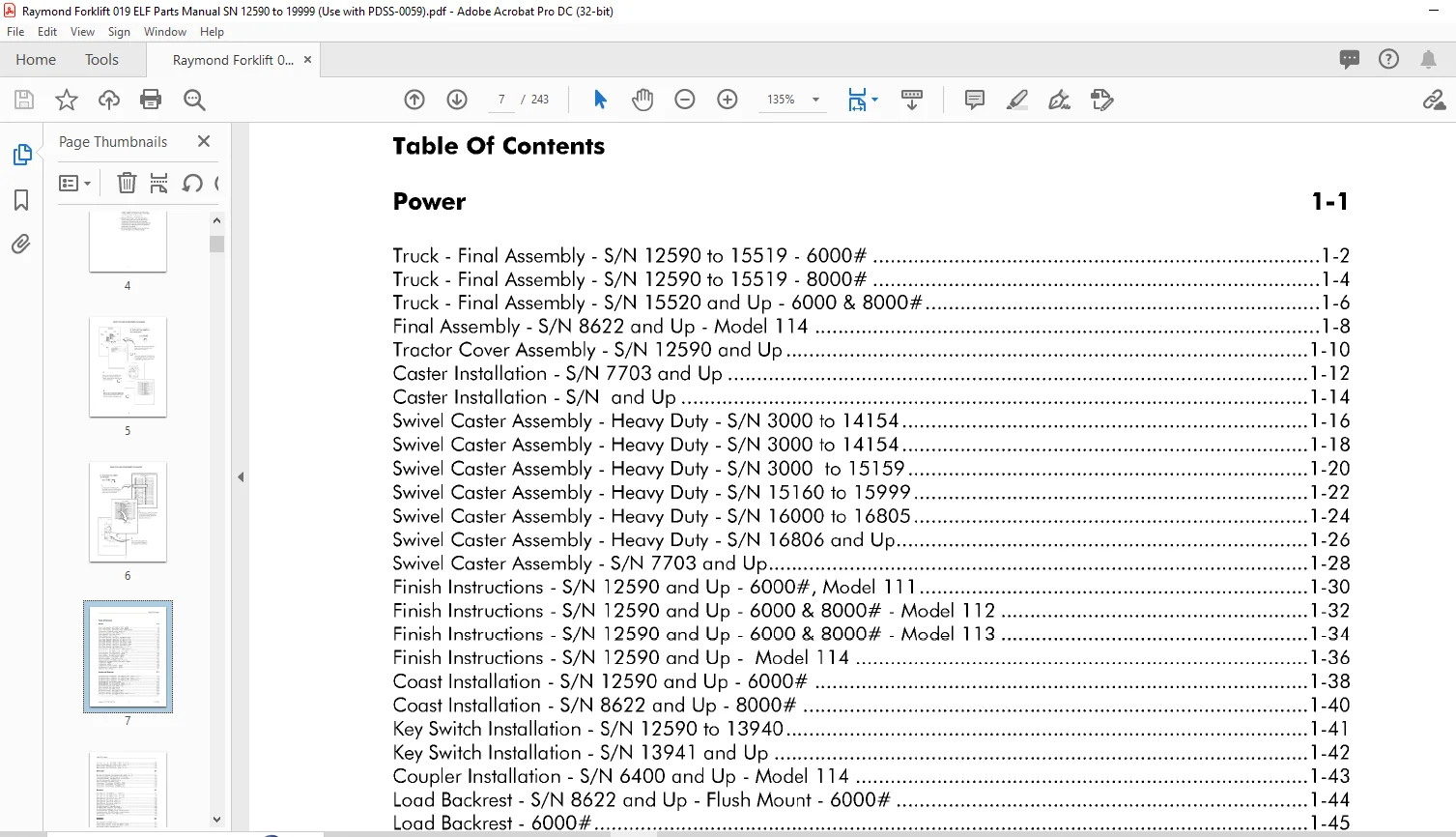

TABLE OF CONTENTS:

Raymond Forklift 111 112 113 114 Walkies Parts Catalog Manual SN 12590 and Up – PDF DOWNLOAD

Power 1-1
Truck – Final Assembly – S/N 12590 to 15519 – 6000# 1-2
Truck – Final Assembly – S/N 12590 to 15519 – 8000# 1-4
Truck – Final Assembly – S/N 15520 and Up – 6000 & 8000# 1-6
Final Assembly – S/N 8622 and Up – Model 114 1-8
Tractor Cover Assembly – S/N 12590 and Up 1- l 0
Caster Installation – S/N 7703 and Up 1-12
Caster Installation – S/N and Up 1-14
Swivel Caster Assembly – Heavy Duty – S/N 3000 to 14154 l -16
Swivel Caster Assembly – Heavy Duty – S/N 3000 to 14154 l -18
Swivel Caster Assembly – Heavy Duty – S/N 3000 to 15159 1-20
Swivel Caster Assembly – Heavy Duty – S/N 15160 to 15999 1-22
Swivel Caster Assembly – Heavy Duty – S/N 16000 to 16805 1-24
Swivel Caster Assembly – Heavy Duty – S/N 16806 and Up 1-26
Swivel Caster Assembly – S/N 7703 and Up 1-28
Finish Instructions – S/N 12590 and Up – 6000#, Model 111 1-30
Finish Instructions – S/N 12590 and Up – 6000 & 8000# – Model 112 1-32
Finish Instructions – S/N 12590 and Up – 6000 & 8000# – Model 113 1-34
Finish Instructions – S/N 12590 and Up – Model 114 1-36
Coast Installation – S/N 12590 and Up – 6000# 1-38
Coast Installation – S/N 8622 and Up – 8000# 1-40
Key Switch Installation – S/N 12590 to 13940 1-41
Key Switch Installation – S/N 13941 and Up 1-42
Coupler Installation – S/N 6400 and Up – Model 114 1-43
Load Backrest – S/N 8622 and Up – Flush Mount – 6000# 1-44
Load Backrest – 6000# l -45
Load Backrest – 8000# l -46
Load Backrest and Tray Installation – 6000# l -48
Load Backrest and Tray Installation – 8000# l -50
Battery Top Tray Installation 1-51
Brake and Steering 2-1
Handle Mounting and Installation – S/N 12590 to 14927 – Model 111, 112 2-2
Handle Mounting and Installation – S/N 14928 and Up – Model 111, 112 2-4
Handle Mounting and Installation – S/N 12590 to 13601 – Model 113, 114 2-6
Handle Mounting and Installation – S/N 13602 and Up – Model 113, 114 2-8
Handle Assembly – S/N 12590 to 13932 2- l 0
Handle Assembly – S/N 13933 and Up – Model 111, 112 2- l 4
Handle Assembly – S/N 13933 and Up – Model 113, 114 2- l 8
Brake Handle Assembly – S/N 12590 and Up 2-22
Control Assembly – S/N 12590 and Up 2-24
Heater Assembly – S/N 12590 and Up 2-25
Handle/Arm Assembly – S/N 12590 to 14927 2-26
Handle/Arm Assembly – S/N 14928 and Up 2-27
Switch Cover Assembly – S/N 12590 to 15519 – Model 111, 112 2-28
Switch Cover Assembly – S/N 15520 and Up 2-29
Models l l l/112/113/114 V 11 /1 /96
Table Of Contents
Switch Cover Assembly – S/N 12590 to 15519 – Model 113 2-30
Switch Cover Assembly – S/N 12590 to 15519 – Model 114 2-31
Brake Assembly – S/N 8622 and Up – Model 111, 112 2-32
Brake Assembly – S/N 12590 and Up – Model 113, 114 2-33
Drive Unit 3-1
Drive Unit Final Assembly – S/N 12590 and Up – Models 111, 112 3-2
Drive Unit Final Assembly – S/N 12590 and Up – Models 113, 114 3-4
Transmission Assembly – S/N 8622 and Up – 24 Volt Rider 3-6
Transmission Assembly – S/N 8622 and Up – 24 Volt Walkie 3-8
Drive Unit Sub-Assembly – S/N 8622 and Up 3- l 0
Motor Sub-Assembly – S/N 8622 and Up 3-12
Traction Motor – 24 Volt Riders – S/N 8622 to 13300 3-14
Traction Motor – 24 Volt Riders – S/N 1330 l and Up 3- 15
Traction Motor – 24 Volt Walkies – S/N 8622 and Up 3-16
Electrical 4-1
System Electrical – S/N 12590 to __ – Model 111 4-2
System Electrical – S/N 12590 to __ – Model 112 4-6
System Electrical – S/N 12590 to __ – Model 113 4- l 0
System Electrical – S/N 12590 to __ – Model 114 4- 14
System Electrical – S/N and Up – Model 111 4- 18
System Electrical – S/N and Up – Model 112 4-22
System Electrical – S/N and Up – Model 113 4-26
System Electrical – S/N and Up – Model 114 4-30
Rail Assembly – S/N 8622 and Up 4-34
Foot Switch Installation – S/N 6400 and Up 4-36
Hour/Battery Meter Installation – S/N 12590 to 4-38
Hour/Battery Meter Installation – S/N and Up 4-40
Contactor Assembly – S/N 8622 and Up – Contact Industries 4-42
Contactor Assembly – S/N 8622 and Up – Contact Industries 4-43
All Travel Alarm Installation – S/N 12590 and Up 4-44
Horn Assembly 4-46
Hydraulic 5-1
Hydraulic System – S/N 8622 and Up 5-2
Pump And Motor Assembly – 24 Volt – S/N 8622 to l 3138 5-4
Pump And Motor Assembly – 24 Volt – S/N 8622 to l 3138 5-6
D A Cylinder – Cessna – S/N 8622 and Up 5-8
D A Cylinder – Bruning – S/N 8622 and Up 5-9
Pump/Motor Assembly – S/N 13139 and Up 5-10
Elevating 6-1
Platform & Rest Assembly – S/N 3000 to 14441 6-2
Platform & Rest Assembly – S/N 14442 and Up 6-4
Entry Roller Installation – 6000# – S/N l 0014 and Up 6-5
Entry Roller Installation – 6000# – S/N l 0081 and Up 6-6
11/1/96 VI Models 111 /11 2/113/114
Table Of Contents
Entry Roller Installation – 8000# 6-8
Load Wheel Assembly – S/N 3000 and Up 6- 10
Load Wheel Assembly – 8000# – Model 112, 113 Long Johns 6- 12
Load Wheel Assembly – S/N 11402 and Up – 8000# 6- 14
Load Wheel Assembly – S/N and Up – 8000# 6- 16
Fork and Tractor Sub-Assembly – 6000# – S/N 8622 to 14441 – 27″ Width 6- l 8
Fork and Tractor Sub-Assembly – 6000# – S/N 14442 and Up – 27″ Width 6-22
Fork and Tractor Sub-Assembly – 6000# – S/N 8622 to 14441 – 24″ Wide 6-26
Fork and Tractor Sub-Assembly – 6000# – S/N 14442 and Up – 24″ Wide 6-30
Fork and Tractor Sub-Assembly – 6000# – S/N 8622 to 14441 – 22″ Wide 6-34
Fork and Tractor Sub-Assembly – 6000# – S/N 14442 and Up – 22″ Wide 6-38
Fork and Tractor Sub-Assembly – 27″ Width – 8000# 6-42
Fork and Tractor Sub-Assembly – 27″ Width – 8000# (January 1997 effectivity) 6-46
Fork Final Assembly 6-50
Battery Roller Kit Installation 6-52
Battery Roller Kit Installation 6-53
Alphabetic Index
Part Number Index

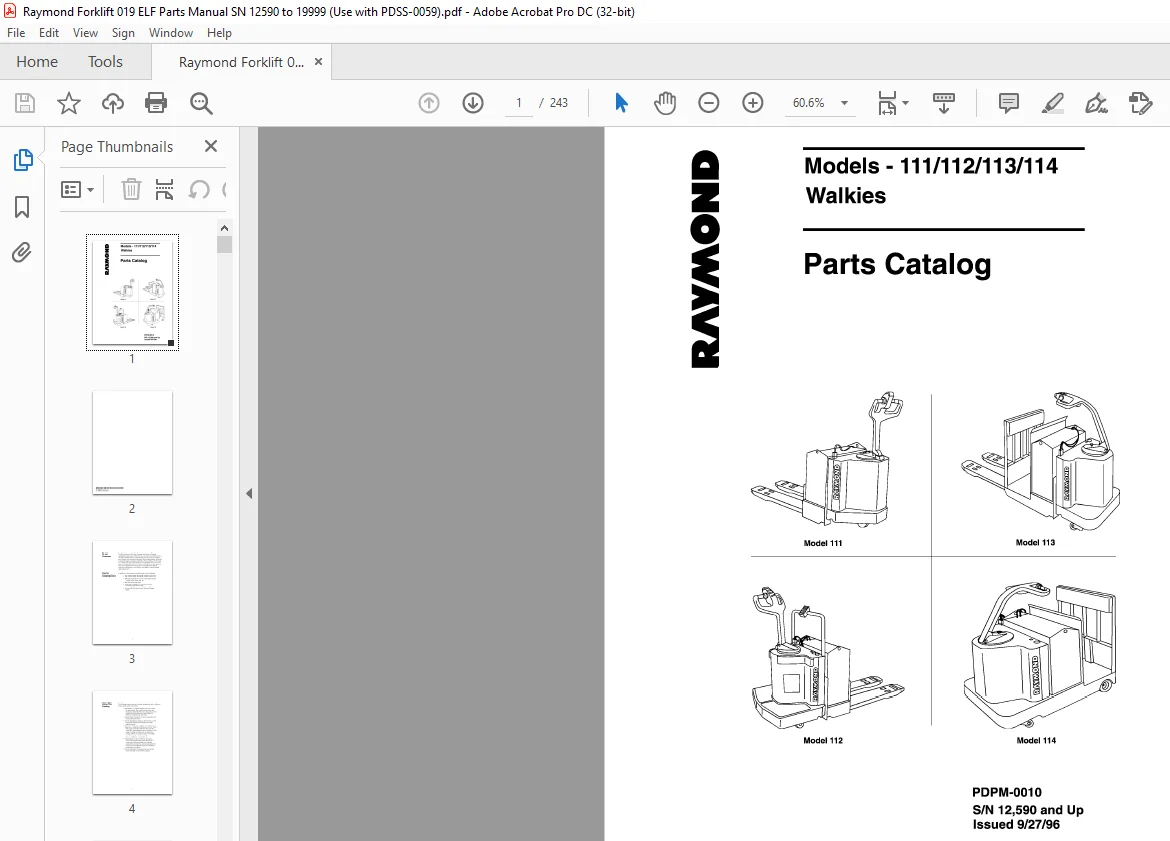

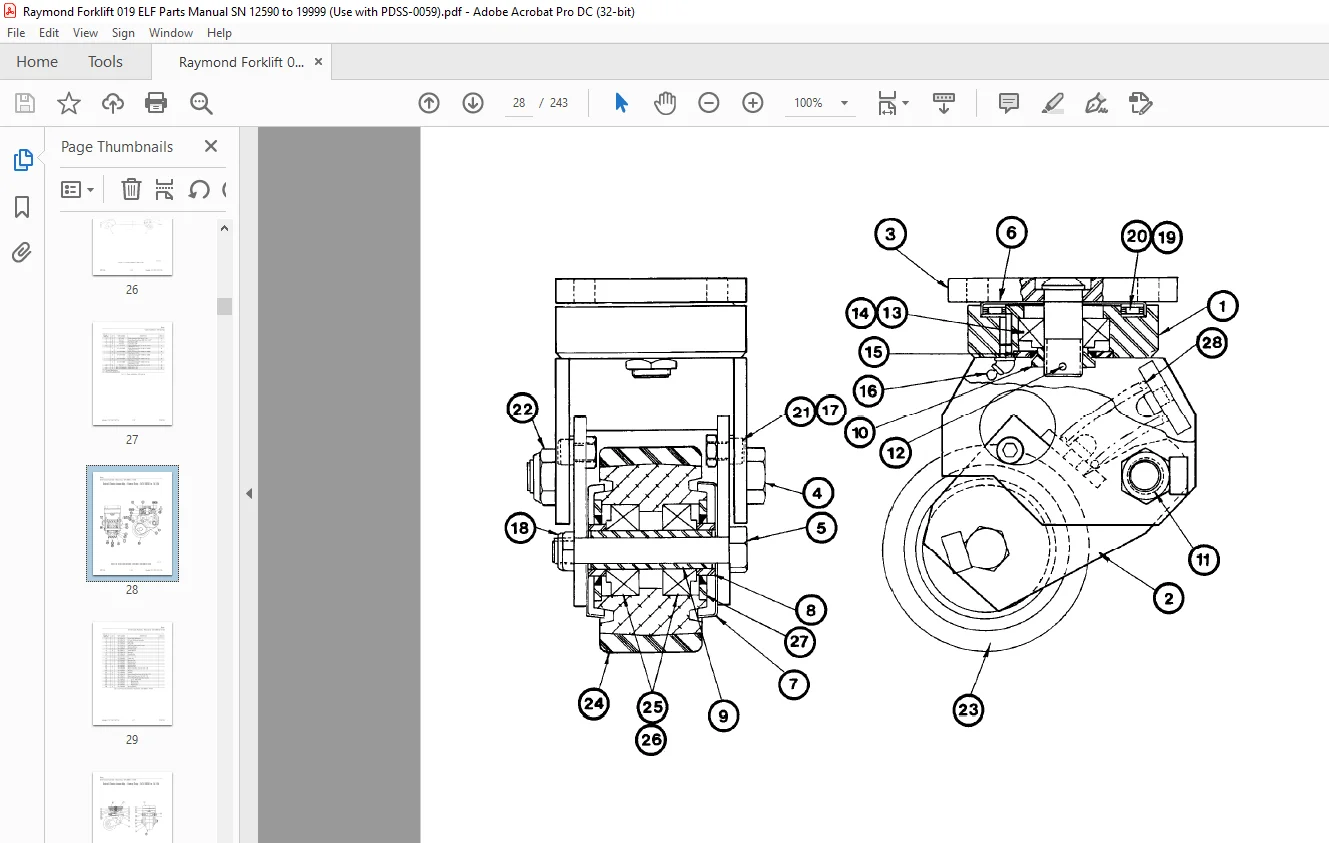

IMAGES PREVIEW OF THE MANUAL:
