Raymond Forklift EASi Orderpicker Parts Catalog Manual SN 9000 Thru 14999 – PDF DOWNLOAD

Description

Raymond Forklift EASi Orderpicker Parts Catalog Manual SN 9000 Thru 14999 – PDF DOWNLOAD

FILE DETAILS:

Raymond Forklift EASi Orderpicker Parts Catalog Manual SN 9000 Thru 14999 – PDF DOWNLOAD

Language : English
Pages : 241
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Raymond Forklift EASi Orderpicker Parts Catalog Manual SN 9000 Thru 14999 – PDF DOWNLOAD

lntroduction to Your Parts Catalog:
The Raymond Corporation manufactures a variety of lift trucks in both standard and customized configurations. The Parts
Catalog is organized into major divisions which cover all areas of the truck. These may indude:

• Power Unit (if applicable)
-.• Broke and Steering
•~ Drive Unit
• Electrical
• Hydraulic (if applicable)
• Elevating/ Attachments
• Contoctors
• Special Options (if applicable)

The catalog contains three elements necessary for effective use, whic:h ore:
1. Quality Assurance Sheet gives specific components in a truck and is located at the beginning of the parts catalog.
2. Table of Contents guides the reader to the correct pages.
3. Customized Prints provide special documentation for customized trucks and are located at the end of the parts catalog.

• In some cases, l.arge assemblies or installations ore broken down over several” pages.
Example: The DRIVE UNIT assembly is shown on one page — the DRIVE MOTOR for this drive unit on another page — the DRIVE WHEEL for this unit on another page.
• Drawings of hydraulic hoses and piping do not necessarily c:onforrri to exod installation os they oppear on the truck.
These illustrations are for part number references only.
• An indented part number indicates the part is a component of the preceding non-indented part and can be ordered separately; however, the component will be included when the non-indented part is ordered.

TABLE OF CONTENTS:

Raymond Forklift EASi Orderpicker Parts Catalog Manual SN 9000 Thru 14999 – PDF DOWNLOAD

POWER 1QQ
Power Section Assembly -114-008-550/ (R) 9000 and Up 101
Finish Instructions – 114-008-552/ (J) Sh 1 9000 and Up 103
Finish Instructions – 114-008-552/ (J) Sh 2 9000 and Up 105
Power Section System Mech – Elec Steer – 114-008-557 / (H) 9000 and Up 107
Power Section System Mech – Manual Steer • 114-008-562 (C) 9000 and Up 109
Side Gate Assembly Install – 114-008-551/ (G) 9000 and Up 111
Mech Guide Roller Install – 114-009-197 / (A) 9000 and Up 113
Mech Guide Roller Install -114-008-211 / (A) 9000 and Up 115
Bolt-On Guide Roller Installation -114-008-586/ (Ct) 9000 and Up 117
Bolt-On Guide Roller Installation – 114-008-836/ (8) 9000 and Up 119
Mech Fire Extig Installation – 114-008-742 (A) 9000 and Up 121
Elec Steer System Mech -1 14-008-568/ (F) 9000 and Up 123
Battery Gates Installation – 114-008-785/ (C)9000 and Up 125
2Stage
Manual Steer System Mech – 11 4-008-565/ (A) 9000 and Up 127
Elevating Section System Mechanical – Manual Steer 114-008-575/ (All Sh 1 9000 and Up 129
Elevatiag Section System Mechanical – Manual Steer• 114-008-575/ (A1) Sh 2 9000 and Up 131
vatirlg Section System Mechanical – Elec Steer -114-008-576/ (A2) Sh 1 9000 and Up 133
levating Section System Mechanical – Elec Steer • 114-008-576/ (A2) Sh 2 • 9000 and Up 135
3 Stage
Manual Steer System Mech -1 14-008-564/ (A1) 9000 and Up 137
Elevating Section System Mechanical – Manual Steer • 114-008-573/ (A1) Sh 1 9000 and Up 139
Elevating Section System Mechanical – Manual Steer -114-008-573/ (A1) Sh 2 9000 and Up 141
Elevating Section System Mechanical – Elec Steer -114-008-574/ (J) Sh 1 9000 and Up 143
Elevating Section System Mechanical – Elec Steer• 114-008-574/ (J) Sh 2 9000 and Up 145
Mech Guide Roller Install -11 4-008-975/ (A) 9000 and Up 147
BRAKE AND STEERING 200
Brake Pedal Assembly-114-008-656 (C1) 9000 to 201
Brake Pedal Assembly – 114-008-884 (A) and Up 2011
Mech Steer Control Assembly – Manual Steer -114-008-571 (E) 9000 and Up 203
Elec Steer Control Assembly – Elec Steer • 114-008-572 (F) 9000 and Up 205
Brake Assembly – Var Spd Lift/ Lower, 6r Dia Drive Motor – 605-008/ 200 9000 to 11298 209
Brake Assembly-var Spd Lift/ Lower, sr Dia Drive Motor- 605-013/ 200 11299 and Up 2091
Brake Assembly – Sin Spd Lift/Lower, 55″ Dia Drive Motor- 605-009/ 200 9000 to 11262 213
Brake Assembly – Sin Spd Utt/Lower, 55· Dia Drive Motor – 605-014/ 200 11263 and Up 215
DRIVE UNIT 300
Drive Unit Assembly- E-114-515/ (H) 9000 to 10383 301
Drive Unit Assembly- E-114-516/ (B) 10384 to 10843 301 1
Drive Unit Assembly – E-114-517 / (A) 10844 and Up 3012
Gear Reducer Sub-Assembly – 828-004-096/ (J) 9000 to 10383 303
Gear Reducer Sub-Assembly – 828-004-577 / (D) 10384 and Up 3031
Drive Motor (24/36V) – 570-279/ 500 9000 and Up 305
Drive Motor (24V) • 570-283/ 500 9000 and Up 307
Gearbox & Motor Assembly- 24V -114-008-594/100 9000 and Up 309
Gearbox & Motor Assembly – 36V – 114-008-595 9000 to 10756 311
ELECTRICAL
Standard Electrical Symbols
Wiring Schematic – 114-008-521 (C) Sh1 9000 to
Wiring Schematic – 114-008-521 (C) Sh2 9000 to —
Wiring Schematic – 114-008-521 (E) Sh1 and Up
Wiring Schematic – 114-008-521 (E) Sh2 and Up
Power Section Electrical Sys – Bee Steer -114-008-555/ M Sh1 9000 and Up
Power Section Electrical Sys – Bee Steer – 114-008-555/ M Sh2 9000 and Up
Power Section Electrical Sys – Bee Steer – 114-008-555/ M Sh3 9000 and Up
Power Section Electrical Sys – Manual Steer – 114-008-556/ (R) Sh1 9000 and Up
Power Section Electrical Sys – Manual Steer – 114-008-556/ (R) Sh2 9000 and Up
Heatsink Assembly – 154-010-738/ (S) 9000 and Up
Heatsink Assembly- Regen -114-008-892/ {F) 9000 and Up
Carriage Electrical System – Manual Steer – 114-008-566/ (J1) 9000 and Up
Carriage Electrical System – Elec Steer – 114-008-567 / (M) 9000 and Up
System Elec Finishing – 114-008-561 / (G) 9000 and Up
Detector Assembly – 828-003-420/ (J) 9000 and Up
Control Handle Assembly – 114-008-690 / (G) Sh1 9000 and Up
Control Handle Assembly – 114-008-690/ {G) Sh2 9000 and Up
Control Handle Assembly- 114-008-690/ (G) Sh3 9000 and Up
Electrical Connector Assy – 114-008-634/ (C) 9000 and Up
Electric Lights/ Fan Installation – 114-009-568/ (G) 9000 and Up
Light Assembly-114-009-567 / (6) 9000 and Up
Electric Lights/ Fan Installation (Cold Storage) – 114-009-565/ (C) 9000 and Up
Elec Warning Light Installation – 114-008-583/ (6) 9000 and Up
Contact or Assy – 154-010-732 / (F) 9000 and Up
~ l’~on~ctor Assembly- ~54-010~783 (B) 9000 and up
Litfi1t~w1tch Install, Elevating Section – 114-008-582/ (C) 9000 and Up
L~it”ilvitch Installation, Platform – 114-008-580/ (C) 9000 and Up
Elec Lift Limit Switch lnstal – 114-008-581 / (A 1) 9000 and Up
Elec Lower Limit Switch lnstal – 114-008-744 (A) 9000 and Up
Elec By-Pass Switch lnstal – 114-008-745 (A) 9000 and Up
Elec Travel Cut-Out Switch lnstal – 114-008-746/ (A1) 9000 and Up
Aisle Sensor Installation – 114-008-739/ (C) 9000 and Up
Motion Alarm Installation – 114-008-910 / (D) 9000 and Up
Electrical Sensor Install – Elec Steer – 114-008-849 (C) 9000 and Up
Elec Power Option Installation – 114-008-886/ (B) 9000 and Up
Flow Sensor Assembly – 114-008-702 (D) 9000 and Up
Tractor Manager Assembly – 154-010-745/ (M) 9000 to 9323
Tractor Manager Assembly – 154-01 0-786/ (C1) 9324 and Up
Steer Manager Assembly – 154-010-769/ (81) 9000 and Up
Steer Manager Assembly – 154-010-785/ (A) and Up
Smarti Installation -114-008-710/ (F)9000 and Up
Tractor Firmware Installation – 114-008-750/ (E1) 9000 and Up
Steer Firmware Installation – 114-008-752/ (D) 9000 and Up
Smarti Firmware Installation – 114-008-228/ 001 (A2) 9000 and Up
Carriage Firmware Installation – 114-008-751/ (E1) 9000 and Up
Frame Assembly-Ant Elec Sec – 114-008-620 (C) 9000 and Up
Frame Assembly – Tractor Sect -114-008-621 (B) 9000 and Up
Standard Hydraulic Symbols
Hydraulic Schematic – 114-008-709 (E) 9000 and Up
Hydraulic Manifold Installation – Single Speed Lift/ Lower – 114-008-577 / (E) 9000 and Up
Lift/ Lower Valve – 3 Stage, Single L/ L – 520-870 / 100 9000 and Up
Hydraulic Manifold Installation – Variable Speed Utt/ Lower-114-008-578/ (K) 9000 and Up
Lift/ Lower Manifold Assembly – 2 Stage, Single L/ L- 114-008-961 (A) 9000 and Up
Lift/ Lower Manifold Assembly- 2 Stage, W/lntellidrive – 114-008-256 9000 and Up
Lift/ Lower Manifold Assembly – 3 Stage, W/lntellidrive – 114-008-721 (A) 9000 and Up
Lift/ Lower Manifold Assembly- W/lntellispeed-114-018-702/001 (A) 9000 and Up
Lift/ Lower Valve – 520-872/ 1 oo 9000 and Up
Lift/ Lower Valve – 2 Stage, W/ lntellidrive – 520-878/ 100 9000 and Up
Reservoir – 114-008-771 (A 1) 9000 to 9350
Reservoir – 114-008-949 (A) 9351 and Up
Lift Pump & Motor Assembly – Single Speed Litt/ Lower – 114–011-010 (A3) : 9000 to
Lift Pump & Motor Assembly – Single Speed Litt/ Lower – 114-008-706 (A2) and Up
Lift Motor – Single Speed Litt/Lower -570-268/500, 501 8000 and Up
Lift Pump & Motor Assembly (24V) – Variable Speed Lift/ Lower – 114-008-707 / (A 1) 9000 to
Lift Pump & Motor Assembly {24V-EE) – Var Speed Utt/Lower -114-009-203/012 (E) and Up
Lift Pump Motor – Variable Speed Litt/Lower- {24V EE Prestolite) – 570-235/100 001 and Up
Lift Pump Motor – Variable Sp~ll’d Lift/!ow’ilr – {24V G’ilMral El’ilCtric) – 570-235/200 001 to
Lift Pump Motor – Variable Speed Litt/Lower – (24V) – 570-235/ 400 001 to __
Lift Pump Motor – Variable Speed Lift/Lower – (24V Advanced DC) 570-235/500 001 to
Lift Pump & Motor Assembly (36V) – Variable Speed Litt/ Lower – 114-008-708/ {A1) 9000 to
Lift Pump & Motor Assembly (36V-EE) – Var Speed Lift/Lower – 114-009-204/012 (E) and Up
Lift Pump Motor – Variable Speed Utt/Lower (36V EE Prestolite) 570-236/100 001 and Up
Lift Pump Motor – Variable Speed Lift/Lower• (36V General Electric) • 570-236/200 001 to
Lift Pump Motor – Variable Speed Lift/Lower (36V) • 570-236/ 400 001 to
Lift Pump Motor – Variable Speed Lift/Lower• (36V Advanced DC)• 570-236/500 001 to
Lift Pump & Motor Assembly {24/36V) • Variable Speed Litt/Lower• 114-008-888/ (B)& Up
Lift Motor (24/ 36V) – 570-280/ 500 – & Up
Lift Motor (24/ 36V} – 570-280/ 501 – & Up
Gear Pump· (24V EE) – 500-348/ 100 –& Up
Lift Pump – (24V EE) – 500-348/ 350, 150 & Up
Gear Lift Pump – (24V EE) – 500-348/200, 300 –& Up
Lift Pump {36V EE) – 500-423/, 500-427  & Up
ELEVATING
Elevating Section (2 Stage) – 114-008-733/ (A) 9000 and Up
Elevating Section (95 OACH & Less) – Single Speed Lift/ Lower – 114-008-725 / (A 1) 9000 and Up
Elevating Section {95 OACH & Less) – Variable Speed Lift/Lower -114-008-727 / (B) 9000 and up
Elevating Section (96 OACH & Up) – Single Speed Lift/Lower 114-008-726 (A) 9000 and Up
Elevating Section (96 OACH & Up) -var Speed Lift/ Lower-114-008-728/ (A1) 9000 and Up
Mech Pallet Clamp Installation – 114-008-553/ (D)9000 and Up
Cylinder Assembly-114-007-698/ (C) & 699/ (C) 5000 and Up
Cylinder Assembly-114-006-099/ (B) 001 and Up
End Cap Pulley Assembly -1 14-008-664 (B1) 9000 and Up
Pulley Assemblies -114-008-858 (B), 114-009-527 (A)
Pulley Assemblies – 114-008-616 (A), 114-008-617 (C), 114-008-814 (B) 9000 and Up
Platform Extension Assembly-114-008-584/ (B) 9000 and Up
Platform Extension Assembly – 114-009-199 (A) 9000 and Up
Mech Fork Installation – 114-008-585/ (C) 9000 and Up

Customer Support: [email protected]

https://vimeo.com/835127789?share=copy

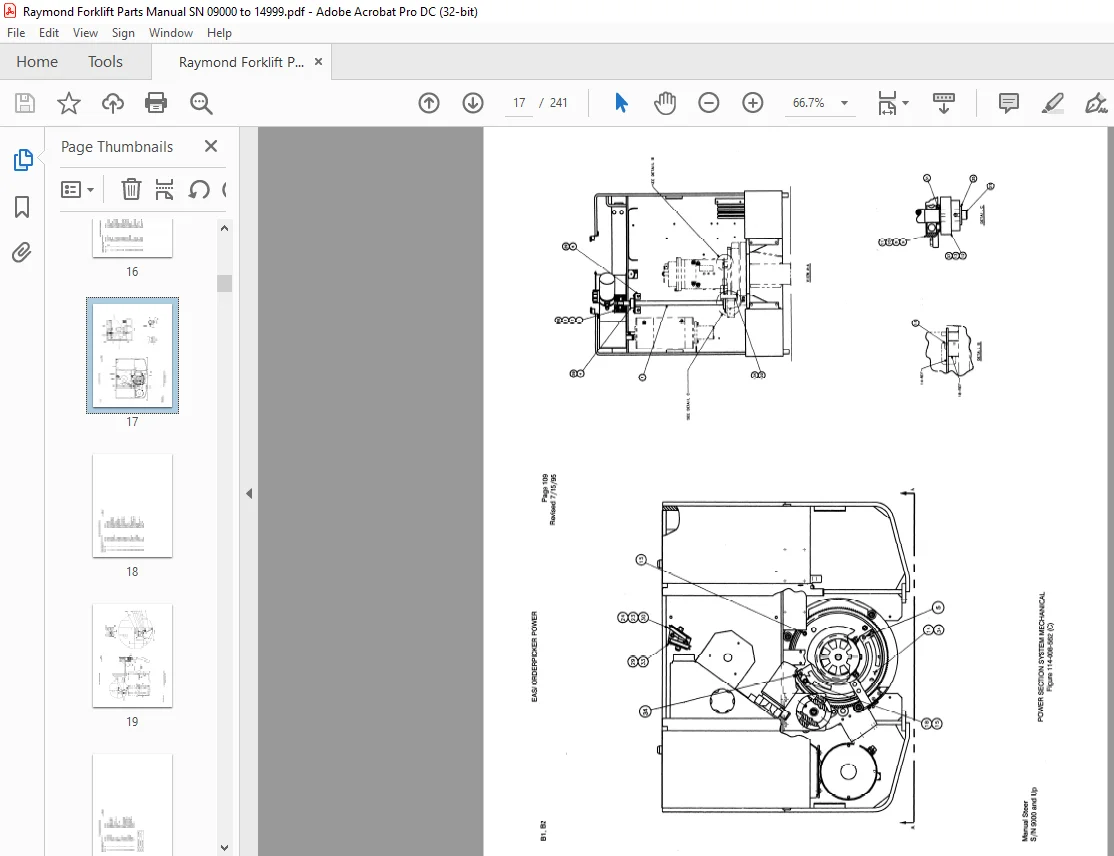

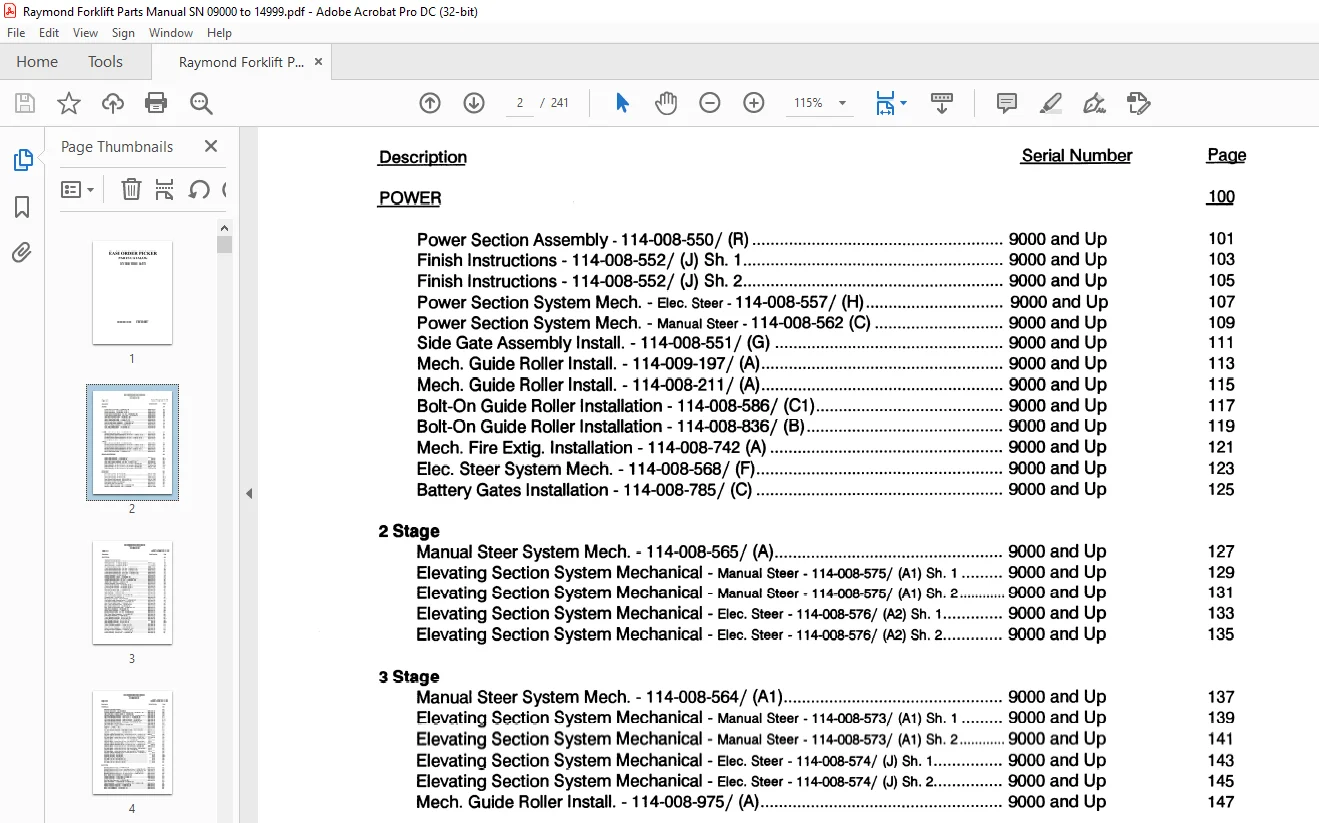

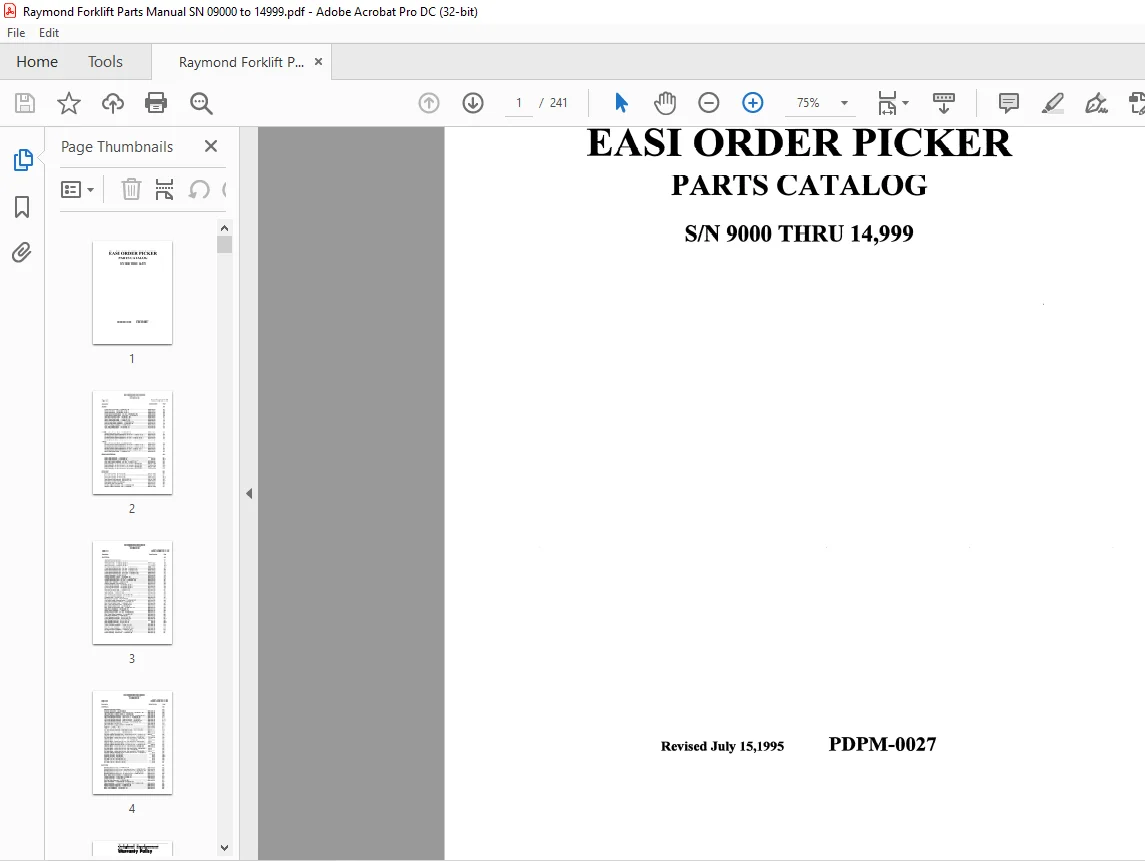

IMAGES PREVIEW OF THE MANUAL:
