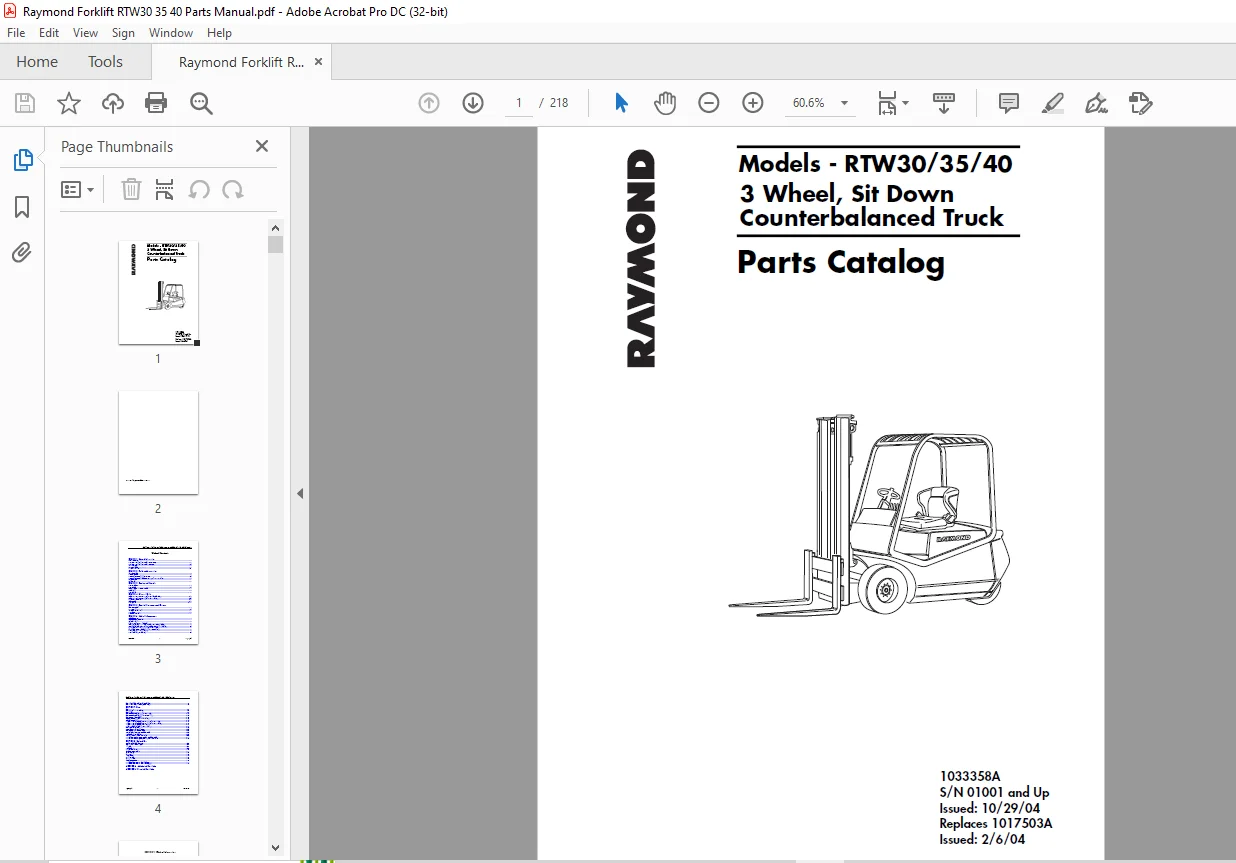

Raymond Forklift RTW303540 3 Wheel, Sit Down Counterbalanced Truck Parts Catalog Manual SN 01001 and Up – PDF DOWNLOAD

Description

Raymond Forklift RTW303540 3 Wheel, Sit Down Counterbalanced Truck Parts Catalog Manual SN 01001 and Up – PDF DOWNLOAD

FILE DETAILS:

Raymond Forklift RTW303540 3 Wheel Sit Down Counterbalanced Truck Parts Catalog Manual SN 01001 and Up – PDF DOWNLOAD

Language : English
Pages :218
Downloadable : Yes
File Type : PDF
Size:10.3 MB

DESCRIPTION:

Raymond Forklift RTW303540 3 Wheel Sit Down Counterbalanced Truck Parts Catalog Manual SN 01001 and Up – PDF DOWNLOAD

To Our Customer
The Part Numbers in this Parts Catalog were correct at the time your truck was manufactured. It is our policy to
constantly improve our products, therefore, part numbers may continue to change. When ordering parts, verify
part numbers through your Dealer’s Parts Catalog, which is kept up to date. Also note that Illustrations of
assemblies and components may not necessarily conform to the exact installation as they appear on your truck.
Tips for Ordering Parts
In addition to Part Number and Description, have available:
• The model number and serial number of the truck
• Pertinent specifications such as mast height, battery voltage, drive motor type, etc.
• Pertinent name plate data
• Applicable installation or assembly numbers
• Accurate Part Number
Using This Catalog
This Catalog contains navigational aids to help you locate specific parts information.
• Use Section 1 to decide where to start your search for information. The overall locator
views define the technical configuration of the Catalog and tie the figures in the
Catalog to the engineering database.
• Use the Table of Contents to locate assemblies and subassemblies by name.
• Use the Alphabetical Index (by Part Name) and the Numerical Index (by Part Number) to
locate individual parts.
• Determine configuration differences with the “Used On” codes contained within the Parts
List. The “Used On” code attaches a part number to a wide range of design variables
such as operating voltage, battery size, steering type, mast height and extension
speed, fork carriages, color and size of tires, guide wheel specs, etc.

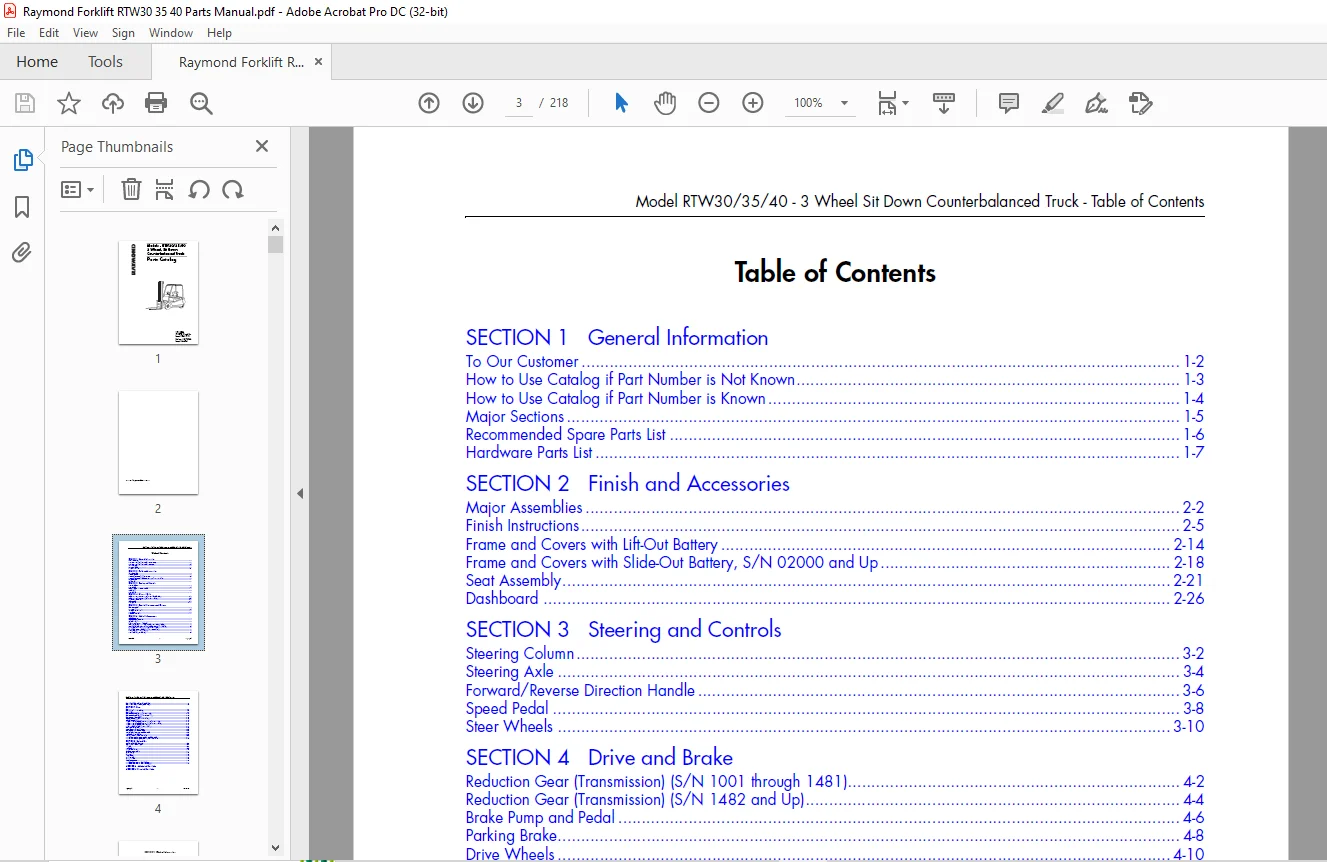

TABLE OF CONTENTS:

Raymond Forklift RTW303540 3 Wheel Sit Down Counterbalanced Truck Parts Catalog Manual SN 01001 and Up – PDF DOWNLOAD

SECTION 1 General Information
To Our Customer 1-2
How to Use Catalog if Part Number is Not Known 1-3
How to Use Catalog if Part Number is Known 1-4
Major Sections 1-5
Recommended Spare Parts List 1-6
Hardware Parts List 1-7
SECTION 2 Finish and Accessories
Major Assemblies 2-2
Finish Instructions 2-5
Frame and Covers with Lift-Out Battery 2-14
Frame and Covers with Slide-Out Battery, S/N 02000 and Up 2-18
Seat Assembly 2-21
Dashboard 2-26
SECTION 3 Steering and Controls
Steering Column 3-2
Steering Axle 3-4
Forward/Reverse Direction Handle 3-6
Speed Pedal 3-8
Steer Wheels 3-10
SECTION 4 Drive and Brake
Reduction Gear (Transmission) (S/N 1001 through 1481) 4-2
Reduction Gear (Transmission) (S/N 1482 and Up) 4-4
Brake Pump and Pedal 4-6
Parking Brake 4-8
Drive Wheels 4-10
SECTION 5 Electrical Components and Systems
Electronic Control 5-2
Horn Control 5-4
Miscellaneous Electrical 5-6
Drive Motor 5-8
Hand Held Controller 5-10
SECTION 6 Hydraulic Components
Hydraulic System 6-2
Hydraulic Steering System 6-6
Oil Tank and Filter 6-8
Lift Motor and Pump – 36/48 Volt 6-10
Control Valve (S/N 1001-1470, 3-Valve; 1001-1496, 4-Valve) 6-12
Control Valve (S/N 1471 and Up, 3-Valve; 1497 and Up, 4-Valve) 6-14
Lift Cylinder, Center and Side (TF) (S/N 1001 – 1349) 6-16
Lift Cylinder Center and Side (TF) (S/N 1350 and Up) 6-19
Lift Cylinder, Center and Side (TT) 6-22
Free Lift Cylinder (Quad Mast) 6-24
Model RTW30/35/40 – 3 Wheel Sit Down Counterbalanced Truck – Table of Contents
10/29/04 ii 1033358A
Main Lift Cylinder, Right-Hand (Quad Mast) 6-26
Main Lift Cylinder, Left-Hand (Quad Mast) 6-28
SECTION 7 Mast
Mast (TF) 7-2
Mast (TF) (S/N 1350 and Up) 7-5
Mast, Triple (TT) 7-9
Mast Piping Assembly (TF) (S/N 1001-1349) 7-14
Mast Piping Assembly (TF) (S/N 1350 and Up) 7-18
Mast Piping, Lift Assembly (TT) 7-20
Sideshift Piping (TF) (S/N 1350 and Up) 7-22
Sideshift Piping (TT) 7-24
Fork Carriage and Sideshift Carriage (TF) (S/N 1001-1349) 7-26
Fork Carriage and Sideshift Carriage (TF) (S/N 1350 and Up) 7-29
Fork Carriage and Sideshift Carriage (TT) 7-33
Forks, Standard and Chisel (1 75 in x 4 in ) 7-36
Mast Finish Instructions 7-38
Hoist Chains and Free Lift Hoses 7-40
Mast Assembly, Quad Mast Only 7-42
Control Valve, Lowering, Quad Mast Only 7-45
Load Backrest, Quad Mast 7-46
Carriage, Class II, Quad Mast Only 7-48
Internal Hose Reeving Group, Single, Quad Mast Only 7-51
Internal Hose Reeving Group, Double, Quad Mast Only 7-55
SECTION 8 Options/Kits
Dual Speed Pedal with Reverse 8-2
4th/5th Lever/Solenoid Valve 8-5
Tilt Jack 8-6
Load Backrest 8-8
Fire Extinguisher Kit 8-10
Auxiliary Power Hookup 8-11
Clear Mast Guard 8-12
Mirror Kit 8-13
Travel Alarm 8-14
Working Lights 8-16
Warning Lights 8-18
Quick Disconnect Kit 8-20
Fourth Auxiliary Function Mast Plumbing (TF) 8-21
Fourth Auxiliary Function Mast Plumbing (TT) 8-25
APPENDIX A Alphabetical Parts Index
APPENDIX B Numerical Parts Index
1033358A 1-1 10/29/04
SECTION 1 General Information
To Our Customer 1-2
How to Use Catalog if Part Number is Not Known 1-3
How to Use Catalog if Part Number is Known 1-4
Major Sections 1-5
Recommended Spare Parts List 1-6
Hardware Parts List 1-7
