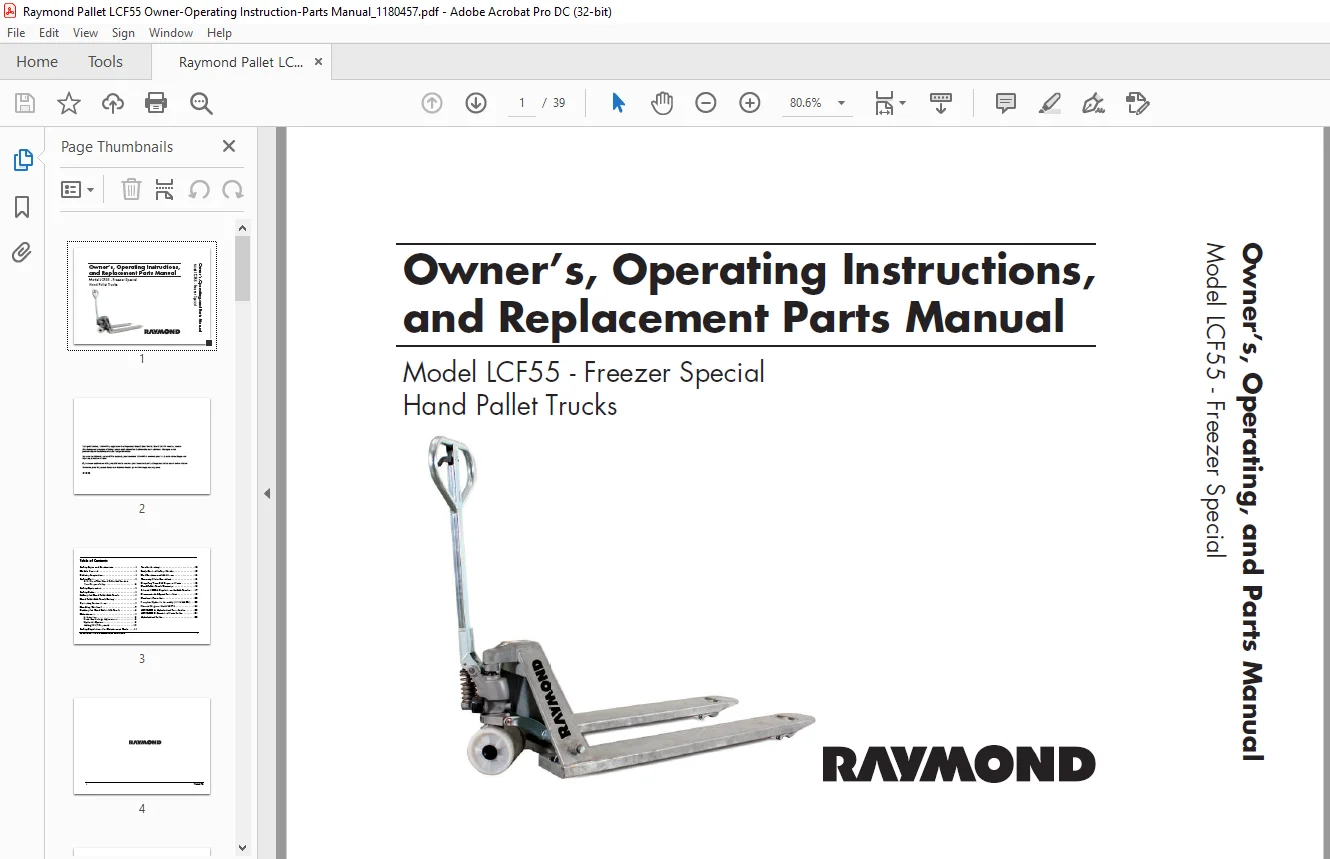

Raymond Hand Pallet Trucks LCF55 – Freezer Special Owner’s, Operating Instructions, and Replacement Parts Manual – PDF DOWNLOAD

Description

Raymond Hand Pallet Trucks LCF55 – Freezer Special Owner’s Operating Instructions and Replacement Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Raymond Hand Pallet Trucks LCF55 – Freezer Special Owner’s Operating Instructions and Replacement Parts Manual – PDF DOWNLOAD

Language : English
Pages :39
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Raymond Hand Pallet Trucks LCF55 – Freezer Special Owner’s Operating Instructions and Replacement Parts Manual – PDF DOWNLOAD

Safe Use of This Hand Pallet Lift Truck is
Your Responsibility

• Before you use this hand pallet lift truck, read this manual completely. Make sure that you understand all of the content. If you do not understand any part of this manual, tell your supervisor.
• Any equipment can be hazardous if not used properly, including this hand pallet lift truck. Operate this hand pallet lift truck only if you are authorized and trained to do so.
• We built this hand pallet lift truck for one job — to handle and transport material. Use it for nothing else. Operate this hand pallet lift truck responsibly. If you fail to follow the safety rules while using this hand pallet lift truck, you could hurt yourself or someone else, or damage equipment

Safety Equipment
To avoid personal injury, always wear required personal protective equipment that includes the
following:
• Safety shoes
• Safety glasses
• Heavy-duty gloves

Safety Rules
Follow these safety rules:
• Only handle loads on flat level surfaces. Do not use a loaded truck on inclines or
declines.
• Do not operate this hand pallet lift truck unless you are authorized and trained to do so.
• Read and obey all warnings and instructions contained in this manual.
• Do not use the hand pallet lift truck if it is damaged or has any faults that might affect
either its safety or its safe use

TABLE OF CONTENTS:

Raymond Hand Pallet Trucks LCF55 – Freezer Special Owner’s Operating Instructions and Replacement Parts Manual – PDF DOWNLOAD

Safety Signs and Statements.1
Models Covered.1
Delivery Inspection . .1
Safety First . .2
Safe Use of This Hand Pallet Lift Truck is
Your Responsibility . 2
Safety Equipment .2
Safety Rules .2
Lifting the Hand Pallet Lift Truck .5
Hand Pallet Lift Truck Rating . .5
Operating Instructions .6
Handling The Load . .7
Parking the Hand Pallet Lift Truck . .8
Maintenance .9
Lubrication . 9
Push Bar Linkage Adjustment. 9
Hydraulic System 9
Adding Oil (If Required) . 10
Safety Regulations for Maintenance Work . .11
Troubleshooting . 12
Daily Service/Safety Checks . 13
Modifications and Additions 14
Warranty Claim Procedure . 14
Recycling Your Old Raymond Parts 15
Hand Pallet Truck Warranty 16
Selected OSHA Regulations for Lift Trucks. 17
Recommended Spare Parts List . 19
Hardware Parts List 20
Complete Hydraulic Assembly (1151454/001). 22
Chassis Diagram Model LCF55 . 26
APPENDIX A: Alphabetical Parts Index 29
APPENDIX B: Numerical Parts Index31
Alphabetical Index . 33
