Renault Trucks DXi 5 & DXi 7 Engine Workshop Manual (2006) – PDF

Description

File Details

• Manual Type: Engine Workshop Manual
• Brand: Renault Trucks
• Models: Midlum DXi 5, Premium DXi 7
• Engines: DXi 5, DXi 7
• Language: English
• Page Count: 312 pages
• File Format: PDF
• Document Number: 20 666
• Date: 04/2006

Chapters Covered

• Generalities
• Technical data
• Tools
• Consumable products
• Stripping and mounting on stand
• Stripping on stand
• Cylinder head
• Fuel-injection
• Engine cooling
• Lubrication
• Reciprocating gear
• Sensors
• Turbocharger

Generalities and Technical Data

Start with the foundational knowledge required for working on these engines. This chapter outlines crucial safety warnings and precautions, particularly concerning the high-pressure Common Rail fuel injection system, which operates at up to 1600 bars. You will find comprehensive technical data covering general engine features, cooling, and lubrication systems. It also provides standard and specific tightening torques for every major component, alongside exact dimensions and tolerances needed for precise machining and assembly.

Tools and Consumables

Working on heavy commercial vehicles requires the right equipment. This section details the general-purpose, special, and locally manufactured tools categorized by level, with their Renault Trucks reference numbers. It also lists the recommended consumable products, including specific lubricants, coolants, and sealing compounds required for a proper rebuild or repair.

Stripping and Mounting on Stand

Learn the correct procedures for handling the engine, including lifting it safely using the designated lifting beam and mounting it to the engine stand. The stripping on stand section covers the removal of the Engine Master Electronic Control Unit (EECU), exhaust manifold, turbocharger, drive belts and tensioners, air compressor, steering pump, and starter motor. Each step is accompanied by clear instructions and visual references.

Cylinder Head

This extensive chapter guides you through the complete overhaul of the cylinder head. It includes the removal sequence, disassembly, and detailed inspection procedures for valves, valve guides, and valve seats. You will find precise instructions for replacing injector sleeves, performing a cylinder head leak test, and the correct assembly and fitting procedures. The tightening sequences for the cylinder head bolts and rocker arms are clearly illustrated to ensure proper sealing and torque distribution.

Fuel-Injection System

The Common Rail system demands extreme cleanliness and precision. This section covers the high-pressure pumps, common rail, fuel injectors, fuel filter heater, and fuel feed pump. You will find detailed removal and fitting instructions, including the use of specific tools, tightening torques for high-pressure lines, and essential precautions to prevent contamination and injury.

Engine Cooling and Lubrication

Keep your engine running at optimal temperatures and properly lubricated. This chapter provides procedures for the water pump, thermostat, and immersion heating rod. The lubrication section covers the oil sump, oil filter console, and oil pressure checks. Detailed diagrams and torque specifications ensure everything is reinstalled correctly to prevent leaks and maintain system integrity.

Reciprocating Gear

Dive into the core mechanical components of the engine. This section covers the flywheel damper, flywheel, camshaft, and crankshaft. It provides detailed disassembly, inspection, and assembly procedures for the pistons, liners, connecting rods, and crankshaft bearing caps. The use of specific tools and precise torque sequences, including torque-to-yield specifications, is highlighted to ensure the bottom end is built to last.

Sensors and Turbocharger

Modern engines rely on a network of sensors for precise control. This section details the removal and fitting of the boost air pressure sensor, flywheel speed sensor, coolant temperature sensor, camshaft position sensor, fuel low pressure sensor, oil pressure sensor, and engine oil level sensor. The turbocharger chapter provides troubleshooting guidance for operating issues, along with removal and fitting instructions.

Technical Data Highlights

The DXi 5 engine is a 4-cylinder unit with a displacement of 4761 cm³, a bore of 108 mm, and a stroke of 130 mm, producing up to 215 hp and 800 Nm of torque. The DXi 7 is a 6-cylinder engine with a displacement of 7142 cm³, producing up to 320 hp and 1200 Nm of torque. This manual includes the firing order, compression ratio (18/1), idling speeds, and maximum no-load speeds for both engines. You will also find detailed specifications for the cooling system, including thermostat opening temperatures and minimum full opening dimensions.

The lubrication system is thoroughly documented with oil pressure specifications at various engine speeds and temperatures, ensuring you can accurately diagnose wear or pump issues. The specific tightening torques chapter is particularly extensive, covering cylinder head bolts, main bearing caps, connecting rod caps, and flywheel bolts, specifying the exact sequence and angle-tightening requirements where applicable.

Why This Manual is Essential

Whether you are a professional technician in a commercial workshop or a dedicated DIY enthusiast maintaining your own fleet, having the correct information is paramount. The Renault Trucks DXi 5 & DXi 7 Engine Workshop Manual is the ultimate resource for ensuring your engine repairs are done right the first time. It provides the exact specifications, step-by-step procedures, and diagnostic insights that factory-trained mechanics rely on. Don’t risk costly mistakes by guessing—use the manual that covers every torque value, tolerance, and assembly sequence you need.

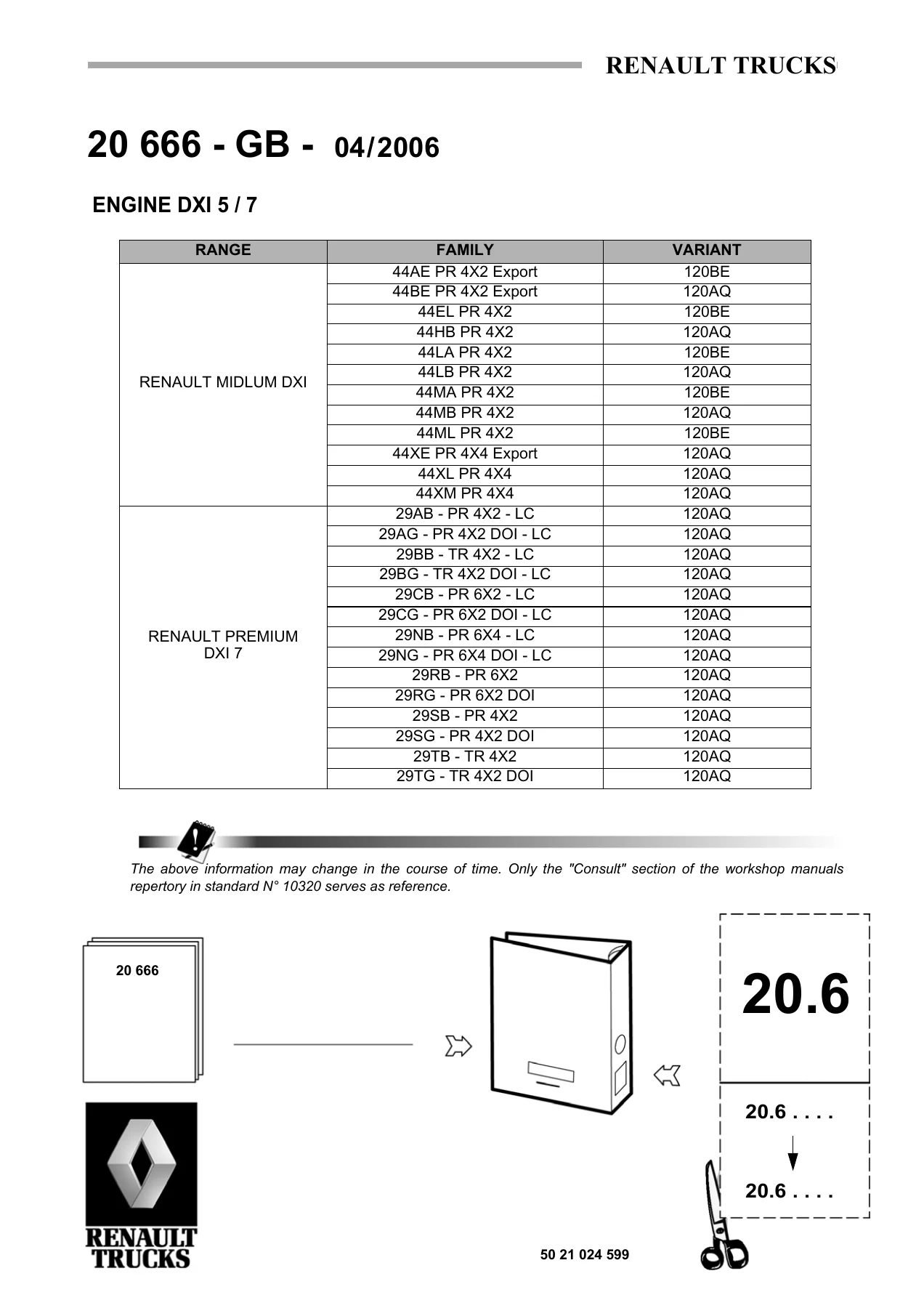

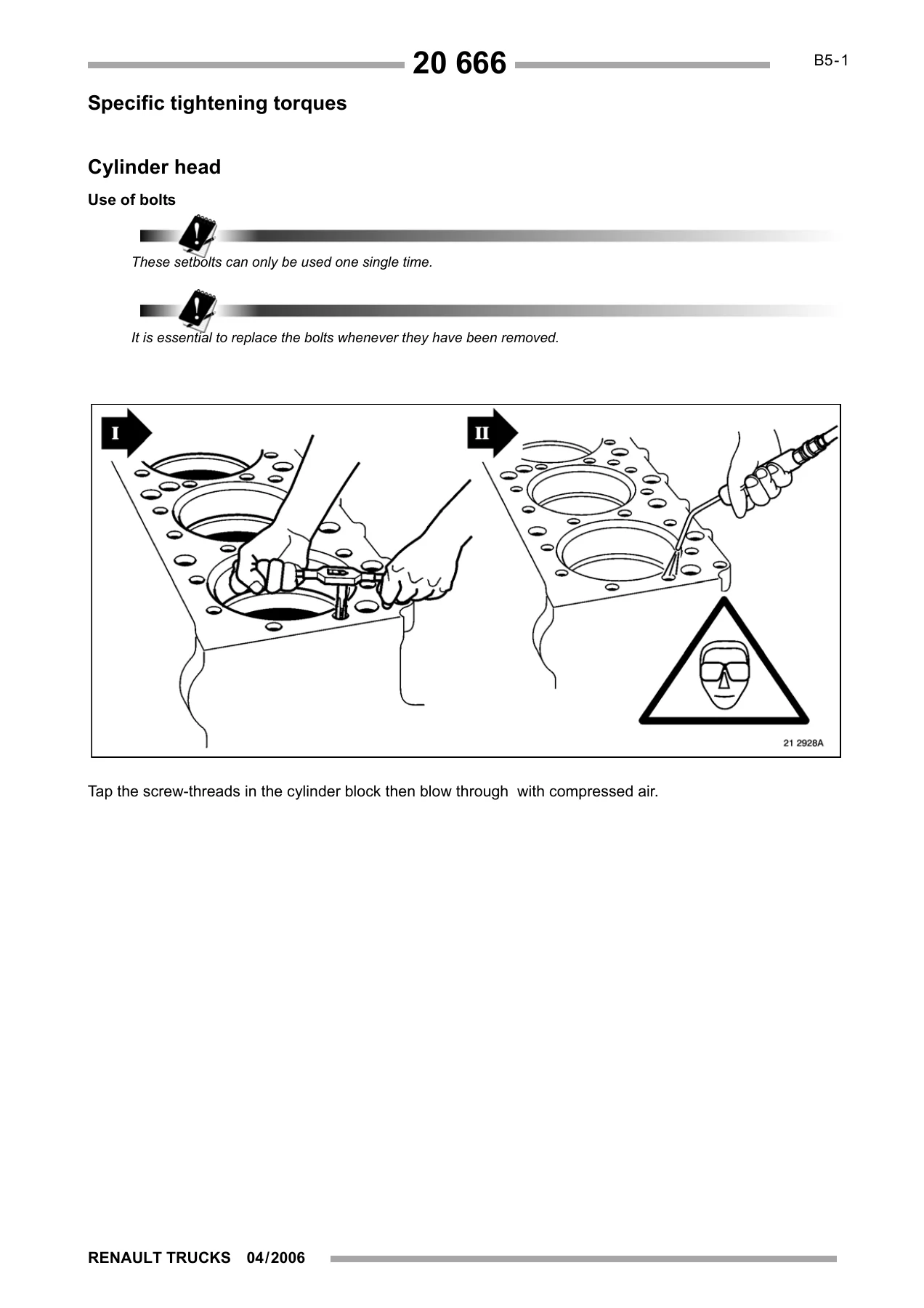

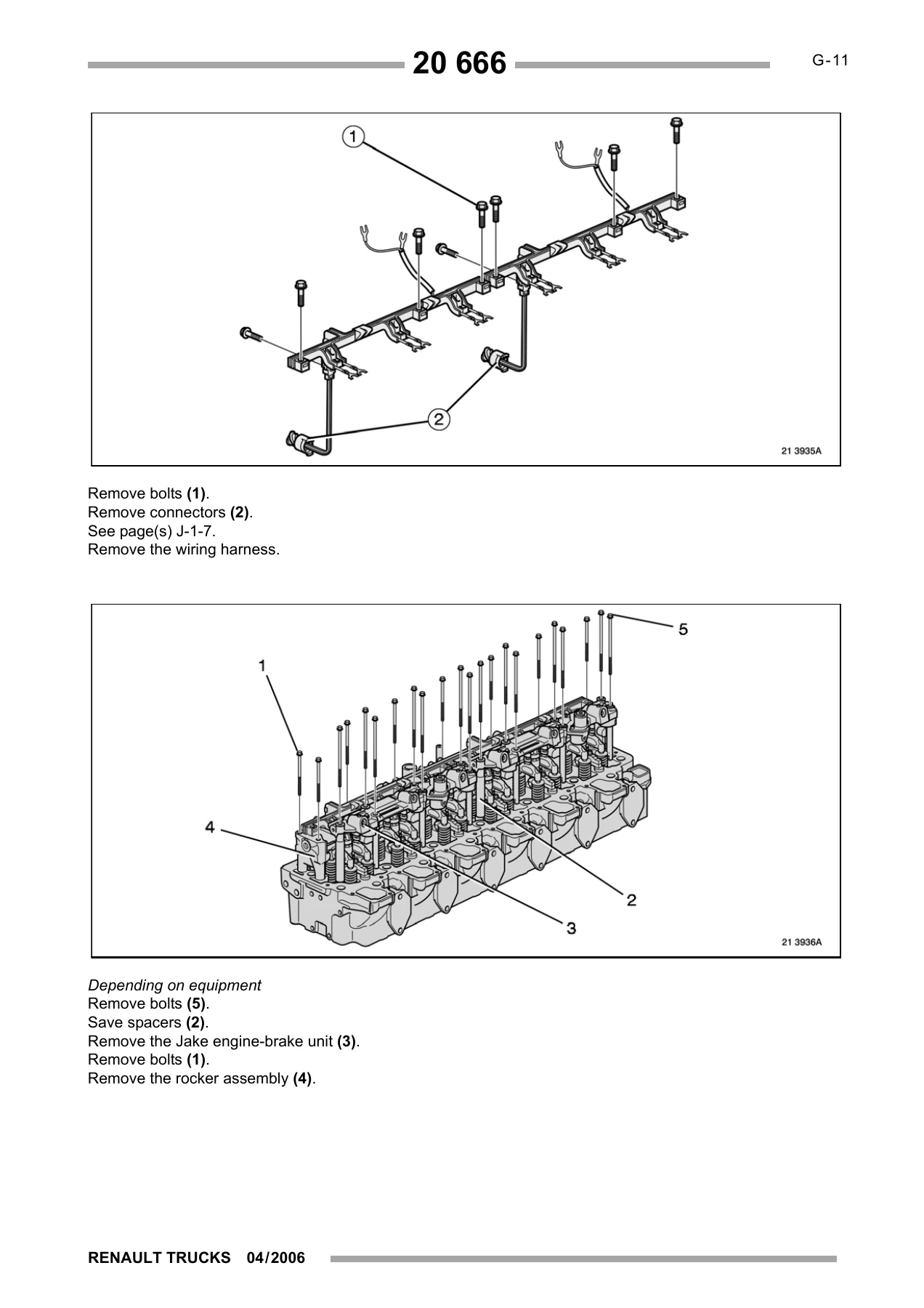

IMAGES PREVIEW

Delivered as a high-quality PDF download, this manual is instantly accessible after purchase. There are no shipping fees or waiting periods. You can view it on your computer, tablet, or smartphone, or print out the pages you need for the workshop. Get your copy today and keep your Renault Trucks engines running smoothly.
