Rex SP848 Dirt & SP900 Asphalt Vibratory Rollers Parts Book Manual #469 – PDF DOWNLOAD

Description

Rex SP848 Dirt & SP900 Asphalt Vibratory Rollers Parts Book Manual #469 – PDF DOWNLOAD

DESCRIPTION:

Rex SP848 Dirt & SP900 Asphalt Vibratory Rollers Parts Book Manual #469 – PDF DOWNLOAD

INSTRUCTIONS FOR ORDERING PARTS :

• Order repair parts from your Rexnord distributor.
• Specify quantity,’ part number and name, of part. Do not order by reference number or state quantity wanted in terms of sets or pairs.
• Always give serial number of machine. This is very important.
• The serial number is stamped on manufacturers’ plate which is attached to the frame of machine. Be particular to give: complete shipping address mentioning town, county, and state.
• Also give billing instructions and address. Tell whether to -0ip: ,via ,parcel post, express, air express, or freight.

TABLE OF CONTENTS:

Rex SP848 Dirt & SP900 Asphalt Vibratory Rollers Parts Book Manual #469 – PDF DOWNLOAD

BASIC UNIT
2, 3 Dirt, Model 848
4, 5 Asphalt, Model 900
6 Lights
CONTROLS
7 Operators Console
8 Dual, Exciter and Traction Drive
9 2-Speed Shift and Emergency Stop,
11 Brake
POWER UNIT
12, 13 Diesel (GM 3-53)
TRACTION. DRIVE
14 Hydraulic System
15 Hydraulic Pump (Sundstrand)
17 Hydraulic Motor (Sundstrand)
18, 19 Transmission Case, 2 Speed (Rockwell Standard)
20, 21 Drive Axle (Rockwell Standard)
22, 23 Wheel Ends (Rockwell Standard)
VIBRATOR
24, 25 Hydraulic System
26 Hydraulic Pump (Sundstrand)
27 Hydraulic Motor (Commercial)
28 Roll, R.H.
29 Roll, L.H.
30 Amplitude Unit
31 Control Box
32 Articulating Cross
STEERING
33 Hydraulic System, Single, Model 848 Dirt
34 Hydraulic System, Dual, Model 900 Asphalt
35 Hydraulic Pump (Vickers)
36 Hydraulic Valve,  (Char-Lynn)
37 Hydraulic Cylinder (Cross)
ASPHALT OPTION (Model 900)
38 Water Tank and Piping
39 Water Pump
40 Tire Scrapers
41 Fuel Oil Wetting System
REX SP848 DIRT & SP900 ASPHALT VIBRATORY ROLLERS PARTS BOOK MANUAL #469 – PDF DOWNLOAD:

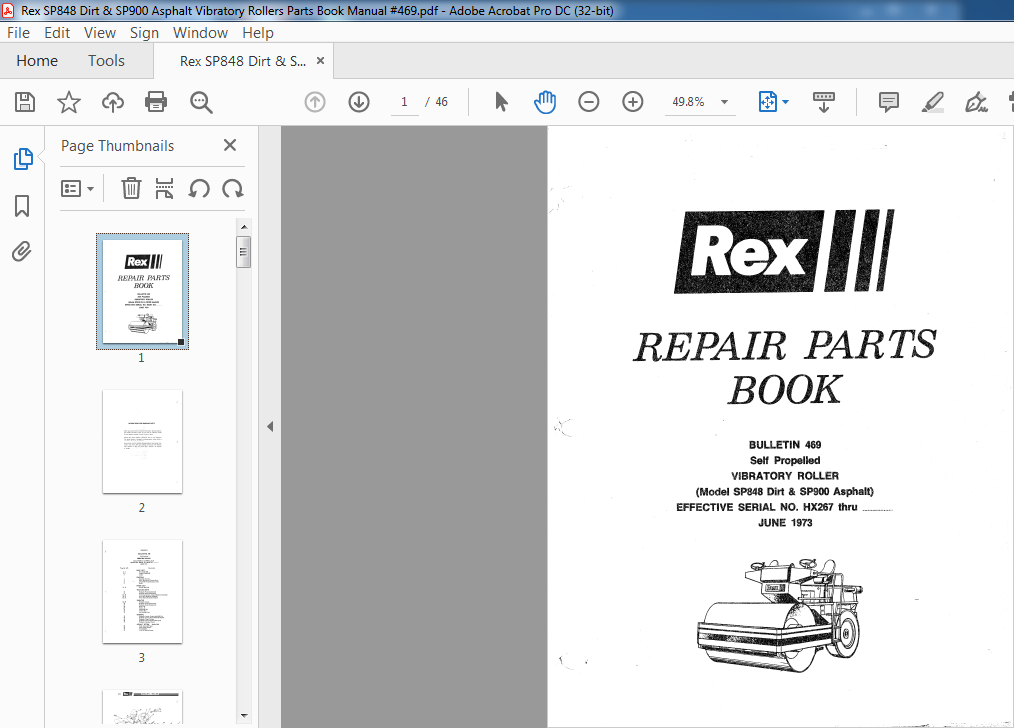

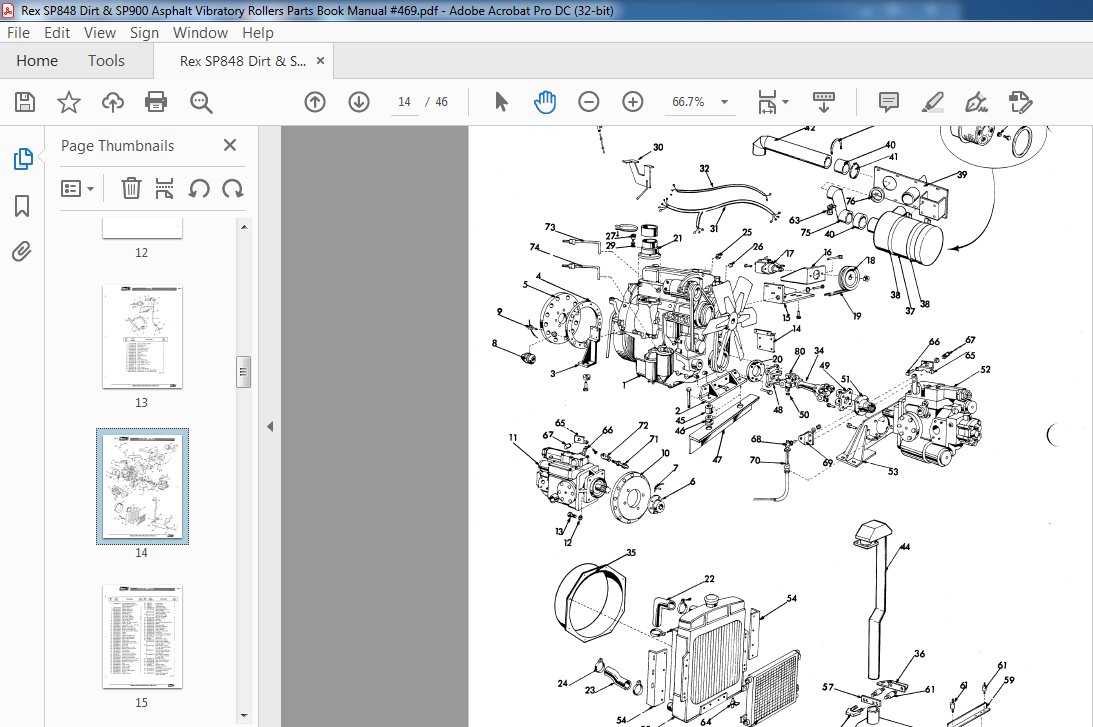

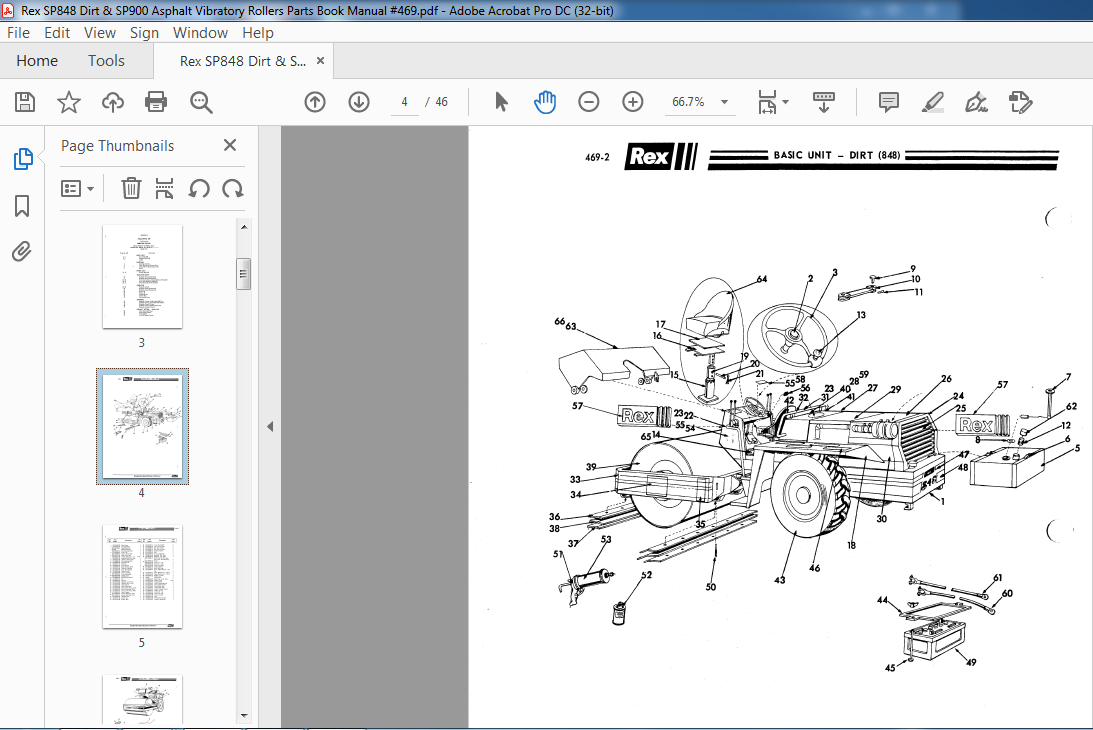

IMAGES PREVIEW OF THE MANUAL:
