This genuine Ricoh Group Service Manual is a comprehensive professional repair and maintenance guide for mid-volume multifunction copiers sold under Ricoh, Gestetner, and Savin brands.
It is intended for trained service engineers and provides step-by-step technical procedures, diagnostics, and internal system explanations not found in user manuals.

✅ Models Covered (Cross-Brand)

📂 What This Service Manual Contains

🔹 1. Installation Procedures

• Site & environmental requirements

• Power specifications (NA / EU / Asia)

• Machine leveling & space requirements

• Main unit installation

• Optional units installation:

  • ARDF (Auto Reverse Document Feeder)

  • Large Capacity Tray (LCT)

  • Paper tray units

  • 1-bin tray

  • Bridge unit

  • 1,000-sheet finisher

  • Two-tray finisher

  • Punch unit

  • Mailbox system

🔹 2. Preventive Maintenance

• Scheduled PM tables

• Consumables replacement intervals

• Lubrication points

• Safety and toner handling precautions

🔹 3. Replacement & Adjustment (Core Repair Section)

Extremely detailed component-level procedures including:

• Scanner unit & exposure system

• Laser unit (polygon motor, LD unit, beam pitch)

• Photoconductor Unit (PCU)

• Drum, charge roller & cleaning blade

• Developer & toner supply system

• Transfer belt & image transfer system

• Paper feed & registration assemblies

• Duplex unit

• Fusing unit (lamps, thermistors, rollers)

• Motors, clutches & drive assemblies

• Printed circuit boards (BICU, PSU, HVPS)

• HDD & controller boards

🔹 4. Troubleshooting & Error Diagnosis

• SC code descriptions & recovery

• Sensor & switch diagnostics

• Fuse & LED troubleshooting

• Electrical defect isolation

• Jam detection logic & timing charts

🔹 5. Service Tables & Service Mode

• Entering & exiting Service Program (SP) Mode

• Complete SP mode tables:

  • SP1: Feed

  • SP2: Drum

  • SP3: Process

  • SP4: Scanner

  • SP5: Mode

  • SP6: Peripherals

  • SP7: Data log

• Test pattern printing

• NVRAM upload/download

• Software reset & memory clear

• DIP switch tables

🔹 6. Detailed Technical Descriptions

• Paper path diagrams

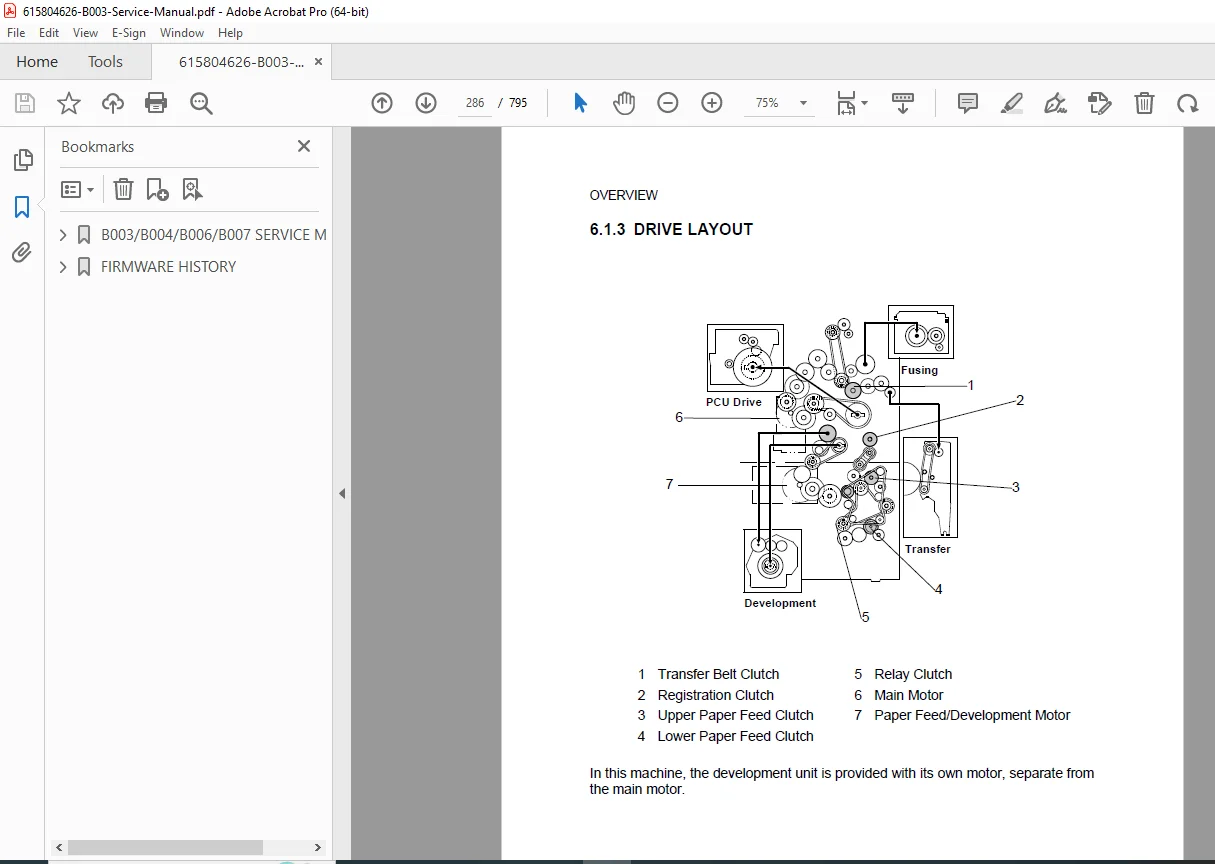

• Drive layouts

• Copy process flow

• Image processing (IPU, ADS, SBU)

• Laser exposure system

• Development & toner recycling

• Duplex operation logic

• Fusing temperature control

• Energy saver & auto-off modes

🔹 7. Optional Units – Separate Dedicated Sections

• Auto Reverse Document Feeder (B351)

• Large Capacity Tray (A683)

• Paper Tray Unit (A682)

• Bridge Unit (A688)

• 1-Bin Tray (B376)

• 1,000-Sheet Finisher (A681)

• Two-Tray Finisher (B352)

• 9-Tray Mailbox & Bridge Unit (G909/G912)

• Printer / Scanner Controller (B361/B362)

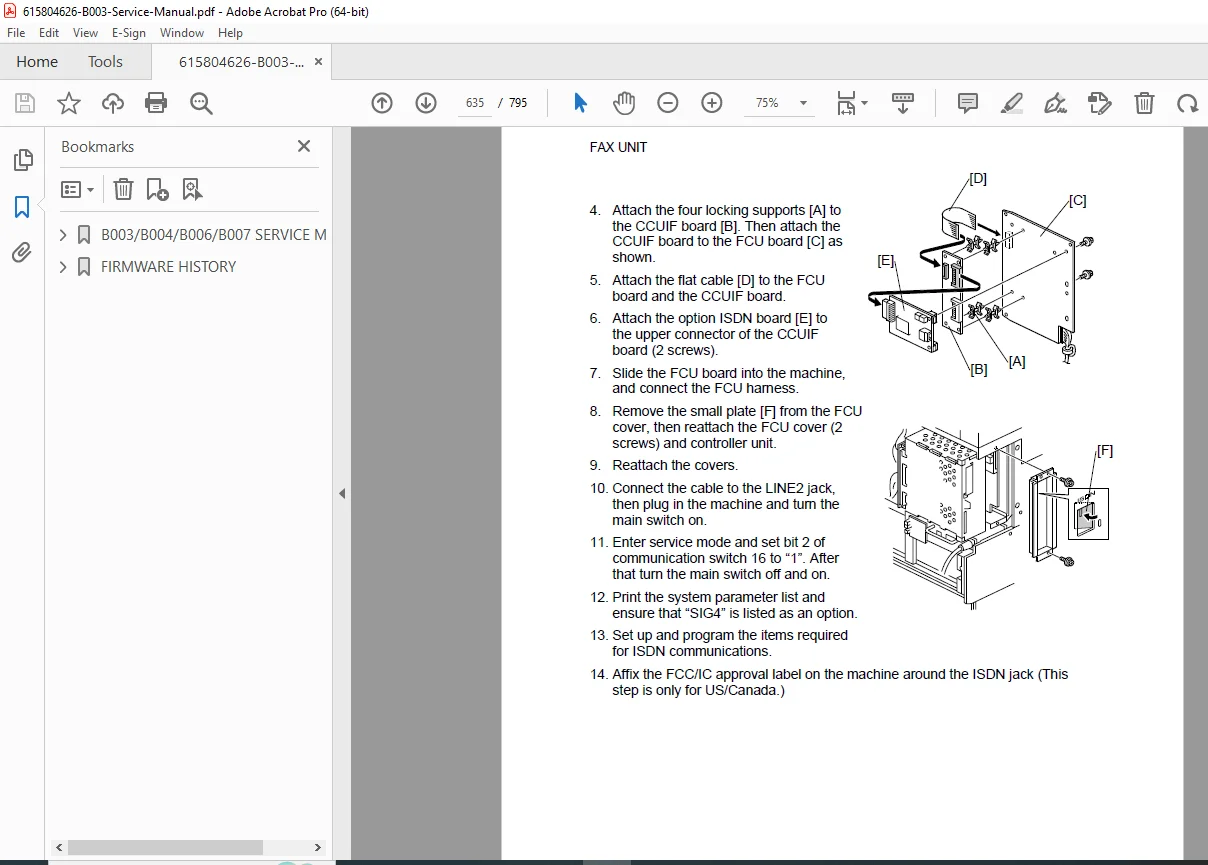

• Fax Unit (B360 – G3 / ISDN)

Each option includes:

• Specifications

• Mechanical & electrical layouts

• Replacement procedures

• Troubleshooting

• DIP switches & test points
