Royal Enfield Classic 350 (Euro-V) Service Manual – PDF Download
$36.95
Royal Enfield Classic 350 Euro-V Service Manual (2021) — the complete factory maintenance and repair reference for the new J-series engine motorcycle. Includes technical specifications, step-by-step disassembly guides, special tools list, electrical diagrams, and Euro-V compliant fuel & EVAP systems.
Description
Royal Enfield Classic 350 (Euro-V) Service Manual – PDF Download
DESCRIPTION:
The Royal Enfield Classic 350 Service Manual (Euro-V) is the official factory service and repair guide for the all-new Classic 350 motorcycle based on the J-series platform. Published by Royal Enfield (Eicher Motors Ltd.) in 2021, this manual provides in-depth technical coverage for maintenance, overhaul, diagnostics, and servicing of the Air-Oil cooled, single-cylinder 349 cc engine and its subsystems.
Engineered for authorized technicians and experienced workshop engineers, this manual offers step-by-step illustrated procedures, torque values, special tool lists, and electrical and EMS diagnostic instructions. It covers every major component — from engine disassembly to ABS calibration — in one complete reference.

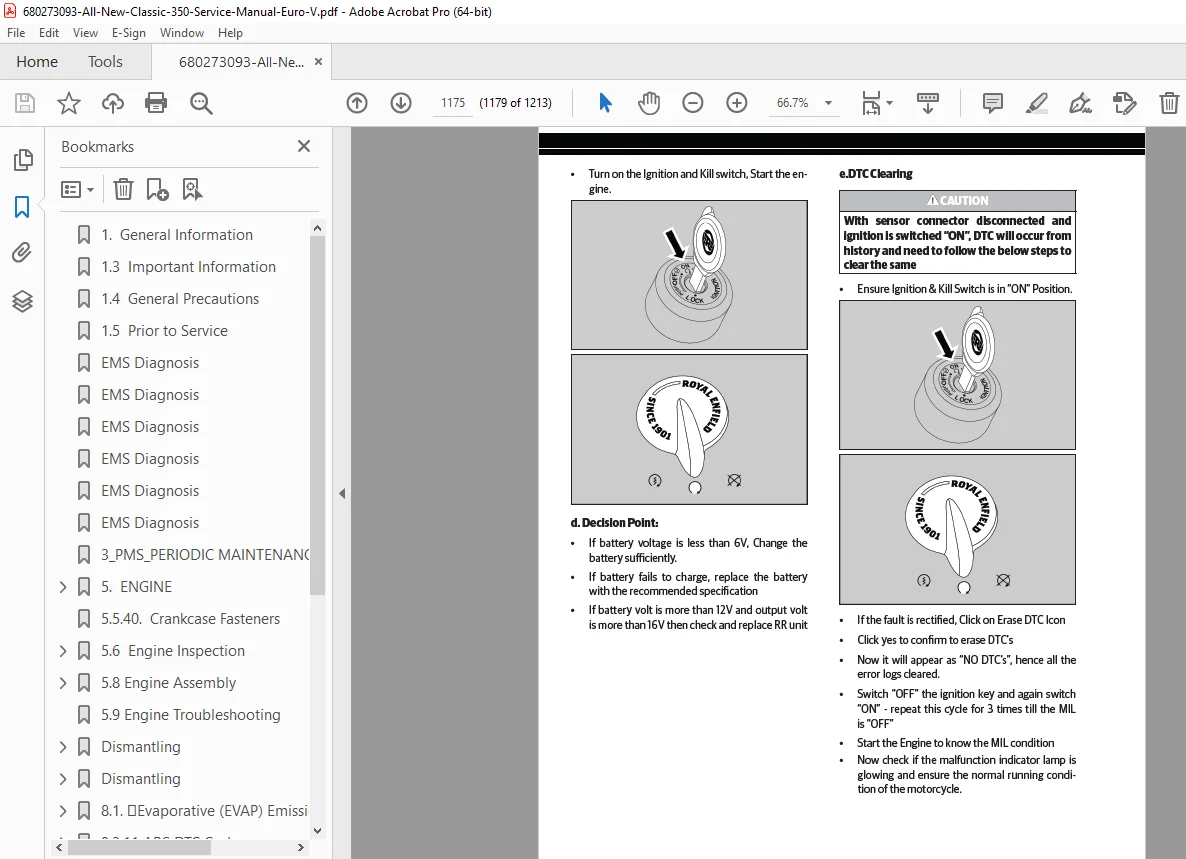

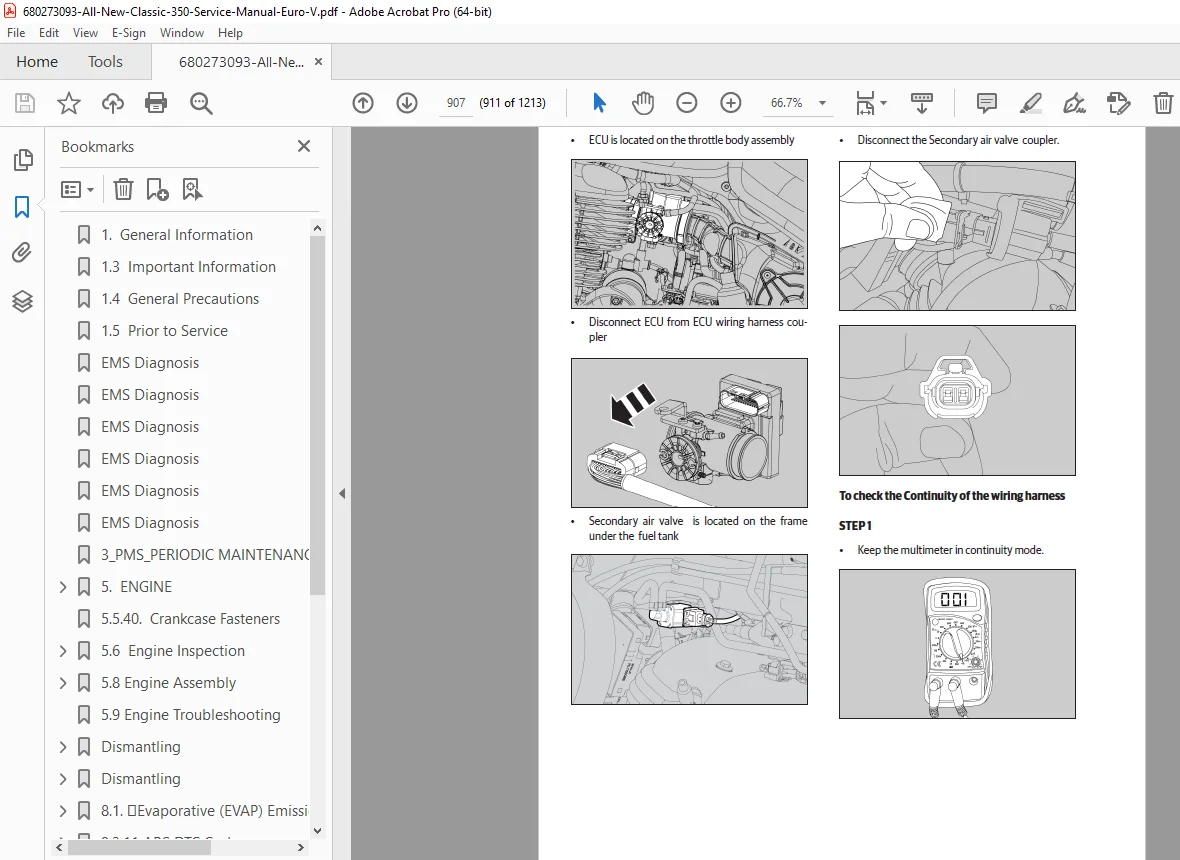

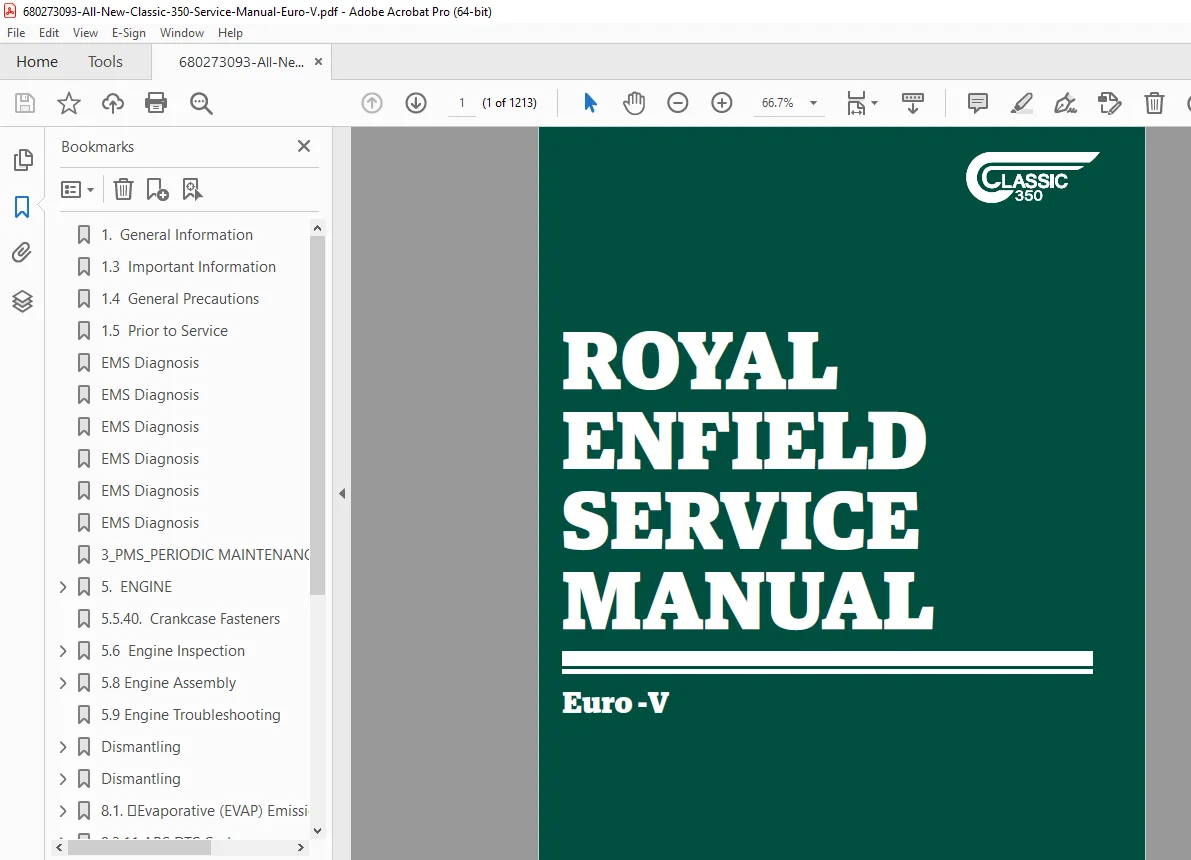

IMAGES:
📘 CHAPTER STRUCTURE
1️⃣ General Information
Purpose, precautions, safety notes, and technician requirements
Tool handling, battery disconnection, torque tightening sequence
Storage, inspection, and environmental safety guidelines
2️⃣ Technical Specifications
Engine: 349 cc SOHC single-cylinder, 72 × 85.8 mm bore-stroke, 9.5 : 1 compression
Max power 14.87 kW @ 6100 RPM | Torque 27 Nm @ 4000 RPM
5-speed gearbox, wet sump lubrication (2.2 L dry fill)
EFI system with Bosch ECU control, 11.25° BTDC ignition advance
BOSCH M12-YR7MES spark plug | Gap 0.7–0.8 mm
Front brake 300 mm disc / Rear 270 mm disc – dual-channel ABS (Bosch 10.1)
680273093-All-New-Classic-350-S…
3️⃣ Periodic Maintenance Schedule
Factory intervals every 5 000 km or 6 months
Engine oil (15W-50 API SL / JASO MA2) – change every 12 months
Valve clearance inspection every service interval
Fork oil (2W 25) – 380 ml per leg | Brake fluid (DOT 4) front 87 ml / rear 54 ml
Full inspection charts for engine, chassis, brakes, and cables
4️⃣ General & Special Tools
Detailed inventory of Royal Enfield special tools with part numbers
(e.g. ST30921/A Clutch Holder, ST30274/A Magneto Puller Assembly, ST27528-2 Valve Spring Compressor)
5️⃣ Engine
Complete engine removal / installation procedure
Dismantling sequence for clutch, oil pump, balancer shaft, camshaft, rocker carrier, stator, and piston
Inspection and reassembly with torque charts and lubrication points
6️⃣ Chassis & Bodywork
Handlebar, control cables, air filter box, mudguards, seat, and suspension service
Wheel alignment and spoke tension guidelines
7️⃣ Fuel System & EVAP
Fuel pump, injector, and purge valve testing procedures
EVAP system inspection for Euro-V compliance
8️⃣ Brakes & ABS
Front and rear hydraulic service with bleeding procedures
ABS sensor diagnosis and error code reset
9️⃣ Engine Management System (EMS)
Sensor identification (EOT, MAP, TPS, O₂ sensor)
EMS adaptation procedure after component replacement
🔟 Electrical System
Wiring diagrams and connector locations
Battery service and charging system specifications
11️⃣ Diagnosis
EMS & ABS Diagnostic Mode procedures with troubleshooting flowcharts
TECHNICAL HIGHLIGHT
| Parameter | Details |
|---|---|
| Manufacturer | Royal Enfield / Eicher Motors Ltd. |
| Model | Classic 350 Euro-V (J Platform) |
| Engine Type | Single-Cylinder 4-Stroke SOHC Air-Oil Cooled |
| Displacement | 349 cc |
| Compression Ratio | 9.5 : 1 |
| Max Power | 14.87 kW @ 6100 RPM |
| Max Torque | 27 Nm @ 4000 RPM |
| Gearbox | 5-Speed Constant Mesh |
| Lubrication | Forced Lubrication – Wet Sump |
| Fuel System | EFI (Bosch ECU) |
| Ignition System | ECU Controlled |
| Cooling | Air + Oil |
| Brakes | 300 mm Front Disc / 270 mm Rear Disc – Dual ABS |
| Frame | Twin Downtube Spine Frame |
| Suspension | Telescopic Front / Twin Tube Rear |
| Battery | 12 V 8 Ah VRLA |
| Alternator | 156 W @ 1100 RPM |
| Fuel Tank Capacity | 13 ± 0.5 L |
| Kerb Weight | 195 kg |
| Oil Capacity | 2.2 L (dry) / 1.7 L (refill) |
| Tire Size | Front 100/90-19 |
| ABS Unit | Bosch 10.1 |
| Recommended Oil | SAE 15W-50 API SL / JASO MA2 (Semi-Synthetic) |
| Brake Fluid | DOT 4 |
| Spark Plug | Bosch M12-YR7MES (0.7 – 0.8 mm gap) |
FILE DETAILS
| File Name | 680273093-All-New-Classic-350-Service-Manual-Euro-V.pdf |
|---|---|
| Manual Type | Official Factory Service Manual |
| Product Category | Motorcycle / Repair & Workshop |
| Model Coverage | Classic 350 Euro-V (J Platform) |
| Publisher | Royal Enfield (Eicher Motors Ltd.) |
| Edition Year | 2021 |
| Pages | 1000 + Pages |
| Language | English |
| File Format | Searchable PDF |
| File Size | ≈ 90.2MB |
| Access Type | Instant Digital Download |
