Royal Enfield Himalayan 450 Euro V 2023 Full Service Manual – March 2024 Edition

Description

Royal Enfield Himalayan 450 Euro V 2023 Full Service Manual – March 2024 Edition

This is the complete factory-format Royal Enfield Himalayan 450 Euro V 2023 Full Service Manual, March 2024 Edition, built around the all-new 452cc liquid-cooled Sherpa engine and 6-speed gearbox that Royal Enfield introduced with this generation of the Himalayan. Running 567 pages, this Himalayan 450 service manual walks a technician through the motorcycle aggregate by aggregate, from the DOHC single-cylinder engine to the twin-spar steel chassis, dual-channel ABS, engine management system and full electrical harness.

File Details

• Manual type: Full Service / Workshop Manual
• Brand / Model: Royal Enfield Himalayan (452cc, Euro V, 2023)
• Language: English
• Page count: 567 pages
• File format: PDF
• Edition: March 2024
• Publisher: Royal Enfield (a unit of Eicher Motors Limited)

Chapters Covered

• General Information – about this manual, precautions, prior-to-service checklist, customer complaint handling
• Technical Specifications – engine, ignition, transmission, chassis, electrical system, dimensions, weights, recommended lubricants
• Periodical Maintenance Schedule (PMS)
• General and Special Tools – measurement tools and Himalayan-specific special tools
• Engine – removal and installation, full dismantling procedure, inspection, assembly procedure, cooling system, valve clearance adjustment, engine troubleshooting
• Chassis – air filter box, handlebar, exhaust pipes and silencers, footrests and stands, mudguards/grab handle, side panels and rider seat, wheels, suspension, subframe
• Fuel System – fuel system components
• Evaporative (EVAP) Emission Control System
• Brakes and ABS – front and rear brake service, anti-lock braking system, disc brake preparation, reassembly, brake bleeding
• Engine Management System (EMS)
• Electrical System
• RE EOL
• Index and Glossary

Together these chapters give a technician everything needed to diagnose, service and rebuild the Himalayan 450 from the ground up – not just routine maintenance but complete engine teardown, chassis component removal, brake system overhaul and electrical/EMS diagnostics, all referenced back to Royal Enfield’s own specification values.

Technical Depth

The Himalayan 450 Euro V 2023 Full Service Manual carries the actual engine specification block used in production: 452cc single-cylinder DOHC liquid-cooled fuel-injected engine, 84 mm bore, 81.5 mm stroke, 11.5:1 compression, 29.44 kW (40.02 PS) @ 8000 rpm and 40 Nm @ 5500 rpm, paired with a 6-speed gearbox and slip-and-assist clutch. Chassis data covers the steel twin-spar frame, 43 mm upside-down front fork, mono-shock rear suspension, dual-channel switchable ABS, tyre sizes and pressures, plus full weight and dimension figures for the motorcycle.

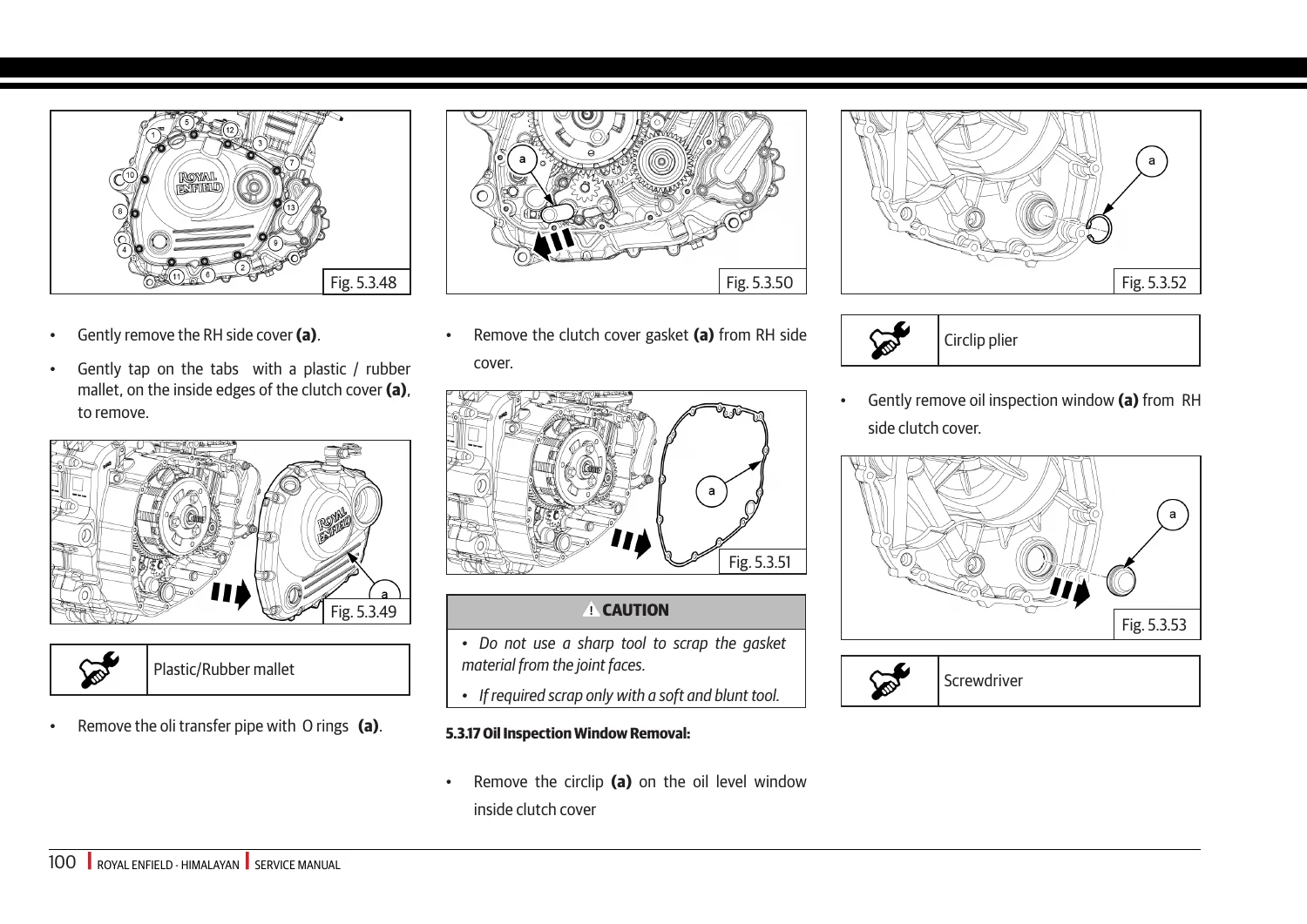

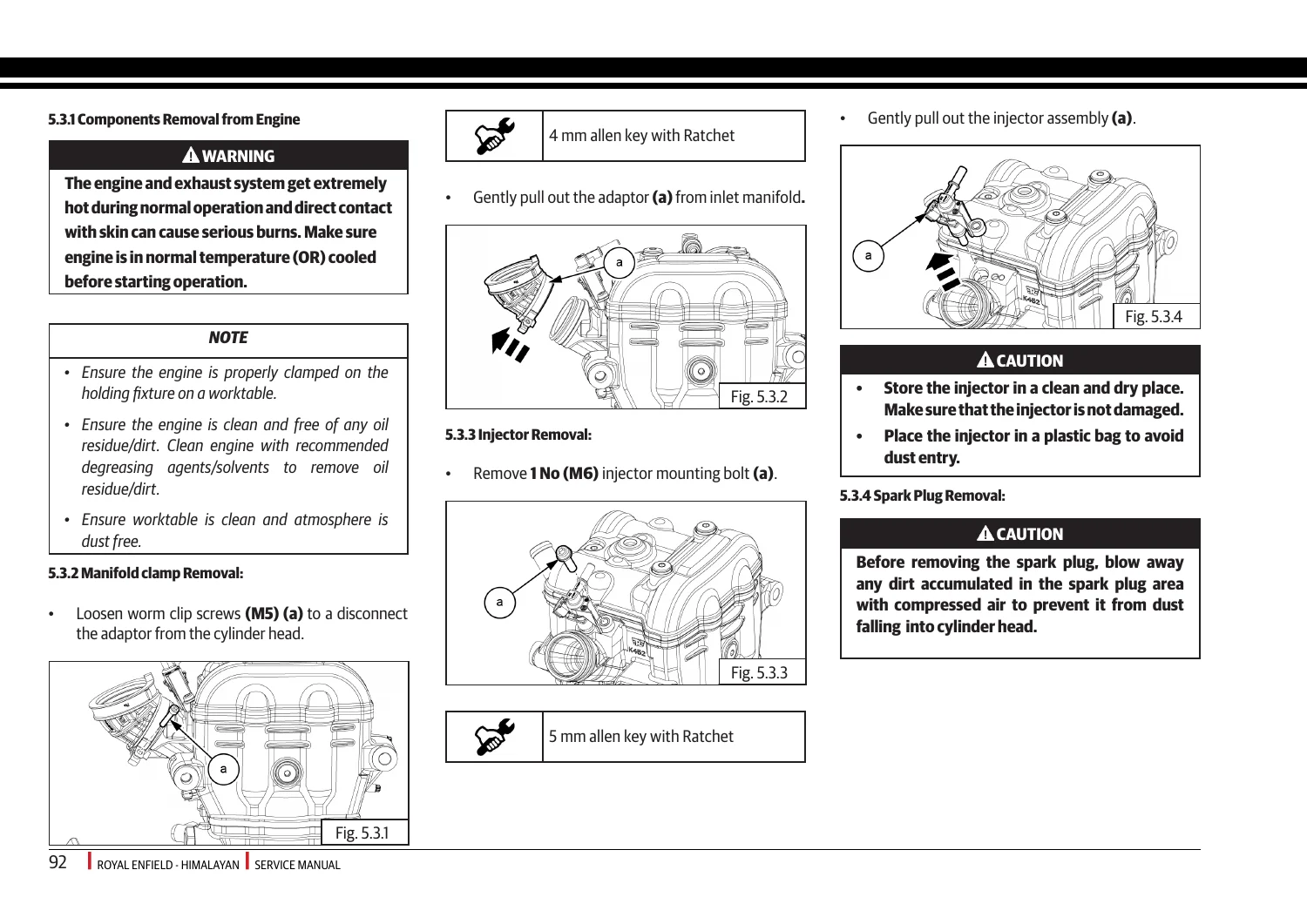

IMAGES PREVIEW

Get Your Royal Enfield Himalayan 450 Euro V 2023 Full Service Manual Instantly

With this Royal Enfield Himalayan 450 Euro V 2023 Full Service Manual you can carry out engine removal and rebuild, valve clearance adjustment, cooling system service, front and rear brake and ABS work, suspension and subframe service, EMS diagnostics and full electrical troubleshooting – all using the correct torque values, clearances and procedures instead of guesswork. Getting these figures right protects the engine and running gear and keeps the ABS and EMS systems working as designed. This is an instant PDF download – no shipping, available immediately after purchase, and readable on any computer, tablet or phone, or printed a chapter at a time for the workshop.
