Royal Enfield Himalayan Service Manual PDF (Euro IV)
Original price was: $120.00.$19.95Current price is: $19.95.
Download the Royal Enfield Himalayan service manual PDF for BS IV models, a detailed Royal Enfield Himalayan repair guide PDF with technical specs, periodical maintenance, engine dismantling, and troubleshooting. This Royal Enfield Himalayan BS IV maintenance manual covers front/rear suspension, EMS, electricals, and ABS for the Himalayan motorcycle service manual. Ideal for owners and mechanics seeking a PDF service manual for Royal Enfield Himalayan Euro IV bike. High-quality scanned PDF with 294 pages from 2017.
Description
Royal Enfield Himalayan Service Manual (Euro IV) PDF DOWNLOAD
Description
The Royal Enfield Himalayan Service Manual PDF is a comprehensive guide for maintaining and repairing the Himalayan Euro IV / BS IV motorcycle. This Royal Enfield Himalayan repair guide PDF provides systematic procedures for dismantling, inspection, diagnosis, reassembly, and lubrication, ensuring “First Time Right” repairs. Covering technical specifications, periodical maintenance schedules, special tools, and troubleshooting for vehicle and EMS issues, it’s an essential Royal Enfield Himalayan BS IV maintenance manual for technicians and enthusiasts working on engine management, suspension, brakes, and electrical systems.
Highlights include detailed exploded views, wiring harness diagrams, and NACS II diagnosis, all aimed at enhancing performance and customer satisfaction for the Himalayan motorcycle service manual. The manual emphasizes safety and precision, with updates noted as of October 2017.
File Details:
- Manual Name: Royal Enfield Himalayan Euro IV Vehicle Service Manual
- Models Covered: Himalayan BS IV / Euro IV
- Year: 2017
- Manual PDF Quality: High-quality scanned PDF
- Number of Pages: 294
Table of Contents (Extracted and Categorized):
- Introduction and Specifications:
- Technical Specifications (Page 6)
- Periodical Maintenance (Page 9)
- Tools and Dismantling:
- Special Tools Usage List (Page 11)
- Engine Dismantling from Frame & Reassembly (Page 12)
- Body and Controls:
- Rider & Pillion Seat (Page 45)
- Control Cables (Page 48)
- Air and Fuel System:
- Air Filter (Page 53)
- Pulse Air Valve (Page 59)
- Fuel Tank (Page 63)
- EVAP (Page 175)
- Exhaust System:
- Exhaust Pipe & Silencer (Page 67)
- Front Suspension:
- Front Mudguard (Page 81)
- Front Wheel (Page 82)
- Front Fork (Page 83)
- Handle Bar (Page 86)
- Steering Stem (Page 87)
- Rear Suspension:
- Rear Wheel (Page 109)
- Rear Sprocket / Drive Chain Adjustment (Page 114)
- Rear Mudguard (Page 116)
- Mono Shockabsorber (Page 117)
- Drag & Drop Links (Page 118)
- Swing Arm (Page 119)
- Brakes and ABS:
- ABS (Page 128)
- Hydraulic Disc Brakes – Front & Rear (Page 139)
- Engine and Electrical:

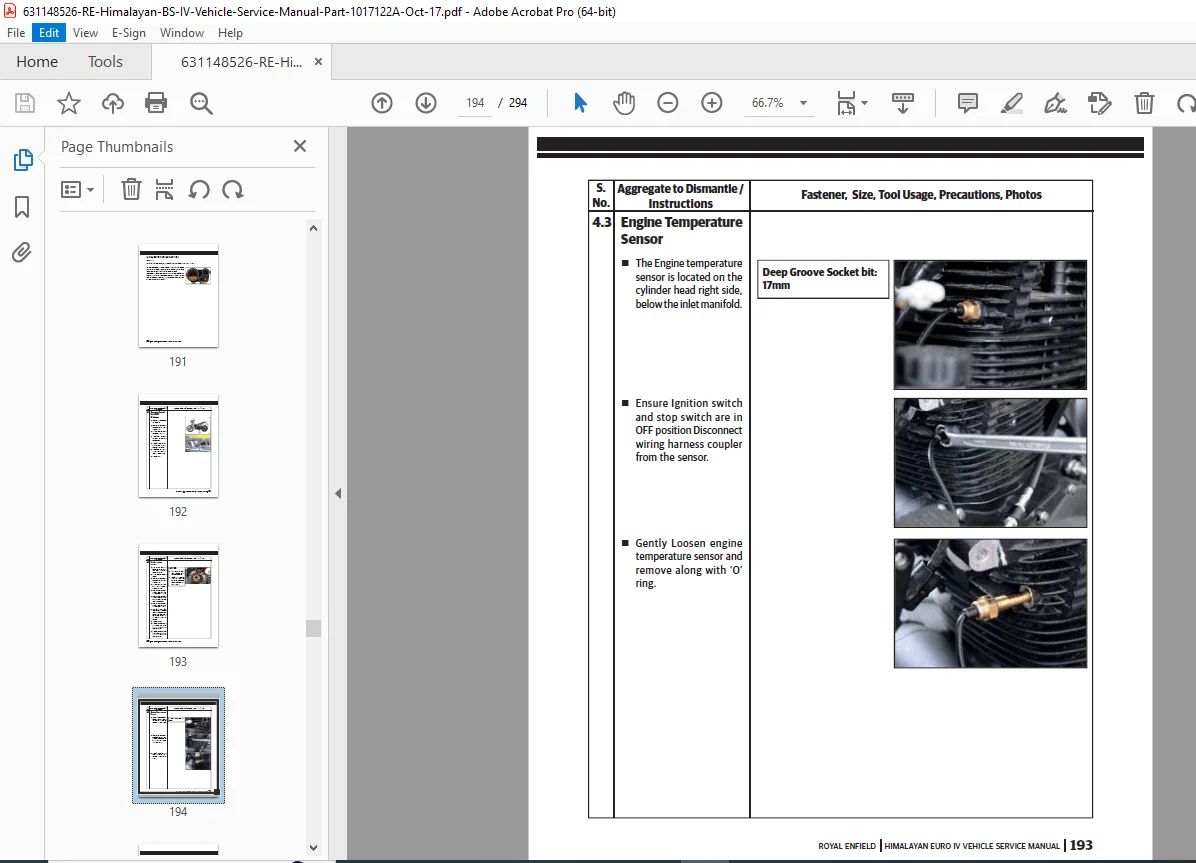

- Engine Management System (EMS) (Page 180)
- Electrical Components (Page 220)
- Electricals (Page 229)
- NACS II Diagnosis (Page 251)
- Wiring Harness (Page 270)
- Troubleshooting:
- Trouble Shooting
- Vehicle Trouble Shooting (Page 277)
- EMS Trouble Shooting (Page 289)
- Trouble Shooting
- Additional:
- Notes (Page 291)
Periodical Maintenance Schedule Table (Extracted from Pages 9-10):
| S. No. | Description | Kms (x 1000) / Months | Free Service (0.5 / 1.5) | Paid Services (Actions at intervals) | Notes |
|---|---|---|---|---|---|
| 1 | Engine Oil (Level check / Replace) | Check every 1000 Kms | R | I R I R I R I R I R | Check level at every 1000 Kms or earlier as required |
| 2 | Oil Filter Element | – | R | R R R R R | |
| 3 | Engine oil strainer on crankcase LH | – | C | C C C C C | |
| 4 | Inlet / Exhaust Tappet setting | – | I & A | I & A I & A I & A I & A I & A I & A I & A I & A I & A I & A | |
| 5 | Rubber hose, Inlet manifold * | – | I | I R I R I R I R I R | |
| 6 | Oil cooler inlet & outlet pipes * | – | I | I I R I I R I I R I | |
| 7 | Spark plug | – | C & A | C & A C & A R C & A C & A R C & A C & A R C & A | |
| 8 | HT leads for crack | – | I | I I I I I R I I I I | |
| 9 | Fuel Hose | – | I | I I R I I R I I R I | |
| 10 | Fuel Hose & Clip/ Injector ‘O’ ring/ Seal Ring | – | I | I I R I I R I I R I | |
| 11 | Fuel Pump | Check for screw tightness in all services | C | C R C R C R C R C R | |
| 12 | Air filter element | Clean/ Replace more frequently if used in dusty / off-road conditions | C | C R C R C R C R C R | |
| 13 | Accelerator Cable | – | I | I R I R I R I R I R | |
| 14 | Rubber Hose, Air filter to Throttle body | – | I | I R I R I R I R I R | |
| 15 | PAV pipes & Hose clip | – | I | I I I I R I I I I R | |
| 16 | Throttle body- Cleaning spray* | Carbo cleaner/ carb click/ or Fuel line cleaner spray every 6000 Km or 6 months | – | – | |
| 17 | Clutch Cable | – | I | I R I R I R I R I R | |
| 18 | Clutch free play | Adjust every 1000 Kms | – | – | |
| 19 | Clutch no slippage | – | I | I I I I I I I I I I | |
| 20 | Clutch Plates | – | – | R R R | |
| 21 | Cam Chain / Chain Pads / Auto chain Tensioner | – | I | I I I I I I I I I I & R | |
| 22 | Inlet / Exhaust valve seating (compression test) * | – | I | I | |
| 23 | Steering head bearings # | – | I & A | I & A L & A I & A L & A I & R I & A L & A I & A L & A I & R | |
| 24 | Front Fork oil | – | I | I I R I I R I I R I | |
| 25 | Fuel Pipe | – | I | I R I R I R I R I R | |
| 26 | Battery terminals (apply petroleum jelly) | – | C | C C C C C C C C C C | |
| 27 | Earth wire eyelet Tightness | – | I | I I I I | |
| 28 | Hydraulic Brake Fluid – Front & Rear # | – | I | I R I R I R I R I R | |
| 29 | Hydraulic brake hose & Washers – Front & Rear # | – | I | I I I R I I I R I I | |
| 30 | Brake Pads – Front & Rear # | – | I | I R I R I R I R I R | |
| 31 | Tyre wear pattern (Front & Rear)# (1) | – | I | I I I I R I I I I R | |
| 32 | Spokes tightness / Wheel rim run out front & rear # | – | I | I I I I I I I I I I | |
| 33 | Front & Rear wheel bearings for play # | – | I | I I I I I & R I I I I I & R | |
| 34 | Swing arm Pivot bearings # | – | I & L | I & L I & L I & L I & L I & L I & L I & L I & L I & L I & R | |
| 35 | Rear Suspension Linkages # | – | I | I & L I & L I & R I & L I & L I & R I & L I & L I & R I & L | |
| 36 | Rear Drive Chain # | Clean, Lubricate & Adjust every 1000 Kms | – | – | |
| 37 | Drive chain & Sprockets set # | – | I | I R I R I R I R I R | |
| 38 | Rear wheel cush drive rubbers # | – | I | I R I R I R I R I R | |
| 39 | All Mounting Fasteners in vehicle for tightness # | – | I | I I I I I I I I I I | |
| 40 | Hand levers, side stand, Rider & Pillion foot rest Pivots | Lubricate every 1000 Kms | – | – | |
| 41 | Evaporative Emission Equipment rubber hoses * | – | I | I I R I I R I I R I |
Note: A: Adjust, C: Clean, I: Inspect, L: Lubricate, R: Replace. * Refer Service Manual. # Check after off-road riding.
Special Tools Table (From Page 11):
| Part No. | Description | Application |
|---|---|---|
| ST-26461-2 | Front Fork Assembling & Dismantling Tool | To hold pipe seat inside fork main tube for loosening / tightening of Allen bolt on bottom tube. |
| ST-26485-3 | Front Fork Oil Seal Driver | To drive slide bush and fork oil seals into bottom tube |
| ST-25244-4 | Special spanner adjuster | To adjust rear shock absorber spring pre tension |
This PDF service manual for Royal Enfield Himalayan Euro IV bike equips you with everything needed for professional-level maintenance and repairs.
Revive your Himalayan adventure—download this Royal Enfield Himalayan service manual PDF instantly and keep your bike performing at its peak!
