Sampo Rosenlew SR1066 Forest Harvester Instruction Manual – 2012 PDF

Description

Sampo Rosenlew SR1066 Forest Harvester Instruction Manual

This is the complete instruction manual for the Sampo Rosenlew SR1066 forest harvester, dated 9/2012. It is the same manual supplied with the machine and covers everything from daily checks and safety precautions through to the hydraulic and electric diagrams. Whether you are operating the harvester, servicing it, or troubleshooting a fault, this Sampo Rosenlew SR1066 instruction manual gives you the procedures, specifications and reference material in one document.

File Details

• Manual type: Instruction manual (operator and maintenance)
• Brand: Sampo Rosenlew
• Model: SR1066 (SR 1066)
• Document number: 0812352
• Edition/date: 9/2012
• Language: English
• Page count: 119 pages
• File format: PDF

Chapters Covered

• Safety precautions
  • Transportation on a vehicle or by rail
  • Driving in traffic
  • Forest harvesting
  • Safety distances when harvesting under open-wire power lines
  • In case of accident
  • Repair and service
  • Local laws and regulations
  • Fire safety
• Marking of danger points

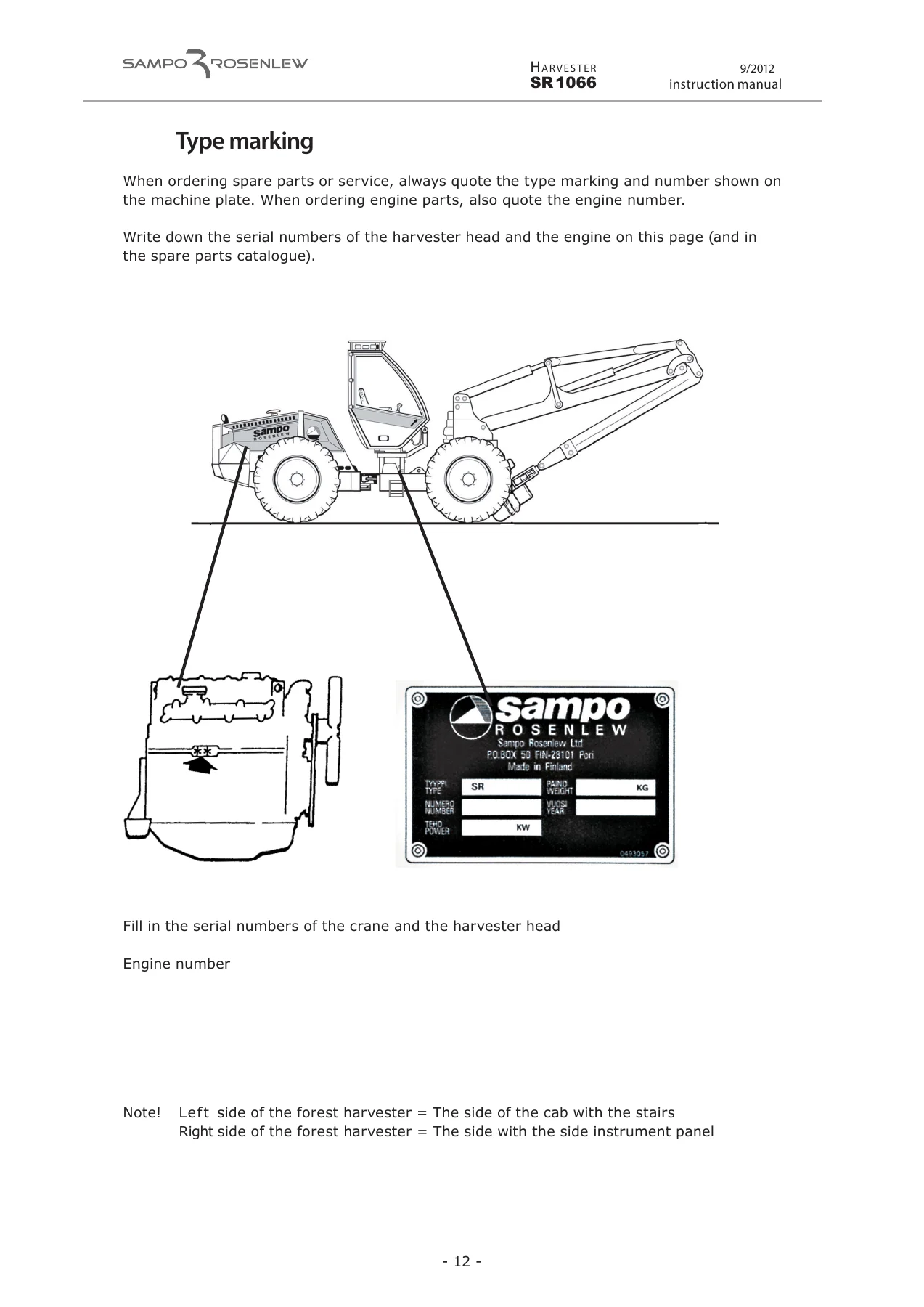

• Type marking
• Technical specifications
• Certificate on conformity to the EU directives
• Guarantee
• Structure and functions of the forest harvester
  • Structure
  • Harvester head

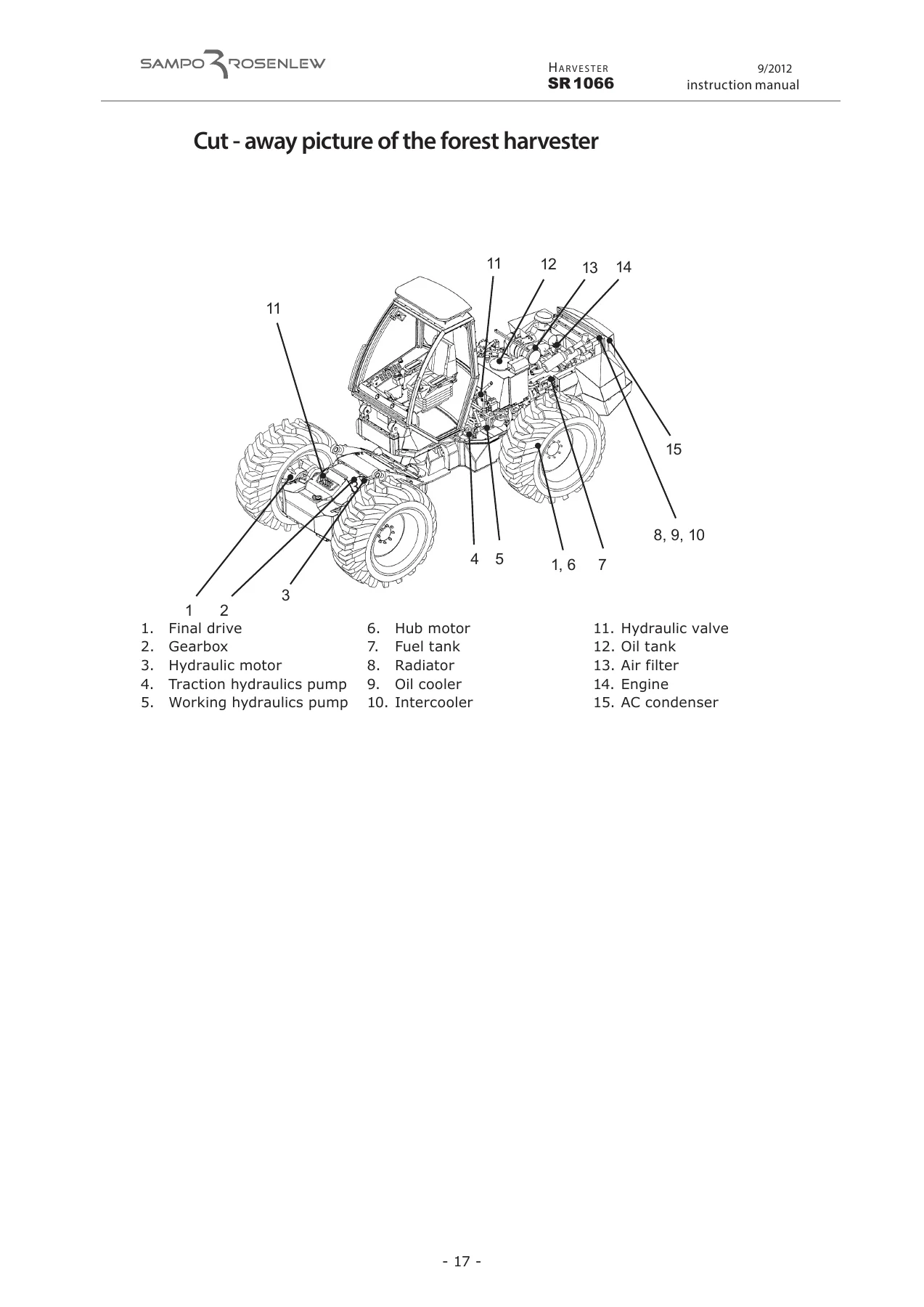

• Cut-away picture of the forest harvester
• Operator control instruments
  • Equipment on the instrument panel
  • Switches on the instrument panel
  • Equipment on the ceiling
  • Signal lights
  • Vertical levers
  • Mini levers
  • Push button boards
  • Joystick switches (Motomit, Epe, EME)
• Signs and symbols
• Operation and Adjustments
  • Door switch
  • Joystick positions
  • Seat adjustment
  • Brakes while driving and harvesting
  • Parking brake
  • Frame lock
  • Traction transmission
  • Four-wheel drive
  • Starting of the engine
  • Differential lock
  • Stopping of the engine
  • Electric master switch
  • Emergency stop
  • Cab fresh-air fan
  • Heater
  • Air conditioner
  • Towing
• Engine, source of power
  • Suction air filter
  • Fuel tank filling
  • Daily checks of the engine
  • Lubrication system
  • Cooling system
  • Fire extinguishers
  • Opening of the guards
• Hydraulics
  • Closed hydraulic circuit front-wheel drive
  • Open hydraulic circuit rear-wheel drive
  • Working hydraulics in the base harvester
  • Directional valves
• Electrical instruments
  • Fuses (Fuse Boxes 1-14)
  • Battery
  • Checking of the charge state
  • Installation of additional electrical instruments
  • Electrically controlled diesel engine
• IQAN control system
  • Safety symbols
  • IQAN display menus
  • Main menu
  • System information
  • Settings
  • Measuring
  • Adjustments
  • Adjusting a parameter
  • Internal diagnostics
  • Instrument panel display
  • Submenus
  • Diesel temperatures, oil pressure and operating hours
  • Drive pressures
• Parameters in the IQAN control system
• Service and maintenance
  • Safety
  • General instructions
  • Daily service measures
  • Service measures every 100 hours
  • Service measures every 500 hours
  • Service measures every 1000 hours
  • Service measures every 1500 hours
  • Service measures every 2000 hours
  • Service measures every 4000 hours
  • Service measures every 5000 hours
  • Service measures every 6 months
  • Service measures every 1 year
  • Service measures every 2 years
• Lubrication
• Summary of periodical procedures
• Storage when not in use
• Recommended accessories

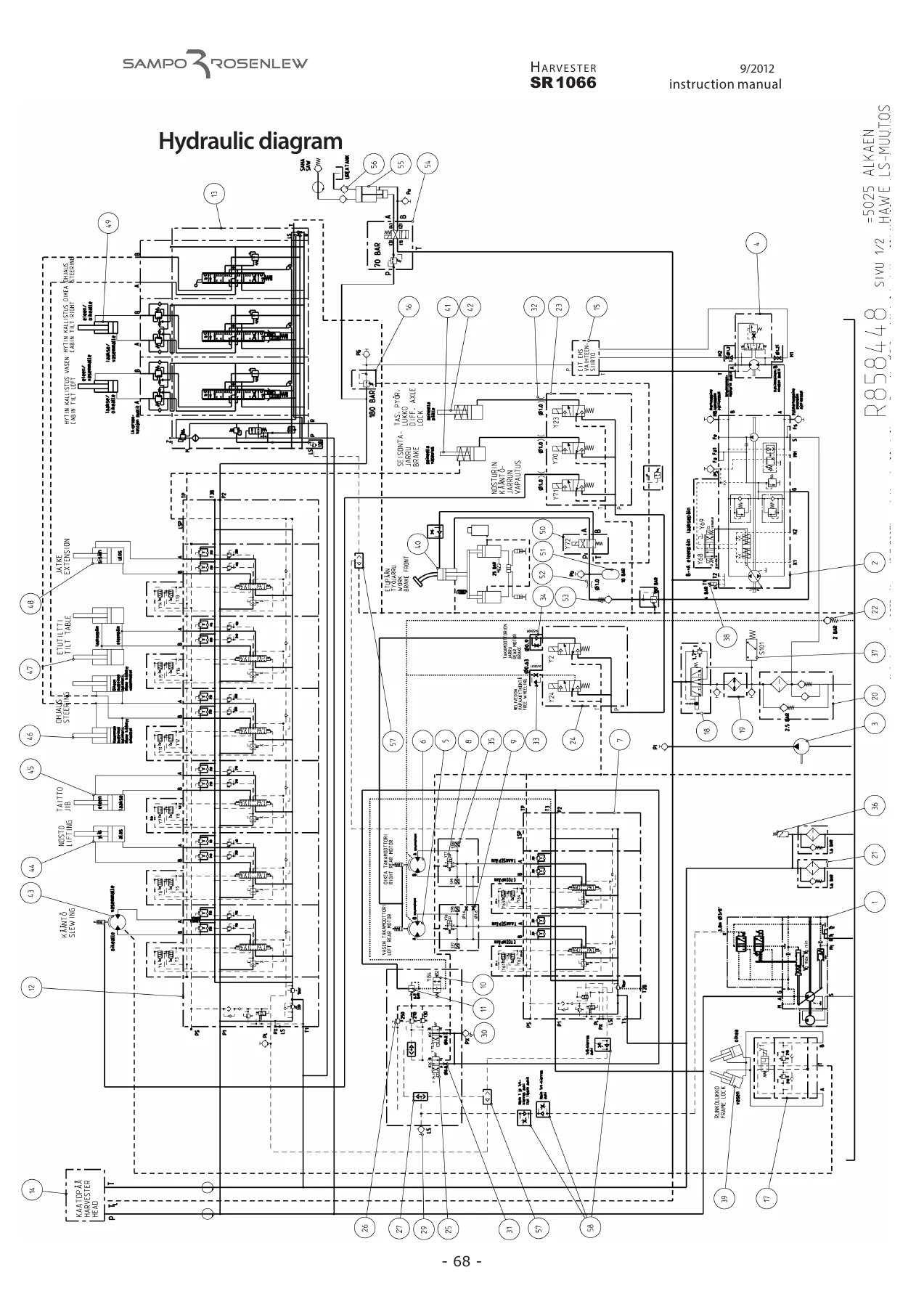

• Hydraulic diagram
• Electric diagram

This Sampo Rosenlew SR1066 manual is far more than a quick-start guide. It opens with the full safety section required before anyone operates the machine, including power-line safety distances, accident procedure, and fire safety. The technical specifications chapter lists the SR1066’s weights, dimensions, engine output, transmission data, tyre options, hydraulic pressures, crane and harvester head ratings, brake design and cab classification. The structure and function chapter explains how the front frame, rear frame, articulated steering, crane and harvester head work together, and the cut-away picture names each major component.

The operator control chapter identifies every switch, lever, joystick, signal light and push-button on the machine, including the Motomit, Epe and EME joystick variants. Operation and Adjustments then walks through the door switch logic, brake and frame-lock automation, traction transmission, four-wheel drive engagement, engine starting conditions, differential lock, stopping procedure, cab ventilation, air conditioning and towing. The engine chapter covers daily oil and coolant checks, the suction air filter, cooling system and fire extinguisher locations.

The hydraulics section explains the closed and open circuits, the working hydraulics pump, directional valves, frame lock, brake and gear-shift control, and the oil cooling route. The electrical instruments chapter lists every fuse in the fourteen fuse boxes, battery care and charging, auxiliary starting, and the alternator capacity. The IQAN control system chapter shows the display menus, measuring pages, adjustment pages and parameter list, including joystick trigger points, tilt settings, power limits, drive limits, filter values and cab automation parameters.

Service and maintenance is broken into daily, 100-hour, 500-hour, 1000-hour, 1500-hour, 2000-hour, 4000-hour, 5000-hour, six-month, one-year and two-year intervals. It covers engine oil and filter changes, hydraulic oil and filter changes, gearbox and final drive oil, fuel filters, water separator draining, air filter cleaning, belt tension, brake checks, tyre pressures, torque values, and the replacement of the torsional coupling. The lubrication chapter gives recommended oil grades and viscosities for different temperature ranges, plus filling quantities and change intervals. The manual closes with a full hydraulic diagram and electric diagram.

What This Manual Enables You to Do

With the Sampo Rosenlew SR1066 instruction manual on hand you can safely operate the harvester, carry out the full scheduled maintenance programme, diagnose faults through the IQAN display, adjust hydraulic and electrical parameters, and service the engine, transmission, brakes and hydraulic system to the manufacturer’s specifications. The safety section alone justifies keeping this document accessible, but the real value is in the complete maintenance tables, torque figures, oil capacities, pressure settings and the electrical and hydraulic diagrams that let you trace faults rather than guess at them.

Correct procedures and specifications matter on a machine of this size and complexity. A wrong oil grade, an incorrect hydraulic pressure setting or a missed lubrication interval can lead to expensive component failure or unsafe operation. This manual removes that risk by giving the exact values and steps the machine was designed around.

This Sampo Rosenlew SR1066 PDF manual is delivered instantly after payment. There is no shipping, no waiting, and no physical book to lose. You can open it on any device, print the pages you need for the workshop, and keep the full document available for reference in the cab or office.

IMAGES PREVIEW
