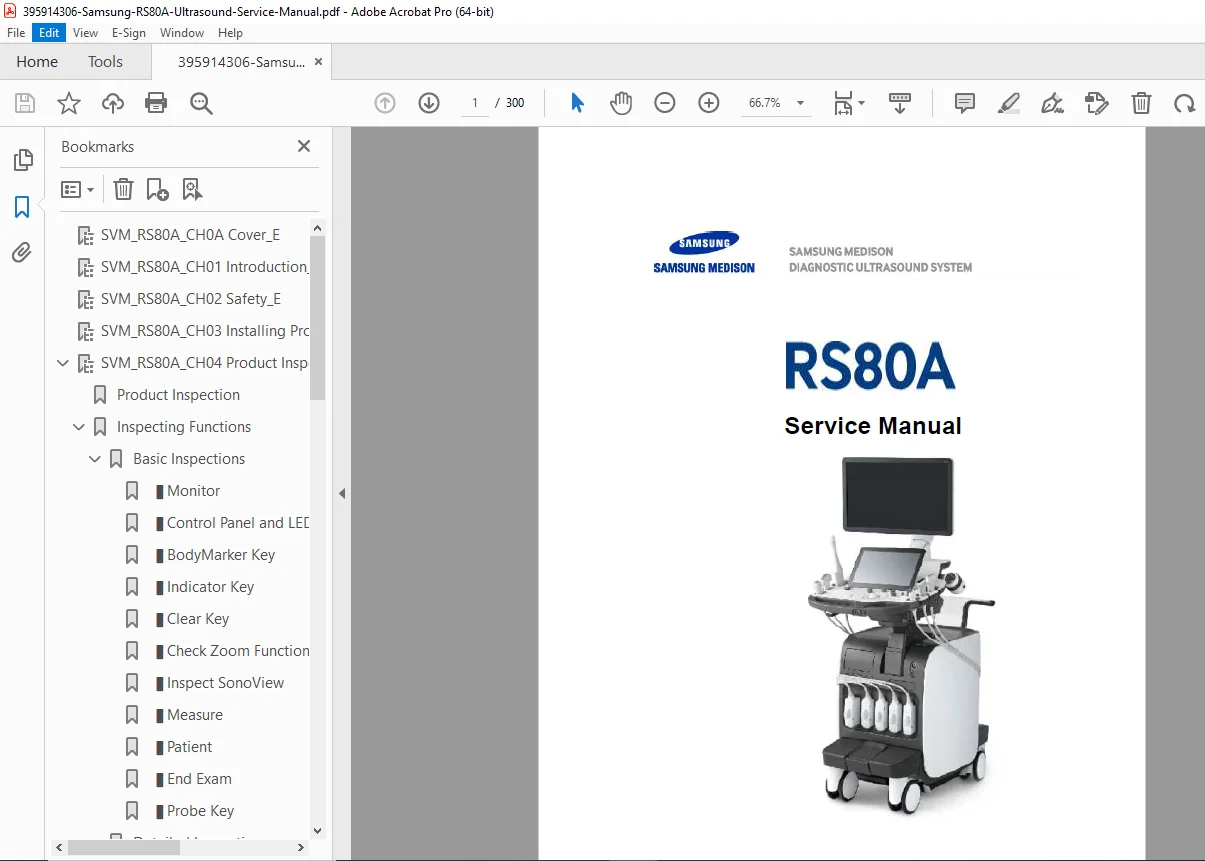

Samsung RS80A Ultrasound System – Service Manual Summary – PDF DOWNLOAD

Description

This Samsung Medison RS80A Service Manual is a comprehensive engineering reference for qualified biomedical and field engineers responsible for the installation, calibration, and servicing of RS80A ultrasound diagnostic systems.

🔧 System Overview

• Model: RS80A Diagnostic Ultrasound

• Type: Class I medical electrical equipment, Type BF/CF applied part

• Operation Mode: Continuous

• Power: 100–240 V AC ± 10%, 50/60 Hz, 1400 VA

• Weight: ≈ 155 kg (with monitor)

• Dimensions: H 1342 mm × W 560 mm × D 980 mm

🖥️ Main Components

• Monitor: 23″ LED-backlit LCD main display + 13.3″ touchscreen control monitor

• Control Panel: Soft keys, trackball, and user-programmable keys (U1–U3, P1–P2)

• Console: Probe holders, handles, power inlet & equipotential terminal

• Peripheral Ports: USB, HDMI, RGB, S-VHS, Audio in/out, Network RJ-45, Foot switch, Mic port

  395914306-Samsung-RS80A-Ultraso…

🩻 Imaging & Applications

Imaging Modes: 2D, M-mode, Color Doppler, PW/CW Doppler, TDI, Power Doppler, S-Flow, ElastoScan, 3D/4D, Color M-Mode, Anatomical Mode.
Applications: OB/GYN, Abdomen, Vascular, Cardiac, Urology, MSK, Small Parts, Pediatrics, TCD, Contrast Imaging.
Probes Supported: Linear (L3-12A to L7-16), Curved (C2-6 to CF4-9), 3D (V4-8 to LV3-14A), Phased (PE2-4 to PM1-6A), CW (CW6.0)

395914306-Samsung-RS80A-Ultraso…

⚙️ Functional Highlights

• Dynamic focusing (Tx 8 pts / Rx continuous)

• Digital Signal Processing: TGC, gain, dynamic range, frame average, gamma windowing

• Image Storage: 12,700 cine frames / 8192 loop lines

• Measurement Packages: OB/GYN, Cardiac, Vascular, Fetal Heart, MSK, Urology, Abdomen etc.

• Optional Features: Smart 4D, S-Detect, Realistic Vue, Panoramic, Auto IMT+, Clear Track, HDVI, E-Thyroid

  395914306-Samsung-RS80A-Ultraso…

🧰 Safety & Compliance

• Standards: IEC 60601-1, -1-2, -1-6, -2-37, ISO 14971, IEC 61157

• Labels & Symbols: BF/CF type, Equipotential terminal, IPX7/IPX8 probes, ESD warnings

  395914306-Samsung-RS80A-Ultraso…

• Electrical Safety: Proper grounding, Class I device, equipotential bonding required

  395914306-Samsung-RS80A-Ultraso…

• Mechanical Safety: Brake pedal lock, tilt/height controls, safe transport over 100 kg equipment

  395914306-Samsung-RS80A-Ultraso…

• Biological Safety: Probe disinfection, temperature limit ≤ 43 °C, ALARA principle detailed

  395914306-Samsung-RS80A-Ultraso…

⚡ EMC & EMI Specifications

• Complies with: IEC 60601-1-2 (EN 60601-1-2)

• Emission Class: Group 1, Class A

• Recommended Cable Types & Lengths: Shielded VGA/USB/RS-232C, 2.99 m foot switch, < 3 m ECG input

  395914306-Samsung-RS80A-Ultraso…

• Immunity Tests: ± 6 kV contact ESD, ± 8 kV air, ± 2 kV power burst tested

• Separation Distance Guidelines: > 1 m from RF sources > 1 W output

  395914306-Samsung-RS80A-Ultraso…

🧪 Operation Principles

Explains the signal chain from probe transmission → echo reception → A/D conversion → digital beamforming → display rendering in real time

395914306-Samsung-RS80A-Ultraso…

.
Includes detailed explanations of 2D/M-mode acquisition, color Doppler processing, and Clear Track biopsy navigation system

395914306-Samsung-RS80A-Ultraso…

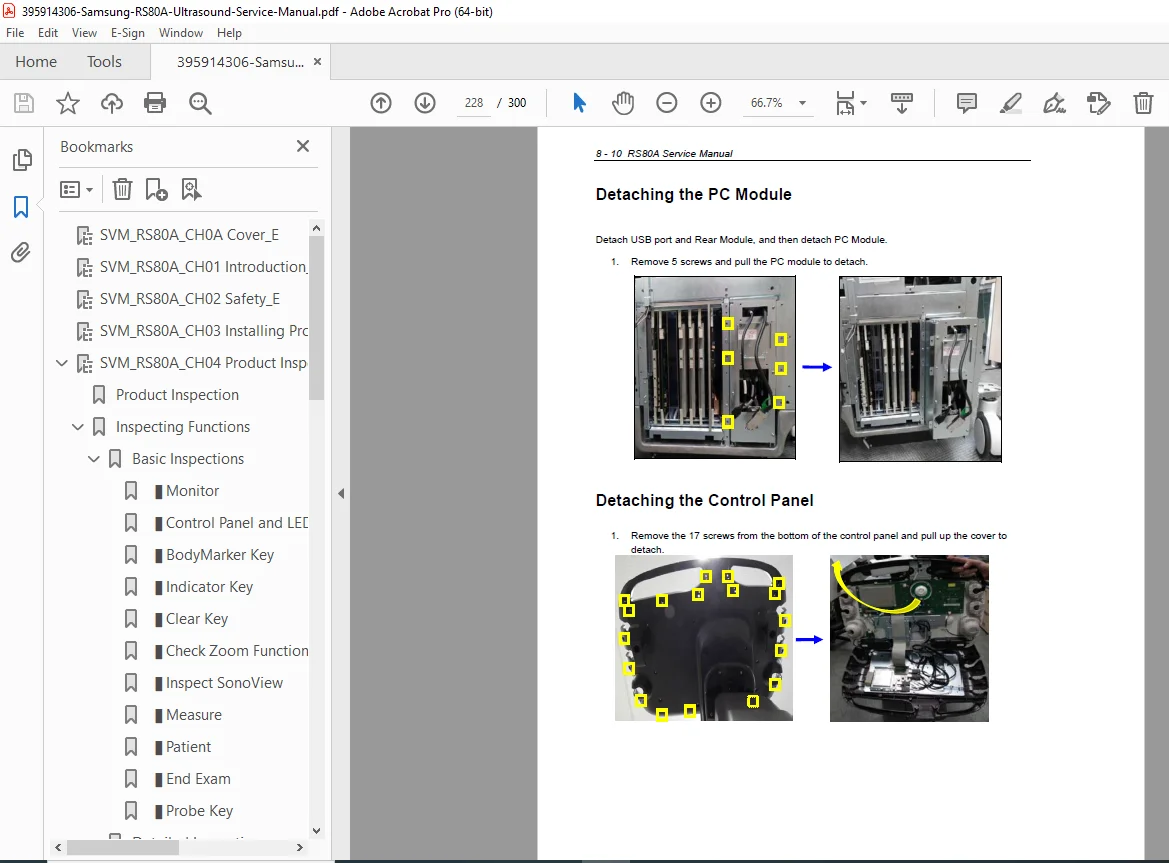

🧼 Maintenance & Servicing

• Routine Checks: Vent filters, cable inspection, software calibration

• Disinfection: Probe cleaning with approved agents only

• Service Interval: Expected lifespan ≈ 7 years with authorized maintenance

  395914306-Samsung-RS80A-Ultraso…
