Samsung Wf210anw Wf220anw Service Manual Repair Guide – PDF DOWNLOAD

Description

Samsung Wf210anw Wf220anw Service Manual Repair Guide

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:105
DOWNLOADABLE:YES
FILE TYPE:PDF

SAMSUNG WF210ANW WF220ANW SERVICE MANUAL REPAIR GUIDE – PDF DOWNLOAD:

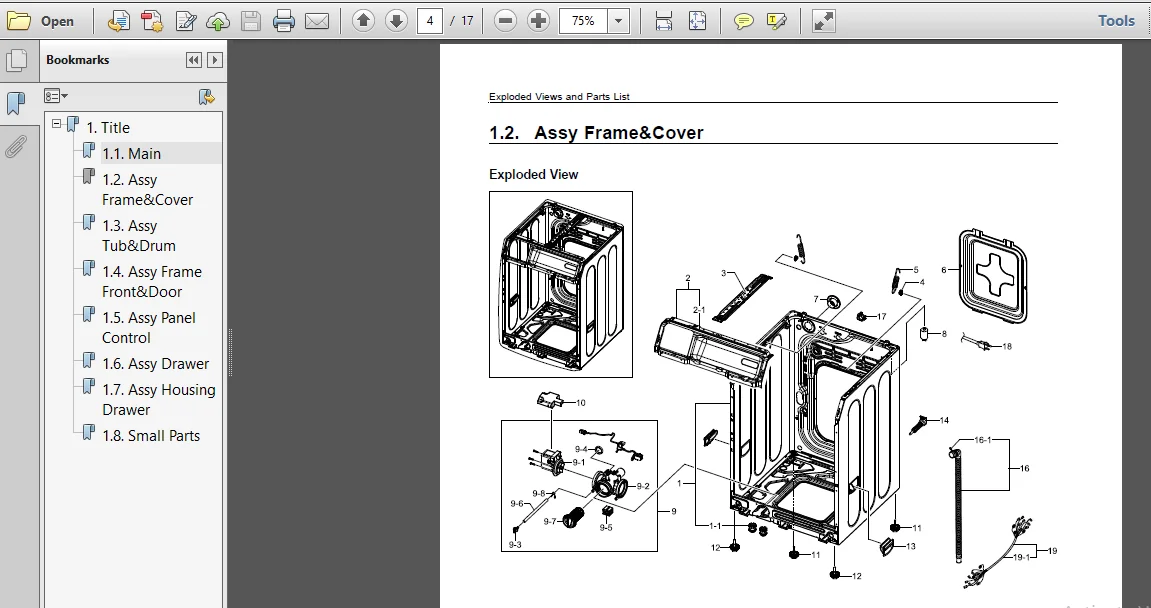

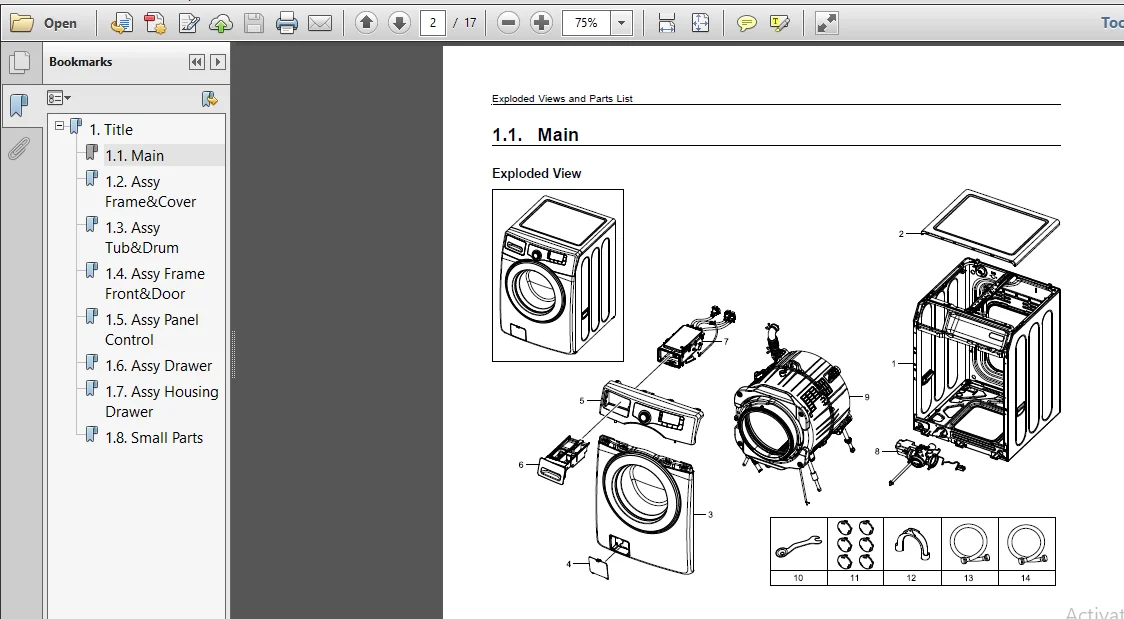

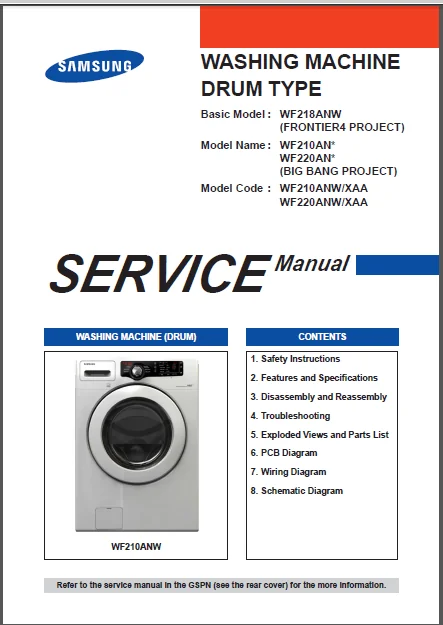

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Samsung Wf210anw Wf220anw Service Manual Repair Guide

Basic Model : WF218ANW (FRONTIER4 PROJECT)
Model Name : WF210AN* WF220AN* (BIG BANG PROJECT)
Model Code : WF210ANW/XAA WF220ANW/XAA

Is your Samsung Washing Machine letting you down?
Why replace while you can upgrade or repair?!
This service and repair manual is used by the Official Certified Samsung Technicians. It will help you to troubleshoot and repair your Washing Machine!

TABLE OF CONTENTS:

Samsung Wf210anw Wf220anw Service Manual Repair Guide

1 Safety instructions 1
1-1 Safety instructions for service engineers 1
2 Features and Specifications 5
2-1 Features5
2-2 Specifications 7
2-3 Comparing specifications with existing models8
2-4 Options specifications 9
3 Disassembly and Reassembly 11
3-1 Tools for disassembly and reassembly11
3-2 Standard disassembly drawings 12
4 Troubleshooting 23
4-1 Error modes 23
4-2 Corrective actions for each error code27
5 Exploded views and Parts list35
5-1 MAIN 36
5-2 ASS’Y FRAME & COVER PARTS40
5-3 ASS’Y TUB & DRUM 46
5-4 ASS’Y FRAME FRONT & DOOR 52
5-5 ASS’Y PANEL CONTROL56
5-6 ASS’Y DRAWER 60
5-7 ASS’Y HOUSING DRAWER 64
5-8 SMALL PARTS68
5-9 PARTS LIST (SA/SC OTHER)70
5-10 PARTS LIST (SCREW TYPE)74
6 PCB diagram 77
6-1 Main PCB 77
6-2 Detailed Manual for Connector and Relay Terminal Part – (Main PCB) : WF210*78
6-3 Detailed Manual for Connector and Relay Terminal Part – (Main PCB) : WF220*79
6-4 Sub PCB 80
6-5 Detailed Manual for Connector Terminal Part (Sub PCB)81
7 Wiring diagram82
7-1 Wiring diagram (WF210AN*) 82
7-2 Wiring diagram (WF220AN*) 83
8 Schematic diagram 84
8-1 Main control 84
8-2 Sub control85
