Samsung SCX-6345N Service Manual PDF (Digital Laser MFP 45PPM)

Description

Samsung SCX-6345N Service Manual PDF DOWNLOAD (Digital Laser MFP 45PPM)

DESCRIPTION

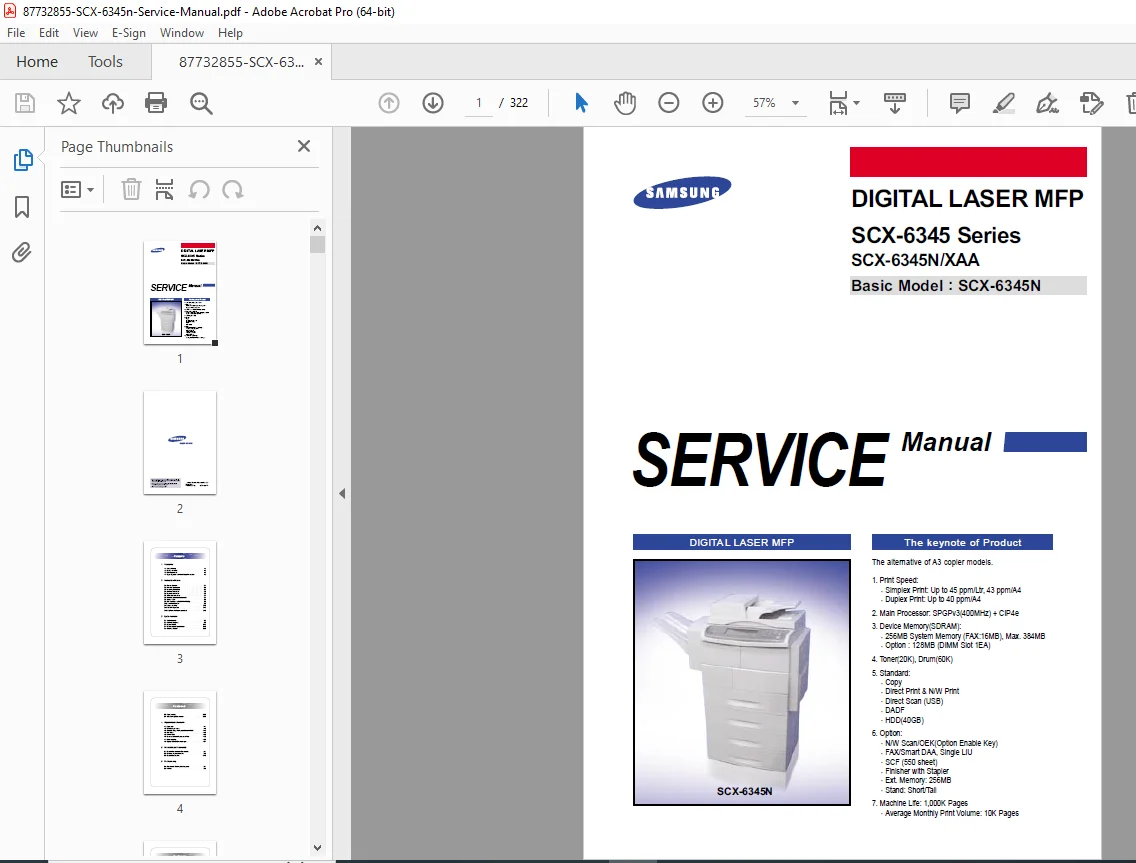

This official Samsung SCX-6345N Service Manual provides complete technical support for repairing, maintaining, diagnosing, and rebuilding the SCX-6345 Series Digital Laser MFP.
It covers every subsystem: engine, scanner, fax, network card, optics, power supplies, firmware, paper feeding, and finishing accessories.

The manual includes 322 pages of engineering-level information with system block diagrams, alignment procedures, disassembly charts, test patterns, error messages, troubleshooting flowcharts, and full parts diagrams.

Table of Contents

1. Precautions

• Safety warnings & laser precautions (page 1–1)

• ESD Guidelines

• Toxic material handling

• Shock, fire, assembly precautions
  ✔ Referenced from pages 1–1 to 1–5

2. Product Specifications

• 45ppm print speed / 43cpm copy speed

• 600×600 dpi

• 50-sheet DADF

• Network print/scan, duplex, HDD 40GB

• Paper handling: up to 2,300 sheets

• Memory: 256MB (max 384MB)
  ✔ Full spec table on pages 2–1 to 2–13

3. System Overview

• System layout diagrams

• Main controller architecture (ARM10 CPU)

• Network interface card block diagram

• OPE board, DADF board, SMPS, HVPS, IH inverter

• Engine hardware configuration

4. Alignment & Adjustments

• Paper path diagrams (simplex, duplex, MP, SCF)

• Clearing jams

• Roller defects

• User mode / Service mode (Tech Mode)

• Consumable replacement
  ✔ Pages 4–1 to 4–61

5. Disassembly & Reassembly

• Step-by-step disassembly

• OPC drum protection procedures

• Customer replaceable components
  ✔ Pages 5–1 to 5–13

6. Troubleshooting

• Symptom verification procedure

• Print defects, fuser errors, communication faults
  ✔ Pages 6–1 to 6–2

7. Exploded Views & Parts List

• Main frame

• Cover units

• Pick-up assembly

• Fuser

• DADF assemblies

• SCF, Finisher, Stacker, Ejector
  ✔ Pages 7–1 to 7–27 (multiple diagrams)

8. Block Diagrams

• System block diagram

• DADF block diagram
  ✔ Pages 8–1 to 8–3

9. Connection Diagrams

• Main connection layout

• SCF

• DADF

• OPE
  ✔ Pages 9–1 to 9–4

10. Finisher Unit

• Specifications & performance
  ✔ Pages 10–1 to 10–5

11. Network Printer Server

• SyncThru Web Service

• Network firmware

• TCP/IP, LDAP, Authentication
  ✔ Pages 11–1 to 11–34

12. Option Installation Guide

✔ Pages 12–1 to 12–2

13. Reference Information

• Troubleshooting tools

• Acronyms

• Test patterns
  ✔ Pages 13–1 to 13–10

🔧 2. Technical Highlights

✔ Detailed Engine Section

Includes HVPS, SMPS, IH inverter, fuser, transfer roller, OPC drum, and drive units.

✔ Advanced Diagnostic Tools

• Tech Mode

• Internal print tests

• Error message list

• LED indicators

✔ Full Mechanical Disassembly

Scanner, DADF, fuser, covers, rollers, SMPS, HVPS, NIC.

✔ Complete Network Features

• Scan to SMB / FTP / Email

• SyncThru management

• LDAP authentication

✔ Extensive Parts Diagrams

Over 100+ exploded drawings for precise parts identification.

📄 FILE DETAILS
