Sandvik D75KS Parts Manual — Serial 733504

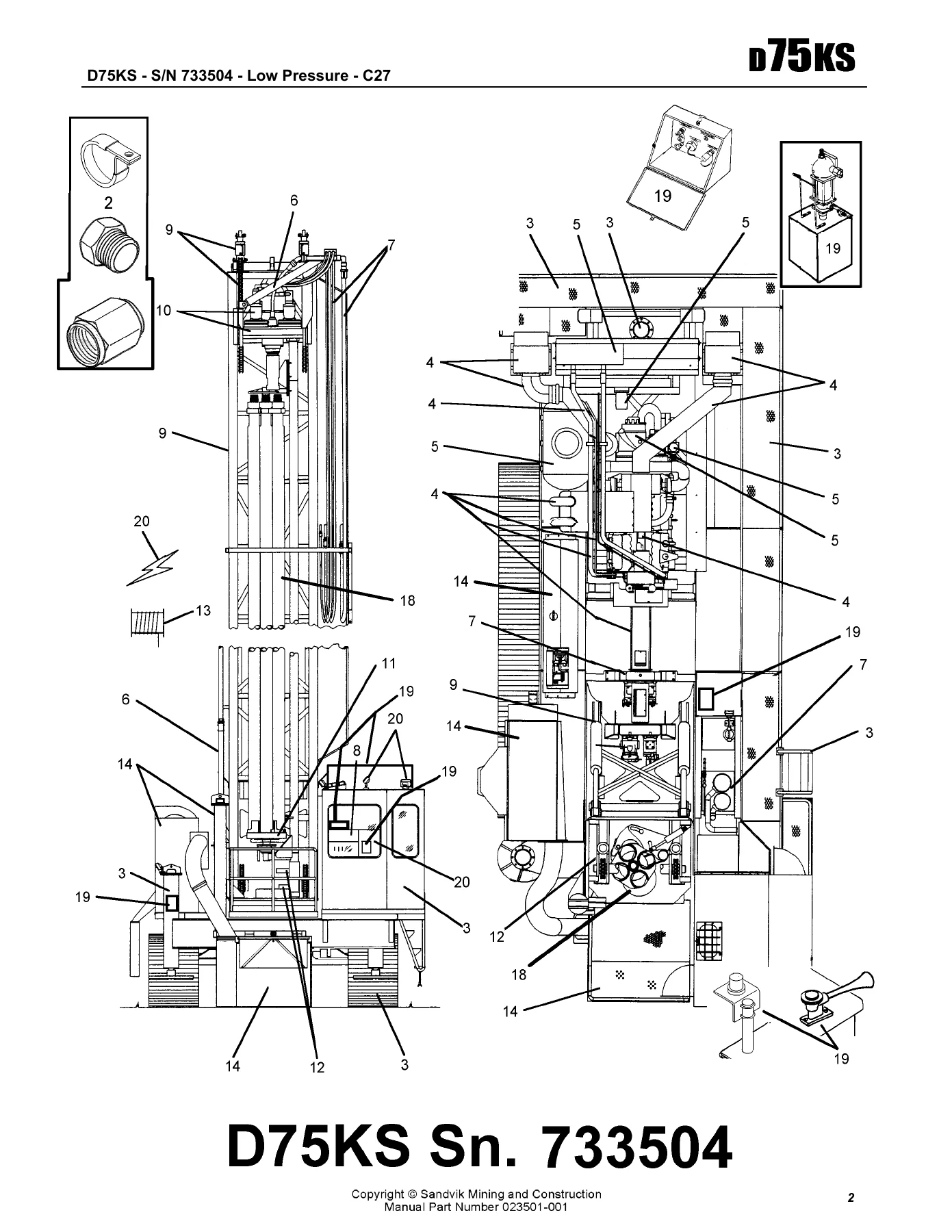

This Sandvik D75KS Parts Manual is the complete illustrated parts reference for machines built at serial number 733504 with the low-pressure C27 configuration. Every major assembly on the rig is broken down into exploded views with itemised part numbers, quantities, and descriptions — so you can identify exactly what you need before you order, without guessing or cross-referencing outside sources.

File Details

• Manual type: Illustrated Parts Manual
• Brand: Sandvik Mining and Construction
• Model: D75KS
• Serial number: 733504
• Engine: Caterpillar C27 DIT/ATAAC
• Configuration: Low Pressure
• Language: English
• File format: PDF
• Page count: 736
• Manual part number: 023501-001

Chapters Covered

• Section 2 — Misc. Hardware: Clamps (hose, harness, Stauff single and twin, rail-mounted), JIC/BOSS/MPT plugs and caps, pipe joint assemblies, flange kit assemblies, elbows (MPT/JIC, BOSS/JIC, swivel), adapters (MPT/MPT, MPT/JIC, BOSS/JIC, FPT/JIC, FJIC/JIC, swivel FJIC/MJIC), tees (swivel, FPT/JIC, FPT/FPT/FPT, MBOSS/MJIC/MJIC), electrical clamps.

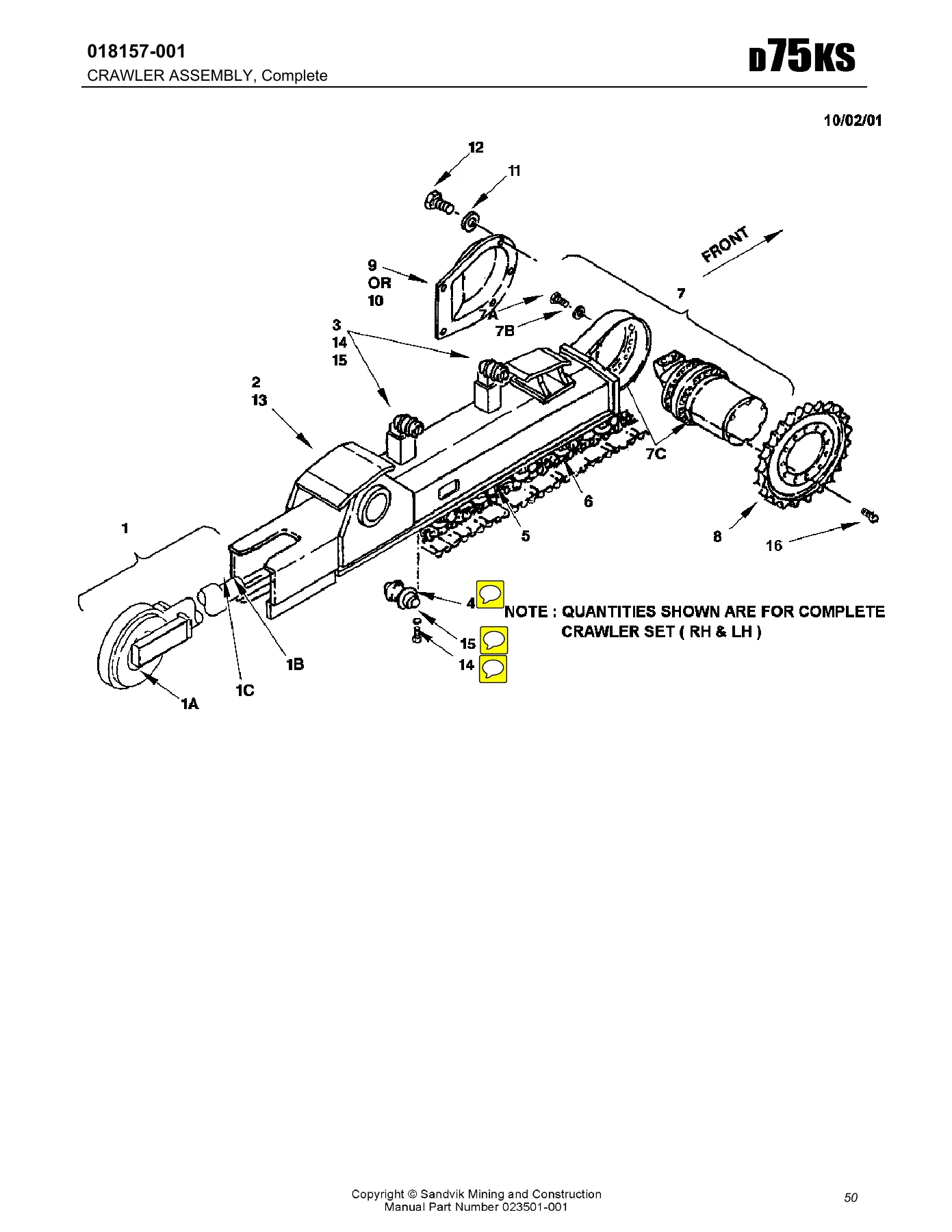

• Section 3 — Crawlers, Cab & Leveling Jacks: Undercarriage group, complete crawler assembly, idler/spring assembly, idler assembly, spring assembly, track adjuster, upper track roller, roller assembly, track guards, 52-shoe crawler track assembly, final drive unit, propel motor, propel shutdown group, solenoid valves, cab heater group, leveling jack group, 7 x 48 stroke cylinder, mast rest, battery box, jack indicator, handrail and deck groups, ladder assembly, front and rear windshield wiper groups, air conditioner group and assembly, A/C compressor mounting, tram-to-jack interlock, cab group and basic/extension cab assemblies, Isringhausen and Seats Inc. seat assemblies, helper’s seat, windshield washer, sun shade, lifting assembly, marketing decal group.
• Section 4 — Engine, Fuel Tank & Air Inlet: Engine group, engine mounting group, cooler lines group, battery group with disconnect, driveline cover group, fuel tank and gauge group, engine cover group, muffler group, engine air inlet group, turbo cover group, ground level shutdown, accessory power wiring group, compressor air inlet group, fuel hose group, 175 amp alternator kit.

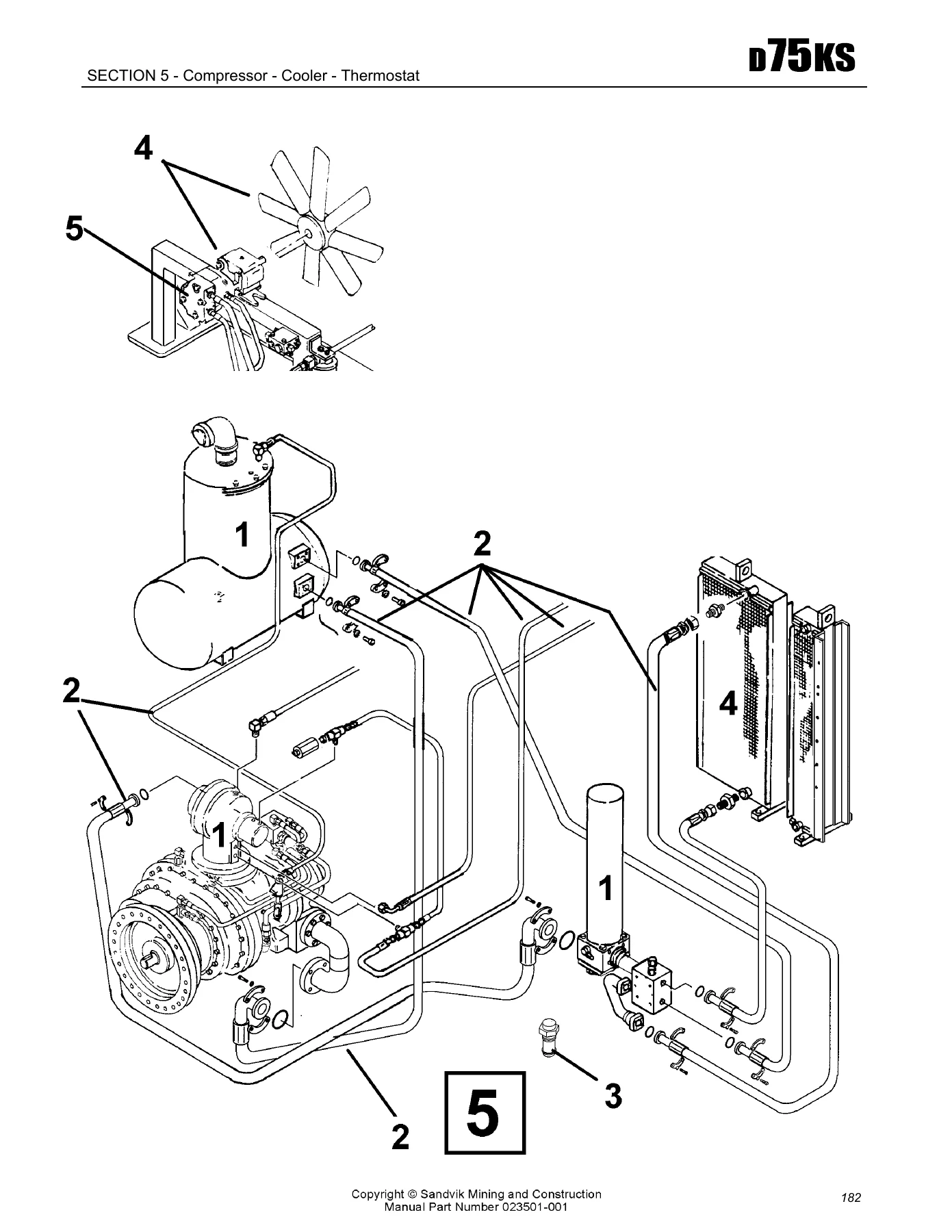

• Section 5 — Compressor, Cooler & Thermostat: Compressor group, compressor system hosing, cooler group, fan drive group, air end assembly, air/oil tank assembly, flex coupling assembly, air control manifold assembly, filter assembly with electric indicator, minimum pressure valve assembly, fan drive, pump filter assembly, variable pump, fixed motor, pump unit assembly.
• Section 6 — Air Piping: Air piping group, air piping manifold assembly, cylinder assembly, air shock piping.
• Section 7 — Hydraulics, Hoisting & Pumps: Hydraulic system group, hydraulic tank group, tank filter assembly, return tank regulator group, driveline assembly, pump filter group, valve housing assembly, pump unit assembly, pump drive gearbox assembly, pump assemblies, pump gearbox dipstick, basic hosing group, mast hosing group, track hosing group, accumulator kit, second pump unit assembly.
• Section 8 — Operator Station & Stacker Valves: Operator’s station group, console frame assembly, feed manifold assembly, lower/middle/upper valve assemblies, propel control assembly, valve sections (inlet, working, outlet), pressure control override group.
• Section 9 — Mast & Feed System: Mast/mast piping group, mast raising group, 6-1/2 x 66 stroke cylinder assembly, feed system group, guide shoe group, 6 x 240 stroke cylinder assembly, chain adjuster kit, feed cylinder guard group.
• Section 10 — Rotary System: Rotary head drive group, motor assembly, planetary assembly, dual rotary head gearbox assembly, rotary head hosing groups, rotary head tachometer group.
• Section 11 — Loader & Angle Drilling: Loader group (inside), cylinder assemblies, angle drill locking group, drill pipe support group, loader/head interlock group.
• Section 12 — Holding Wrench & Power Wrench: Holding wrench group, 2 x 8 stroke cylinder assembly, power tong breakout group, 3 x 3 and 4 x 6 stroke cylinder assemblies.
• Section 13 — Winch: Winch group, hydraulic winch assembly.
• Section 14 — Workdeck, Dust Control & Water Injection: Angle drill workdeck group, dust collector group and assembly, vane motor assembly, air filter regulator assembly, blower motor control group, dust hood group, 5 x 48 stroke cylinder assembly, water injection group, water tank assembly, 9 GPM water injection assembly and pump, relief valve assembly, drain assembly.
• Section 18 — Drilling Tools: Drill string kit (8-5/8 OD x 6 RH BECO), drill pipe wiper, deflector.
• Section 19 — Special Equipment & Options: Emergency stop kit, drill monitor system, air horn group, remote fluid drain group, test station group, air conditioner cover group, chain lube group, central lube group, cab warning light group, CMS kit for D55/D75, thread lube group, mast warning light group, Wiggins remote service group, depth counter GUI group, compressor management system.
• Section 20 — Electrical: Electrical group, engine control box, auxiliary engine panel, junction/breaker box assembly, lighting group.

This parts manual is structured exactly the way a Sandvik D75KS is built — by system and assembly. Each exploded diagram is keyed to a parts table that gives you the item number, Sandvik part number, quantity required, and a description with dimensional details where applicable. For a machine as complex as the D75KS, that level of organisation matters: you are not hunting through generic fastener lists or guessing whether a fitting is JIC, BOSS, or MPT. The manual tells you. Whether you are rebuilding a final drive, replacing a hydraulic hose, ordering a new seat, or tracking down a solenoid valve, the illustration and the adjacent parts list give you the complete picture in one place.
