Sandvik D75KX SN 734075 C27 T3 875HP STD Mast Parts Manual PDF

Description

File Details

• Manual type: Parts manual
• Machine: D75KX, SN 734075, C27 T3 875 HP STD mast
• Brand / copyright: Sandvik Mining & Rock Technology
• Language: English with Spanish part-list headings and bilingual names
• Page count: 726
• Format: PDF
• Maintenance planner callout: BG01370710 (D75KX Maintenance Kit Planner combo Label R4_01142021)

The Sandvik D75KX SN 734075 C27 T3 875HP STD Mast Parts Manual PDF is built around one configured blast-hole drill, not a generic family catalog. Every footer repeats Machine Model D75KX and Serial Number 734075, so item quantities, weldments, hose groups, and option kits match this C27 Tier 3 875 hp standard-mast unit rather than a look-alike D55 or later Tier 4 arrangement.

What This Serial Build Includes

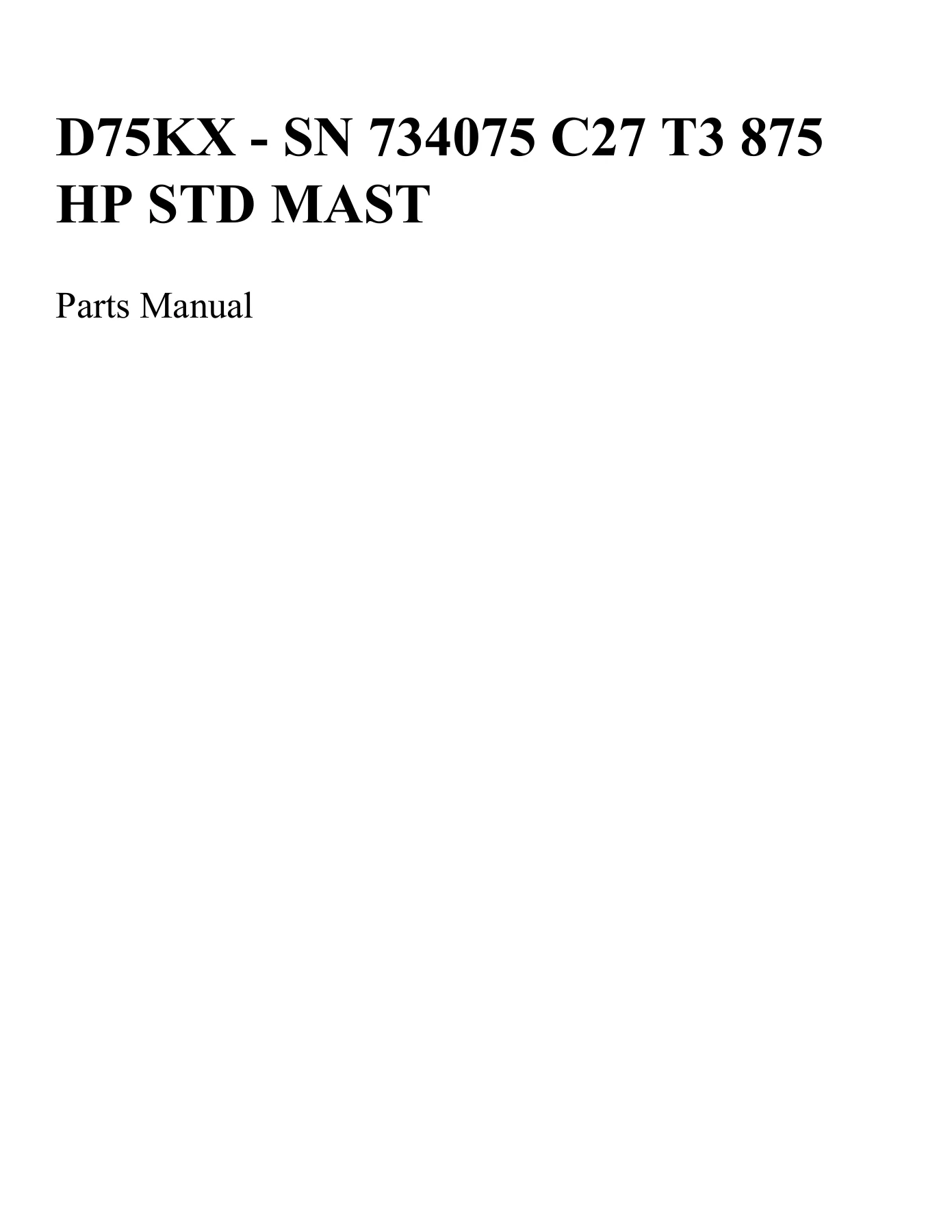

The cover line D75KX – SN 734075 C27 T3 875 HP STD MAST is the identity key used throughout the book. Power is listed as POWER GROUP, C27T3 875HP, 2000/100 L&M 1800 RPM. Related engine groups name ENGINE ASSEMBLY – C27, ENGINE MOUNTING GROUP C27, cooler lines for C27, compressor group 2000/100, and L&M C27 T3 875HP LP&HP hardware. Water injection uses WATER TANK, 600 GAL / WATER TANK, D55/75KX 600 GAL. Feed hardware includes ENSAMBLE CILINDRO – 6 X 240 Stroke and a 19-tooth sprocket assembly. Mast raise uses ENSAMBLE CILINDRO – 6-1/2 X 66 Stroke. Pipe support lists HOLDER, PIPE, 8.00 DRILL PIPE and BARREL, LOADER, D75 4 POD 7.63-8. Frame notes MAIN FRAME, D75KSX/D55SPX and FRAME MISC GRP, D75KX. Options in the book include arctic undercarriage, cold-weather and preheater groups, camera and remote tram, autolevel monitoring, drill monitor, and electronic depth counter.

IMAGES PREVIEW

Chapters Covered

• Section 1 – Maintenance Kits: D75KX maintenance kit planner BG01370710

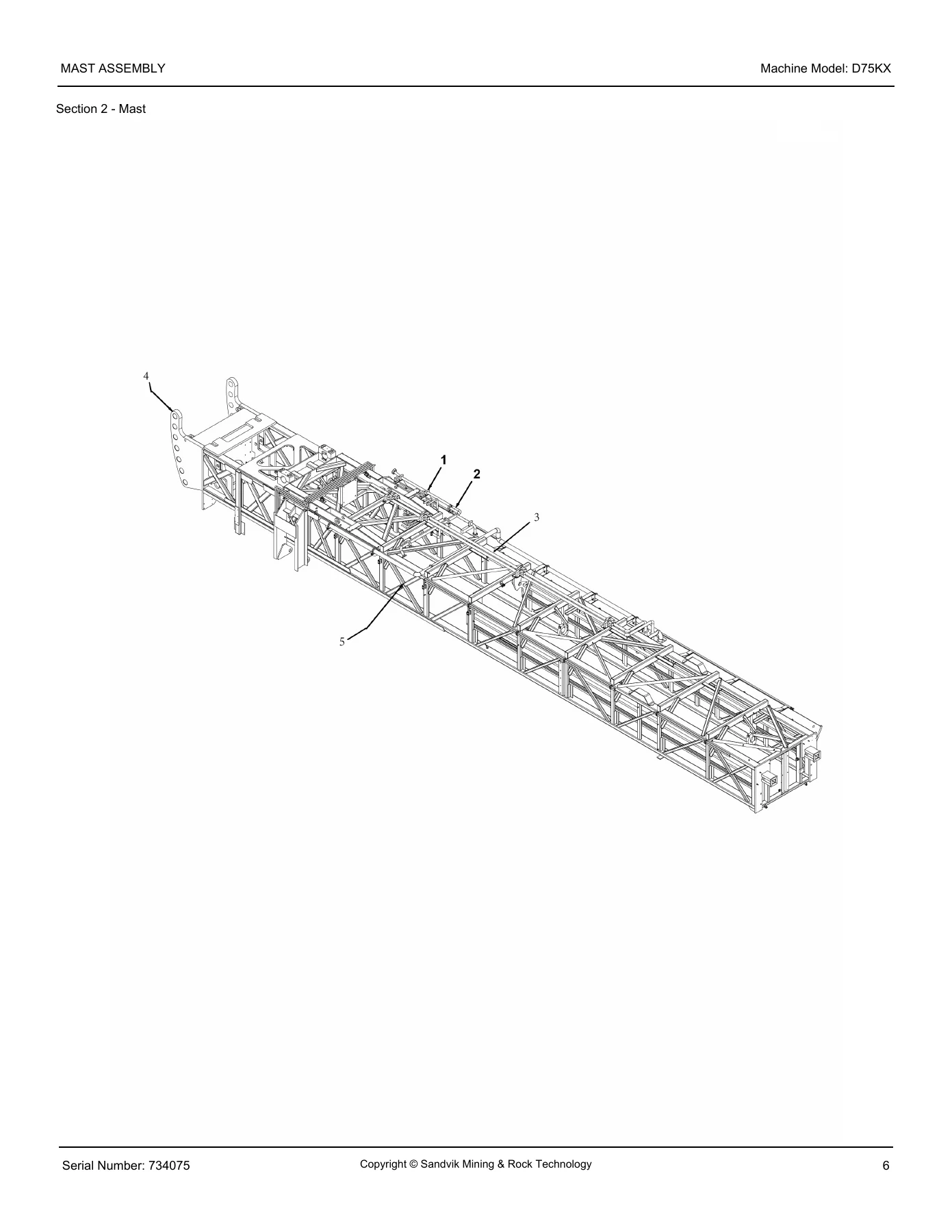

• Section 2 – Mast: mast and workdeck group, mast assembly, clamp group, mast piping, mast weldment, mast base weldment, mast hosing, holding valve, mast rest, table mast 30 degree drilling, mast shipping kit
• Section 3 – Feed Assembly: feed system group, 19-tooth sprocket, cylinder 6 x 240 stroke, chain tensioning hose, hydraulic cylinder, feed cylinder hose, counterbalance manifold, feed cylinder guard
• Section 4 – Mast Raising: mast raising group, cylinder 6-1/2 x 66 stroke, mast lock group
• Section 5 – Rotary Head: rotary head and drive groups, motor and planetary assemblies, rotary head hosing, tachometer group, top sub installation
• Section 6 – Pipe Loader: air piping, head air piping, pipe support, pressure sequence valve, hydraulic cylinder 3 in x 1.25 in stroke, loader group, loader hanger, barrel loader
• Section 7 – Angle Drilling: angle drill workdeck group, drill pipe wiper
• Section 8 – Wrenches: holding wrench, hydraulic breakout, cylinders 2 x 8, 4 x 6, and 3 x 3 stroke
• Section 9 – Winch/Crane: winch group
• Section 10 – Dust Control, Water Injection: dust hood, cover plate, water injection group and assembly, 600 gal water tank
• Section 11 – Engine: C27T3 875HP 2000/100 L&M 1800 RPM power group, mounts, silencer, covers, turbo cover, fuel hose, driveline and engine guards, compressor and engine air intake, air cleaner, exhaust heating, fan drive, oil sampling kit
• Section 12 – Fuel System: fuel fill assembly, tanque combustible
• Section 13 – Compressor, Cooler, Receiver: L&M cooler, radiator, compressor group, flywheel flex coupling, receiver/separator, air end, filter with electric indicator, throttle, cooler lines C27, CMS Lite LP, thermal valves
• Section 14 – Frame, Crawlers, Jacks, Walkways: frame, handrails and decks, walkways, ladder, main frame, battery box, track drive, undercarriage and arctic pack, final drive, leveling jacks, lifting assembly, Spanish nameplate group
• Section 15 – Cab, Operator’s Console, Seat: cab mounting and weldment, doors, helper seat, control panel, glass kit, wiper, horn, cab wiring, seat, A/C cover FOPS, inclinometer, cabin, sun shade, heater and air conditioner
• Section 16 – Hydraulics, Hoses, Pumps: hydraulic system, hydraulic tank, HP/LP return manifolds, tram and drilling pumps, pump drive gearboxes, accumulators, feed and stacker valves, brake valves, basic hose group
• Section 17 – Lubrication: central lubrication with and without PLC, injectors, grease feeder, chain lubrication, thread lubrication, remote fluid drain, fluid service center, D75X prelube
• Section 18 – Electrical: electrical group, engine panel, ground-level stop and shutdown, emergency stop CE kit, tram-to-head and head/loader interlocks, night and strobe lighting, battery with disconnect, proximity switches
• Section 19 – Special Equipment, Options: camera, remote tram, oil sampling, fire extinguisher bracket, operator field of vision with camera, cold weather T3, remote starting, engine preheater, arctic weather, autolevel, programming kit, drill monitor, electronic depth counter
• Section 20 – Misc Hardware: 50 hour maintenance kit, flange kits code 61, swivel joints, clamps, adapters, tees, elbows, nameplates English (frame, mast, cab)
• Appendices: page index and parts index

Taken together, those sections give a technician a serial-matched map of every illustrated assembly on this standard-mast D75KX: item balloons on the drawing, then a table of Elemento, N. de pieza, Nombre, Cant., and UM. Seal kits, cartridges marked N.S.S. (not sold separately), and hardware quantities sit next to the parent group so a parts order can be built without guessing interchange from another serial.

How to Read the Illustrations and Tables

Typical left-hand pages are isometric or schematic views of a group such as MAST WELDMENT, MAST HOSING GROUP, ROTARY HEAD DRIVE GROUP, or NAMEPLATES, Frame – English. Callouts point to plates, angles, bearing blocks, hoses, and valves. Facing tables list Sandvik-style numbers (BG, BH, BR, BV, WA prefixes) plus older numeric codes. Spanish column titles appear even when the part name is English (ABRAZADERA, MANGUERA, TORNILLA DE CABEZA, SORTIJA DE SELLO), which is useful on mixed-language jobsites. Hose schematics for the mast stacker circuits, feed cylinder hose group BG01131020, and basic hose group separate line numbers from adapters and flange kits so a failed hose can be ordered by the printed dash number rather than by measuring a remnant.

Maintenance Planner and Service Kits

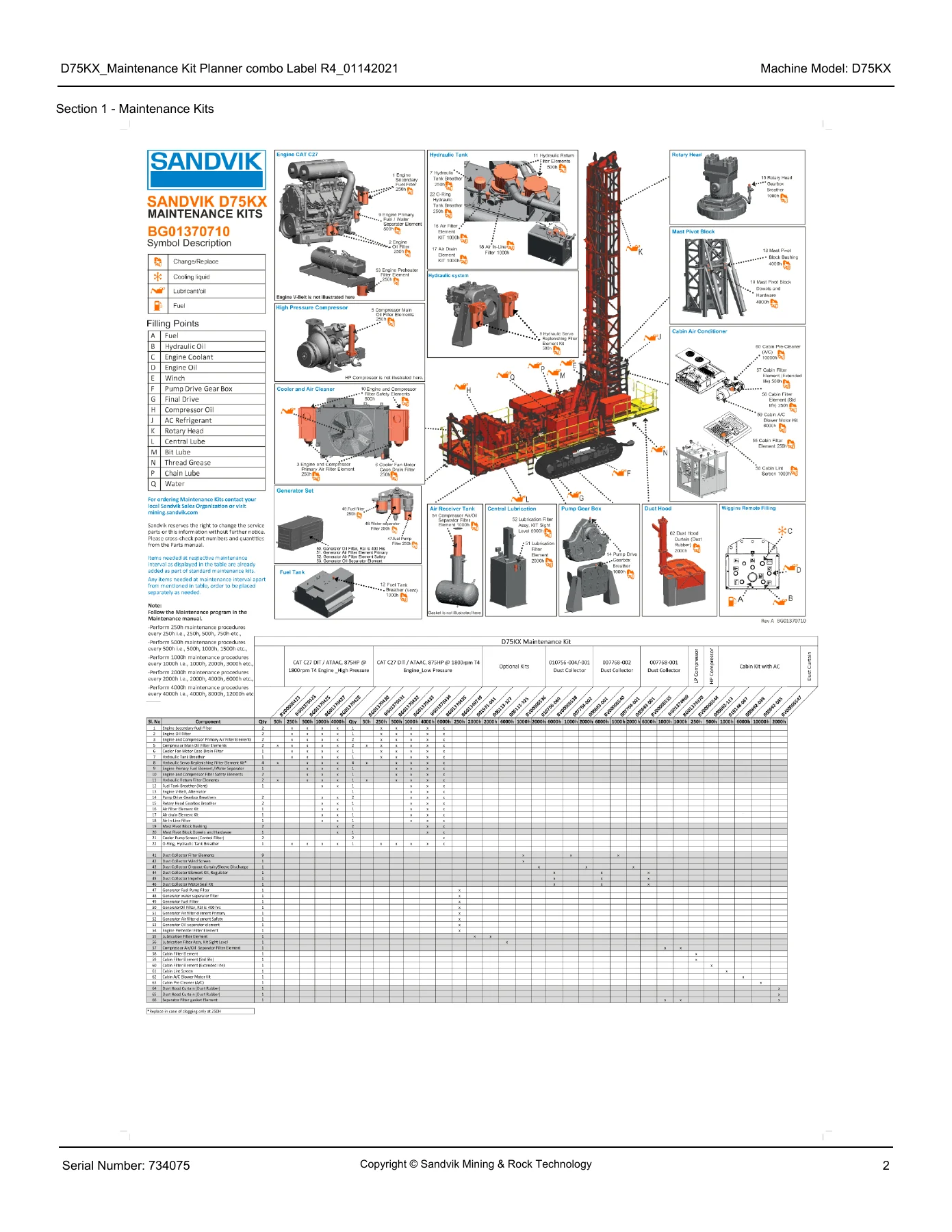

Section 1 opens with the color SANDVIK D75KX MAINTENANCE KITS sheet BG01370710. Filling points A through P are marked on a machine illustration (fuel, cooling, hydraulic tank, engine coolant, engine oil, winch, pump drive gearbox, final drive, compressor oil, air receiver, battery, thread grease, bit lube, chain lube, water). Interval columns distinguish 50-hour and longer kits, including the 50 HOUR MAINTENANCE KIT later in Section 20. Engine and compressor service items also appear as ENGINE OIL SAMPLING KIT and FILTER ASSEMBLY, W/ELECTRIC INDICATOR. Those planner callouts are the fastest way to convert a PM interval into a pick list that still matches SN 734075.

Drilling Structure, Feed, and Rotary Head

Mast coverage is unusually deep for a parts book: clamp group with multiple ID cushion clamps, SCH80 mast piping and pipe-bending standards, crown plates, 30-degree table mast 009875-004, mast rest weldments, and shipping pins. Feed uses the 6 x 240 stroke cylinder with seal kit 020052-051, chain tensioning hoses, and a counterbalance manifold. Rotary head pages split motor assembly, planetary assembly, lip-seal retainers, tachometer/speed sensor BG01420578, and top-sub installation. Loader pages identify the four-pod barrel for 7.63-8 in pipe, 8.00 drill-pipe holder, sequence valve cartridges, and the 3 x 1.25 stroke adjuster cylinder. Breakout and holding wrenches list their own short-stroke cylinders so a leaking gland can be ordered without pulling the wrong 4 x 6 or 3 x 3 kit.

Power Train, Air, and Hydraulics

Engine mounting, C27/C32 covers, silencer group, fuel/water separator bowl, exhaust heating, and fan drive sit in Section 11. Compressor-side pages cover the flywheel flex coupling, receiver/separator, air end BG01428816, throttle/linear actuator, CMS Lite LP, and thermal valves marked MAX TEMP 225 FDEGREE. Hydraulic Section 16 walks the tank filters, HP and LP return manifolds, tram pump assemblies, drilling pump, rotation pump, servo and pump filters, feed manifold, drill pressure control, RH/LH brake valves, fast-feed and stacker valves, release counterbalance, and accumulator with bladder kit 015821-051. Central lube and thread-lube groups add injectors, air motor repair kit 006113-273, and copper thread grease in a 5 gal listing so auto-lube faults can be isolated to pump, timer 24 VDC, or nozzle.

Undercarriage, Cab, and Options

Track drive and undercarriage include the arctic-pack variant UNDERCARRIAGE, TRACK1, D75, ARCTIC PACK and final-drive hardware with metric capscrews. Leveling jack group uses cylinder 7-4-60-82 and piston locking kit BG01294083. Cab pages cover FOPS A/C cover, glass kit, 30 in wiper arm, helper seat, control panel, 24 V blower motors at 2500 RPM, and inclinometer mount. Electrical groups list 24 V circuit breakers, ground-level stop, CE emergency-stop kit, tram-to-head and head/centralizer interlocks, amber strobe, and proximity switches. Option sections keep camera wiring D75KX, remote tram, diesel preheater for C27, arctic weather, autolevel, drill monitor, and electronic depth counter as separate illustrated kits so a machine that did not receive an option is not forced to order that hardware.

Use the Sandvik D75KX SN 734075 C27 T3 875HP STD Mast Parts Manual PDF on the Job

This Sandvik D75KX SN 734075 C27 T3 875HP STD Mast Parts Manual PDF supports identifying a worn mast clamp, feed-chain sprocket, rotary-head seal, loader barrel pad, dust-hood curtain, C27 mount, 2000/100 air-end fitting, tram-pump seal, stacker solenoid, or cab glass pane by matching the illustration balloon to the printed part number and quantity. Correct numbers matter on a serial-locked drill because hose lengths, crown plates, and nameplate kits are not freely interchangeable with other D75KX builds. After payment you receive the PDF immediately, with no shipping wait; open it on a shop PC, tablet, or phone and print only the group you need for a parts order or toolbox.
