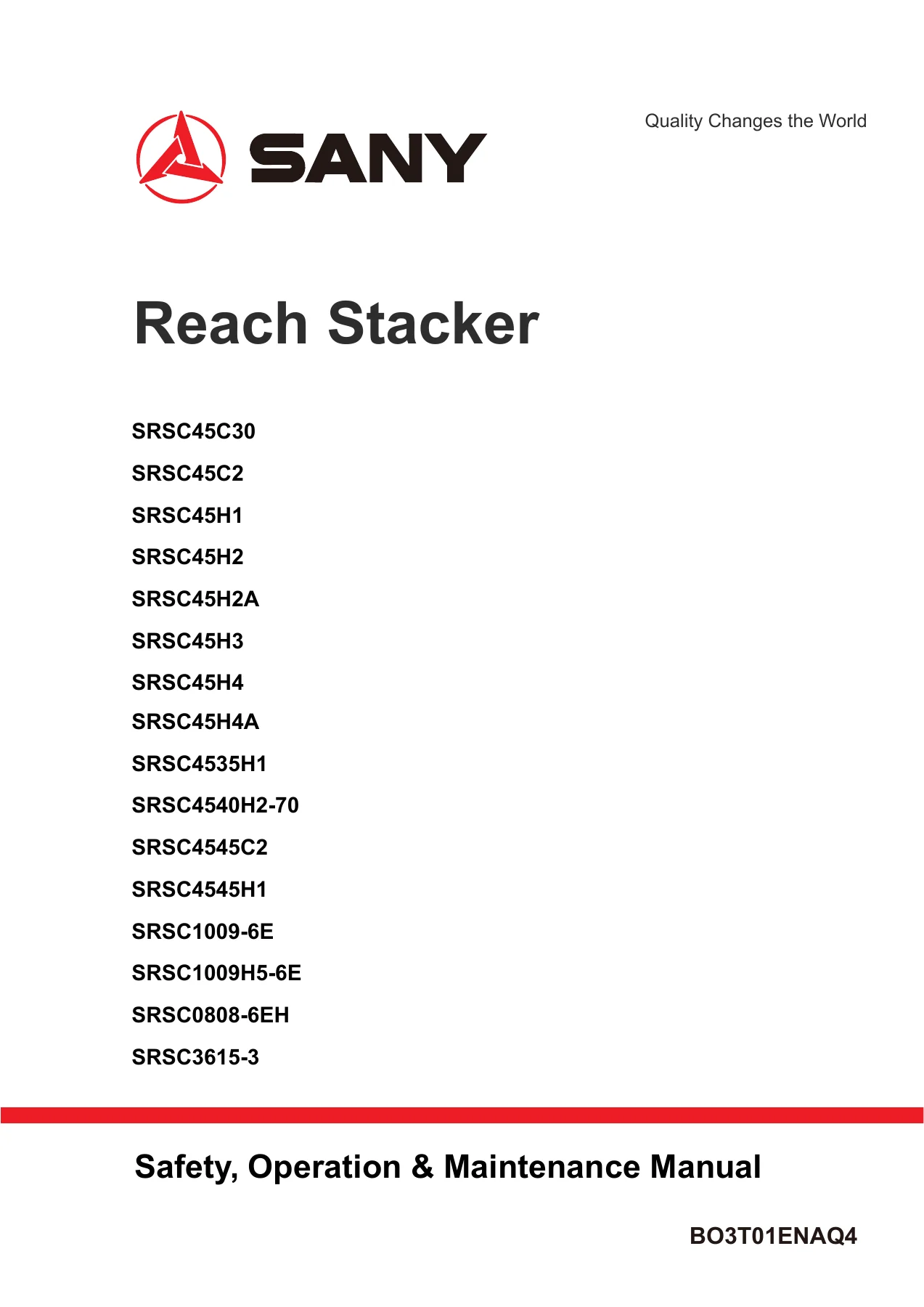

Sany SRSC Reach Stacker Series Safety, Operation & Maintenance Manual 2017 – BO3T01ENAQ4 PDF

Description

File Details

• Manual Type: Safety, Operation & Maintenance Manual
• Brand: SANY (Sany Marine Heavy Industry Co., Ltd.)
• Document Number: BO3T01ENAQ4
• Publication Date: May 2017
• Language: English
• Page Count: 569 pages
• File Format: PDF

Chapters Covered

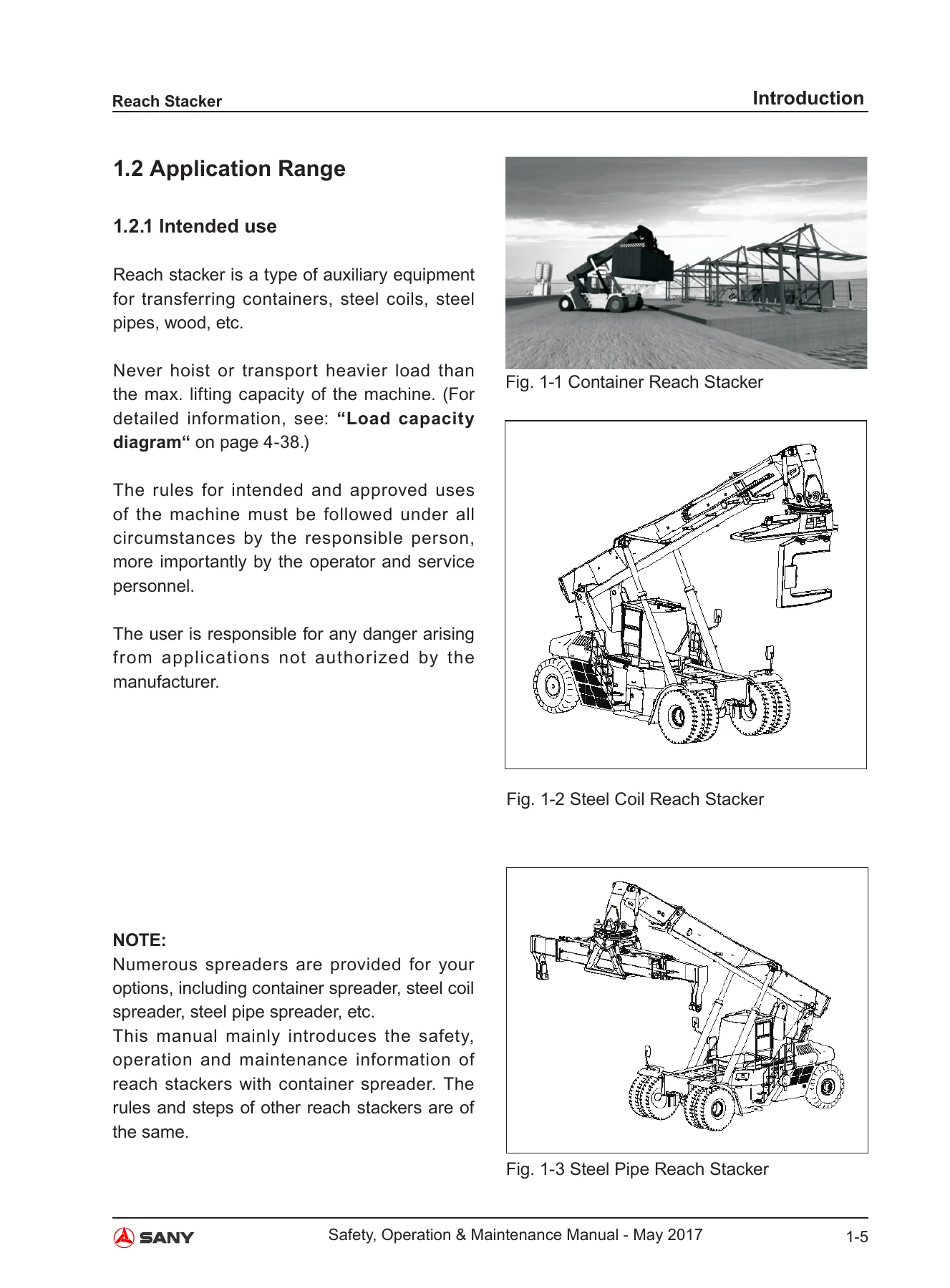

• Chapter 1 — Introduction: overview, application range, intended and unintended use, machine authorizations, documentation package, terminology, machine nameplates, running in a new machine, serial number and distributor information
• Chapter 2 — Safety: signal words, safety labels with locations and content, general precautions, personal protective equipment, hand signals, safety during operation, safety during maintenance, lockout/tagout procedures, tag

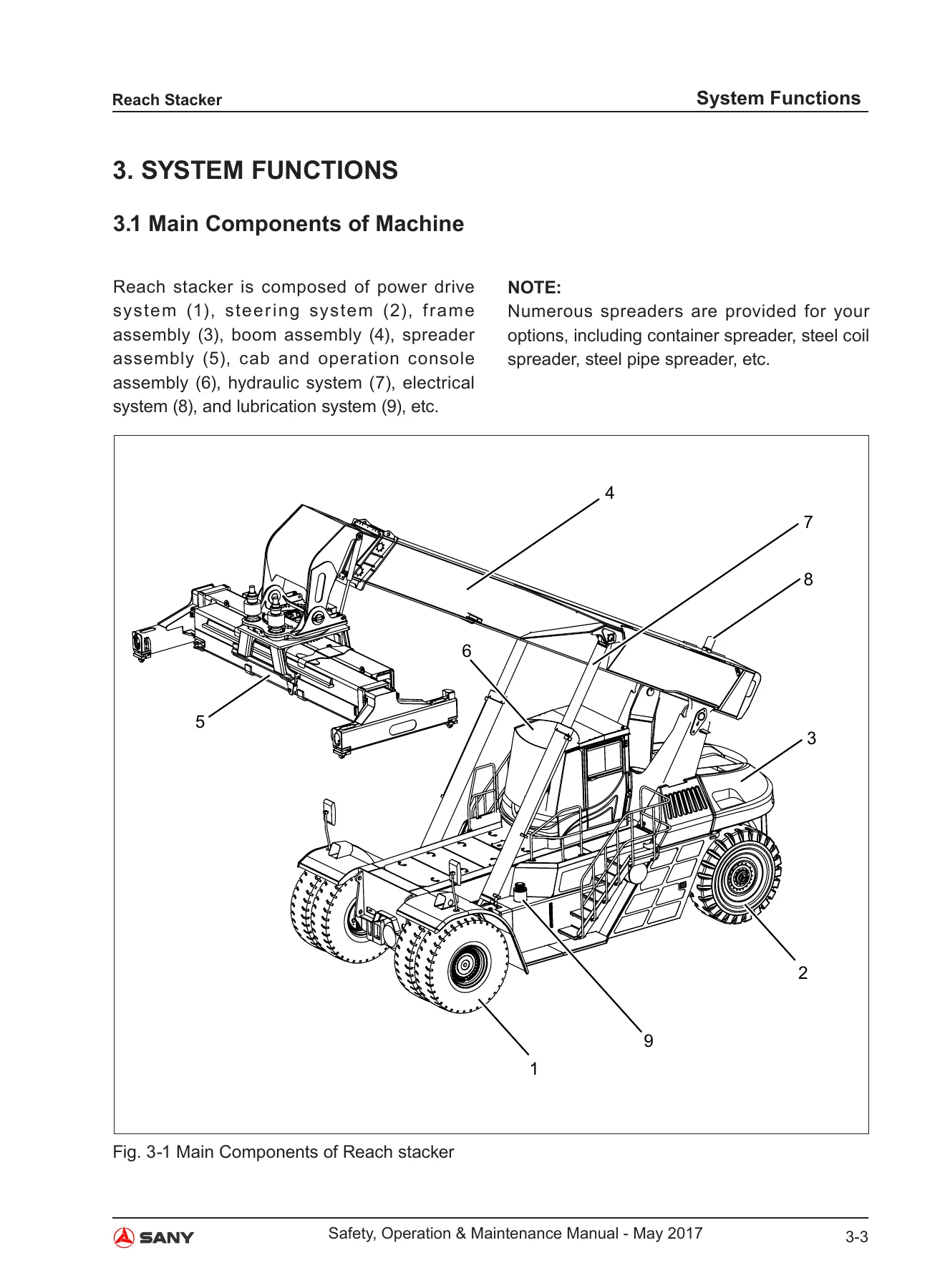

• Chapter 3 — System Functions: main components of the machine, cab layout, steering controller, gear selector, direction indication controller, pedals, joystick, right and front operation panels, display menus, air conditioning system, electric control cabinet, fuses, fire extinguisher
• Chapter 4 — Operation: operator responsibility, checks before operation, adjustment before operation, starting the machine in normal and cold weather, starting with booster batteries, stopping the machine, emergency shutdown, driving, turning, parking, load handling, boom operation, spreader operation, hook operation, load capacity diagrams for all models, picking up and depositing containers, transferring steel coil and steel pipe, storage, transportation and assembly
• Chapter 5 — Maintenance: scheduled maintenance intervals, tightening torques, recommended fuel, coolant and lubricant, lubricating points, engine maintenance, transmission, drive axle, steering axle, tyres and rims, boom, spreader, air conditioning system, hydraulic system, electrical system, maintenance record list
• Chapter 6 — Troubleshooting: precautions, troubleshooting procedures, common troubleshooting methods for engine, transmission, drive axle and brake, steering, spreader, boom, air conditioning, hydraulic and electrical systems, VOLVO, CUMMINS and YUCHAI engine error codes, transmission error codes, machine error codes
• Chapter 7 — Specifications: basic parameters, technical parameters, power system configuration, spreader configuration, unit conversion tables
• Chapter 8 — Optional Parts: fire detection and alarm system, automatic extinguishing device, loudspeaker and controller kit, engine idle protection, engine preheating protection, engine hour meter, twistlock counter, reversing radar display, operator presence system, radio, automatic lubrication system, CCTV system, flowmeter
• Chapter 9 — Schematics: symbol explanation, hydraulic schematic diagrams, electrical schematic diagrams, spreader system hydraulic and electrical diagrams for SDJ450, SDJ450F, SDJE100, ELME817 and BROMMA RSX40 spreaders
• Chapter 10 — Appendix: SAE diagnostic trouble codes and Cummins fault codes

This Sany SRSC Reach Stacker Series Safety, Operation & Maintenance Manual is the complete reference document for the reach stacker line, spanning 16 distinct models across container, heavyweight container, empty container and lightweight container configurations. The manual opens with a detailed introduction to the machine range, the intended applications for each variant, and the documentation package supplied with every unit, before moving into a substantial safety chapter that covers everything from signal words and safety label locations to lockout/tagout procedures and hand signals for signalmen. The system functions chapter walks through every control in the cab — steering column, gear selector, direction indicator, pedals, joystick with its enable buttons, right and front operation panels, display menus and air conditioning panel — so the operator can locate and understand every switch before turning the key.

Operating Procedures for Every Reach Stacker Variant

The operation chapter is built around real job-site procedures: pre-start fluid and component checks, seat and mirror adjustment, starting in normal and cold weather, jump-starting with booster batteries, driving forward and backward, turning, parking, and the full sequence for picking up and depositing a container from a stack. Separate sections cover transferring steel coil and steel pipe with the appropriate spreaders, plus hook operation for bulk loads. Load capacity diagrams are provided individually for the SRSC45C30, SRSC45C2, SRSC45H1, SRSC45H2, SRSC45H2A, SRSC45H3, SRSC45H4, SRSC45H4A, SRSC4535H1, SRSC4540H2-70, SRSC4545C2, SRSC4545H1, SRSC1009-6E, SRSC1009H5-6E, SRSC0808-6EH and SRSC3615-3, so the operator can confirm the safe working load at any boom length and angle before lifting.

Maintenance and Troubleshooting Depth

The maintenance chapter is organised by interval — daily, 50 hours, 250 hours, 500 hours, 1000 hours, 1500 hours, 2000 hours and 6000 hours — and then by system. Engine maintenance covers charge air pipes, drive belts, air filters, mounting pads, lubrication system, fuel system, cooling system and the urea filter element for Stage IV engines. Transmission, drive axle and steering axle sections include oil level checks, oil changes, filter replacement, brake pad changes and steering pressure checks. The boom and spreader sections cover wear pad inspection and replacement, twistlock checking and lubrication, and the slewing mounting and reducer maintenance for steel coil and steel pipe spreaders. The hydraulic system chapter covers oil level, filter changes, oil changes, tank cleaning, accumulator charging and oil circuit inspection, while the electrical chapter covers battery cleaning, checking, detecting and charging, fuse replacement, working light and wiper service.

Troubleshooting is split by system and then supported by extensive error code tables. Engine error codes are listed for VOLVO, CUMMINS and YUCHAI engines, with SPN and FMI codes, descriptions, possible causes, failure symptoms and suggested actions. Transmission error codes for the DANA unit are listed with code numbers, descriptions, limitations and suggested actions. Machine error codes cover fuel level, engine oil pressure, engine temperature, coolant level, battery voltage, gearbox temperature and pressure, brake oil temperature and pressure, hydraulic oil temperature, tilting protection, overload alarms and CAN bus faults. Each entry gives the technician a clear path from symptom to cause to corrective action.

Hydraulic and Electrical Schematics

The schematics chapter includes hydraulic schematic diagrams for the SRSC45H3 container reach stacker and electrical schematic diagrams broken down by system — power supply, engine, auxiliary parts, PLC sections, CAN bus communication and options. Spreader system diagrams are provided for the SDJ450, SDJ450F-R3, SDJE100-R1, SDJ450E-R1, SJD450F-R1, ELME817 and BROMMA RSX40 spreaders, with both hydraulic and electrical schematics. These diagrams are essential when tracing a fault in the control circuit or hydraulic circuit, and the manual includes a full symbol explanation page to decode every symbol used.

Specifications and Optional Equipment

The specifications chapter gives basic parameters and technical parameters for each model — machine weight, overall length, width, height, wheelbase, ground clearance, load capacity at specified load centres, boom angle, lifting and lowering speeds, travel speed, gradeability, turning radius, brake distance, displacement and maximum working pressure. Power system configuration tables list the engine model, type, rated power, maximum torque, exhaust gas standard and average fuel consumption rate for each variant, along with the gearbox and drive axle model. The optional parts chapter covers the fire detection and alarm system, automatic fire extinguishing device, loudspeaker and controller kit, engine idle protection, engine preheating protection, engine hour meter, twistlock counter, reversing radar display, operator presence system, radio, automatic lubrication system, CCTV system and flowmeter, with function descriptions, precautions, troubleshooting and wiring diagrams where applicable.

Who This Manual Is For

This Sany SRSC Reach Stacker Series Safety, Operation & Maintenance Manual is written for certified operators, maintenance technicians, port and terminal engineers, and fleet managers responsible for the safe operation and upkeep of SANY reach stackers. It is the document that ships in the cab of every new machine and remains the primary reference for daily checks, scheduled maintenance, fault diagnosis and safe load handling throughout the machine’s service life. Whether you are running an SRSC45H1 in a container terminal, an SRSC1009-6E in an empty container yard, or an SRSC4545C2 handling heavy containers, the procedures, torque values, capacities and diagrams in this manual apply directly to the machine in front of you.

Get the Complete SANY Reach Stacker Manual Today

IMAGES PREVIEW

With this PDF in hand, you can carry out the full range of operations and maintenance tasks the reach stacker requires — from pre-shift checks and safe lifting procedures to 6000-hour engine service and hydraulic system diagnostics. The manual gives you the correct torque figures, fluid capacities, wear limits, adjustment clearances and fault codes so you can work to the manufacturer’s specification instead of guessing. Delivered as an instant PDF download after payment, the manual can be stored on a laptop, tablet or phone, printed for the workshop, and referenced on the job site without waiting for shipping. Keep the Sany SRSC Reach Stacker Series Safety, Operation & Maintenance Manual on hand and work on every model in the range with the full factory documentation at your fingertips.
