SANY SRSC45V & SRSC45V1A Reach Stacker Safety, Operation and Maintenance Manual

Description

The SANY SRSC45V & SRSC45V1A Reach Stacker Safety, Operation and Maintenance Manual is the full English-language service document for the SANY SRSC45V and SRSC45V1A container reach stackers. At 510 pages, this June 2019 edition walks through the entire working life of the machine – pre-start inspection, container pick-and-stack procedures, scheduled maintenance intervals, system-level troubleshooting, and the disassembly steps required before transporting the unit to a new site. It is written for the operator who runs the machine every shift, the service technician who keeps it compliant, and the fleet planner responsible for a 45-tonne reach stacker in a port, dock, or rail container yard.

File Details

• Manual type: Safety, Operation and Maintenance Manual
• Brand: SANY (Sany Marine Heavy Industry Co., Ltd)
• Models covered: SRSC45V, SRSC45V1A
• Language: English
• Page count: 510
• File format: PDF
• Edition: June 2019

Chapters Covered

• 1. Introduction – overview, application scope, machine authorizations, documentation package, terminology, machine/engine/spreader/transmission nameplates, running in a new machine, distributor contact information
• 2. Safety – signal words and safety labels, general precautions, personal protective equipment, hand signals, high-voltage precautions, safety during operation, safety during maintenance, lockout/tagout, fire and explosion prevention, waste handling

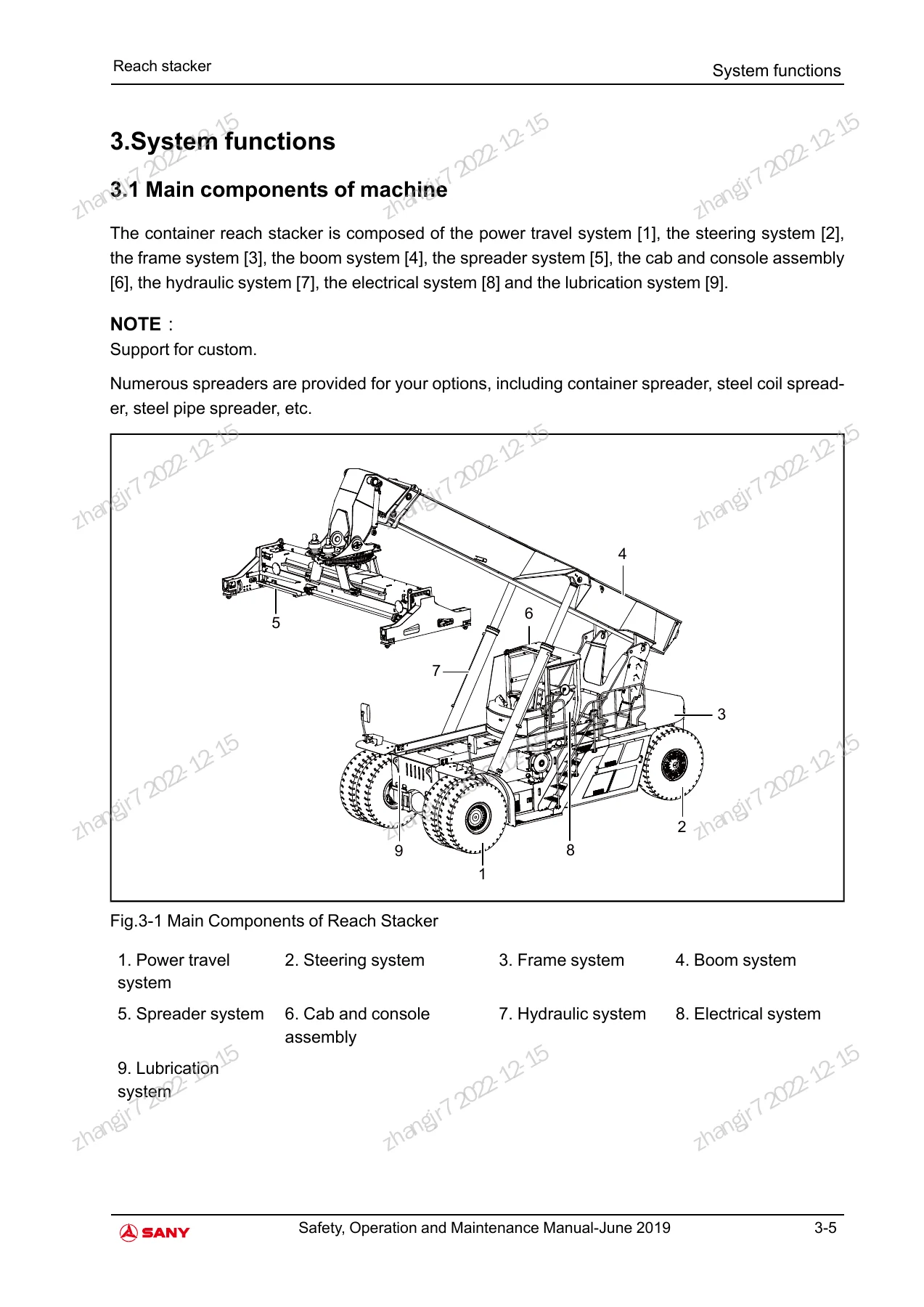

• 3. System Functions – main machine components, cab layout, steering column and panel, gear selector, joystick, right operation panel, ignition switch, SANY display screens, air conditioning system, fuses and controllers, fire extinguisher
• 4. Operation – pre-start inspection of all fluid levels and tyres, seat/mirror/seatbelt adjustment, starting at normal and low temperature, shutting down, driving forward and reverse, load handling, boom and spreader operation, load capacity diagram, container pick and stack procedures, machine storage, disassembly and transport
• 5. Maintenance – tightening torques, functional oil specifications, lubricating points, daily/50h/250h/500h/1000h/1500h/2000h/6000h scheduled maintenance, engine, transmission, drive axle, steering axle, tyres and rims, boom, spreader, air conditioning, hydraulic system, electrical system
• 6. Troubleshooting – common mechanical, hydraulic and electrical faults, VOLVO engine error codes, transmission error codes, machine error codes
• 7. Specifications – basic parameters, technical parameters, power system and spreader configuration, international unit conversion tables
• 8. Optional Parts – engine preheating, fire detection and automatic extinguishing, loudspeaker kit, hour meter, twist lock counter, reversing radar, radio, automatic lubrication, CCTV, flowmeter

What This Reach Stacker Manual Gives You

Chapter 1 sets up the document with the machine nameplate locations, engine and spreader nameplate layouts for SANY, ELME, and BROMMA spreaders, and the running-in procedure for a new unit – 100 operating hours at reduced load with a 3-5 minute idle warm-up. Terminology and unit abbreviations are listed so the rest of the manual reads cleanly.

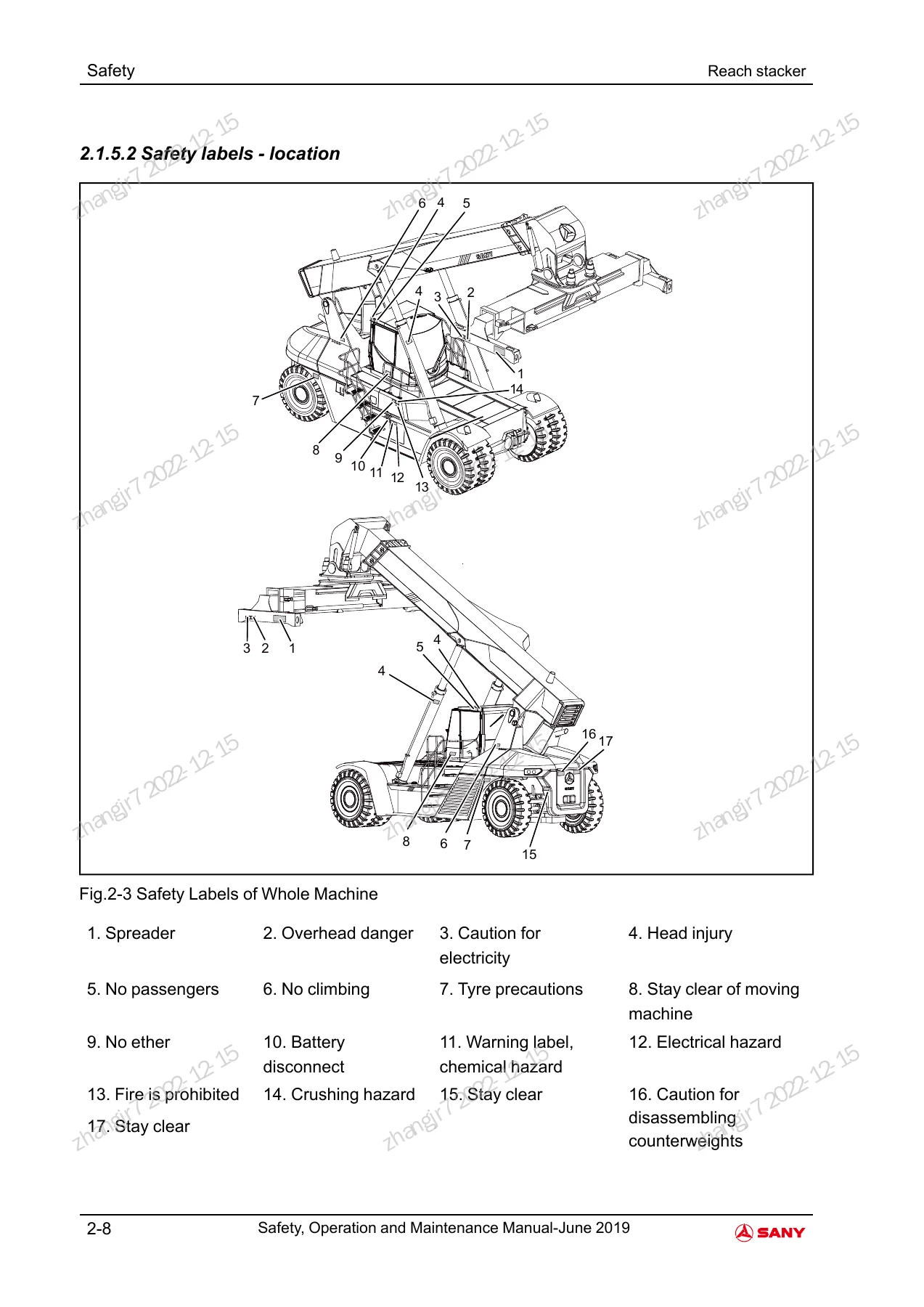

Chapter 2 is the safety backbone. It breaks down DANGER, WARNING, CAUTION, and NOTICE signal words, then illustrates every safety label fitted to the machine – spreader warning, overhead danger, electrical hazard, no passengers, no climbing, tyre precautions, stay clear of moving machine, no ether, battery disconnect, chemical hazard, fire prohibited, crushing hazard, counterweight disassembly, and burn hazard. Minimum safe clearances from high-voltage lines are tabulated from 6,600V up to 500,000V, with the emergency steps to follow if the machine contacts an energised source. Lockout/tagout, hydraulic pressure release, accumulator filling, and waste handling are all covered in the maintenance safety section.

Chapter 3 covers the cab and controls in detail – steering wheel panel indicator lights, gear selector positions, direction indicator and wiper stalk, joystick functions, right-hand operation panel switches, and the SANY colour display with its homepage, engine, driving information, hydraulics, alarm, and information screens. The air conditioning control panel, fuse layout in both the cab and frame electric control cabinets, and fire extinguisher placement round out the chapter.

Chapter 4 is the operational core. It lists every pre-start check – wiper water, coolant, engine oil, transmission oil, hydraulic oil, fuel, brake oil, tyres at 0.95-1.05 MPa, electrical components, working lights, and horn. Starting at normal temperature, low temperature, and with auxiliary battery measures is described step by step. Driving forward, reversing, turning, and parking follow, then the load handling section walks through boom raise/lower/extend/retract, vertical lift, spreader twist lock, side shift, rotation, extension/retraction, and hook operation with load capacity limits. The container pick and stack procedures are laid out in numbered steps with the indicator lamp colour sequence (red for twist locks open, yellow for ejector pole in position, green for locked). Storage for overnight, short-term, and long-term periods, plus disassembly and transport by platform lorry or container, complete the chapter.

Chapter 5 is the largest chapter and the reason this manual pays for itself. Tightening torques are given for standard metric bolts in 8.8, 10.9, and 12.9 strength classes, plus hose swivel nuts, pipe fittings, and key structural bolts such as the engine fixing bolt (M22, 650±35 Nm), drive axle fixing bolt (M36, 1600±100 Nm), and steering cylinder fixing bolt (M30×2, 1400±100 Nm). Functional oil specifications cover engine oil, gearbox oil, drive axle gear oil, hydraulic oil, brake fluid, coolant, and urea, with viscosity recommendations by ambient temperature. Scheduled maintenance intervals from daily through 6,000 hours are tabulated, and each interval lists the specific components to inspect, clean, adjust, or replace. Engine, transmission, drive axle, steering axle, tyre and rim servicing, boom wear pads, spreader twist locks, air conditioning, hydraulic system, and electrical system procedures all have dedicated sections.

Chapter 6 provides diagnostic support across the mechanical, hydraulic, and electrical systems, with fault-symptom-cause-solution tables and complete error code listings for the VOLVO engine, DANA transmission, and the machine control system. This is the chapter a technician reaches for when the display shows a fault code or the machine behaves unexpectedly.

Chapter 7 lists the SRSC45V and SRSC45V1A technical specifications – dimensions, wheelbase, ground clearance, load capacity by row and layer, boom lifting height, inclination, travel speed, gradeability, turning radius, hydraulic system working pressure, and unit conversion tables for length, volume, weight, pressure, and temperature.

Chapter 8 documents the factory-fitted optional equipment, including the fire detection and automatic extinguishing system, loudspeaker and controller kit, engine hour meter, twist lock counter, reversing radar monitor, radio, automatic lubrication system, CCTV system, and flowmeter.

Why This Manual Matters for SRSC45V and SRSC45V1A Owners

A reach stacker is a 71-tonne machine that lifts 45-tonne containers above people, traffic, and expensive cargo. The SRSC45V and SRSC45V1A use a VOLVO TAD1151 or CUMMINS QSM11 engine, a DANA 15.5HR36000 or DANA 15.7TE30 gearbox, and a Kessler D102PL341 drive axle, with a hydraulic system running at 260 bar. Getting a torque value wrong on the drive axle mounting bolts, or misreading a load capacity row, has direct safety and cost consequences. This manual gives you the exact figures and the exact sequence for every major service task, so the work is done once and done correctly.

The scheduled maintenance tables alone – 50-hour, 250-hour, 500-hour, 1000-hour, 1500-hour, 2000-hour, and 6000-hour – let a workshop build a realistic service plan around the machine’s real intervals instead of generic estimates. The troubleshooting and error code chapters cut diagnostic time by pointing directly at the likely cause and the specific measurement to take.

IMAGES PREVIEW

Instant PDF Delivery

The SANY SRSC45V & SRSC45V1A Reach Stacker Safety, Operation and Maintenance Manual is delivered as an instant PDF download after payment. No shipping, no waiting for a printed copy. The file opens on any laptop, tablet, or smartphone, and any page or diagram can be printed for use in the workshop or kept on a service tablet for reference at the machine. Keep it on file as the working reference for the full life of the reach stacker.
