SANY SW115 SPARE PARTS CATALOGUE Manual – PDF DOWNLOAD

Description

SANY SW115 SPARE PARTS CATALOGUE Manual – PDF DOWNLOAD

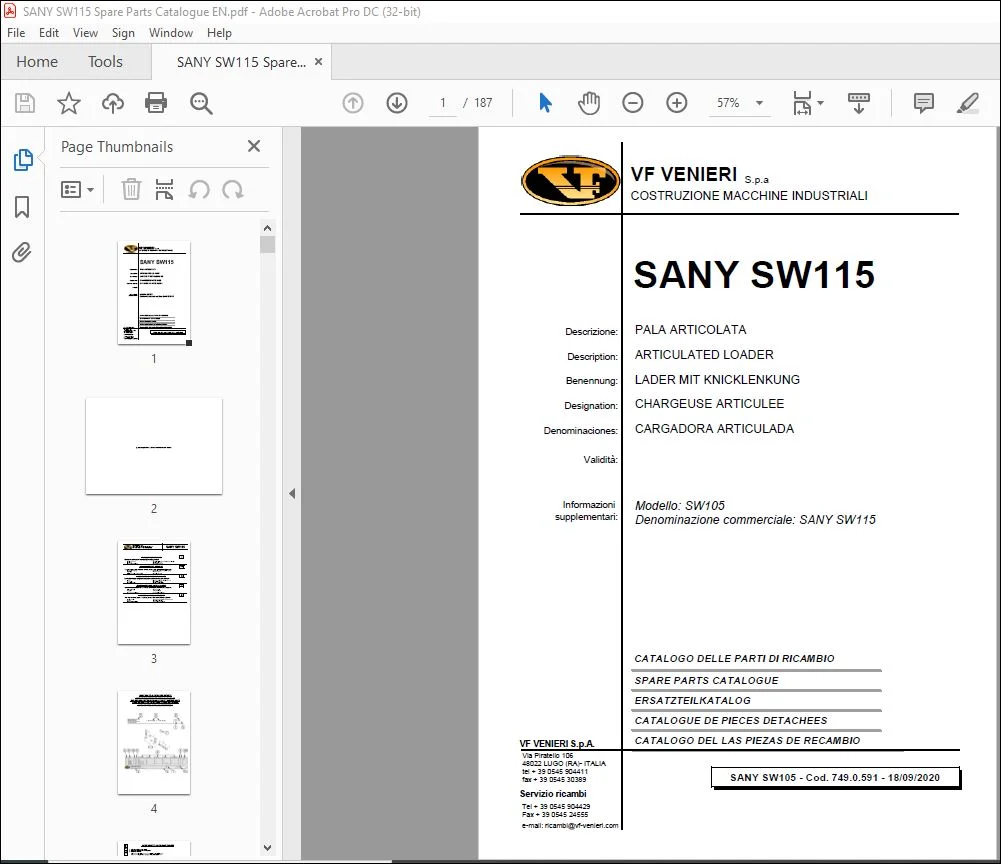

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

SANY SW115 SPARE PARTS CATALOGUE Manual – PDF DOWNLOAD

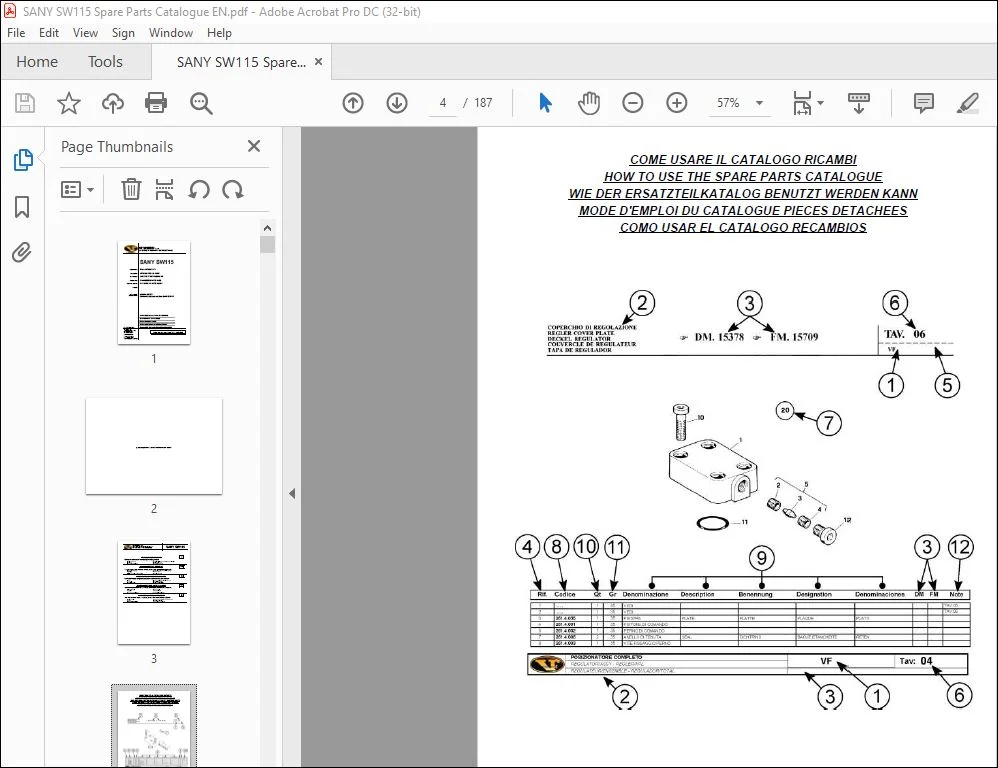

HOW TO USE THE SPARE PARTS CATALOGUE
1. MACHINE MODEL
FM. ……… Table, part or unit assembled up to the part number ………
2. ILLUSTRATION DESCRIPTION
3. SERIAL NUMBER
DM. ……… Table, part or unit assembled up from the part number ………
4. ILLUSTRATION REFERENCE NUMBER
5. DATE OF ISSUE
6. TABLE NUMBER
Indicate with a number inside a circle.
8. REFERENCE CODE
9. DENOMINATION
10. QUANTITY
When the reference number is followed by an asterisk, the part or the unit is not represented.
Number of parts per assembly or sub-assembly.
When the writing AR appears, the quantity of the part or of the assembly is supplied upon request.
11. ASSEMBLY
The part is the component of an assembly whose illustration number is indicated in this column.
12. NOTE

TABLE OF CONTENTS:

SANY SW115 SPARE PARTS CATALOGUE Manual – PDF DOWNLOAD

1804SW115 PALA ARTICOLATA VF 563D/ SW 115 SANY – – – – 6

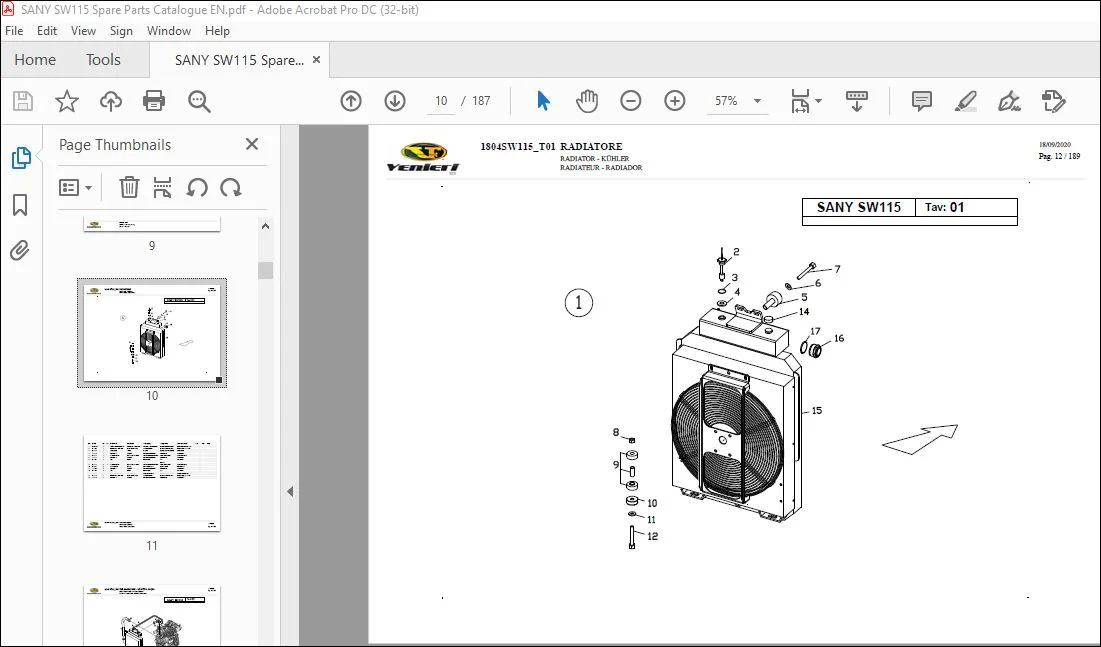

1804SW115_T01 RADIATORE – RADIATOR – KÜHLER – RADIATEUR – RADIADOR 12
1804SW115_T02 IMP RADIATORE – CIRCUITO ACQUA – RADIATOR SYSTEM – ANLAGE KÜHLER – SYSTÈME RADIATEUR – SISTEMA RADIADOR 14
1804SW115_T03 IMP RADIATORE – CIRCUITO IDR VENTOLA – RADIATOR SYSTEM – ANLAGE KÜHLER – SYSTÈME RADIATEUR – SISTEMA RADIADOR 16
1804SW115_T05 ALLESTIMENTO MOTORE – ENGINE EQUIPMENT – AUSSTATTUNG MOTOR – ÉQUIPEMENT MOTEUR – MONTAJE MOTOR 18
1804SW115_T06 CIRCUITO ALIMENTAZIONE GASOLIO – DIESEL FEED CIRCUIT – SCHALTKRDIESELVERS – CIRC ALIM GASOIL – CIRC ALIM GASÓLEO 20
1804SW115_T07 MOTORE – ENGINE – MOTOR – MOTEUR – MOTOR 22
1804SW115_T08 ASPIRAZIONE – ASPIRATION – ANSAUGUNG – ASPIRATION – ASPIRACIÓN 24
1804SW115_T09 SCARICO – DISCHARGE – AUSPUFF – ÉCHAPPEMENT – ESCAPE 26
1804SW115_T10 GRUPPO TRASMISSIONE CON FISSAGGI – TRANS UNIT W/ FAST – BAUGRANTRIEB+BEFEST – ENSTRANSMISSION – GR TRANS C/ FIJACIÓN 28
1804SW115_T11 TRASMISSIONE – TRANSMISSION – GETRIEBE – TRANSMISSION – TRANSMISIÓN 30
1804SW115_T12 MOTORE IDROSTATICO – HYDROSTATIC MOTOR – HYDROSTAT MOTOR – MOTEUR HYDROSTATIQUE – MOTOR HIDROSTÁTICO 34
1804SW115_T13 POMPA IDROSTATICA – HYDROSTATIC PUMP – HYDROSTATISCHE PUMPE – POMPE HYDROSTATIQUE – BOMBA HIDROSTÁTICA 36
1804SW115_T14 RIPARTITORE – TRANSFER BOX – VERTEILER – RÉPARTITEUR – DISTRIBUIDOR 38
1804SW115_T15 ALBERO CARDANICO ANT – FRONT CARDAN SHAFT – VORDERE KARDANWELLE – ARBRE À CARDAN AVANT – EJE CARDÁNICO DEL 42
1804SW115_T16 ALBERO CARDANICO CENTR – CENTR CARDAN SHAFT – ZENTR KARDANWELLE – ARBRE À CARDAN CENTR – EJE CARDÁNICO CENTR 44
1804SW115_T17 ALBERO CARDANICO POST – REAR CARDAN SHAFT – HINTERE KARDANWELLE – ARBRE À CARDAN ARR – EJE CARDÁNICO TRAS 46
1804SW115_T19 ASSALE ANTERIORE / ASSALE POSTERIORE – FRONT AXLE / REAR AXLE – VORDERACHSE / HINTERACHSE – ESSIEU AVANT / ESSIEU ARRIÈRE – EJE DELANTERO / EJE
TRASERO 48
1804SW115_T20 ASSALE ANT/SCATOLA E COPER – FR AXLE/BOX & COVER – VORDACHSE/GEH+ABD – ESS AV/BOÎTE+COUV – EJE DEL/CAJA Y COB 50
1804SW115_T21 ASSALE ANTERIORE/DIFFERENZIALE – FRAXLE/DIFFERENTIAL – VORDACHSE/DIFFEREN – ESS AV/DIFFÉRENTIEL – EJE DEL/DIFERENCIAL 52
1804SW115_T22 ASSALE ANTERIORE/MOZZO RUOTA – FRONT AXLE/WHEEL HUB – VORDACHSE/RADNABE – ESSIEU AV/MOYEU ROUE – EJE DEL/BUJE RUEDA 56
1804SW115_T23 ASSALE ANTERIORE/FRENO – FRONT AXLE/BRAKE – VORDACHSE/BREMSE – ESSIEU AVANT/FREIN – EJE DEL/FRENO 58
1804SW115_T24 ASSALE POST/SCATOLA E COPER – REAR AXLE/BOX &COVER – HINTACHSE/GEH+ABD – ESS AR/BOÎTE+COUV – EJE TRAS/CAJA Y COB 62
1804SW115_T25 ASSALE POST/DIFFERENZIALE – REAR AXLE/DIFFERENT – HINTACHS/DIFFEREN – ESS AR/DIFFÉRENTIEL – EJE TRAS/DIFERENCIAL 64
1804SW115_T26 ASSALE POST/MOZZO RUOTA – REAR AXLE/WHEEL HUB – HINTACHSE/RADNABE – ESSIEU AR/MOYEU ROUE – EJE TRAS/BUJE RUEDA 68
1804SW115_T27 ASSALE POST/FRENO – REAR AXLE/BRAKE – HINTERACHSE/BREMSE – ESSIEU ARRIÈRE/FREIN – EJE TRASERO/FRENO 70
1804SW115_T28 ASSALE ANT/SUPPORTO OSCILL – FRAXLE/OSCIL SUPP – VORDACHSE/SCHWELAG – ESS AV/SUPP OSCILL – EJE DEL/SOP OSCIL 72
1804SW115_T39 RUOTA – WHEEL – RAD – ROUE – RUEDA 74
1804SW115_T40 COMANDO FRENI – BRAKE CONTROL – STEUERUNG BREMSEN – COMMANDE FREINS – MANDO FRENOS 76
1804SW115_T41 IMPIANTO FRENI – BRAKE SYSTEM – BREMSANLANGE – CIRCUIT FREINS – SISTEMA FRENOS 80
1804SW115_T42 INCHING PEDAL – INCHING PEDAL – PEDAL KRIECHGANG – PÉDALE D’APPROCHE – PEDAL DE FRENO 82
1804SW115_T45 PEDALE ACCELERATORE – ACCELERATOR PEDAL – GASPEDAL – PÉDALE ACCÉLÉRATEUR – PEDAL ACELERADOR 84
1804SW115_T46 TELAIO ANTERIORE – FRONT CHASSIS – VORDERER RAHMEN – CHÂSSIS AVANT – CHASIS DELANTERO 86
1804SW115_T47 TELAIO POSTERIORE – REAR CHASSIS – HINTERER RAHMEN – CHÂSSIS ARRIÈRE – CHASIS TRASERO 90
1804SW115_T49 SERBATOIO OLIO – OIL TANK – ÖLTANK – RÉSERVOIR HUILE – DEPÓSITO DE ACEITE 94
1804SW115_T50 SERBATOIO GASOLIO – DIESEL TANK – DIESELTANK – RÉSERVOIR GAZOLE – DEPÓSITO GASÓLEO 96
1804SW115_T51 SEDILE – SEAT – SITZ – SIÈGE – ASIENTO 98
1804SW115_T53 COFANO MOTORE – ENGINE HOOD – MOTORHAUBE – CAPOT-MOTEUR – CAPÓ MOTOR 100
1804SW115_T55 BRACCIO – ARM – ARM – BRAS – BRAZO 104
1804SW115_T56 BENNA – BUCKET – SCHAUFEL – GODET – CUCHARA 106
1804SW115_T57 CABINA DI GUIDA COMPL – COMPL DRIVER’S CAB – KOMPLFAHRERKABINE – CAB CONDUITE COMPL – CABINA CONDUCC COMP 108
1804SW115_T58 CABINA DI GUIDA/RIVESTIMENTI – DRIVER’S CAB/COATING – FAHRERKAB/VERKLEID – CABCOND/REVÊTEMENTS – CAB COND/RECUBR 110
1804SW115_T59 CABINA DI GUIDA/PARTICOLARI – DRIVER’S CAB/DETAILS – FAHRERKABINE/DETAILS – CABCONDUITE/DÉTAILS – CAB COND/DETALLES 112
1804SW115_T60 CABINA DI GUIDA/CRISTALLI – DRIVER’S CAB/WINDOWS – FAHRERKAB/FENSTER – CAB CONDUITE/VITRES – CAB COND/CRISTALES 114
1804SW115_T61 CABINA DI GUIDA / IMPRISCALD – DRIV CAB/HEAT SYS – FAHRERKABINE/HEIZUNG – CABCOND/SYSTCHAUF – CAB COND/SIST CALEF 118
1804SW115_T62 CABINA DI GUIDA / INSONORIZZAZIONE – DRIVER’S CABIN / ACOUSTIC INSULATION – FAHRERKABINE / SCHALLDÄMMUNG – CABINE DE CONDUITE /
INSONORISATION – CABINA DE CONDUCCIÒN / INSONORIZACIÓN 120
1804SW115_T64 IMPIANTO IDRAULICO – HYDRAULIC SYSTEM – HYDRAULIKANLAGE – SYSTÈME HYDRAULIQUE – SISTEMA HIDRÁULICO 122
1804SW115_T66 IMPIANTO IDR MANIPOLATORE – MANIP HYDR SYSTEM – HYDRANL MANIPUL – SYSHYD MANIPULATEUR – SIST HIDR MANIPUL 124
1804SW115_T69 IMPIANTO IDRAULICO BENNA – BUCKET HYDR SYSTEM – HYDRANL SCHAUFEL – CIRCUIT HYDR GODET – SIST HIDR CUCHARA 126
1804SW115_T70 MARTINETTO BENNA – BUCKET CYLINDER – HYDRZYL SCHAUFEL – VÉRIN GODET – CILINDRO CUCHARA 128
1804SW115_T71 IMPIANTO IDRAUL SOLLEVAMENTO – LIFTING HYDR SYSTEM – HYDRANL HEBEN – SYS HYDRAUL LEVAGE – SIST HIDR ELEVACIÓN 130
1804SW115_T72 MARTINETTO SOLLEVAMENTO – LIFT CYLINDER – HUBZYLINDER – VÉRIN LEVAGE – CILINDRO ELEVACIÓN 132
1804SW115_T73 IMPIANTO IDRAULICO STERZO – STEERING HYD SYSTEM – HYDRANL LENKUNG – CIRC HYDR DIRECTION – SIST HIDR DIRECCIÓN 134
1804SW115_T74 MARTINETTO STERZO – STEERING CYLINDER – LENKZYLINDER – VÉRIN DIRECTION – CILINDRO DIRECCIÓN 136
1804SW115_T75 PRESE DI PRESSIONE CENTRALIZZATE – CENTRALDPRESSTAPS – ZENTRGASMESSVENTILE – PRISES PRESS CENTRAL – TOMAS PRESIÓN CENTR 138
1804SW115_T76 DISTRIBUTORE – DISTRIBUTOR – VERTEILER – DISTRIBUTEUR – DISTRIBUIDOR 140
1804SW115_T77 IMPIANTO ELETTRICO / DIVISIONE LINEE – ELECTRICAL SYSTEM – ELEKTRISCHE ANLAGE – CIRCUIT ÉLECTRIQUE – SISTEMA ELÉCTRICO 142
1804SW115_T78 IMPIANTO ELETTRICO / CAVI DI POTENZA – ELECTRICAL SYSTEM – ELEKTRISCHE ANLAGE – CIRCUIT ÉLECTRIQUE – SISTEMA ELÉCTRICO 144
1804SW115_T79 IMPIANTO ELETTRICO / PARTICOLARI – ELECTRICAL SYSTEM – ELEKTRISCHE ANL – CIRCUIT ÉLECTRIQUE – SISTEMA ELÉCTRICO 146
1804SW115_T80 PIANTONE – STEERING COLUMN – LENKSÄULE – COLONNE DE DIRECTION – COLUMNA 152
1804SW115_T81 KIT DECALCOMANIE – ADHESIVE STICKER KIT – SET AUFKLEBER – KIT DÉCALCOMANIES – KIT CALCOMANÍAS 154
1804SW115_T82 DOTAZIONE – TOOL KIT – AUSSTATTUNG – ÉQUIPEMENT – DOTACIÓN 158
1804SW115_T83 FILTRI E MATERIALE DI CONSUMO – FILTER AND OTHER CONSUMABLES – FILTER UND ANDERES VERBRAUCHSMATERIAL – FILTRES ET AUTRES MATÉRIELS
CONSOMMABLES – FILTROS Y OTROS MATERIALES DE CONSUMO 160
