SANY SY215C9M3KS Hydraulic Excavator Parts Book PDF Download

Description

SANY SY215C9M3KS Hydraulic Excavator Parts Book

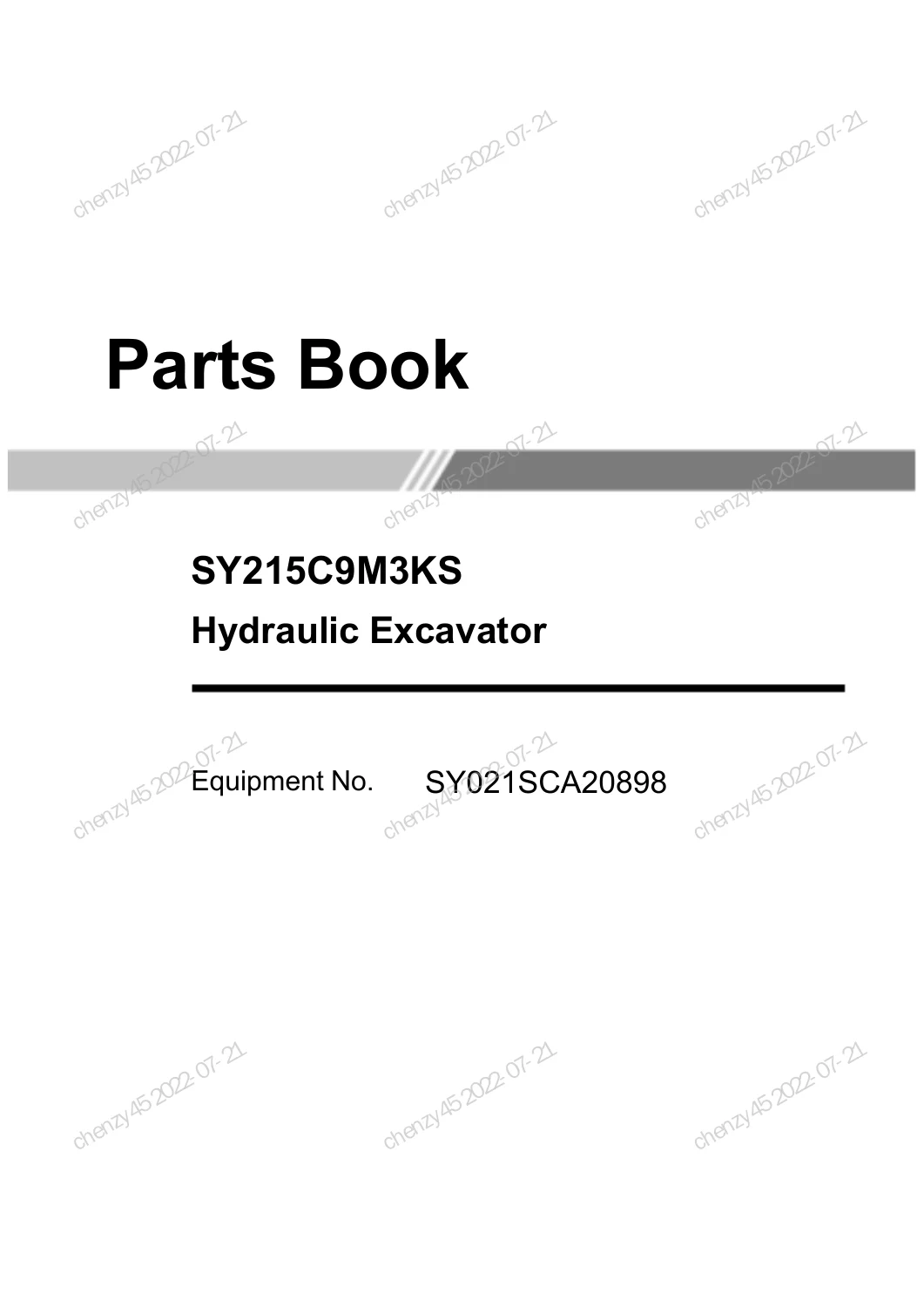

This 333-page Parts Book covers the SANY SY215C9M3KS hydraulic excavator in full, providing the exploded-view illustrations, callout-indexed part numbers, and assembly-level parts listings a technician or parts manager needs to identify and order replacement components with accuracy. Equipment number SY021SCA20898 is the specific unit documented. Every page pairs a line-art diagram with the corresponding index table, making it straightforward to locate any component visually and confirm the correct part number before placing an order.

Document Details

• Manual type: Parts Catalog / Illustrated Parts List
• Machine: SANY SY215C9M3KS Hydraulic Excavator
• Equipment No.: SY021SCA20898
• Language: English
• Pages: 333
• Format: PDF

Machine Coverage

This book applies specifically to the SY215C9M3KS hydraulic excavator variant. The equipment number SY021SCA20898 is printed on the cover, confirming the precise unit to which all part listings and illustrations correspond. Do not use this book with other machine variants without verifying applicability through your SANY distributor.

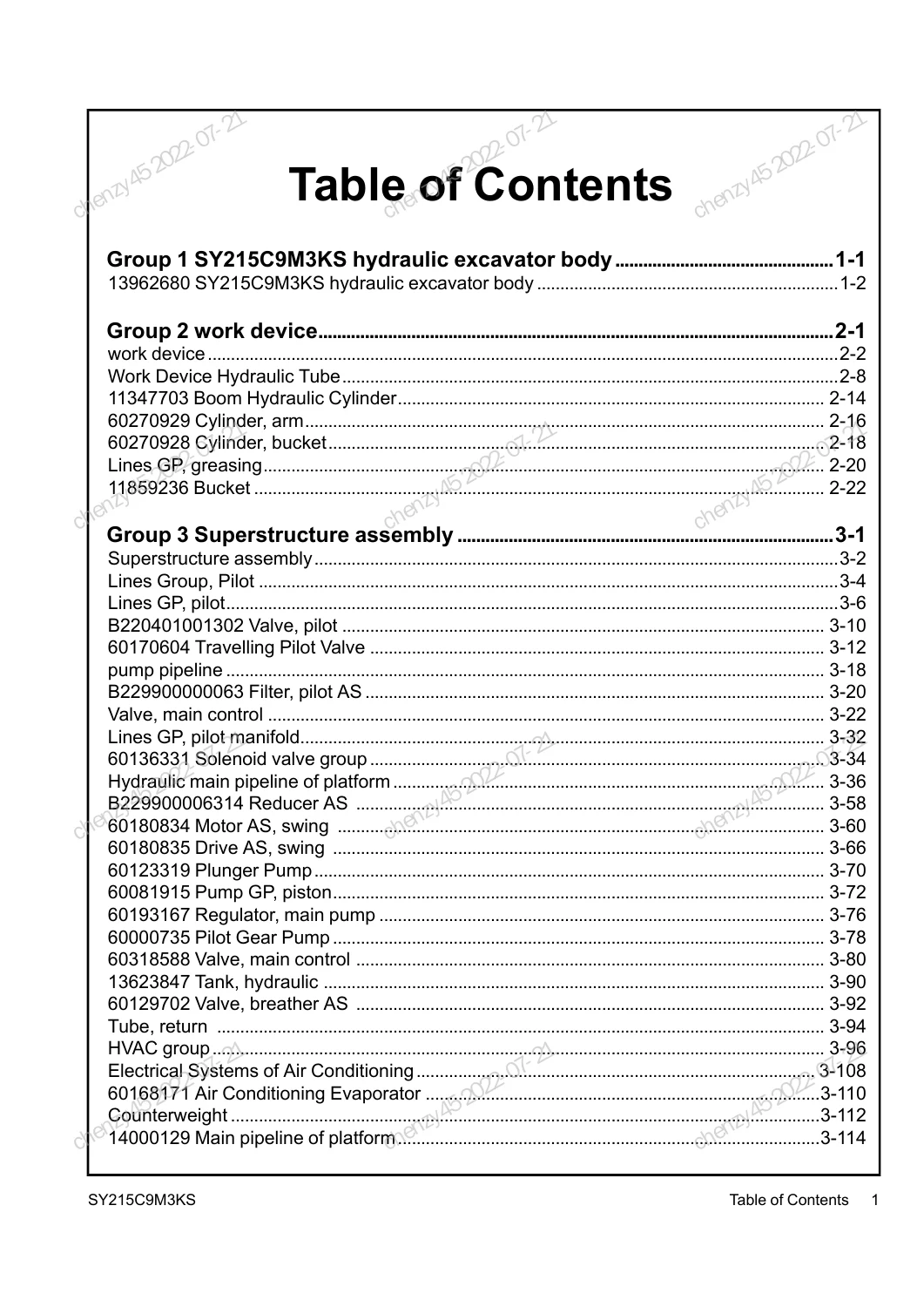

Contents and Group Structure

• Group 1 — SY215C9M3KS Hydraulic Excavator Body
  • Body assembly overview and top-level component index
• Group 2 — Work Device
  • Work device assembly
  • Work Device Hydraulic Tube
  • Boom Hydraulic Cylinder (11347703)
  • Arm Cylinder (60270929)
  • Bucket Cylinder (60270928)
  • Greasing Line Group
  • Bucket (11859236)
• Group 3 — Superstructure Assembly
  • Superstructure assembly overview
  • Pilot Lines Group and manifold
  • Pilot valve (B220401001302) and Travelling Pilot Valve (60170604)
  • Pump pipeline and pilot filter (B229900000063)
  • Main control valve and pilot manifold lines
  • Solenoid valve group (60136331)
  • Hydraulic main pipeline of platform
  • Swing reducer (B229900006314) and swing motor (60180834)
  • Swing drive (60180835)
  • Plunger pump (60123319), piston pump group (60081915)
  • Main pump regulator (60193167) and pilot gear pump (60000735)
  • Main control valve (60318588)
  • Hydraulic tank (13623847) and breather valve (60129702)
  • Return tube, HVAC group, air conditioning electrical system
  • Air conditioning evaporator (60168171)
  • Counterweight and main platform pipeline
  • Hammer pilot pipeline
• Group 4 — Cab
  • Cab assembly and Shenzhou cab (60096344)
  • Inner-decoration assembly and front control box (61019395)
  • Electrical assembly and wiper (130988000001)
  • Accessories, rear-view mirror bracket (13558289)
  • Glass panels, suction window, air line
  • Door assembly (60129034), skylight (61018425), front sliding window (60243765)
  • Running control mechanism
  • Seat and console group, right console, left armrest
  • Seat assembly (60188806)
• Group 5 — General Assembly of Covering Parts
  • Covering parts overview and handrail (14099806)
  • Mirror bracket (12046539) and storage box (12908466)
  • Hood group (13625845), left door (13556945), left rear door (14250873)
  • Small door (14251016), right door (12698255)
• Group 6 — Undercarriage System
  • Undercarriage overview and seal assembly (A810302082000)
  • Slewing bearing assembly and slewing bearing (11841739)
  • Leading idle wheel (14007349), tensioner (A229900006383)
  • Carrier roller (12168856)
  • Travel reducer (13225418) and travel motor (60312633)
  • Gear reducer (13870762)
• Group 7 — Power System
• Group 8 — Electrical System
• Group 9 — Attached Accessories
• Group 10 — Coating

Systems and Assemblies Documented

The book addresses every major system of the SY215C9M3KS: the hydraulic work device (boom, arm, bucket cylinders and lines); the complete superstructure including the main control valve, plunger pump, pilot pump, swing motor and reducer; the cab interior with electrical, HVAC, and controls; body covering panels and access doors; the full undercarriage including slewing bearing, track idlers, carrier rollers, travel motors and reducers; the power system; and the electrical system.

How Parts Are Identified

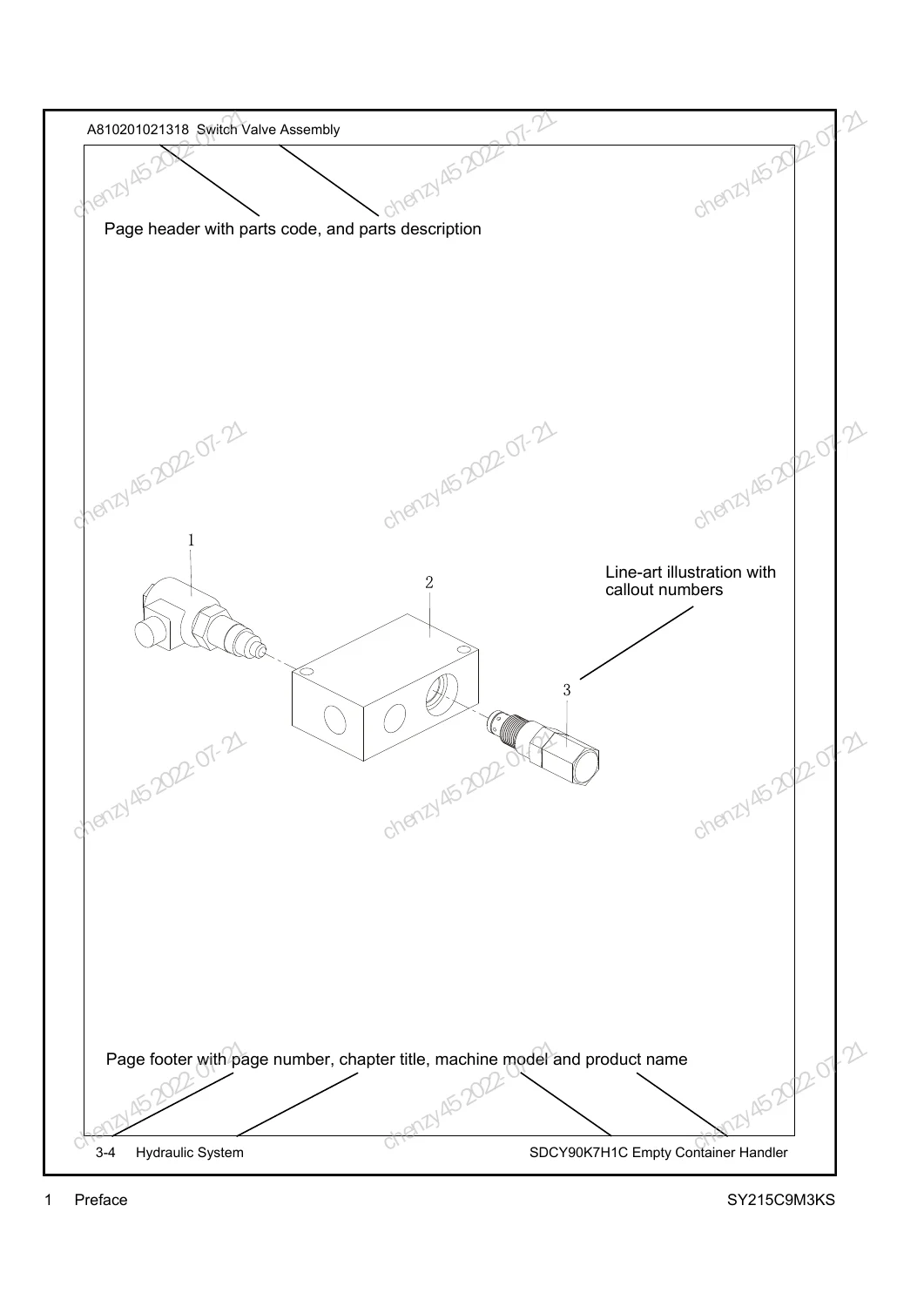

Each section opens with a line-art exploded illustration where every component carries a callout number. The facing page presents an index table with three columns — index number, part number, and part description — plus a quantity column showing how many of each part are used in that assembly. A SEE PAGE reference directs the reader to sub-assembly detail pages where components break down further. This structure lets a technician work from a visual understanding of what has failed directly to the part number needed for ordering.

Get the Correct Parts. Get the Job Done Right.

Misidentified parts mean downtime, return shipping, and repeat disassembly. This Parts Book gives you the indexed illustrations and exact part numbers for every assembly on the SY215C9M3KS — from the swing motor to the bucket cylinder repair kit to individual cab fittings. Whether you are sourcing components for a planned overhaul or tracking down the part number for an emergency replacement, the correct data is here: machine-specific, indexed visually, and organized by group. Download instantly as a PDF the moment your order is complete. Read it on a laptop in the workshop, a tablet beside the machine, or any device at hand — no waiting for a printed book to arrive.
