Scania DC13 Industrial Engine Parts Catalogue 2033837 – 2014

This is the Scania parts catalogue for the 13-litre industrial engine family, issued under document number 2033837 with a 2014 publication date. It is the working reference a parts counter, workshop or fleet technician uses to identify the correct component for a specific engine build by section, position number and part number. The catalogue spans the DC09, DC13, DC16, DI09 and DI13 engine designations across industrial and marine applications, and it is built around exploded illustrations tied to position-numbered parts tables. Rather than a repair procedure guide, this is the identification and ordering document – the companion every rebuild, overhaul or replacement job depends on before a single bolt is turned.

File Details

• Manual type: Parts catalogue
• Brand: Scania
• Product line: 13 Industrial engine
• Document number: 2033837
• Publication date: 2014
• Language: English
• File format: PDF
• Page count: 1241 pages
• Covered engine designations: DC09, DC13, DC16, DI09, DI13

Chapters Covered

• 00 General – 00-00 Consumables; 00-23 Maintenance kits
• 01 Engine – 01 Cylinder head; 05 Cylinder block; 10 Crank mechanism; 15 Timing gear; 20 Lubrication system; 25 Exhaust manifold; 30 Turbocharger; 40 Intake manifold; 45 Air intake; 50 Engine suspension; 55 Power take-off; 60 Protective casing; 65 EGR system; 99 Repair kit
• 02 Cooling system – 01 Radiator; 05 Charge air cooler; 10 Fan; 15 Thermostat housing; 25 Coolant pump; 30 Pipes and hoses; 35 Belt transmission; 40 Aux heater, cooling circuit
• 03 Fuel and exhaust systems – 01 Injection pump and injectors; 05 Fuel filter unit; 10 Auxiliary starting device; 20 Fuel tank; 25 Exhaust system; 35 Electronic control system; 99 Repair kit
• 10 Pneumatic system – 15 Compressor; 45 Exhaust brake; 99 Repair kit
• 11 Base frame – 01 Frame
• 13 Hydraulic pump – 15 Hydraulic pump; 99 Repair kit
• 16 Electrical system – 01 Central electric unit; 05 Alternator; 10 Starter motor; 15 Electrical equipment; 25 Battery; 30 Cable routing; 45 Cable harness, engine; 70 Electrical parts; 99 Repair kit
• 17 Instruments – 01 Instrument panel; 05 Switches, plates
• 18 Canopy – 01 Cab structure; 20 Insulation; 75 Air conditioning
• 19 Complementary equipment – 65 Miscellaneous

Read together, those sections trace the whole engine as an assembly of orderable parts – from the cylinder head casting and valve train down through the cylinder block, crank mechanism and timing gear, out to the lubrication, exhaust manifold, turbocharger and intake side, then across the cooling, fuel, pneumatic, hydraulic, electrical and instrumentation systems that make the engine a working industrial package. Each section is illustrated with an exploded view keyed to a parts table so a position number on the drawing maps directly to a part number, quantity and description.

IMAGES PREVIEW

How the catalogue is organised

The Scania DC13 Industrial Engine Parts Catalogue 2033837 uses Scania’s standard two-part section numbering – a main group and a sub-group – printed at the top of every page and repeated in the page footer. That means you can move from the index straight to a section, for example 01-05 Cylinder block, 01-20 Lubrication system or 02-35 Belt transmission, without hunting through the file. Exploded illustrations sit alongside each parts table with callout numbers, and the tables carry position, part number, remark, quantity and description columns. Variant-specific entries are flagged with a bracket tag such as [DC13A], [DC09/13A], [DI09/13M] or [DC13 79/88A], so you can match the entry to the exact engine build rather than picking a lookalike part. Where an assembly has been revised or where different executions exist, the catalogue lists each alternative rather than collapsing them into one line.

Engine coverage and variant detail

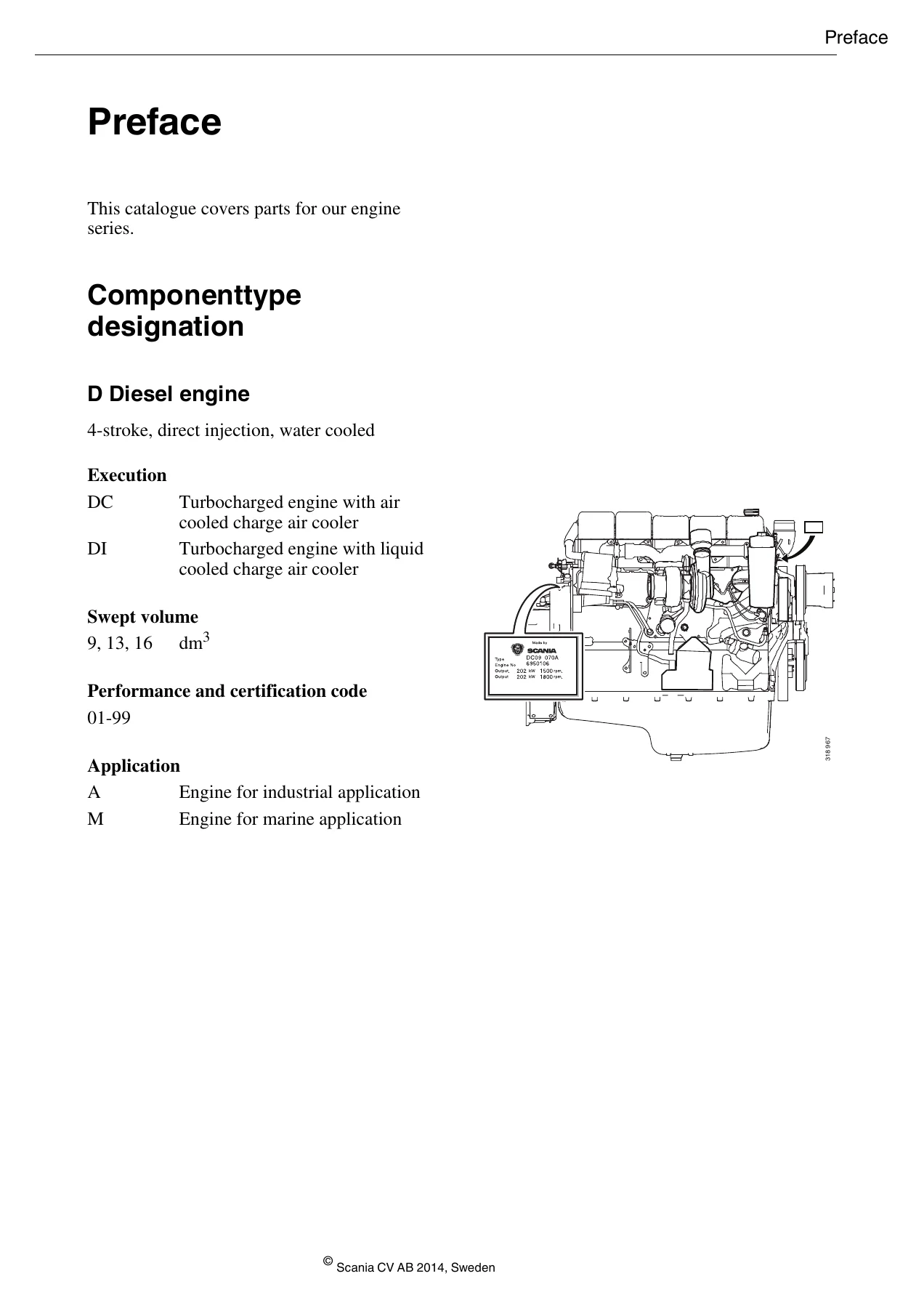

The catalogue is written around the 13-litre industrial engine family, with cross-coverage of the 9-litre and 16-litre designations where they share components. The preface explains the type designation itself: D for diesel, four-stroke, direct injection, water cooled; DC for a turbocharged engine with air-cooled charge air cooler; DI for a turbocharged engine with liquid-cooled charge air cooler; swept volume in dm3 (9, 13, 16); performance and certification codes from 01 to 99; and application codes – A for industrial, M for marine. A sample engine record card is reproduced in the opening pages so the reader can see how a delivery record maps to the parts catalogue number, with callouts for date of delivery, start-up date, warranty end, valid parts catalogue number and, for marine engines, classification information. That matters because classified engines need classified parts – a distinction the catalogue flags for the buyer.

What this parts catalogue lets you do

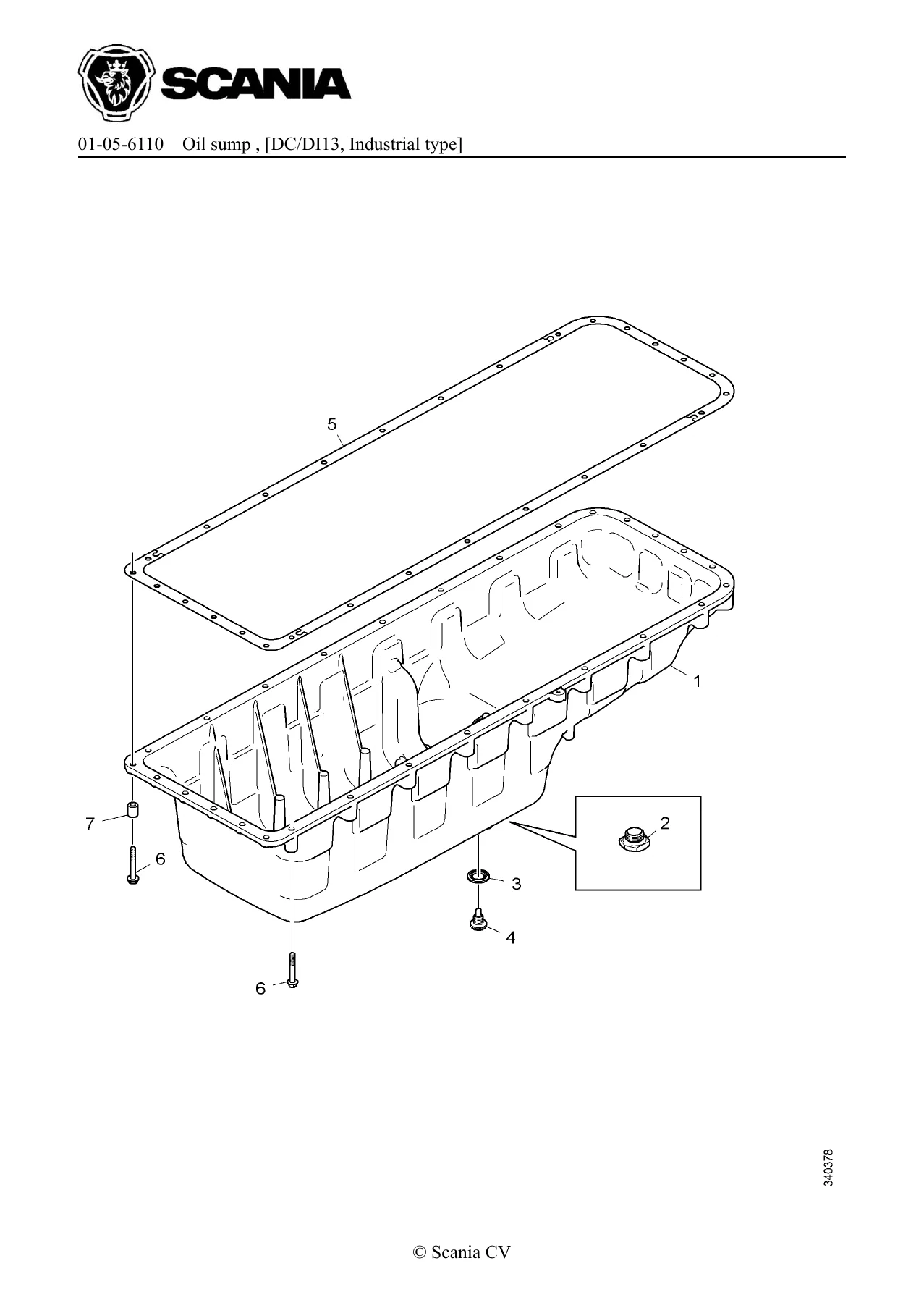

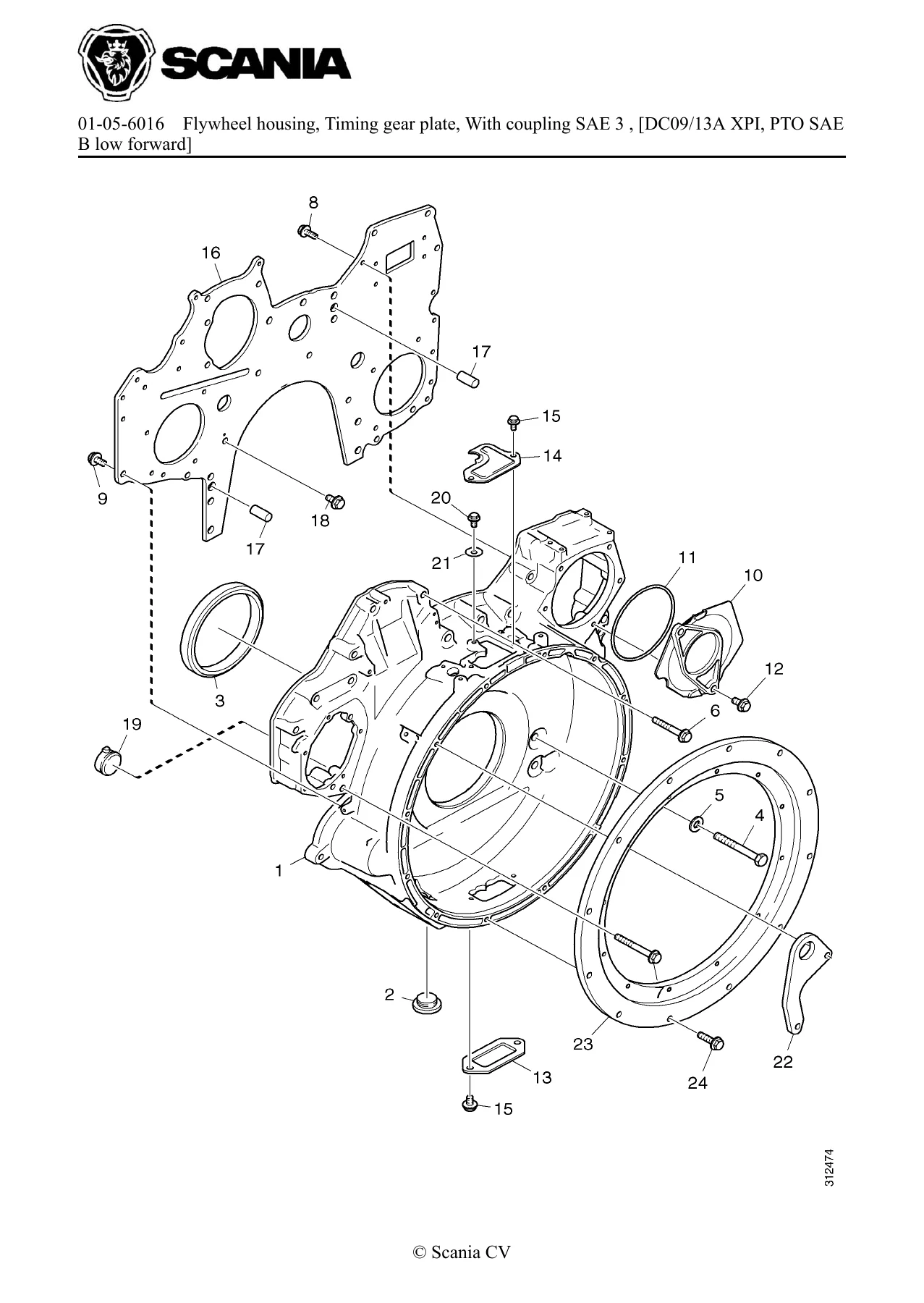

With this Scania parts catalogue PDF, you can identify the correct part number for a cylinder head, rocker cover, cylinder block, front cover, flywheel housing, timing gear plate, crankcase ventilation assembly, oil sump, crank mechanism, piston, camshaft gear, oil pump, oil cooler, exhaust manifold, turbocharger or wastegate solenoid valve on a DC13 industrial engine. On the systems side it covers radiator and cooling package parts, charge air pipes, fans and fan rings, thermostat housings, coolant pumps, belt transmission layouts for a range of fan gear ratios and alternator positions, fuel filter units and fuel pipes, injection pumps and unit injectors, exhaust brakes, compressors, hydraulic pump mountings, junction boxes, alternators, starter motors, cable harnesses, instrument panels and A/C compressor mountings. The EGR system, SCR exhaust aftertreatment, reductant tank and reductant pump sections are included as well, which is essential for later emissions-stage engines.

Because it is a parts catalogue rather than a service manual, its value is precision. Getting the right part number the first time avoids ordering a component that fits a different execution of the same engine, and the bracket tags are what make that possible – a [DC13A] entry is not the same as a [DC13 79/88A] entry, and the exploded view shows which position is which. Whether you are rebuilding a top end, chasing a crankcase ventilation leak, replacing a belt transmission for a different fan gear ratio, or simply assembling an order for a scheduled service kit, the part numbers and assembly layout are all here in one reference.

Maintenance kits and consumables

A dedicated maintenance section groups the consumable part numbers for service work – maintenance kits for XPI and PDE injection systems across M and L service levels, oil filter repair kits, centrifugal oil cleaner O-rings, sealing washers, fuel filter kits with prefilter and element options, reductant pump filter kits and air filter inserts. A separate consumables listing covers workshop fluids and materials such as antifreeze glycol, greases, sealants, thread-locking fluids, refrigerants and cleaning agents, with a note that these local consumable part numbers are intended for workshop use rather than direct ordering.
