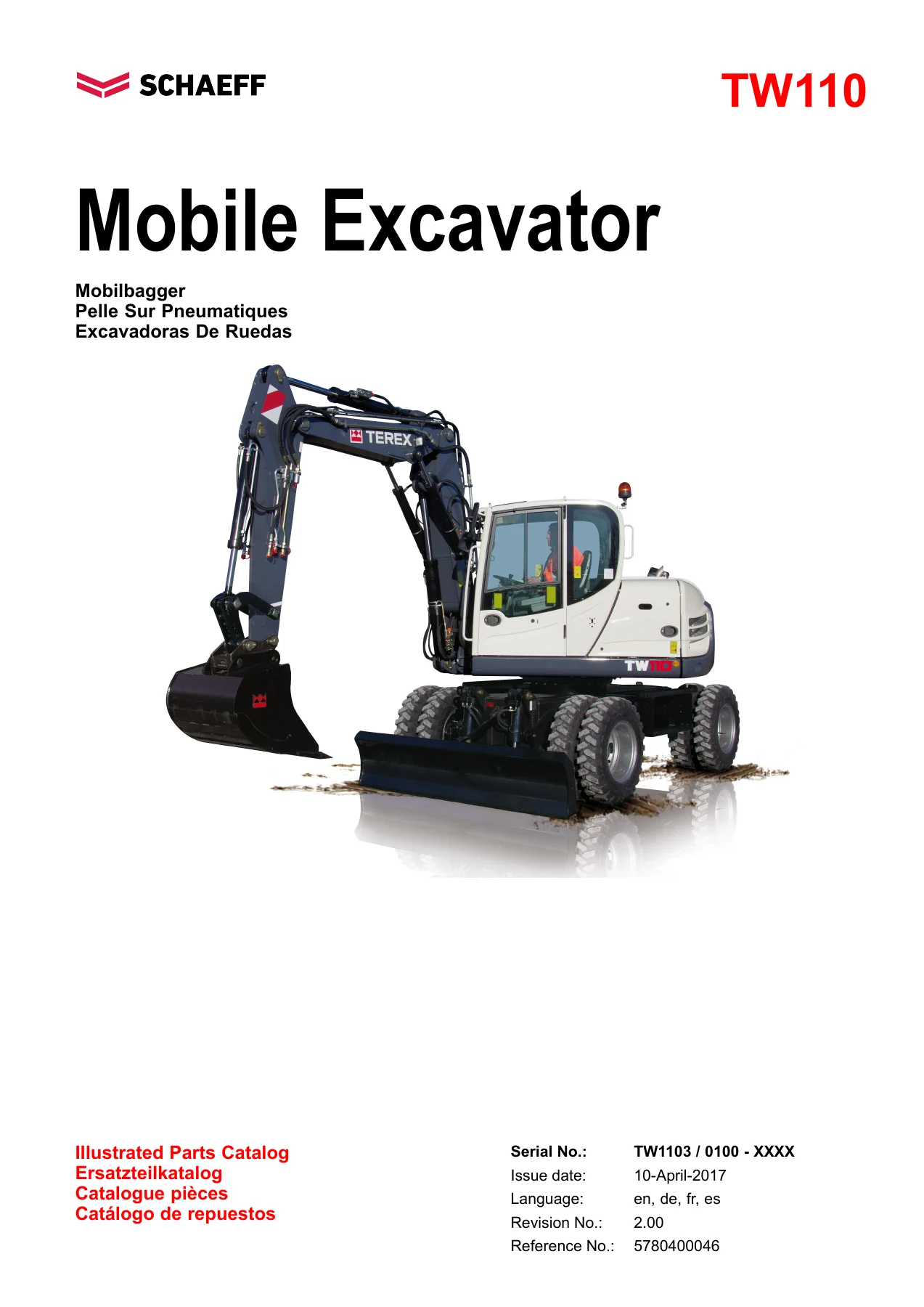

Schaeff TW110 Mobile Excavator Illustrated Parts Catalog 5780400046 (2017) PDF

Description

Schaeff TW110 Mobile Excavator Illustrated Parts Catalog – Reference 5780400046

The Schaeff TW110 Mobile Excavator Illustrated Parts Catalog is the illustrated spare-parts documentation released for the TW110 wheeled excavator (Mobilbagger / Pelle sur pneumatiques / Excavadoras de ruedas). It was issued by Yanmar Compact Germany GmbH on 10-April-2017 under reference number 5780400046, revision 2.00, and applies to machines in serial range TW1103 / 0100 – XXXX. Every section is built around numbered exploded drawings linked to itemised part tables, so a workshop, dealer or owner can identify the exact component required for a given TW110 build and order it correctly the first time.

File Details

• Manual type: Illustrated Parts Catalog (Ersatzteilkatalog / Catalogue pieces / Catalogo de repuestos)
• Machine: Schaeff TW110 Mobile Excavator
• Serial number range: TW1103 / 0100 – XXXX
• Reference number: 5780400046
• Revision: 2.00
• Issue date: 10-April-2017
• Language: English, German, French, Spanish
• File format: PDF

Chapters Covered

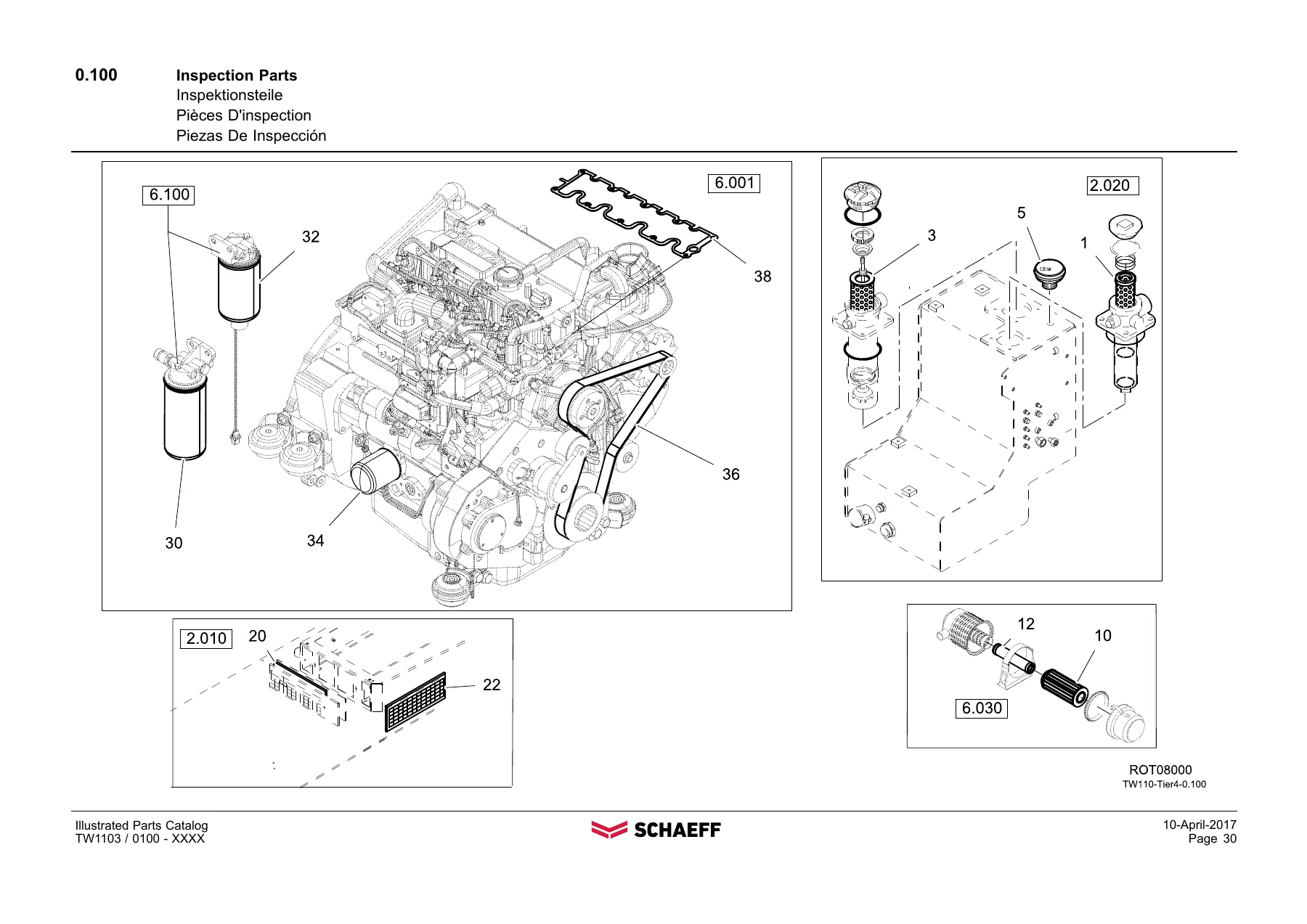

• 0.000 Inspection Parts – service and inspection items (0.100 Inspection Parts)

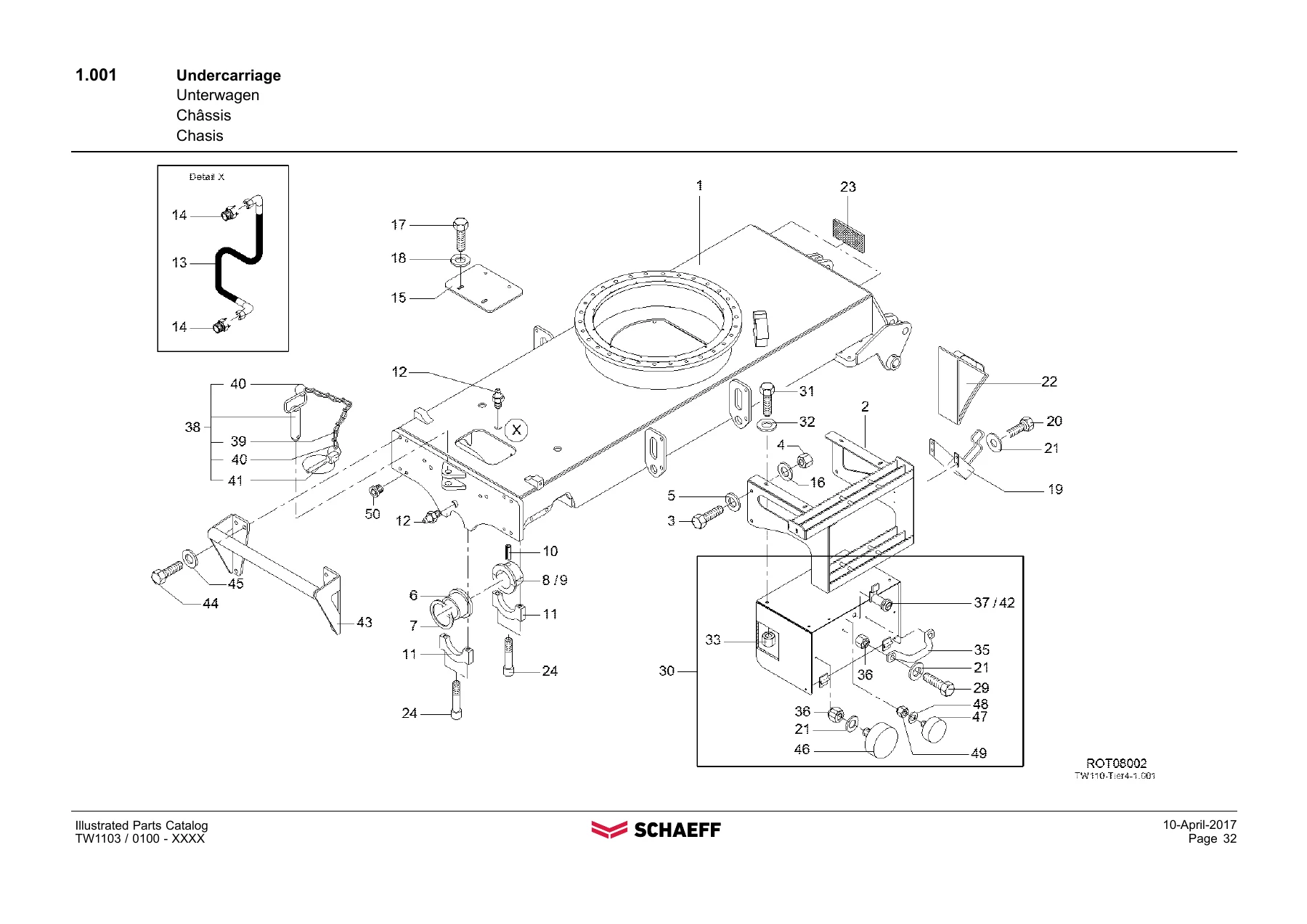

• 1.000 Undercarriage Including Attachments – undercarriage, stabilizers, support plate, rear and front support blade, tools
• 2.000 Uppercarriage Including Mountings – uppercarriage, division plate covers, floor frame and storage, instrument panels, locks, seat support, cab positioning, oil and fuel tanks, engine hood and covers, lining set, steering unit, slew with brake, ISO and ANSI stickers, operator seats (MSG85 / air-cushioned comfort seat)
• 3.000 Axles – standard 20 km/h axles, high-speed 36 km/h axles, four-wheel steer axles, tires, differential housings, differentials, wheel hubs, axle cases, brakes, reduction gears, travel drive gears, steering cylinders
• 4.000 Working Equipment – loading equipment articulated boom, slewing column, boom, intermediate boom, dippersticks in 2000 mm, 2350 mm and Atlas 1850 mm lengths
• 5.000 Work Attachments – Terex quick-attach system, Lehnhoff MS08 and HS08 quick-attach systems, Triga buckets, ditch cleaning buckets, swing buckets, grab suspension, M140 hydraulic hammer, teeth, load hook, cutter attachment
• 6.000 Engine Including Attachments – engine installation (DOC and CRT diesel particle filter variants), pump mountings, exhaust systems, air filter, accelerator pedal, heating, ventilation hoses, heater, combined oil/water cooler, fuel supply, refueling pump, dipstick, oil pan, valve mechanism, oil cooler, injection pump, fuel filter, control unit, EGR cooler, starter/generator, engine mounting, relays, sensors, oxidation catalyst, hydraulic pump drive
• 7.000 Hydraulic Installation – pilot control, pressure and tank distributor, main and additional block control units, slewing motor, pilot generation block, steering (standard and all-wheel), drive (standard), recirculation, oil tank, return filter, pumps, oil cooler, rotating joints, fan drive, travel drive, rear support and front clearing blade hydraulics, brake (standard and four-wheel), articulated boom hydraulic installation, load holding valves
• 8.000 Hydraulic Components – control valve 5SX14 sections (inlet, boom, arm, bucket, auxiliary), additional block control units, pilot control levers, drive engine, hydraulic pumps and connection plates, rotation drive, slew gear and motor, rotating joint, hydraulic cylinders (support plate, articulation, boom, intermediate boom, dipperstick, bucket, swing bucket, blade)
• 9.000 Electrical Installation – electrical components, dashboard, instrument console switches and parts, battery installation, fuse panel, relay panel, main fuse box, slip ring bodies, upper carriage and cab parts, wire harnesses and options, lighting, beacon light, immobilizer, license plate light, rear view camera, cool box

IMAGES PREVIEW

At well over eight hundred pages, the Schaeff TW110 parts catalog is far more than a flat parts list. Each chapter is drawn as an assembly picture with ballooned callouts, then resolved into a table that pairs every callout with a part number, description, quantity and – where relevant – a serial-number note so the correct variant of a component is chosen. Chapters 3 through 8 in particular break the machine down to component sub-assemblies: a front axle on a 20 km/h machine is documented down to differential internals, reduction gears and brake discs, while the hydraulic section separates each valve section, hose assembly and cylinder seal kit. This is the level of detail a workshop needs when a component has to be identified, verified against the actual build, and replaced with the correct version.

Configurations Documented

The TW110 was offered in several build combinations and the catalog follows them all. Axle coverage splits into standard 20 km/h and high-speed 36 km/h drivetrains, plus a four-wheel steer version in both speed ratings. The working equipment is documented with 2000 mm, 2350 mm and Atlas 1850 mm dippersticks. Attachment coverage runs from Terex mechanical quick-hitch through Lehnhoff MS08 mechanical and HS08 hydraulic quick-change systems, with Triga buckets, ditch cleaning buckets, swing buckets, grab suspensions, the M140 hydraulic hammer and a cutter attachment. Engine chapters are split between the DOC standard exhaust and the CRT diesel particle filter version, with serial cut-offs noted (Tw11030271 / Tw11030272 onwards). This makes it straightforward to look up parts for the actual configuration of a given TW110 rather than a generic listing.

How the Catalog Is Organised

Front matter explains the catalog, ordering and repair notes in all four languages, defines how serial-number ranges are read (for example 0965-1141 meaning from serial 0965 to 1141, and 0101-XXXX meaning from 0101 with the closing serial not yet known), and explains the chapter reference symbols used inside the drawings. Quantities are stated as fitted to a single machine; consumables such as shims are marked “as required” and metre goods are given in metres so the correct length can be ordered. At the back, an alphanumeric parts list lets a technician jump straight from a known part number to the chapter and page where it appears. Between the front matter, the numbered chapters and the alphanumeric index, the entire parts identification workflow – from symptom to a specific part number to a quantity to order – is covered inside one document.

What This Parts Catalog Enables

With the Schaeff TW110 Mobile Excavator Illustrated Parts Catalog 5780400046 on hand, a workshop or owner can identify the correct component for a repair, confirm the exact variant for a given serial number and build, order the right quantity of fasteners, seals, hoses or assemblies, and rebuild sub-assemblies such as a front axle, slew gear, hydraulic cylinder or quick-attach mechanism using the correct part numbers. Because the drawings show how components fit together, the catalog also supports reassembly planning – which seal goes where, how a brake piston is stacked, which hose assembly routes to which port – even before the technician opens the machine. Getting the exact part number right matters: an incorrect seal, shim or hose on a hydraulic or brake circuit can cause a leak, a pressure fault or a repeat failure, and an incorrect axle or swing component can jeopardise safety-critical machine operation.

Instant PDF Delivery

The catalog is supplied as a PDF that downloads immediately after purchase – no shipping, no waiting on a physical book, and no risk of a printed copy going out of date on the shelf. It can be opened on a workshop PC, laptop, tablet or phone, printed page-for-page for the bay, and searched on screen so a part number or chapter reference can be found in seconds. Whether you are running a fleet of TW110 excavators, working on a single machine, or supplying parts to the trade, this illustrated parts catalog gives you the complete, illustrated reference set for the whole machine in one file.
