Schramm T685WS-D Rotadrill Parts Manual – Serial J125-3324 (2010)

This illustrated parts book covers the Schramm T685WS-D series Rotadrill and is the factory publication issued against rig serial number J125-3324. Every assembly on the machine is broken down into its component part numbers – from the deck engine and Sullair compressor package through the mast, top head drive, outriggers, hydraulic tank and operator control panel. Instead of guessing at a replacement part or chasing a superseded number, you look up the illustration, match the reference callout and order the exact item listed.

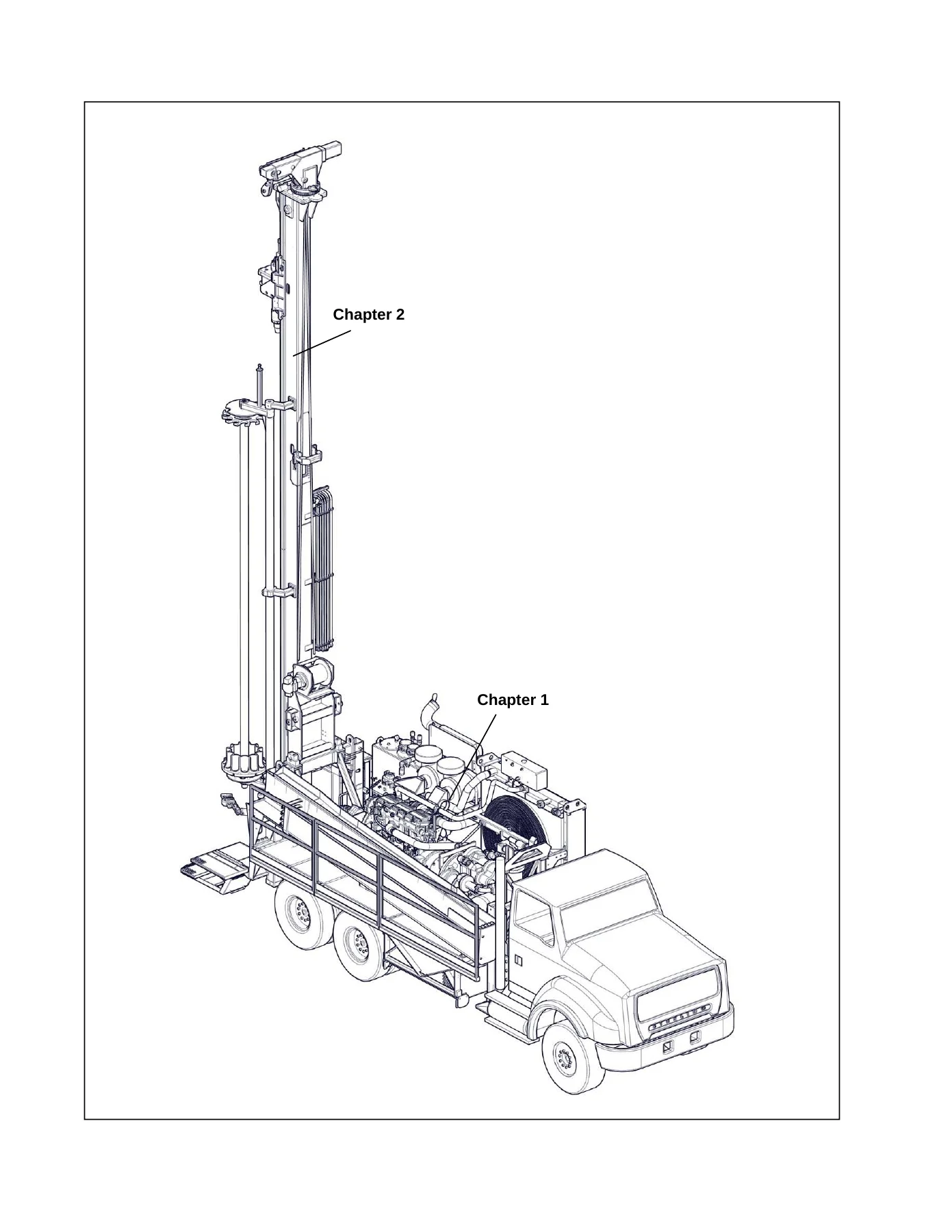

The manual is organised into two main chapters plus a detailed appendix, so you can move from a system overview straight to the exploded view of the sub-assembly you are working on.

File Details

• Manual type: Illustrated Parts Manual (Parts Book)
• Brand: Schramm, Inc.
• Model: T685WS-D Rotadrill
• Serial applicability: J125-3324
• Publication year: 2010
• Language: English
• File format: PDF
• Page count: 184 pages

Chapters Covered

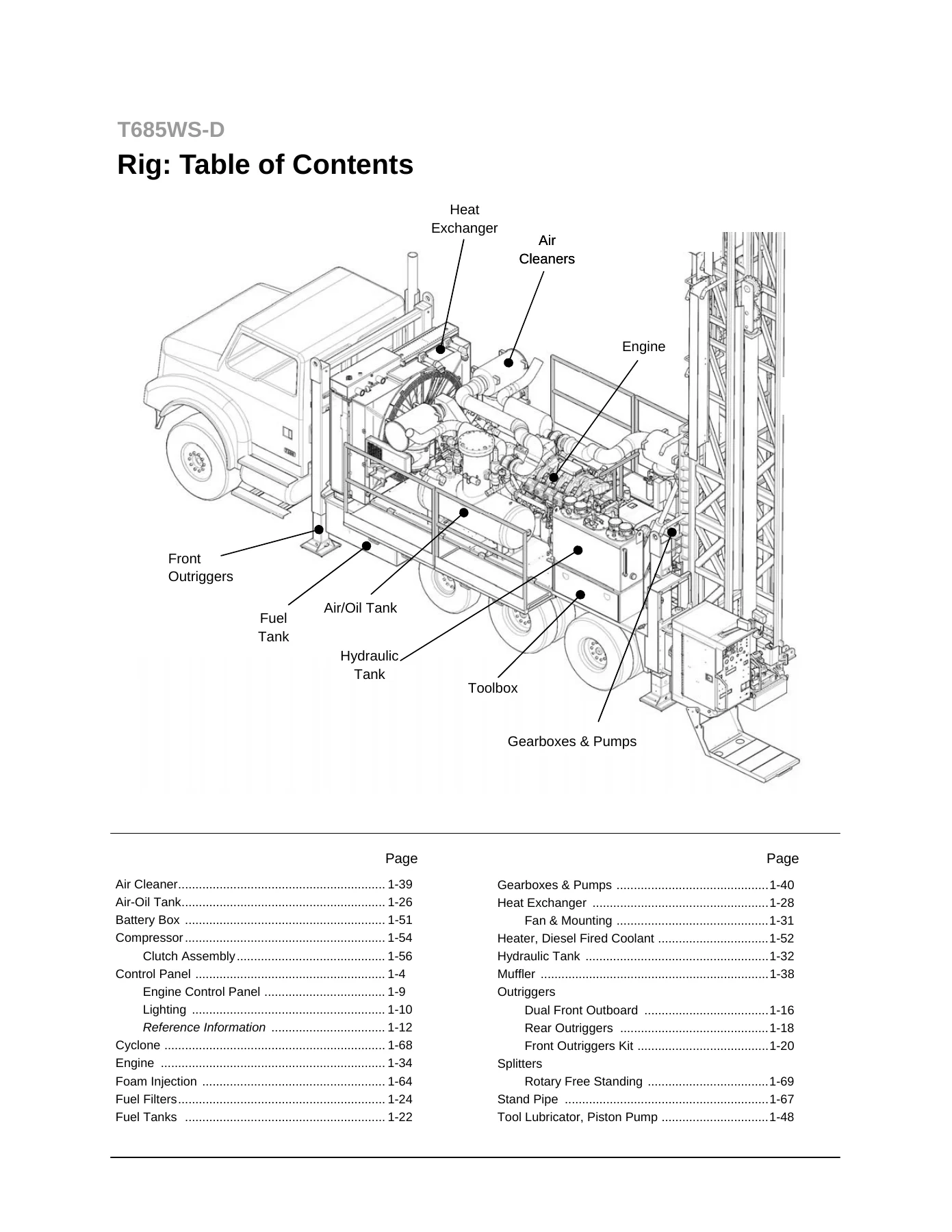

• Chapter 1 – Deck Engine and Machinery Section
  • Front outriggers, dual front outboard outriggers and outrigger kit
  • Directional control valve sections, lever kits, tie rod kits and hydraulic plumbing
  • Control panel, engine control panel and instrument gauges
  • Lighting, brackets and reference information
  • Fuel tanks, fuel filters, fuel transfer and dispensing
  • Air/oil tank, heat exchanger, compressor, air cleaners and muffler
  • Hydraulic tank, gearboxes, pumps (P1 through P5), pump drive
  • Variable speed cooling fan and fan mounting
  • Engine assembly and exhaust
  • Tool lubricator, piston pump
  • Water injection (25 gpm, 35 gpm, CAT high pressure)
  • Foam injection
  • Clutch assembly
  • Battery box, toolbox, cyclone and preheater
• Chapter 2 – Mast and Pipe Handling Section
  • Mast assembly, chains, sprockets, sheaves and chain tensioners
  • Feed cylinders, traverse cylinders and mast slide cylinders

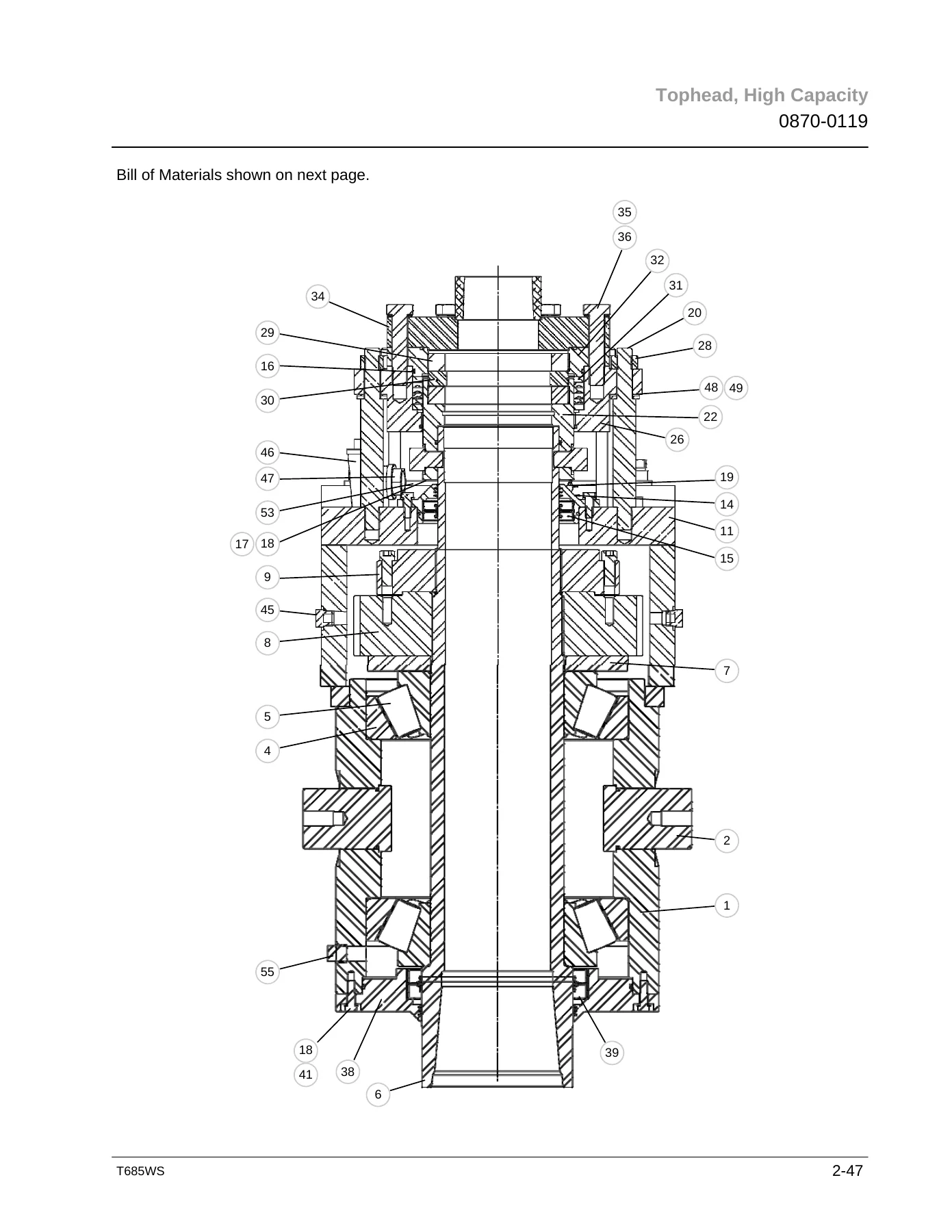

  • Top head, top head high capacity option and split table
  • Breakout wrench, breakout cylinder and big tool breakout
  • Jib boom (exploration), lazy susan and pipe loader supports
  • Slip guide, slipbox, pipe seals, dust curtain
  • Survey winch, swing arm and pipe handling controls
  • Winch assembly, cable, hooks and shackles
  • Rotation gearbox, trunnions, wear pads and sliding mast supports
  • King swivel, floating shaft, side inlet swivel and blowdown valve
  • Subs, drill pipe slings and bit breakers
• Appendix
  • Detailed Rig Specifications (A-1)
  • Hoses (B-1)
  • Filters (C-1)
  • Decals (D-1)
  • Nameplates (E-1)
  • Track/Carrier OEM Specifications and Book Reference (F-1)
  • Schematic diagrams

What makes this manual genuinely useful on the shop floor is the way each chapter pairs an illustration with a matching reference table: callout number, Schramm part number, quantity and description. Sub-assemblies that matter in the field – the Twin Disc SP214 clutch, the Sullair 1350/500 compressor head, the rotation gearbox, the feed and traverse cylinders, the axial piston pumps, the hydraulic valve banks – are all exploded so you can identify individual wear parts, seal kits, cartridges and O-rings rather than ordering an entire assembly. The appendix adds a hose schedule by part number, bore, end fitting and length, plus a decal and nameplate list, which is exactly what you need when a machine has been field-modified or re-piped.
