Service Manual Clarion Drx6375 Car Stereo Player – PDF DOWNLOAD

Description

Service Manual Clarion Drx6375 Car Stereo Player

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:10
DOWNLOADABLE:YES
FILE TYPE:PDF

SERVICE MANUAL CLARION DRX6375 CAR STEREO PLAYER – PDF DOWNLOAD:

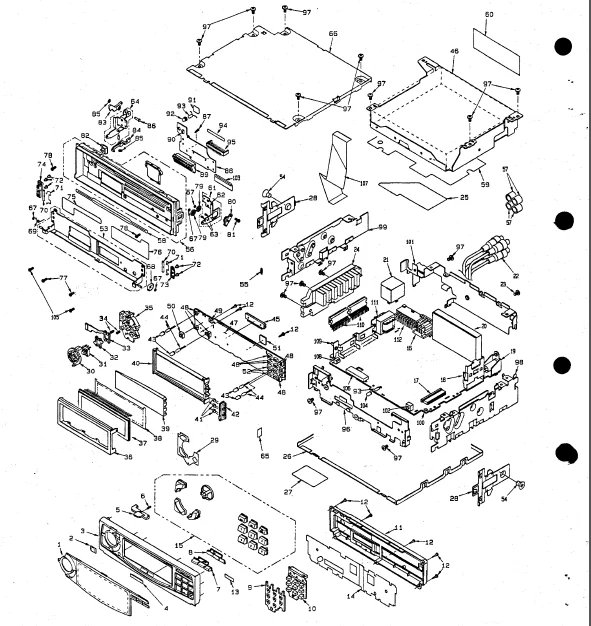

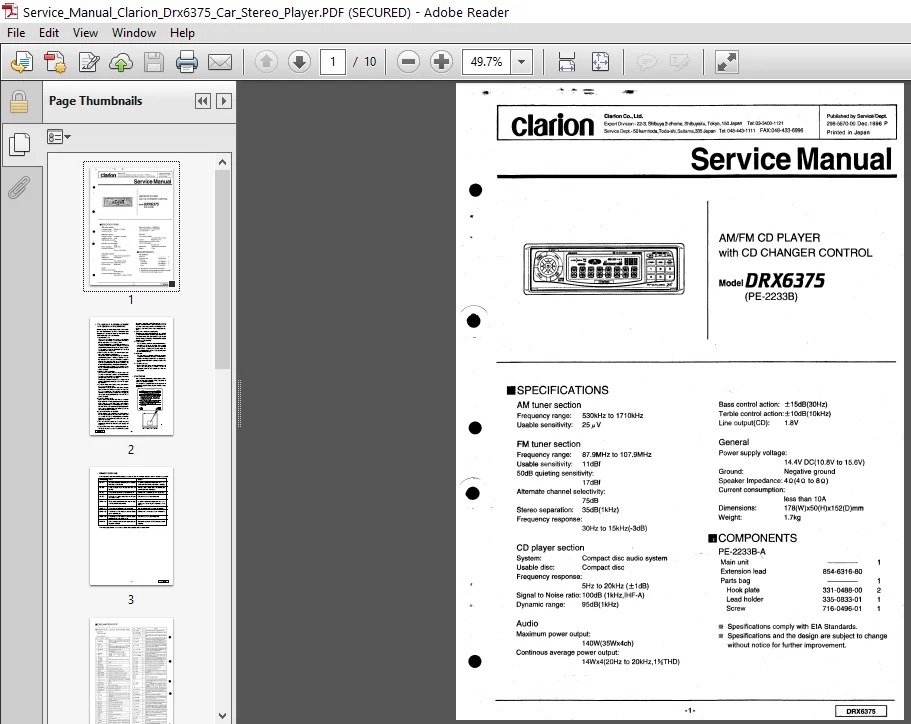

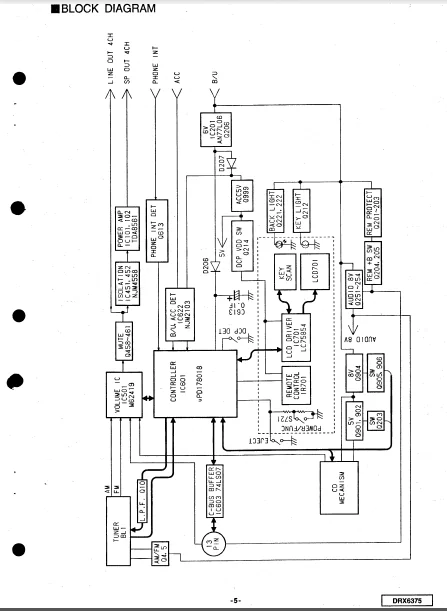

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Service Manual Clarion Drx6375 Car Stereo Player

To engineers in charge of repair or inspection of our products:

Before repair or inspection,make sure to follow the instructions so that customers and Engineers in charge of repair or inspection can avoid suffering any risk or injury.

1. Use specified parts. The system uses parts with special safety features against fire and voltage.Use only parts with equivalent characteristics when replacing them. The use of unspecified parts shall be regarded as remodeling for which we shall not be liable.The onus of product liability (PL) shall not be our responsibility in cases where an accident or failure is as a result of unspecified parts being used.
2. Place the parts and wiring back in their original positions after replacement or re-wiring. For proper circuit construction,use of insulation tubes,bonding,gaps to PWB,etc,is involved.The wiring connection and routing to the PWB are specially planned using clamps to keep away from heated and high voltage parts.Ensure that they are placed back in their original positions after repair or inspection. If extended damage is caused due to negligence during repair,the legal responsibility shall be with the repairing company.
3. Check for safety after repair. Check that the screws,parts and wires are put back securely in their original position after repair.Ensure for safety reasons there is no possibility of secondary ploblems around the repaired spots. If extended damage is caused due to negligence of repair,the legal responsibility shall be with the repairing company.
4. Caution in removal and making wiring connection to the parts for the automobile. Disconnect the battery terminal after turning the ignition key off.If wrong wiring connections are made with the battery connected, a short circuit and/or fire may occur.If extensive damage is caused due to negligence of repair,the legal responsibility shall be with the repairing company.
5. Cautions regarding chips. Do not reuse removed chips even when no abnormality is observed in their appearance.Always replace them with new ones.(The chip parts include resistors,capacitors,diodes,transistors,etc).The negative pole of tantalum capacitors is highly susceptible to heat,so use special care when replacing them and check the operation afterwards.
6. Cautions in handling flexible PWB Before working with a soldering iron,make sure that the iron tip temperature is around 270?.Take care not to apply the iron tip repeatedly(more than three times)to the same patterns.Also take care not to apply the tip with force.
7. Turn the unit OFF during disassembly and parts replacement.Recheck all work before you apply power to the unit.
8. Cautions in checking that the optical pickup lights up. The laser is focused on the disc reflection surface through the lens of the optical pickup. When checking that the laser optical diode lights up,keep your eyes more than 30cms away from the lens.Prolonged viewing of the laser within 30cms may damage your eyesight.
9. Cautions in handling the optical pickup The laser diode of the optical pickup can be damaged by electrostatic charge caused by your clothes and body.

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

.
