Ski-Doo REV Gen4 Snowmobile Service Manual – 600R E-TEC, 850 E-TEC & Turbo Repair Guide

Description

Ski-Doo REV Gen4 Service Manual — Complete Workshop Reference for 600R E-TEC, 850 E-TEC and 850 E-TEC Turbo

This Ski-Doo REV Gen4 Service Manual (document 219101014-002) is a full workshop reference for the REV Gen4 snowmobile platform. It covers the 600R E-TEC, 850 E-TEC, and 850 E-TEC Turbo engines across every major mechanical, electrical, and chassis system. From engine removal and bottom-end rebuilds to fuel injection diagnostics, suspension setup, and body panel procedures, the manual is structured for technicians who need accurate torque values, service limits, and step-by-step disassembly and assembly instructions.

File Details

• Manual type: Service Manual (workshop repair guide)
• Brand: Ski-Doo / BRP
• Platform: REV Gen4
• Document number: 219101014-002
• Language: English
• Page count: 658 pages
• File format: PDF

Chapters Covered

• Safety Notice and Introduction
• Vehicle Information — VIN and engine identification, compliance labels
• Periodic Maintenance Schedule — pre-ride inspection, break-in intervals, annual and multi-year service
• Periodic Maintenance Procedures — engine, exhaust, lubrication, cooling, fuel, spark plugs, track, brake, suspension, steering, storage, preseason prep
• Engine Removal and Installation — engine support, rubber mounts
• Engine Leak Test — 600R and 850 procedures, pump shaft oil gear reservoir test
• Air Intake System — air filter, primary and secondary air intake silencers
• Exhaust System — muffler, tuned pipe, EGTS, exhaust pressure sensor
• Exhaust Manifold — removal, inspection, installation with tightening sequence
• Rewind Starter — handle, rope, spring, assembly and lubrication
• Lubrication System — oil injection pump, oil tank, oil level sensor, check valves and fittings
• Cooling System — engine cooling, vehicle components, water pump, bearing carrier, thermostat, coolant temperature sensor, front radiator, cooling fan
• Magneto and Starter — flywheel, housing, CPS, stator, starter, starter drive
• 3D RAVE — valve synchronization, position sensor, servomotor, RAVE cable
• Top End — engine compression test, reed valves, cylinder head, cylinder block, piston projection, pistons
• Bottom End — crankcase, crankshaft, bearings, shimming
• Turbocharger — oil pressure line, oil return, oil catch tank, oil pump, waste gate actuator
• Engine Management System (EMS) — system description, ECM, throttle protection, warm-up
• Communication Protocols — CAN network
• Communication Tools and B.U.D.S.
• Diagnostic and Fault Codes — monitoring system, fault code tables
• Fuel Tank and Fuel Pump — electric fuel pump, fuel pressure regulator, fuel filters, fuel level sensor
• E-TEC Direct Fuel Injection — direct injectors, throttle body injectors, fuel rail, ECM, throttle body, TPS, CPS, MAPTS, CTS, EGTS, knock sensor
• Power Distribution — 55 Vdc and 12 Vdc systems, grounds
• Wiring Harness and Connectors — connector repair, terminal extraction, splices
• Ignition System — ignition timing, TDC gauge, spark plugs, ignition coils
• Charging System — battery, voltage regulator/rectifier, DC-DC converter, capacitor
• Starting System — with and without battery, START/RER switch, starter solenoid
• RF D.E.S.S. — key programming, engine cut-off operation
• SHOT System — absolute CPS, water pump impeller, ultra capacitor, alignment
• Engine Harness — routing and installation for 600R and 850
• Rotax Electronic Reverse (RER)
• Lights — headlights, taillight
• Gauge — 4.5″ digital display
• Accessories — heated throttle lever, heated grips, heated seats
• Drive Belt — guard, belt removal and inspection, height adjustment
• pDrive Pulley — disassembly, ramp cam adjustment, assembly
• Driven Pulley and Countershaft — removal, disassembly, inspection, assembly
• Brake — pads, caliper, disc, master cylinder, brake light switch, bleeding
• Chaincase — oil, drive chain, sprockets, bearings, speed sensor
• Drive Axle — removal, bearing, magnetic caps
• Track — inspection, tension, alignment, cleat replacement
• Suspension Adjustment — stopper strap, spring preload, dampers
• Front Suspension — shock absorber, spring, upper and lower arms, ball joints, ski leg, stabilizer bar
• Rear Suspension (tMotion) — rails, idler wheels, front and rear arms, pivot arm, shock absorbers, springs, slider shoes
• Steering System — skis, runners, ski legs, handlebar, tie-rods, steering column, steering rack
• Body — panels, hood, windshield, seat, bumpers, storage
• Frame — rivets, modules, heat exchanger, countershaft bearing support
• Technical Specifications — engine, vehicle, torque values
• Wiring Diagram Information — wire colors, connector codes, circuit tracing

This Ski-Doo REV Gen4 service manual goes far beyond routine maintenance. It contains the full disassembly, inspection, and reassembly procedures that a dealership technician would use — including crankshaft deflection measurement, piston-to-cylinder clearance checks, cylinder taper and out-of-round measurement, ring end gap specification, bearing installation with heated bearings, crankcase sealing with Loctite 5910, and precise shimming procedures for the 850 E-TEC bottom end. The engine management section covers the E-TEC direct injection system in depth, with fault code tables that map each P-code to its cause and the specific diagnostic action required.

The electrical coverage is equally detailed. Wiring harness and connector sections explain terminal extraction and insertion for Molex, Delphi, and Packard connectors, while the power distribution chapter breaks down both the 55 Vdc and 12 Vdc systems. The SHOT starting system, RF D.E.S.S. security, RER reverse, and 4.5″ digital gauge each have dedicated sections with testing procedures and specifications.

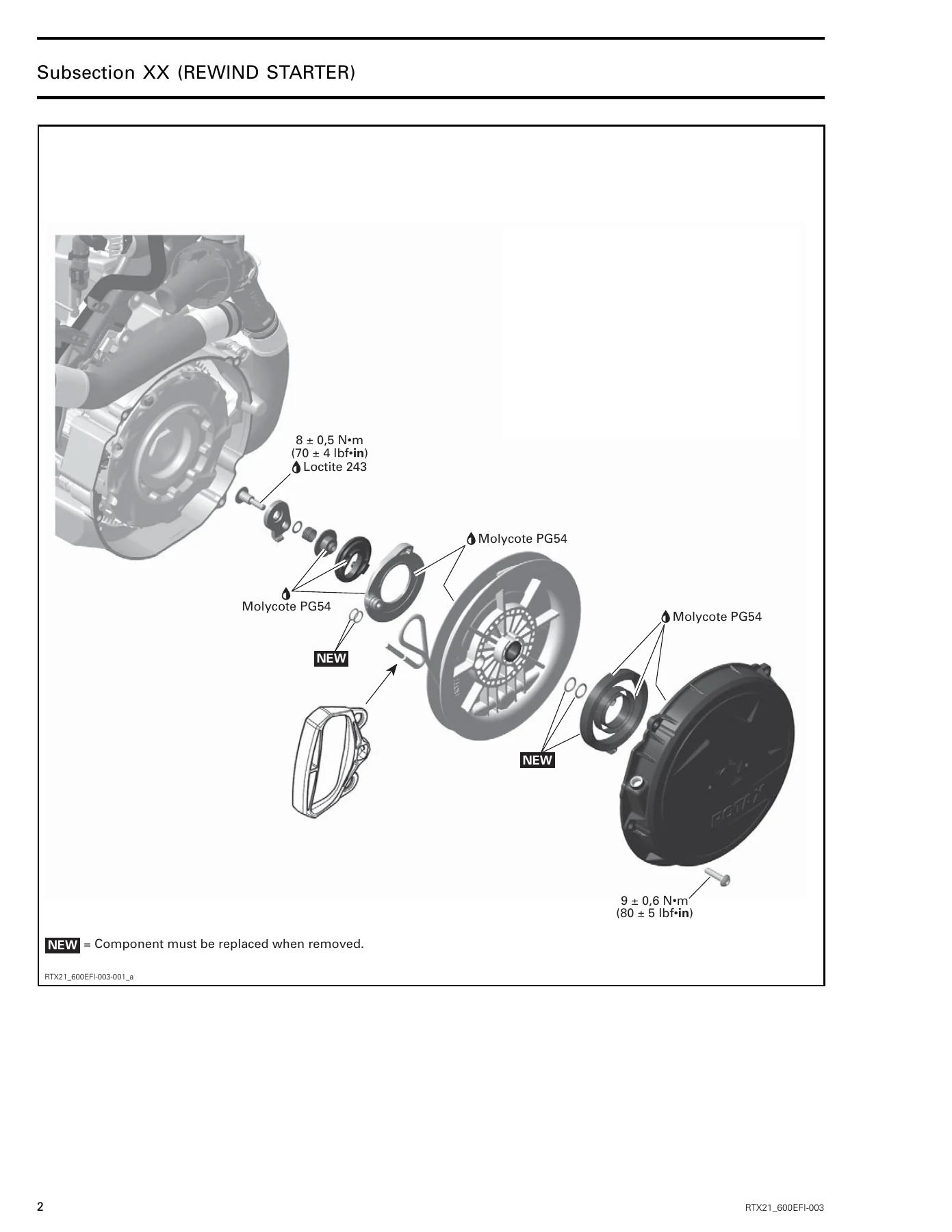

IMAGES PREVIEW

For chassis work, the manual covers the pDrive drive pulley with its ramp cam adjustment, the QRS driven pulley and countershaft, chaincase disassembly and bearing replacement, drive axle service, and full front and rear suspension teardown. Track tension and alignment procedures are given with the exact deflection and load specifications. Brake service includes caliper removal, pad replacement, disc inspection, master cylinder service, and bleeding procedure with DOT 4 fluid.

What This Ski-Doo REV Gen4 Service Manual Enables You to Do

Whether you are performing a top-end rebuild on an 850 E-TEC, diagnosing a P-code on the E-TEC direct injection system, replacing a chaincase bearing, setting up rear suspension for deep snow, or simply adjusting drive belt height, this Ski-Doo REV Gen4 service manual provides the procedures, torque values, service limits, and tightening sequences needed to do the job correctly. The step-by-step format with exploded views and tightening sequences helps prevent the kind of assembly errors — incorrect bearing preload, wrong gasket thickness, improper fastener torque — that lead to repeat failures or engine damage.

Delivered as an instant PDF download, the manual is printable and viewable on any device. No shipping, no waiting. Have the complete REV Gen4 workshop reference on your bench, in your shop, or on your tablet before the next repair begins.
