Skyjack SJ3220 SJ3226 SJ4720 SJ4726 SJ4732 Parts Manual – 223197AEA 2024

Description

Skyjack SJ3220 SJ3226 SJ4720 SJ4726 SJ4732 Parts Manual – 223197AEA 2024

This is the full illustrated parts manual for the Skyjack DC electric scissor lift family covering SJ3220, SJ3226, SJ4720, SJ4726 and SJ4732. Published under document number 223197AEA and dated April 16 2024, it is the reference used to locate and identify replacement parts across the whole machine – platform, scissor stack, chassis, hydraulic tray, battery tray, wiring harnesses, hose routing, factory options and decals. Every assembly is shown as an exploded drawing with a matching parts list, so a part can be traced visually from the illustration and then ordered by its Skyjack part number.

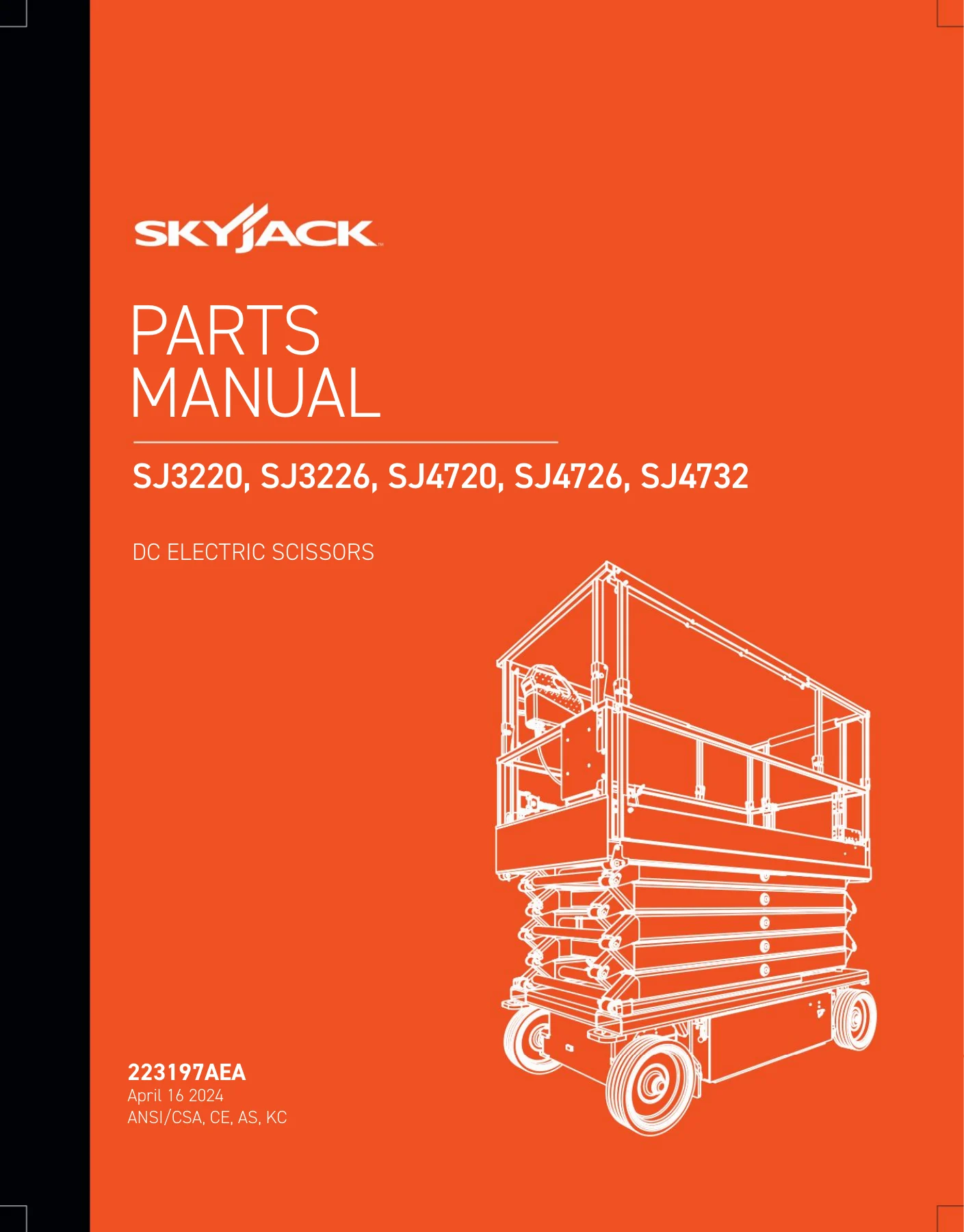

The manual is written for the four build standards listed on the cover: ANSI/CSA, CE, AS and KC. Because those standards use different brakes, wheel motors, drive manifolds and controls, many sections are split by region so you order the correct variant rather than a look-alike part.

File Details

• Manual type: Illustrated Parts Manual
• Brand: Skyjack
• Models covered: SJ3220, SJ3226, SJ4720, SJ4726, SJ4732 DC Electric Scissors
• Document number: 223197AEA
• Publication date: April 16 2024
• Build standards: ANSI/CSA, CE, AS, KC
• Language: English
• Page count: 228 pages
• File format: PDF

Chapters Covered

The contents are organised into nine numbered sections, each broken into illustrated assemblies:

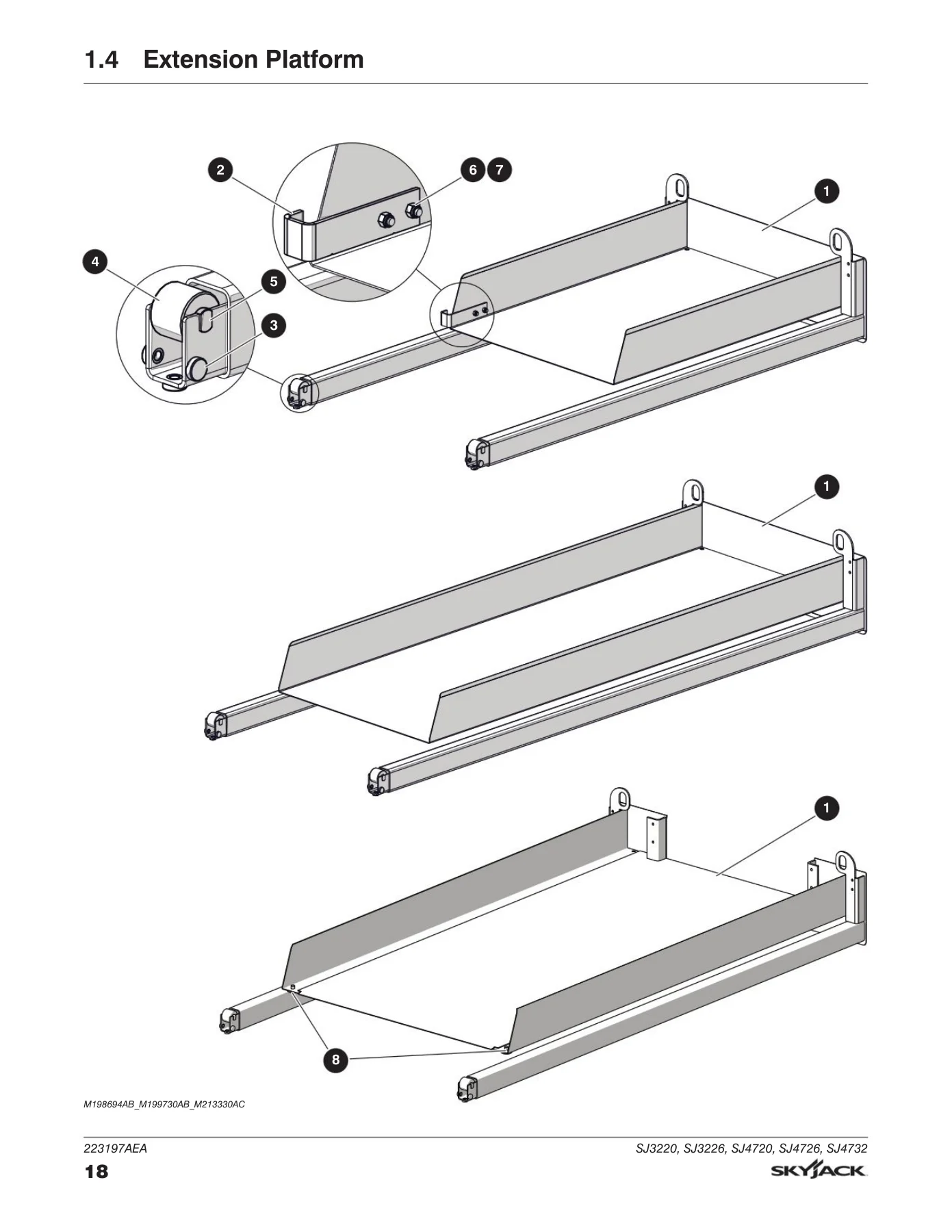

• Section 1 – Platform: main platform (SJ3220/26 and SJ4720/26/32), main platform with aircraft option, extension platform, main railings, main railings aircraft option, extension railing, extension railing and front gate aircraft option, rear gates, full rear gate aircraft option, gate latch, powerdeck cylinder, platform control box, control box cover, joystick, powerdeck controls, platform A/C outlet, platform protection aircraft protection, outdoor switch

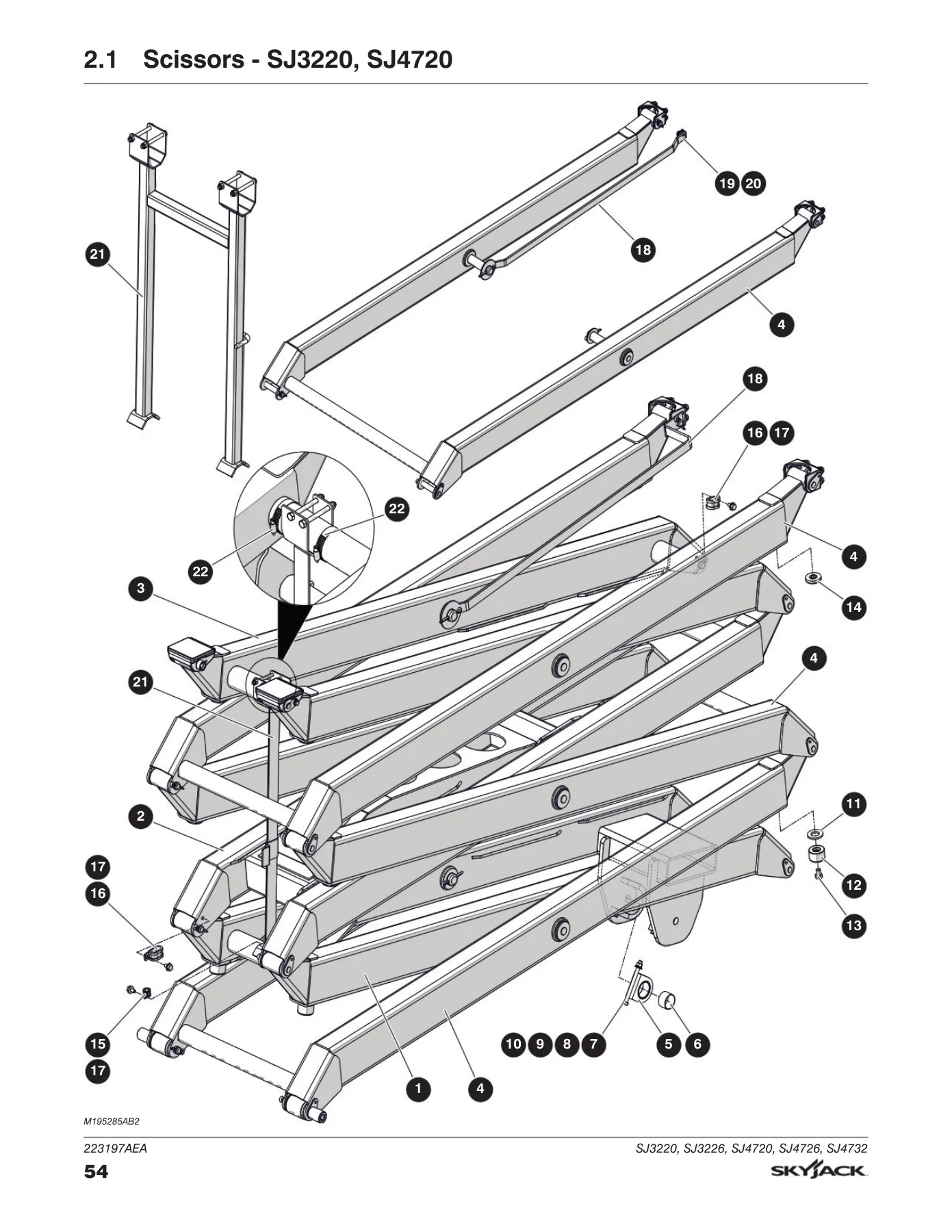

• Section 2 – Scissors: scissor stacks by model, scissors hardware, lift cylinder, cylinder manifold (SJ3220/SJ4720 and SJ3226/SJ4726/32), pressure transducer, flashing light, horn, angle transducer, beeper
• Section 3 – Base: base for SJ3220/3226 and SJ4720/4726/4732, counterweights, pin brakes ANSI/CSA, wheel motor ANSI/CSA, wheel motor and disc brake CE/AS/KC, steering, tie rod, steer cylinder, pothole protection, wheels, drive manifolds by region, base control plastic box, base control metal box, ladder, skydoced control module
• Section 4 – Hydraulic Tray: hydraulic tray, hydraulic tank, hydraulic tank EE-rated/aircraft protection, main manifold, powerdeck manifold, counterweight, motor pump and contactor, skydoced display module, emergency lowering switch
• Section 5 – Battery Tray: battery tray, batteries, battery charger
• Section 6 – Electrical: main harness for SJ3220/26 and SJ4720/26/32, platform control cable and its SGLE and aircraft protection variants, holding valve harness, prop lowering valve harness CE, control cable base to platform, dual flashing light harness, base control harness plastic box and metal box, powerdeck harnesses, power cables and aircraft protection power cables, interlocks SJ4726 aircraft protection, anti-overrising posts limit switches and harnesses KC, elevate telematics harness, outdoor switch harness
• Section 7 – Hose Connections: standard hose numbering system, hose connections SJ3220/26 ANSI/CSA, hose connections SJ3220/26 CE AS and KC, hose connections SJ4726/32 ANSI/CSA, hose connections SJ4720/26/32 CE AS and KC, hose connections hydraulic tray, air hose aircraft protection
• Section 8 – Options: inverter group and inverter, white noise alarm, dual flashing light group, light duty pipe racks, universal heavy-duty pipe rack, universal board carrier, elevate telematics keypad and BMS, residual current device CE, anti-overrising posts KC, wire locking pin, tray locking plates, tool caddy, ECOTray for SJ3226 and for SJ4720/26/32, perimeter lights, ACPP black logos
• Section 9 – Labels: label kits, labels for platform controls and miscellaneous locations, side labels, front back and top labels, base control console labels, SJ4726 aircraft protection labels, lift here labels, hose layout labels KC, anti-overrising post labels KC

Read as a whole, this is a component-level identification tool rather than a repair guide. It does not describe how to remove or install anything, and it does not list torque values or service limits. What it does is far more specific: for each assembly on the machine it gives the exploded drawing, the index numbers, the quantities required and the exact Skyjack part number, including the sub-component breakdown behind each bulleted assembly. That is what makes it possible to order a single bushing, seal kit, solenoid coil, roller or decal instead of an entire assembly.

How the Parts Lists Are Organised

Parts are listed in the order of the reference numbers shown in the illustration, and each description follows a noun-first format – the part name comes first, then the modifying detail that pins down the exact item. Assemblies at the head of a list carry a letter reference such as A, B, C or D to separate different configurations, and individual parts carry that same letter after the description to show which configuration they belong to. A part with no letter is used in all of them.

Bullets show the parent and child relationship between assemblies. The entry at the top without a bullet is the main assembly, everything below it with a single bullet is a subcomponent of that assembly, and two bullets indicate a subcomponent of a subcomponent. Quantities are given for each line; where the quantity is marked AR it varies with the options fitted to the machine, so it should be ordered as needed. Seal repair kits are shown at the end of the relevant cylinder, motor and brake lists rather than being buried in the illustration.

Serial Number Coverage

The manual is valid for the following machine ranges, printed on page 2:

• SJ3220: A101 000 001 – A101 018 999
• SJ3226: A101 000 001 – A101 018 999
• SJ4720: A102 000 001 – A102 013 999
• SJ4726: A102 000 001 – A102 013 999
• SJ4732: A102 000 001 – A102 013 999

Confirm your machine serial against these ranges before ordering, particularly for option-specific hardware such as the aircraft protection package, powerdeck, outdoor switch and anti-overrising posts.

Recommended Service Parts

A dedicated Recommended Service Parts table lists the items Skyjack expects to be consumed over a three-year window, split into Year 1, Year 2 and Year 3 quantities. It covers the 6 volt battery options including U2200XC2, U2500XC2, Discover AGM EVGC6A-A and T-105, plus the hydraulic consumables most commonly replaced: lift cylinder seal kits, holding valve manifold relief valves, 3000 PSI and 2000 PSI pressure transducers, wheel motor seal kits by model and region, steer cylinder seal kit, hydraulic filter cartridge element, filler breather and a long list of cartridge valves covering differential, speed, holding, lift, brake, counterbalance and flow divider functions. Having those numbers in one place is what turns a breakdown into a same-day parts order instead of a week of guesswork.

Options, Labels and Regional Differences

Section 8 covers every factory-fitted option as its own illustrated subgroup, including the ANSI/CSA-only inverter group, pipe racks and board carriers, ECOTray absorbent pan kits for both the SJ3226 and the SJ4720/26/32, perimeter lights and the elevate telematics keypad and BMS hardware. Section 9 handles the decal side of the machine: complete label kits by standard, plus individual platform capacity, wheel load, CE mark, towing, maintenance support, hose layout and lift-here labels, including the 2703 kg/5960 lb lift-here set used on aircraft protection machines.

Why This Parts Manual Matters

Scissor lifts are built in regional variants and revised over a production run, and a wrong part number costs a machine its uptime. This Skyjack SJ3220 SJ3226 SJ4720 SJ4726 SJ4732 Parts Manual removes that risk by tying every part number to the drawing, the quantity and the correct build standard. With it you can identify and order platform railings and gates, extension deck hardware, scissor arm bushings and bearings, centre and end pins, lift cylinders and their manifolds, pothole protection linkages and limit switches, steer cylinders and tie rod ends, wheel motors and brake assemblies, drive and main manifolds, hydraulic tanks and filters, harnesses and cables, hose assemblies built to the standard numbering system, and every label on the machine.
