DESCRIPTION:
Skyjack SJ40T SJ45T SJ61T SJ66T Telescopic Boom Operating Manual 159180AE-A – PDF DOWNLOAD
SJ40T SJ45T 98001142 & Above
SJ61T SJ66T 97000918 & Above
specifications and dimensions are subject to change without notice.
A mobile device that has an adjustable position platform supported from ground level by a
structure.
The SKYJACK Telescopic Boom Series (Models SJ 40T, SJ 45T, 61T & 66T) aerial platform is designed
to transport and raise personnel, tools and materials to overhead work areas.
The aerial platform is a highly maneuverable, mobile work station. Work platform elevation and
elevated driving must only be done on a firm, level surface. It can be driven over uneven terrain
only when the platform is fully lowered.
The operating manual is considered a fundamental part of the aerial platform. It is a
very important way to communicate necessary safety information to users and operators. A
complete and legible copy of this manual must be kept in the provided weather-resistant storage
compartment on the aerial platform at all times.
The operator must read and completely understand both this operating manual and the safety panel
label located on the platform and all other warnings in this manual and on the aerial platform.
Compare the labels on the aerial platform with the labels found within this manual. If any labels
are damaged or missing, replace them immediately.
SKYJACK warrants each new SJT series work platform to be free of defective parts and workmanship
for the first 24 months. Any defective part will be replaced or repaired by your local SKYJACK
dealer at no charge for parts or labor. Contact SKYJACK Service Department for warranty statement extensions or exclusions.

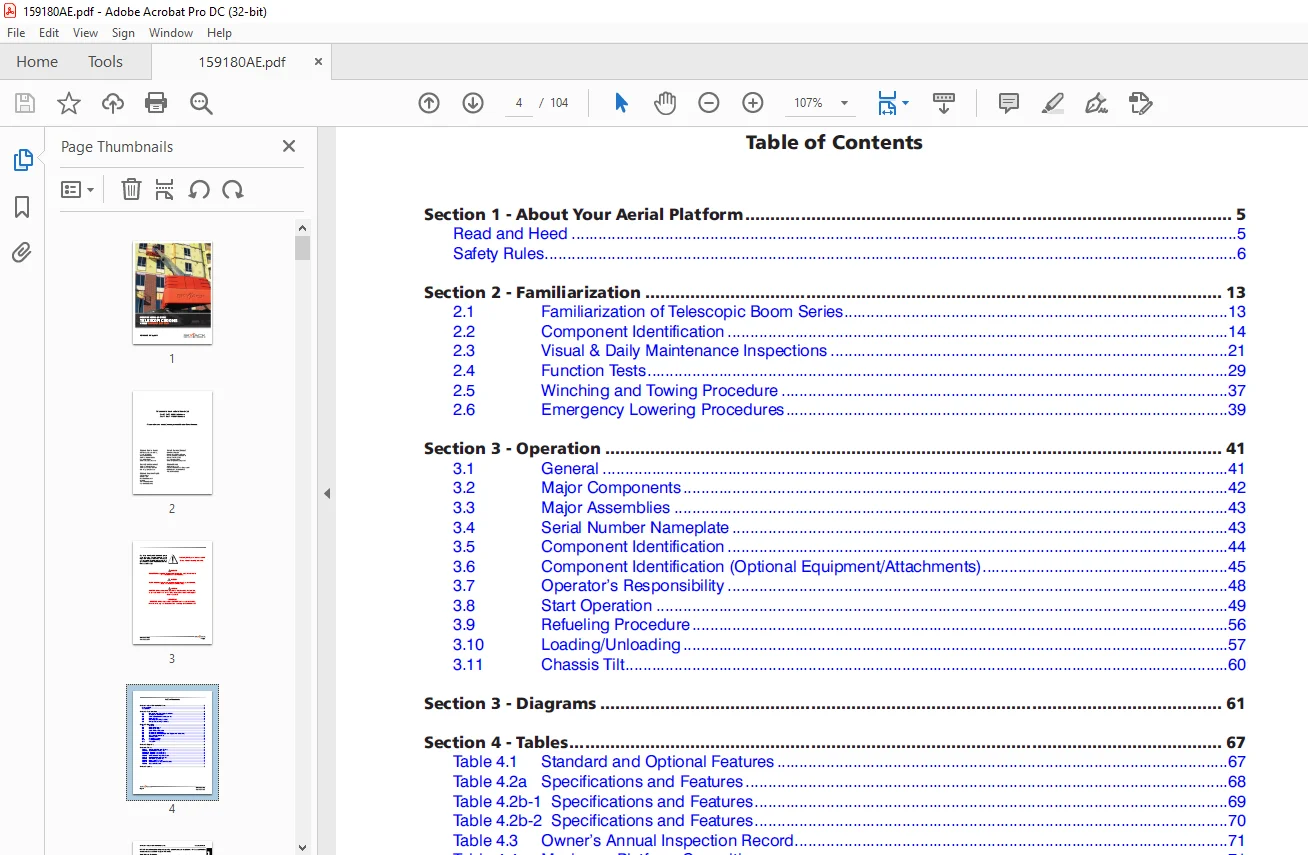

TABLE OF CONTENTS:
Skyjack SJ40T SJ45T SJ61T SJ66T Telescopic Boom Operating Manual 159180AE-A – PDF DOWNLOAD
Section 1 – About Your Aerial Platform 5
Read and Heed 5
Safety Rules 6
Section 2 – Familiarization 13
2 1 Familiarization of Telescopic Boom Series 13

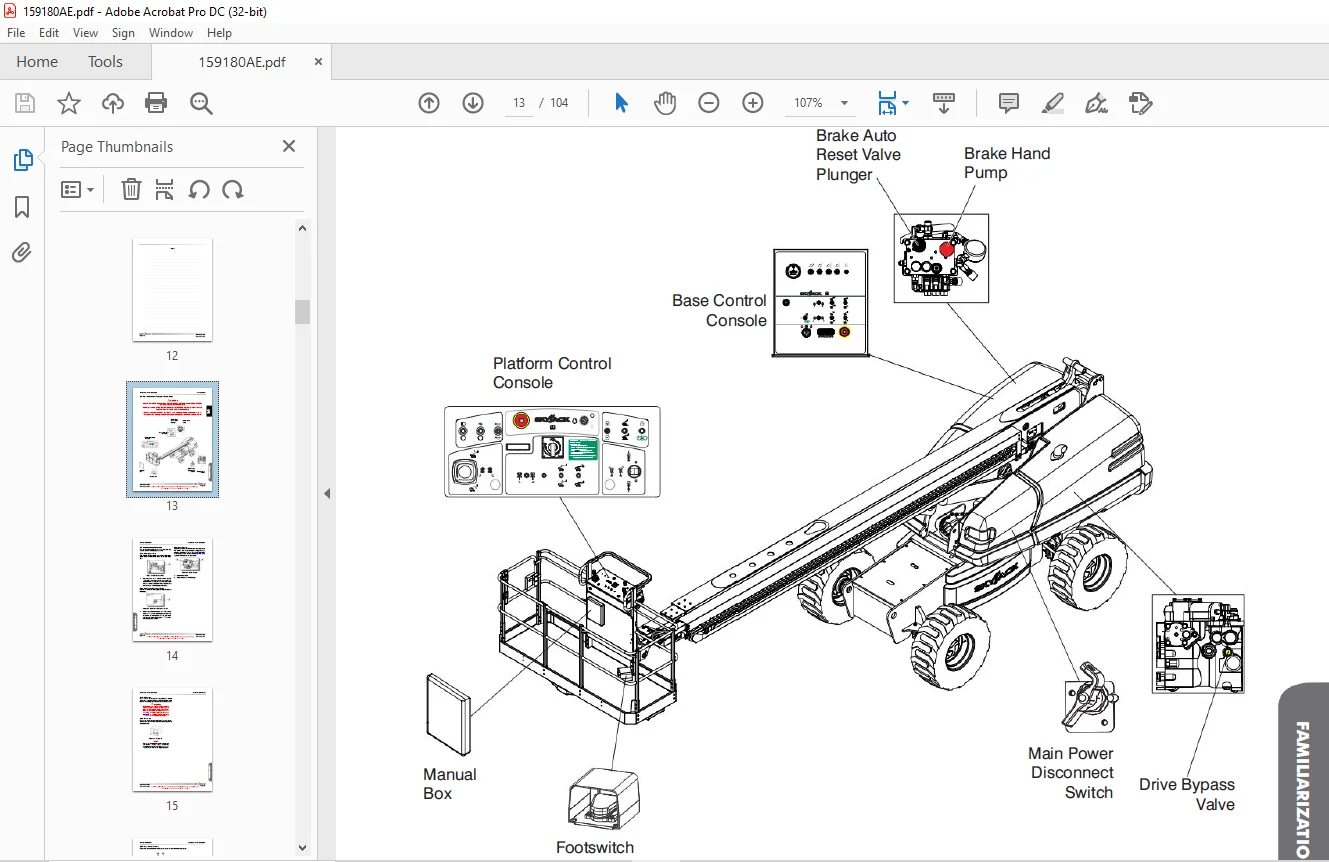

2 2 Component Identification 14
2 3 Visual & Daily Maintenance Inspections 21
2 4 Function Tests 29
2 5 Winching and Towing Procedure 37
2 6 Emergency Lowering Procedures 39
Section 3 – Operation 41
3 1 General 41
3 2 Major Components 42
3 3 Major Assemblies 43
3 4 Serial Number Nameplate 43
3 5 Component Identification 44
3 6 Component Identification (Optional Equipment/Attachments) 45
3 7 Operator’s Responsibility 48
3 8 Start Operation 49
3 9 Refueling Procedure 56
3 10 Loading/Unloading 57
3 11 Chassis Tilt 60
Section 3 – Diagrams 61
Section 4 – Tables 67
Table 4 1 Standard and Optional Features 67
Table 4 2a Specifications and Features 68
Table 4 2b-1 Specifications and Features 69
Table 4 2b-2 Specifications and Features 70
Table 4 3 Owner’s Annual Inspection Record 71
Table 4 4 Maximum Platform Capacities 71
Table 4 5 Tire/Wheel Specifications 72
Table 4 6 Floor Loading Pressure 73
Table 4 7 Maintenance and Inspection Schedule 74
Table 4 8 Operator’s Checklist 75
Section 5 – Labels 77
