Skyjack SJ519 TH Telehandlers Parts Manual 216941AB – PDF DOWNLOAD

Description

Skyjack SJ519 TH Telehandlers Parts Manual 216941AB – PDF DOWNLOAD

FILE DETAILS:

Skyjack SJ519 TH Telehandlers Parts Manual 216941AB – PDF DOWNLOAD

Language : English
Pages :210
Downloadable : Yes
File Type : PDF

DESCRIPTION:

SN:SJ519 TH: 87 500 000 to 87 599 999

Skyjack SJ519 TH Telehandlers Parts Manual 216941AB – PDF DOWNLOAD

Foreword
General

The information contained in this manual is designed to aid the user in locating and identifying replacement parts. Component parts of various assemblies and sub-assemblies comprising the work platform are illustrated and accompanied by a descriptive parts list. Exploded drawings are used to show relative location of component parts in disassembly order. If a part cannot be found in this manual, contact your local Skyjack Parts Department for assistance.

Parts Ordering Information

When ordering replacement parts, the complete part number and description should be used to ensure proper identification and delivery of the desired item. This complete identification should also be used when requesting equipment information

Method of Listing:

• Parts are listed in order according to the reference number shown in the illustration, followed by
  a full description based upon the “NOUN FIRST” method. That is, the noun name of the part is listed
  first, then the modifying description information which serves to specifically identify the item.
  For example: PIN, Clevis.
• Assemblies at the beginning of a parts list may be identified with a reference letter: A, B, C,
  etc. These letters are used to identify different configurations of the assembly. Individual parts
  in these lists have corresponding letters after their description to identify which assembly it is used in. If a part
  does not have a reference letter, it is used in all of the assemblies.

IMAGES PREVIEW OF THE MANUAL:

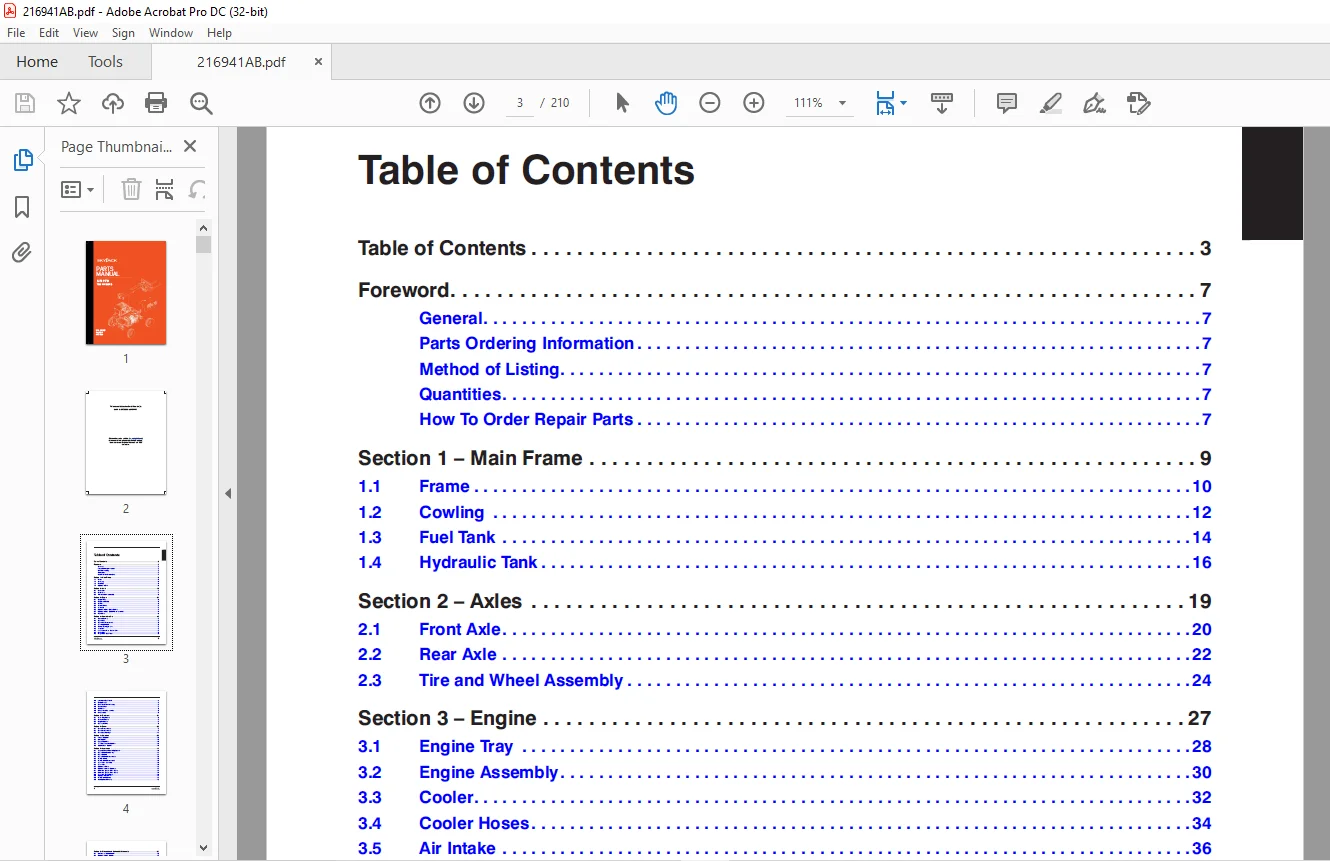

TABLE OF CONTENTS:

Skyjack SJ519 TH Telehandlers Parts Manual 216941AB – PDF DOWNLOAD’

Table of Contents 3
Foreword 7
General 7
Parts Ordering Information 7
Method of Listing 7
Quantities 7
How To Order Repair Parts 7
Section 1 – Main Frame 9
1 1 Frame 10
1 2 Cowling 12
1 3 Fuel Tank 14
1 4 Hydraulic Tank 16
Section 2 – Axles 19
2 1 Front Axle 20

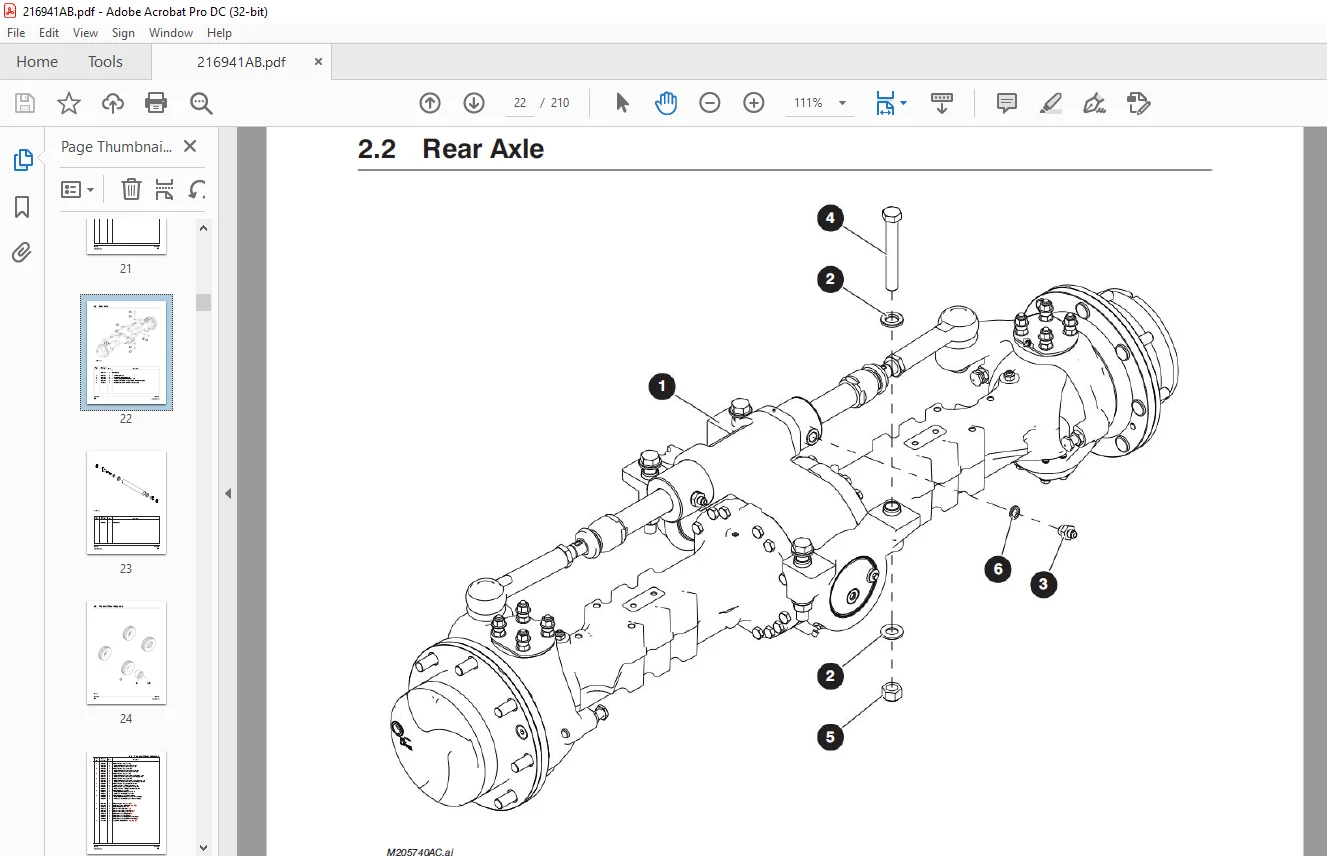

2 2 Rear Axle 22
2 3 Tire and Wheel Assembly 24
Section 3 – Engine 27
3 1 Engine Tray 28
3 2 Engine Assembly 30
3 3 Cooler 32
3 4 Cooler Hoses 34
3 5 Air Intake 36
3 6 Hydraulic Pump (Piston Drive) 38
3 7 Hydraulic Pump (Variable Displacement) 40
3 8 Fuel Lines 42
Section 4 – Operator’s Cab 45
4 1 Cab Assembly 46
4 2 Open Cab 48
4 3 Open Cab Components 50
4 4 Steering Column 52
4 5 Orbital Steering Motor 54
4 6 Joystick 56
4 7 Proportional Flow Control Valve 58
4 8 Front Dash 60
4 9 Right Hand Dash Panel 62
4 10 Left Hand Dash Panel 64
4 11 Relay Bracket 66
4 12 Brake and Throttle Pedals 68
4 13 Enclosed Cab 70
4 14 Cab Door 74
4 15 Heater Unit Components 76
4 16 Heater Lines 78
Section 5 – Electrical 81
5 1 Glow Plug Harness 82
5 2 Console Harness 84
5 3 Engine Harness 88
5 4 Battery Cables 92
Section 6 – Boom 95
6 1 Boom Components 96
6 2 Boom Components 98
6 3 Boom Sub-carriage 102
Section 7 – Cylinders 105
7 1 Fork Tilt Cylinder 106
7 2 Lift Cylinder 108
7 3 Extend Cylinder 110
7 4 Tilt Compensation Cylinder 112
7 5 Quick Attach Cylinder 114
Section 8 – Hydraulics 117
8 1 Standard Hose Numbering System 118
8 2 Main Manifold Assembly 120
8 3 Main Manifold 122
8 4 Main Manifold Components 124
8 5 Pilot Manifold 126
8 6 Pilot Manifold Components 128
8 7 Steer Valve Assembly 130
8 8 Steer Valve 132
8 9 Hydraulic Filters 134
8 10 Hydraulic Hoses – Cylinders 136
8 11 Drive and System Pump Hoses 138
8 12 Drive and System Pump Hoses 140
8 13 Steer and Brake Hoses 142
8 14 Hydraulic Tank Oil Fill 144
8 15 Pilot Manifold Hoses 146
8 16 Cab Hydraulic Hoses 148
Section 9 – Standard and Optional Attachments 151
9 1 Mechanical Quick Coupler 152
9 2 Hydraulic Quick Coupler 154
9 3 Standard Carriage 156
9 4 Side Tilt Carriage 158
9 5 Side Shift Carriage 160
9 6 Forks 162
9 7 Skid Steer Adapter 164
9 8 72” Trust Boom 166
9 9 1/2 Cubic Yard Bucket 167
Section 10 – Factory Options 169
10 1 Road Lights 170
10 2 Boom and Work Lights 172
10 3 Work Lights 174
10 4 Beacon Light 176
10 5 Four Wheel Fenders 178
10 6 Backup Camera and Sensor 180
10 7 Backup Sensor 182
10 8 Potentiometer 184
10 9 Positive Air Shutoff 186
10 10 Air Conditioner 188
10 11 A/C Compressor 190
10 12 Fire Extinguisher Bracket 192
10 13 Service Convenience Kit 194
Section 11 – Labels 197
11 1 Model Specific Labels 198
11 2 Pictorial Labels Layout 200
11 3 Cab Labels Layout 204
Section 12 – Tables 207
12 1 Recommended Fluids 208
