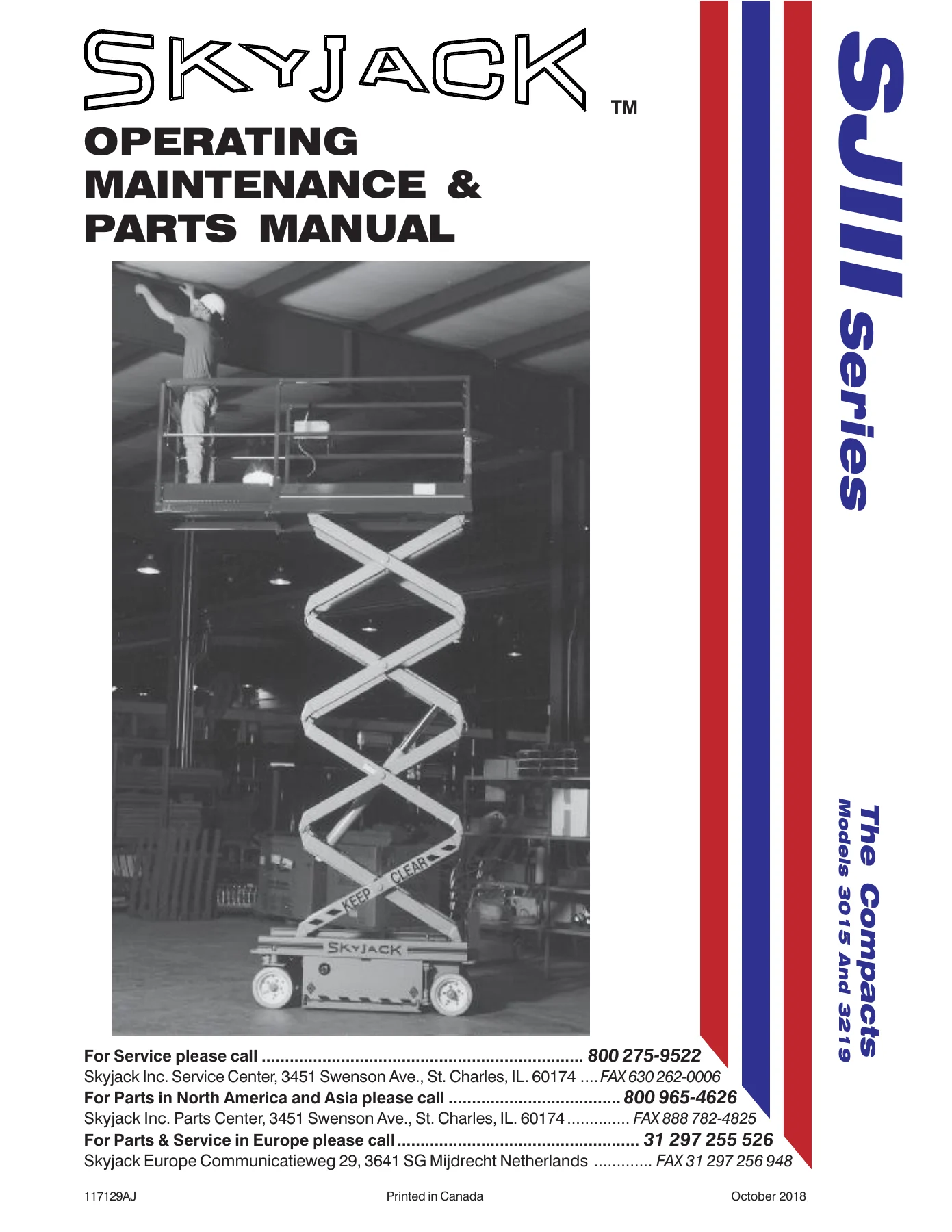

Skyjack SJIII 3015 3219 Operating Maintenance and Parts Manual 117129AJ

Description

Skyjack SJIII 3015 3219 Operating Maintenance and Parts Manual 117129AJ

This is the complete Skyjack SJIII Series Operating, Maintenance and Parts Manual for the SJIII 3015 and SJIII 3219 compact scissor lifts, published under document number 117129AJ. It is the same manual Skyjack issues for its own SJIII Series compact work platforms, covering operation, maintenance, service, troubleshooting and a full illustrated parts breakdown in a single 188-page PDF.

Whether you are running an SJIII 3015 or SJIII 3219 on site, servicing one in the workshop, or ordering replacement parts, this Skyjack SJIII 3015 3219 Operating Maintenance and Parts Manual gives you the Skyjack-authored procedures, wiring and hydraulic schematics, torque values and exploded parts views for the whole machine – platform, scissor stack, base, axles, hydraulic manifold, electrical panel and battery tray.

File Details

• Manual type: Operating, Maintenance and Parts Manual
• Brand: Skyjack (SKYJACK, Inc.)
• Models covered: SJIII 3015, SJIII 3219 (The Compacts)
• Document number: 117129AJ (companion part 118941AK referenced)
• Release date: October 2018
• Language: English
• Page count: 188 pages
• File format: PDF
• Standards referenced: ANSI/SIA A92.6, CSA CAN3-B354.2&3-M82, CE (Machinery Directive 89/392/EEC, EMC Directive 89/336/EEC)

Chapters Covered

The manual is organized into six main sections, each with sub-sections covering the relevant procedures and reference data.

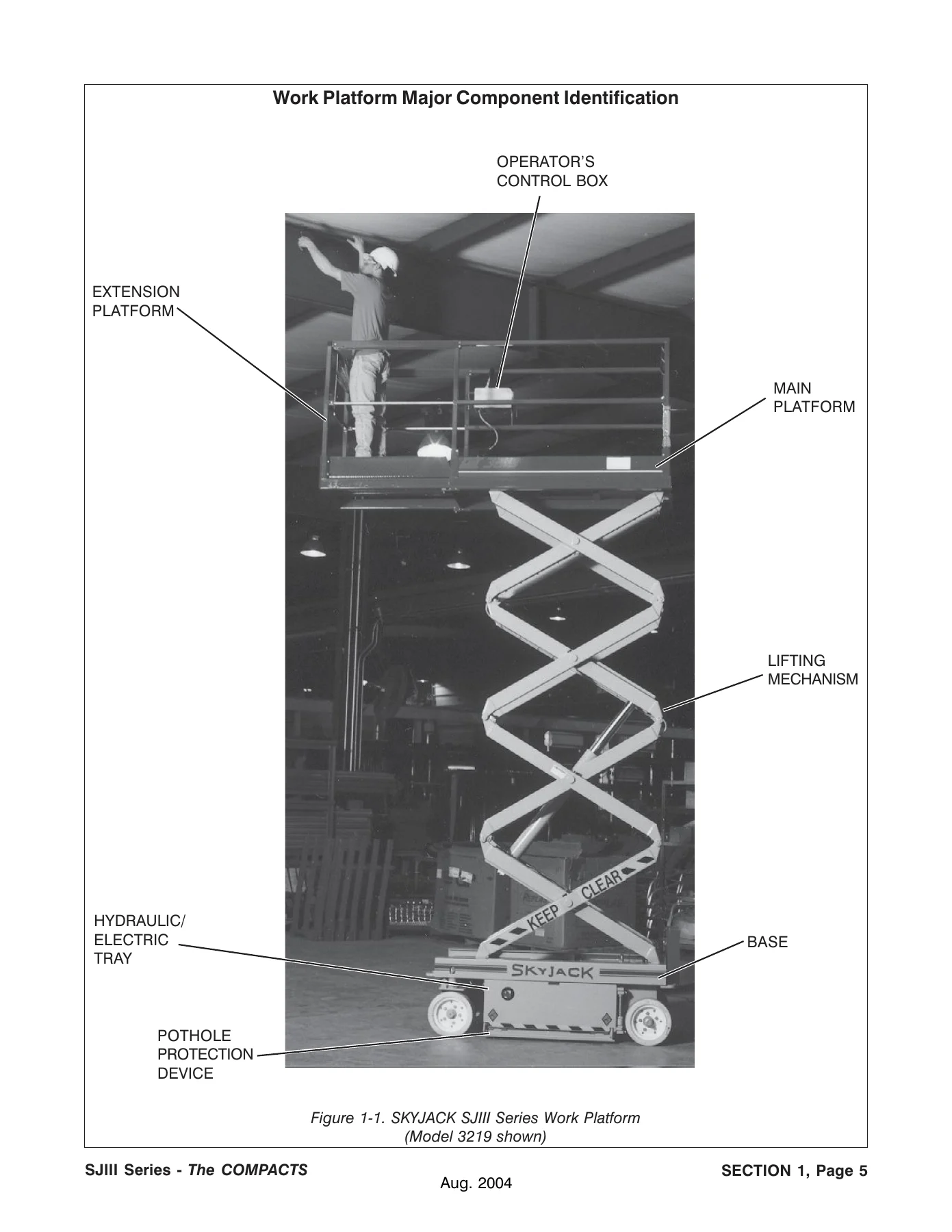

• Section 1 – Introduction: Purpose and use of equipment, operator warnings, description (platform, control box, lifting mechanism, base), specifications and features, standard and optional equipment, major component identification, serial number nameplate.
• Section 2 – Operation: Base controls, platform controls, identification and operation of safety devices, operator qualifications, operating procedures, set-up procedure, prestart checks, start and operation, emergency lowering system, shutdown procedure, winching and towing procedures, battery service and charging, battery charger operation.
• Section 3 – Systems Component Identification and Schematics: Relay function chart, electrical symbol chart, hydraulic symbol chart, control box diagrams and parts lists (ANSI/SIA, CSA and CE), electrical schematics (no options and all options for ANSI/SIA, CSA and CE), electrical panel diagrams, terminal strip and diode identification, battery charger schematics (Motor Appliance BA611, Bycan 2440A/2440E/2440U), hydraulic schematic and main manifold component identification.
• Section 4 – Troubleshooting Information: Electrical system troubleshooting (all controls inoperative, lift and drive inoperative, no down or reverse function, no up function, no drive or steer when lowered or elevated, steer left and right inoperative, brake will not release, powered extension platform extend/retract faults) and hydraulic system troubleshooting (platform will not raise or lowers slowly, platform does not hold, machine will not drive, brake will not release, platform does not steer, all systems sluggish).
• Section 5 – Maintenance and Service: Operator’s responsibility for maintenance, maintenance and inspection schedule, owner’s annual inspection record, general maintenance hints, hydraulic system and component maintenance and repair, general specifications, torque specifications, system and lift pressure adjustments, controller troubleshooting and adjustment procedures.
• Section 6 – Parts Lists: Main platform and rigid railings, main platform and hinged railings, 3 ft manual extension platform, powered extension platform cylinder assembly, powered extension platform manifold and hoses, powered extension platform control box, entry gates and hinges, operator’s control box assembly, proportional controller assembly, hydraulic hose connections, scissor arm assembly (3015 and 3219), lift cylinder assembly, base axles and wheels (3015 and 3219), pothole protection device, brake cylinder, steer cylinder, drive motor and wheel components, front axle manifold, proportional valve manifold, hydraulic/electric tray assembly, pump and motor assembly, main manifold and cushion valve manifold, electrical panel assembly (ANSI/SIA, CSA and CE), battery tray assembly, battery chargers, AC outlet option, 800W generator option, air hose to platform option, base control box assembly, labels and nameplates.

Across these six sections the manual delivers everything a technician needs to operate, service and rebuild an SJIII 3015 or SJIII 3219: the daily and annual inspection schedule, the correct set-up and prestart checks, the emergency lowering procedure, the battery charging procedure for every charger variant used on the series, complete electrical and hydraulic schematics with terminal strip and diode identification, step-by-step troubleshooting tables cross-referencing probable cause and remedy, torque and pressure specifications, and illustrated parts breakdowns with Skyjack part numbers for every major assembly.

Coverage and Serial Number Details

The manual applies to the ANSI/SIA, CSA and CE versions of the SJIII Series work platform. The serial number range determines which operating manual version to use:

• SJIII 3015: 150611 and below, 150612 to 150931, 150932 and above
• SJIII 3219: 227367 and below, 227368 to 229632, 229633 and above

Separate control box diagrams, electrical schematics, electrical panel diagrams and hydraulic schematics are provided for each serial range and for each regional variant (ANSI/SIA, CSA and CE), so the correct wiring and component layout for a specific machine is always identified.

Specifications Reference

The manual records the working data needed on site and in the workshop:

• Platform capacities: 250 lbs (113 kg) main platform, 1 person; overall capacity is increased by 150 lbs (68 kg) on CSA and CE models.
• Model 3015: 2360 lbs (1070 kg) weight, 21.00 ft (6.4 m) elevated working height, 15.00 ft (4.6 m) elevated platform height, 21 sec lift time, 29 sec lower time.
• Model 3219: 2790 lbs (1266 kg) weight, 25.00 ft (7.6 m) elevated working height, 19.00 ft (5.80 m) elevated platform height, 30 sec lift time, 40 sec lower time.
• Electrical system 24 V DC, four 6 V 220 AH batteries.
• Hydraulic system capacity 4.0 gallons (15 litres), tank capacity 3.0 gallons (11 litres).
• Lift relief pressure 1700 psi (117 bar) on the 3015, 2150 psi (148 bar) on the 3219, and system relief pressure 2900 psi (200 bar).
• Torque specifications for directional valve mounting bolts, wheel mounting bolts, wheel motor castle nut, parking brake cylinder rod nut, cartridge fittings, coils and SAE plugs.

Why This Manual Matters

Skyjack work platforms are designed to operate under specific load, pressure, torque and clearance limits. Guessing at a pressure setting, replacing a seal without the correct o-ring specification, or bypassing a safety device such as the pothole protection system or the safety bar can lead to stability loss, hydraulic failure or an on-site incident. This manual supplies the manufacturer’s own values and procedures for every one of those jobs, so the machine is returned to service exactly as built.

For anyone maintaining or repairing an SJIII 3015 or SJIII 3219, the combination of troubleshooting tables, electrical and hydraulic schematics, and illustrated parts lists in one document removes the guesswork from fault-finding. You can trace a no-drive condition through the pothole protection limit switches, the drive override limit switch and the proportional controller, or match a leaking cylinder to the correct seal kit and part number for your serial range.

What This Manual Enables You to Do

• Operate an SJIII 3015 or SJIII 3219 correctly, including prestart checks, base and platform control procedures, emergency lowering and shutdown.
• Perform the full daily, weekly, monthly, 3-month, 6-month and 12-month inspection schedule.
• Diagnose electrical faults using the schematic, terminal strip diagrams, relay function chart and diode identification.

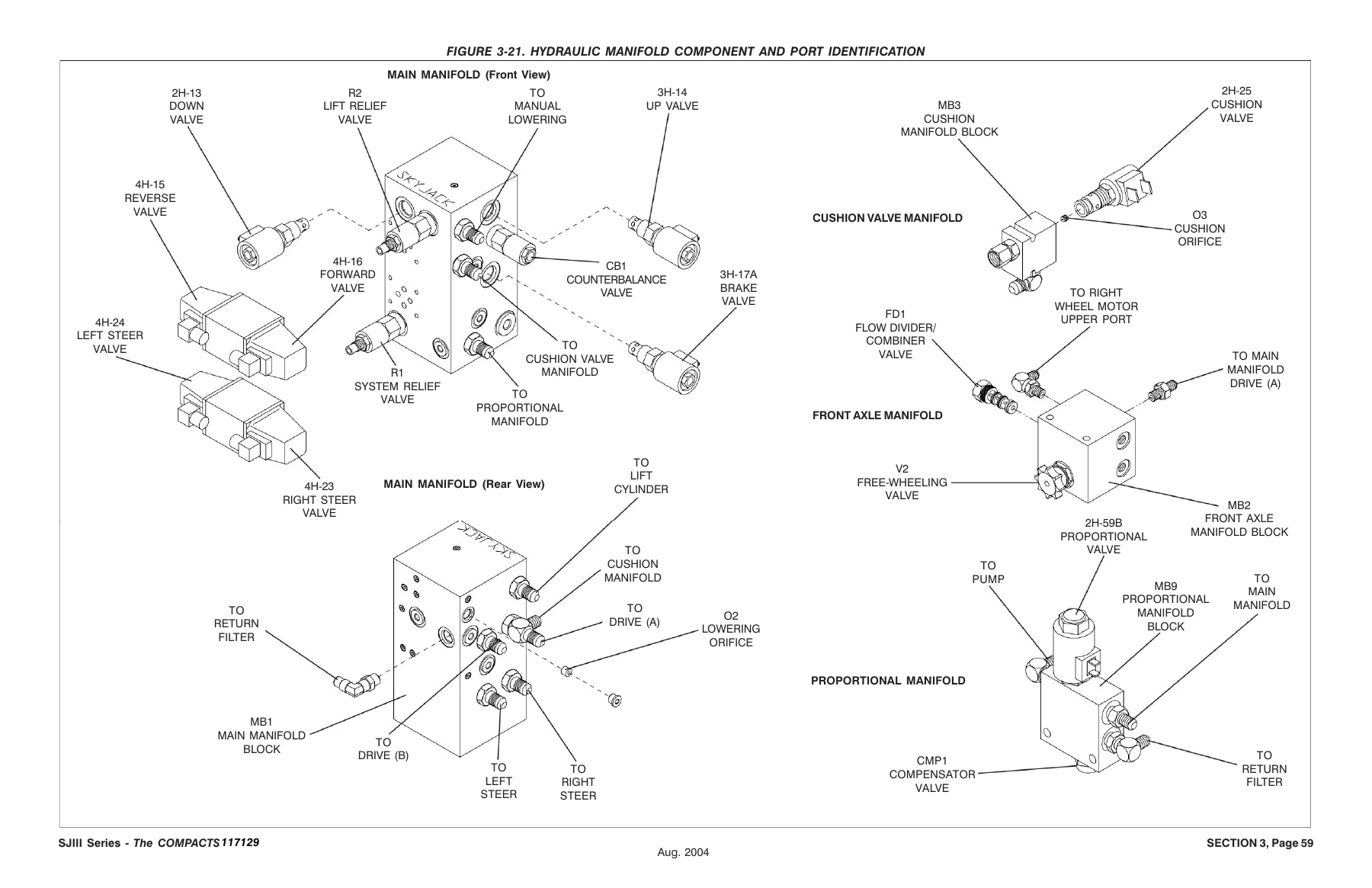

• Diagnose hydraulic faults using the hydraulic schematic and main manifold port identification.
• Adjust system relief pressure and lift relief pressure to the correct setting for your model.
• Test and adjust the proportional controller using the documented voltage and current procedure.
• Charge and service the batteries with the correct procedure for the Bycan 2440A, 2440E, 2440U or Motor Appliance BA611 charger fitted to the machine.
• Order the correct replacement parts by Skyjack part number for every major assembly.

Get the Skyjack SJIII 3015 3219 Operating Maintenance and Parts Manual 117129AJ

IMAGES PREVIEW

This Skyjack SJIII 3015 3219 Operating Maintenance and Parts Manual is delivered as an instant PDF download – no shipping, no waiting. Once payment is confirmed the file is available immediately and can be opened on a laptop, tablet or phone in the workshop, printed for the machine’s manual box, or kept on a USB stick alongside the lift for quick reference during service and inspections.
