Skyjack SJIII Series DC Electric Scissors Operation Manual 170469AGA

Description

Skyjack SJIII 3215 SJIII 3219 SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632 DC ELECTRIC SCISSORS OPERATING MANUAL 170469AGA – PDF DOWNLOAD

FILE DETAILS:

Skyjack SJIII 3215 SJIII 3219 SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632 DC ELECTRIC SCISSORS OPERATING MANUAL 170469AGA – PDF DOWNLOAD

Language : English
Pages :108
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Skyjack SJIII 3215 SJIII 3219 SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632 DC ELECTRIC SCISSORS OPERATING MANUAL 170469AGA – PDF DOWNLOAD

Serial Number(s):
SJIII 3215 10 001 094 & Above
SJIII 3219 22 067 625 & Above
SJIII 3220 60 004 661 & Above
SJIII 3226 27 020 827 & Above
SJIII 46XX 70 020 612 & Above

About Your Aerial Platform

SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications
and dimensions are subject to change without notice.
Aerial Platform and Mobile Elevating Work Platform Definition
A mobile device that has a positionable platform supported from ground level by a structure.
Purpose of Equipment
The SKYJACK SJIII DC Electric series aerial platforms are designed to transport and raise personnel, tools and
materials to overhead work areas.
Use of Equipment
The aerial platform is a highly maneuverable, mobile work station. Work platform elevation and elevated driving
must only be done on a firm, level surface.
Manual
The operating manual is considered a fundamental part of the aerial platform. It is a very important way to
communicate necessary safety information to users and operators. A complete and legible copy of this manual
must be kept in the provided weather-resistant storage compartment on the aerial platform at all times.
Operator
The operator must read and completely understand both this operating manual and the safety panel label located
on the platform and all other warnings in this manual and on the aerial platform. Compare the labels on the aerial
platform with the labels found within this manual. If any labels are damaged or missing, replace them immediately.

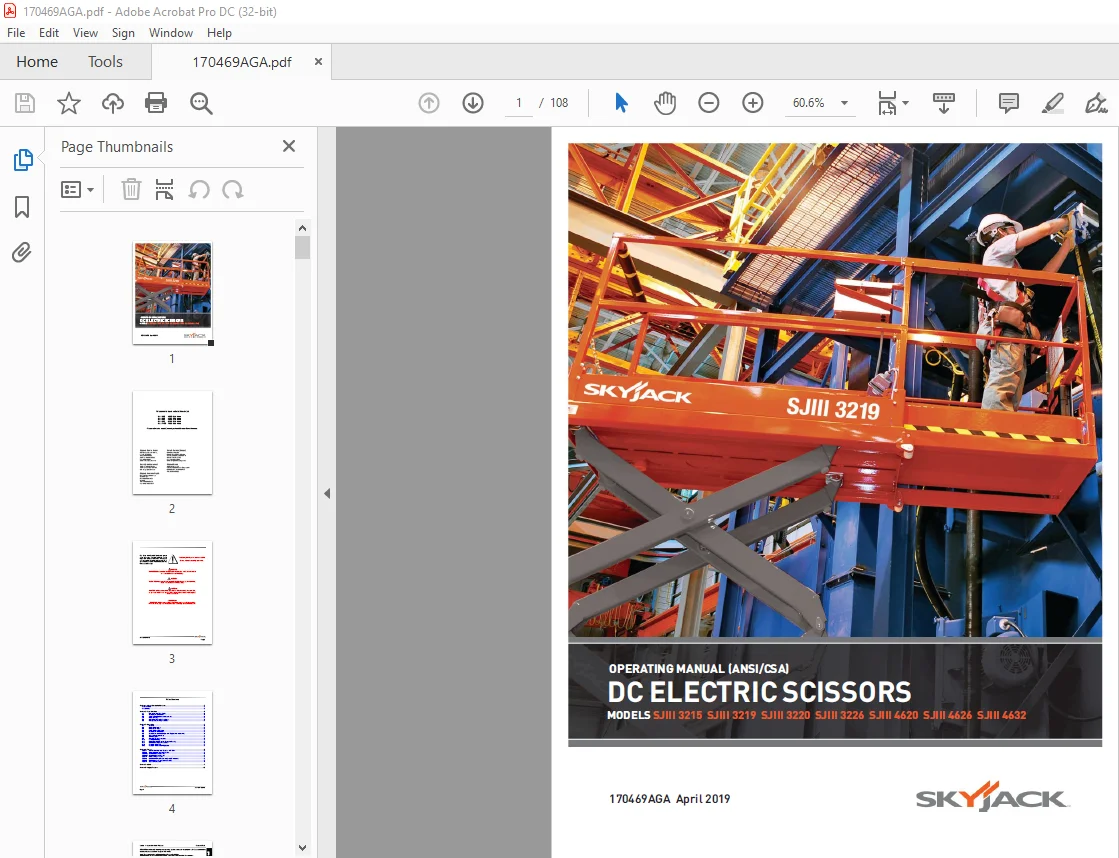

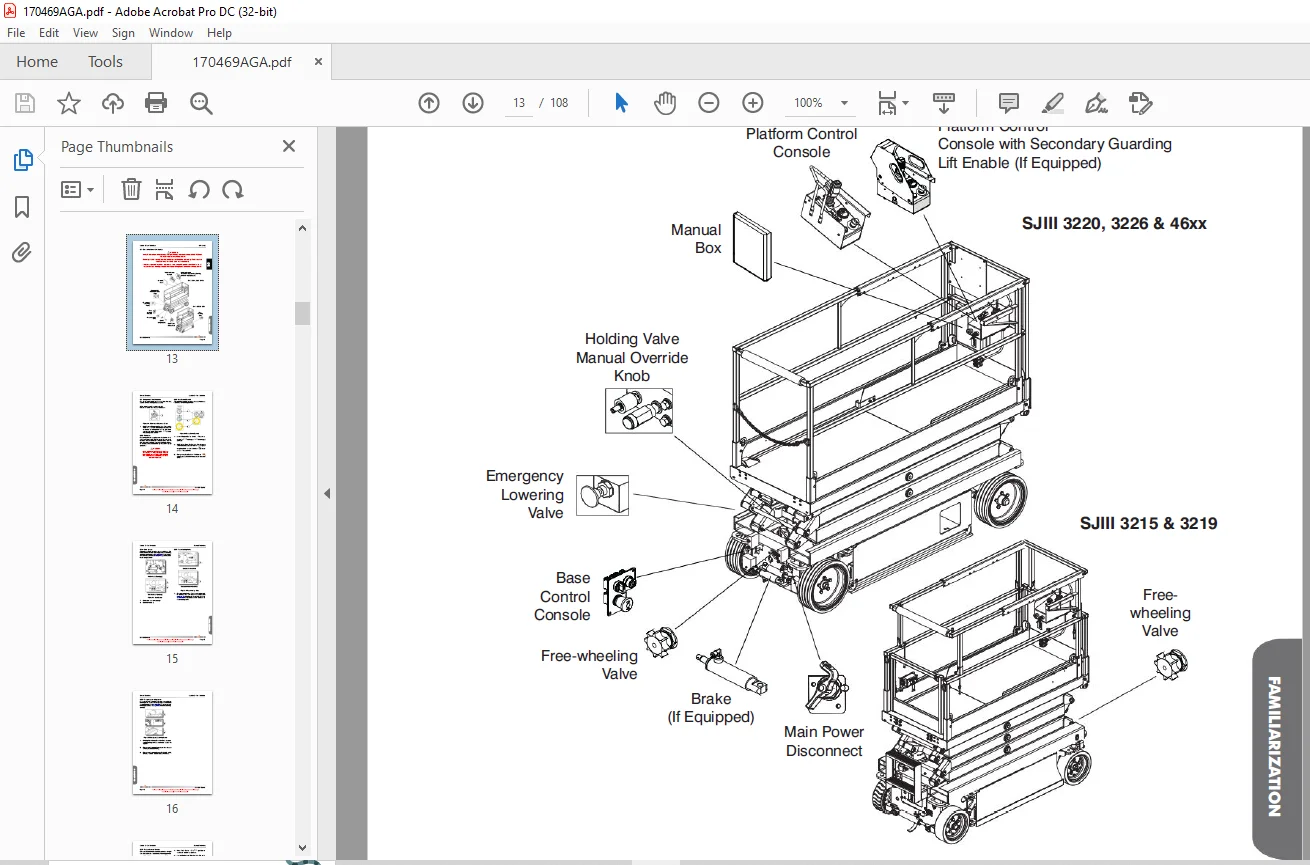

IMAGES PREVIEW OF THE MANUAL:

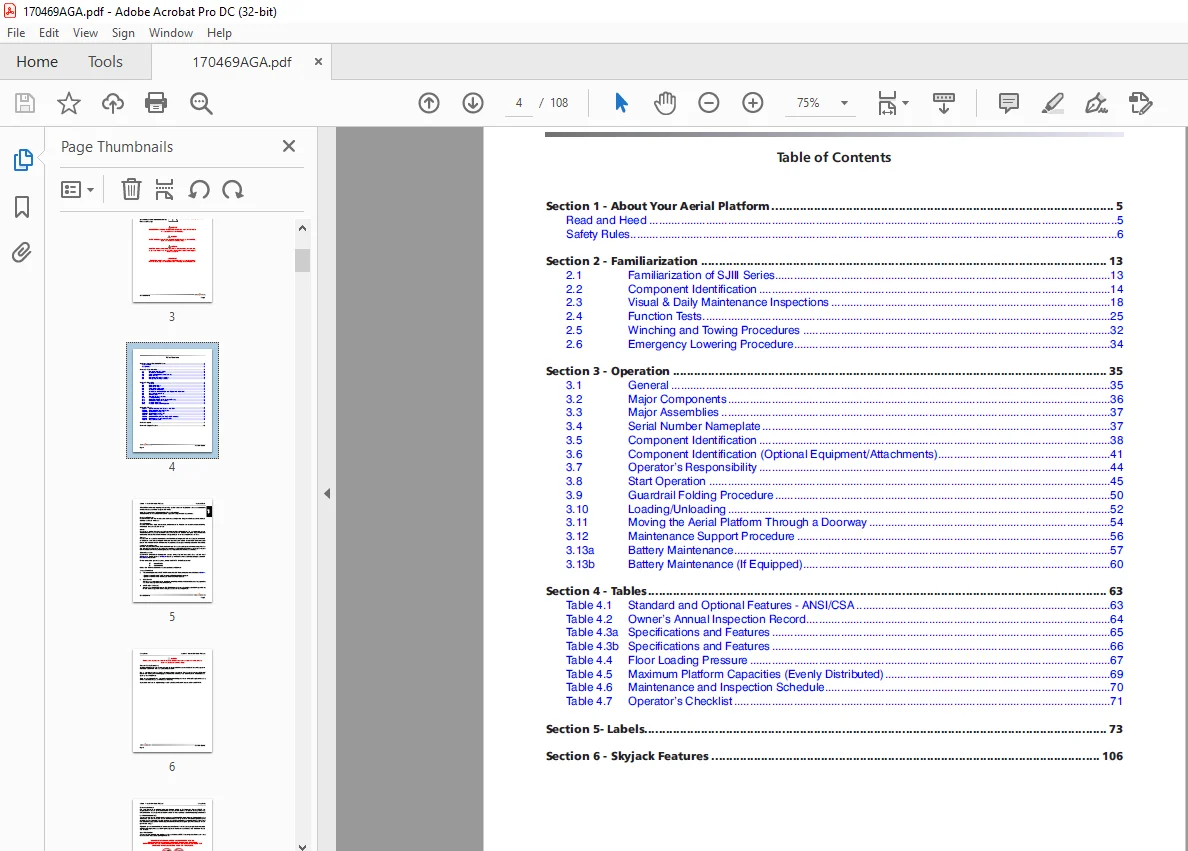

TABLE OF CONTENTS:

Skyjack SJIII 3215 SJIII 3219 SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632 DC ELECTRIC SCISSORS OPERATING MANUAL 170469AGA – PDF DOWNLOAD

Section 1 - About Your Aerial Platform................................  5
Read and Heed.........................................................  5
Safety Rules..........................................................  6
	Section 2 - Familiarization....................................... 13
2.1 Familiarization of SJIII Series................................... 13
2.2 Component Identification.......................................... 14
2.3 Visual & Daily Maintenance Inspections............................ 18
2.4 Function Tests.................................................... 25
2.5 Winching and Towing Procedures.................................... 32
2.6 Emergency Lowering Procedure...................................... 34
	Section 3 - Operation............................................. 35
3.1 General........................................................... 35
3.2 Major Components.................................................. 36
3.3 Major Assemblies.................................................. 37
3.4 Serial Number Nameplate........................................... 37
3.5 Component Identification.......................................... 38
3.6 Component Identification (Optional Equipment/Attachments)......... 41
3.7 Operator’s Responsibility......................................... 44
3.8 Start Operation................................................... 45
3.9 Guardrail Folding Procedure....................................... 50
	3.10 Loading/Unloading............................................ 52
	3.11 Moving the Aerial Platform Through a Doorway................. 54
	3.12 Maintenance Support Procedure................................ 56
	3.13a  Battery Maintenance........................................ 57
	3.13b  Battery Maintenance (If Equipped).......................... 60
		Section 4 - Tables............................................ 63
		Table 4.1 Standard and Optional Features - ANSI/CSA........... 63
		Table 4.2 Owner’s Annual Inspection Record.................... 64
		Table 4.3a Specifications and Features........................ 65
		Table 4.3b Specifications and Features........................ 66
		Table 4.4 Floor Loading Pressure.............................. 67
		Table 4.5 Maximum Platform Capacities (Evenly Distributed).... 69
		Table 4.6 Maintenance and Inspection Schedule................. 70
		Table 4.7 Operator’s Checklist................................ 71
			Section 5- Labels......................................... 73
			Section 6 - Skyjack Features..............................106
