Skyjack SJIII Series 3015 3219 3220 3226 4620 4626 4830 4832 6826 & 6832 Operating Manual – PDF DOWNLOAD
$14.95
Skyjack SJIII Series 3015 3219 3220 3226 4620 4626 4830 4832 6826 & 6832 Operating Manual – PDF DOWNLOAD
Description
Skyjack SJIII Series 3015 3219 3220 3226 4620 4626 4830 4832 6826 & 6832 Operating Manual – PDF DOWNLOAD
FILE DETAILS:
Skyjack SJIII Series 3015 3219 3220 3226 4620 4626 4830 4832 6826 & 6832 Operating Manual – PDF DOWNLOAD
Language : English
Pages : 32
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Skyjack SJIII Series 3015 3219 3220 3226 4620 4626 4830 4832 6826 & 6832 Operating Manual – PDF DOWNLOAD
The SKYJACK SJIII Series Work Platform is designed to transport and raise personnel, tools and
materials to overhead work areas.
The work platform (Figure 1-1.) is a highly maneuverable, mobile work station.
Lifting and driving MUST be on a flat, level, compacted surface.
The operator MUST read and completely understand the safety panel label located on the platform and
ALL other warnings in this manual and on the work platform. Compare the labels on the work platform
with the labels found throughout this manual. If any labels are damaged or missing, replace
them immediately.
The work platform consists of three major assemblies, the platform, lifting mechanism and the
base. An operator’s control box is mounted on the platform railing. Auxiliary and
emergency controls are located at the base.
The platform is constructed of a tubular support frame, a skid-resistant deck surface, and 40
inch to 43-1/2 inch (1016-1105mm) high railings (depending on model) with 6″ (152mm) toe
boards and mid-rails. The platform can be entered from the rear through an entry chain or optional
spring-returned gate with latch. The platform is also equipped with an extension platform.

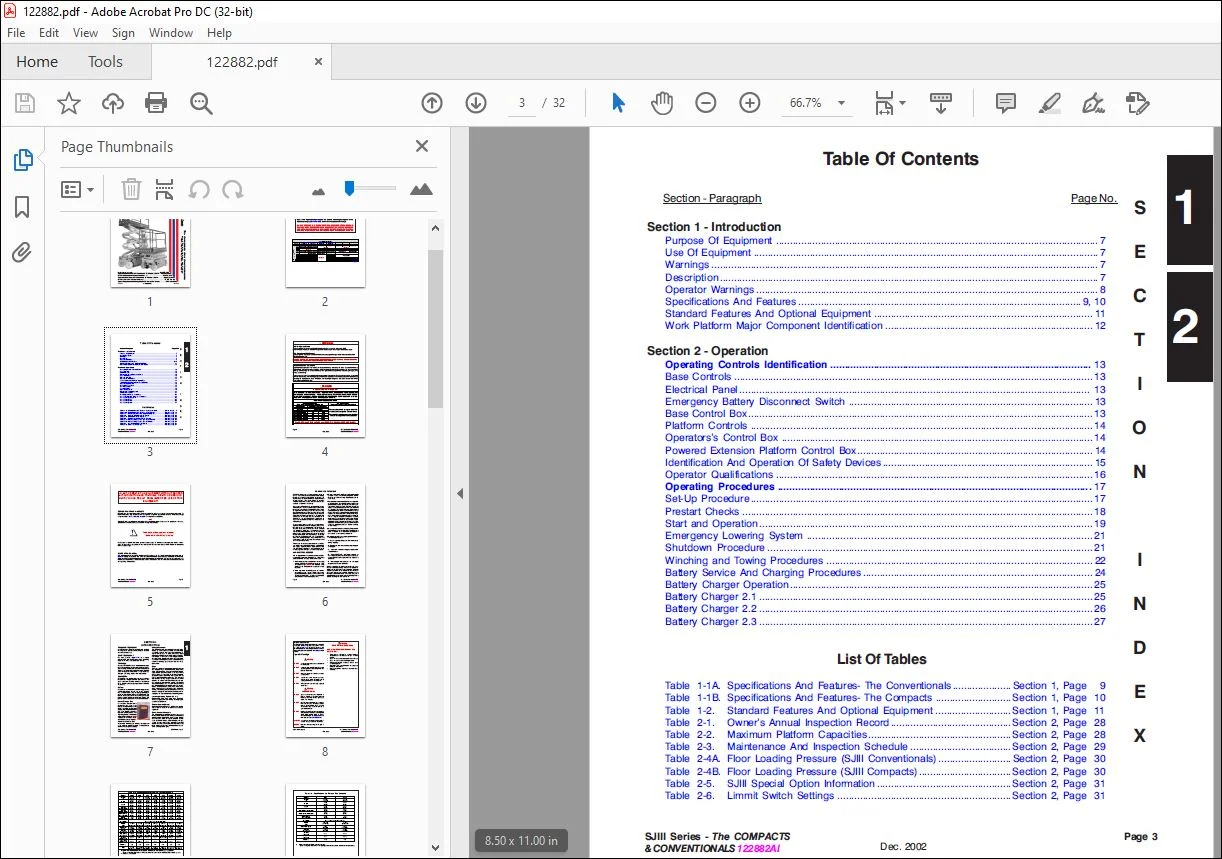

TABLE OF CONTENTS:
Skyjack SJIII Series 3015 3219 3220 3226 4620 4626 4830 4832 6826 & 6832 Operating Manual – PDF DOWNLOAD
Section 1 – Introduction
Purpose Of Equipment 7
Use Of Equipment 7
Warnings 7
Description 7
Operator Warnings 8
Specifications And Features 9, 10
Standard Features And Optional Equipment 11
Work Platform Major Component Identification 12
Section 2 – Operation
Operating Controls Identification 13
Base Controls 13
Electrical Panel 13
Emergency Battery Disconnect Switch 13
Base Control Box 13
Platform Controls 14
Operators’s Control Box 14
Powered Extension Platform Control Box 14
Identification And Operation Of Safety Devices 15
Operator Qualifications 16
Operating Procedures 17
Set-Up Procedure 17
Prestart Checks 18
Start and Operation 19
Emergency Lowering System 21
Shutdown Procedure 21
Winching and Towing Procedures 22
Battery Service And Charging Procedures 24
Battery Charger Operation 25
Battery Charger 2 1 25
Battery Charger 2 2 26
Battery Charger 2 3 27

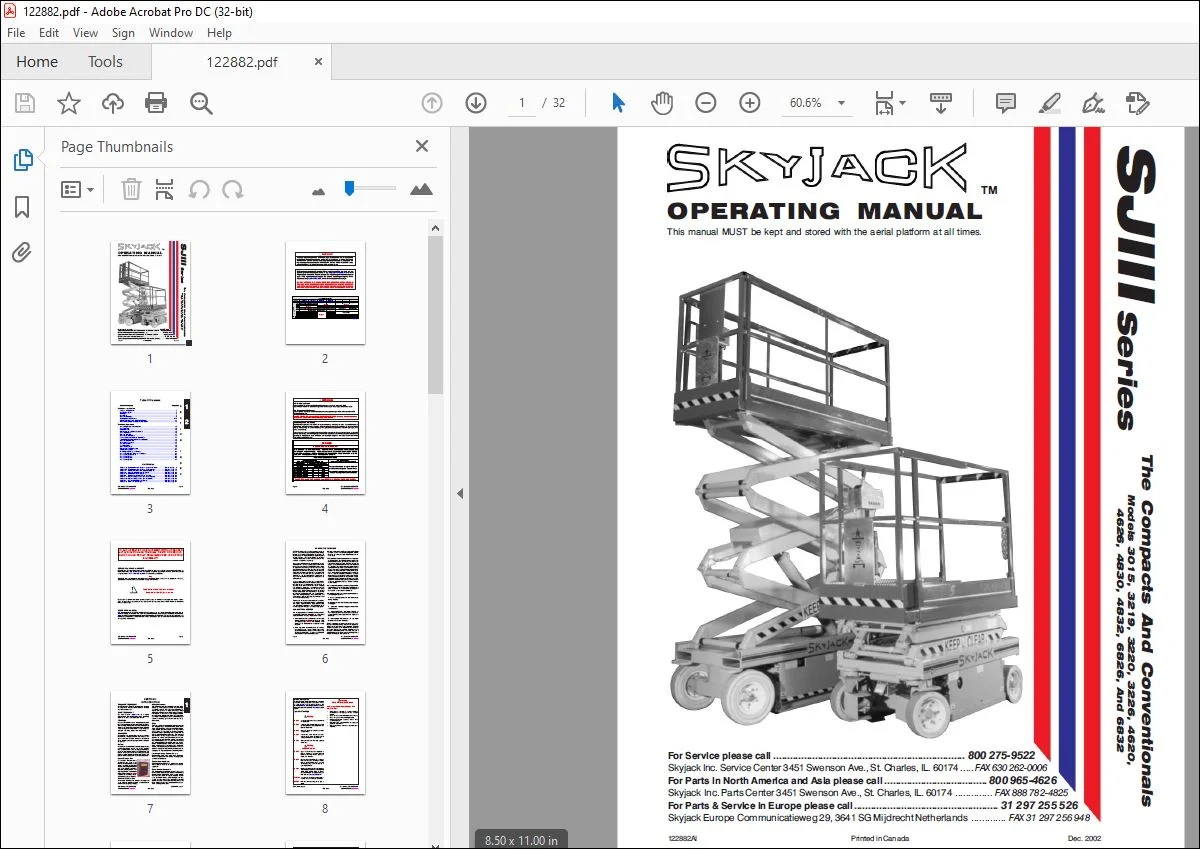

IMAGES PREVIEW OF THE MANUAL:
