DESCRIPTION:

Skyjack SJ30AJE SJ30ARJE Articulating Boom Operating Manual 196403AHA – PDF DOWNLOAD

SJ30AJE/ SJ30ARJE 90 000 001 & Above

SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications and
dimensions are subject to change without notice.
Mobile Elevating Work Platform (MEWP) Definition
A mobile device that has an adjustable position platform supported from ground level by a structure.
Purpose of Equipment
The SKYJACK Electric Articulating Boom Series (Models SJ30AJE/ SJ30ARJE) MEWP is designed to transport and
raise personnel, tools and materials to overhead work areas.
Use of Equipment
The MEWP is a highly maneuverable, mobile work station. Work platform elevation and elevated driving must only
be done on a firm, level surface. It can be driven over uneven terrain only when the platform is fully lowered.
Manual
The operating manual is considered a fundamental part of the MEWP. It is a very important way to communicate
necessary safety information to users and operators. A complete and legible copy of this manual must be kept in
the provided weather-resistant storage compartment on the MEWP at all times.
Operator
The operator must read and completely understand both this operating manual and the safety panel label located
on the platform and all other warnings in this manual and on the MEWP. Compare the labels on the MEWP with the
labels found within this manual. If any labels are damaged or missing, replace them immediately.
Service Policy and Warranty:
SKYJACK warrants each new electric articulating boom series work platform to be free of defective parts and
workmanship for the first 24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer
at no charge for parts or labor. Contact the SKYJACK Service Department for warranty statement extensions or
exclusions.
Optional Accessories:

The SKYJACK MEWP is designed to accept a variety of optional accessories. These are listed under “Standard
and Optional Features” in Table 4.1. Operating instructions for these options (if equipped) are located in Section 3
of this manual.

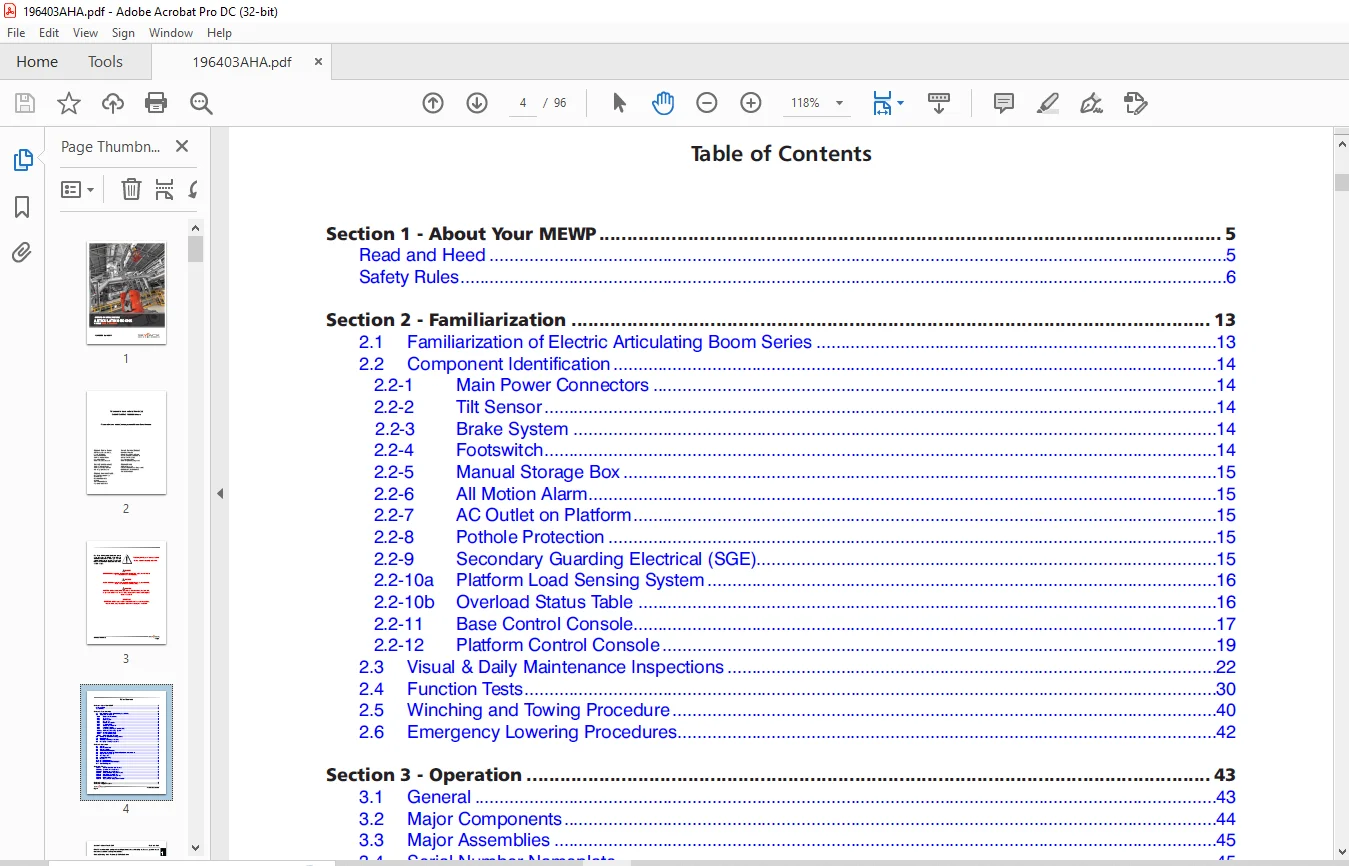

TABLE OF CONTENTS:

Skyjack SJ30AJE SJ30ARJE Articulating Boom Operating Manual 196403AHA – PDF DOWNLOAD

Section 1 – About Your MEWP 5
Read and Heed 5
Safety Rules 6
Section 2 – Familiarization 13
2 1 Familiarization of Electric Articulating Boom Series 13
2 2 Component Identification 14
2 2-1 Main Power Connectors 14
2 2-2 Tilt Sensor 14
2 2-3 Brake System 14
2 2-4 Footswitch 14
2 2-5 Manual Storage Box 15
2 2-6 All Motion Alarm 15
2 2-7 AC Outlet on Platform 15
2 2-8 Pothole Protection 15
2 2-9 Secondary Guarding Electrical (SGE) 15
2 2-10a Platform Load Sensing System 16
2 2-10b Overload Status Table 16

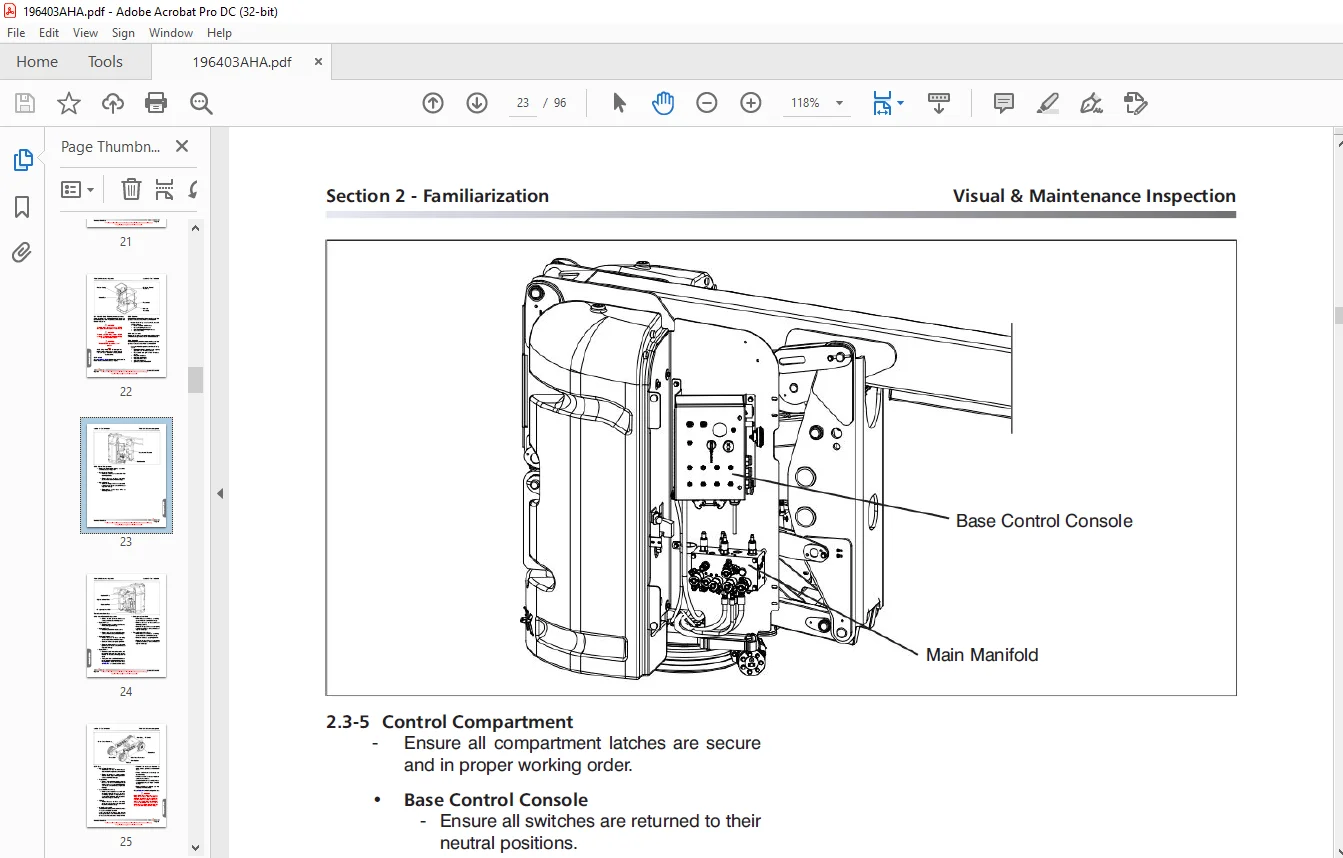

2 2-11 Base Control Console 17
2 2-12 Platform Control Console 19
2 3 Visual & Daily Maintenance Inspections 22
2 4 Function Tests 30
2 5 Winching and Towing Procedure 40
2 6 Emergency Lowering Procedures 42
Section 3 – Operation 43
3 1 General 43
3 2 Major Components 44
3 3 Major Assemblies 45
3 4 Serial Number Nameplate 45
3 5 Component Identification (Optional Equipment/Attachments) 46
3 6 Operator’s Responsibility 47
3 7 Start Operation 48
3 8 Loading/Unloading 53
3 9 Chassis Tilt 55
3 10a Battery Maintenance 56
3 10b Battery Maintenance (If Equipped) 58
3 11 Technical Diagrams 60
Section 4 – Tables 63
Table 4 1 Standard and Optional Features 63
Table 4 2a Specifications and Features 64
Table 4 2b Specifications and Features 65
Table 4 3 Owner’s Annual Inspection Record 66
Table 4 4 Tire/Wheel Specifications 67
Table 4 5 Maximum Platform Capacities 67
Table 4 6 Floor Loading Pressure 68
Table 4 7 Operator’s Daily Inspection Checklist 69
Section 5 – Labels 71
Section 6 – Skyjack Features 92
