Skyjack SJIII Series 3220, 4620, 4626, 4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD
$26.95
Skyjack SJIII Series 3220, 4620, 4626, 4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Skyjack SJIII Series 3220, 4620, 4626, 4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD
FILE DETAILS:
Skyjack SJIII Series 3220, 4620, 4626, 4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD
Language : English
Pages :195
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Skyjack SJIII Series 3220, 4620, 4626, 4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD
SERIAL NUMBER BREAKDOWN
MANUAL PART MANUAL PART MANUAL PART
MODELS
#117128 #118940 #122909
3220 609330 & BELOW 609331 To 613550613551 & ABOVE
27013 To 28042 28403 To 28047
3226 Not Applicable 28048 To 28117 28118 &ABOVE
4620 66429 & BELOW 66430 & ABOVE
4626 704418 & BELOW 704419 & ABOVE
4830/32 86982 & BELOW 86983 & ABOVE Not Applicable
6826 75517 & BELOW 75518 & ABOVE
6832 82402 & BELOW 82403 & ABOVE
60052AB
SECTION 1
INTRODUCTION
PURPOSE OF EQUIPMENT
The SKYJACK SJIII Series Work Platform is designed to transport and raise personnel, tools and materials to overhead work areas.
USE OF EQUIPMENT
The work platform (Figure 1-2. Page 5) is a highly maneuverable, mobile work station. Lifting and driving MUST be on a flat, level, compacted surface.
WARNINGS The operator MUST read and completely understand the safety panel labels (Figure 1-1. Page 2) and ALL other warnings in this manual and on the work platform. Compare the labels on the work platform with the labels found throughout this manual. If any labels are damaged or missing, replace them immediately.
DESCRIPTION
The work platform consists of three major assemblies, the platform, lifting mechanism and the base. An operator’s control box is mounted on the platform railing. Auxiliary and emergency controls are located at the base.
PLATFORM
The platform is constructed of a tubular support frame, a skid-resistant deck surface, and 40 inch to 43-1/2 inch (1016-1105mm) high railings (depending on model) with 6″ toe boards and mid-rails. The platform can be entered from the rear through an entry chain or optional spring-returned gate with latch. The platform is also equipped with an extension platform.

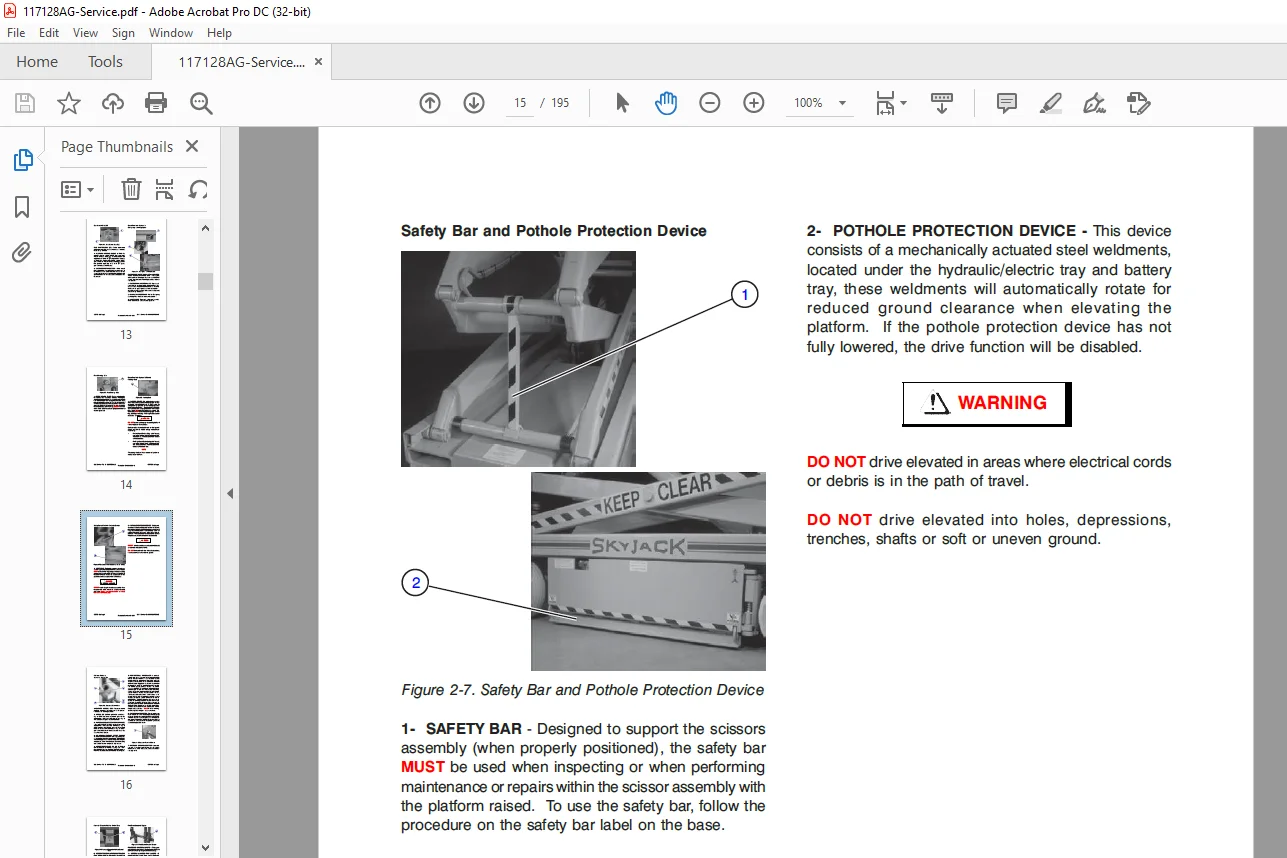

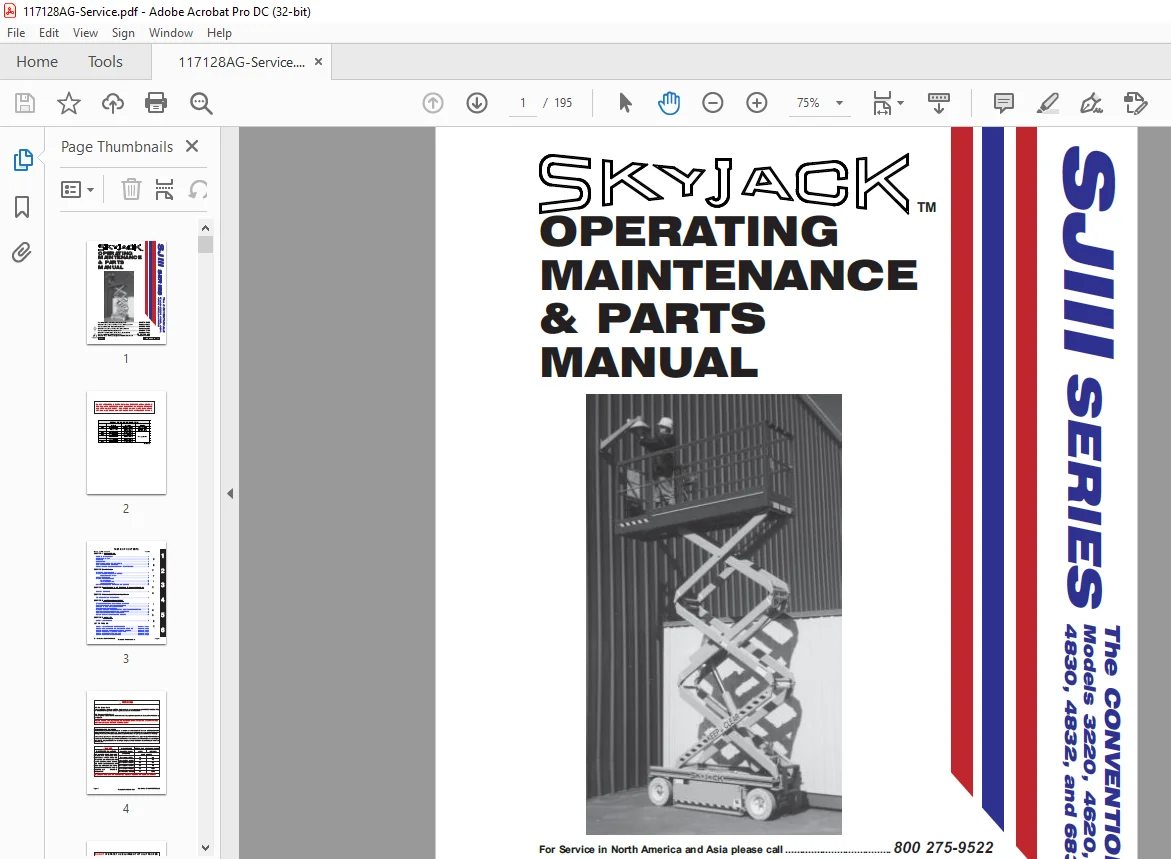

IMAGES PREVIEW OF THE MANUAL:

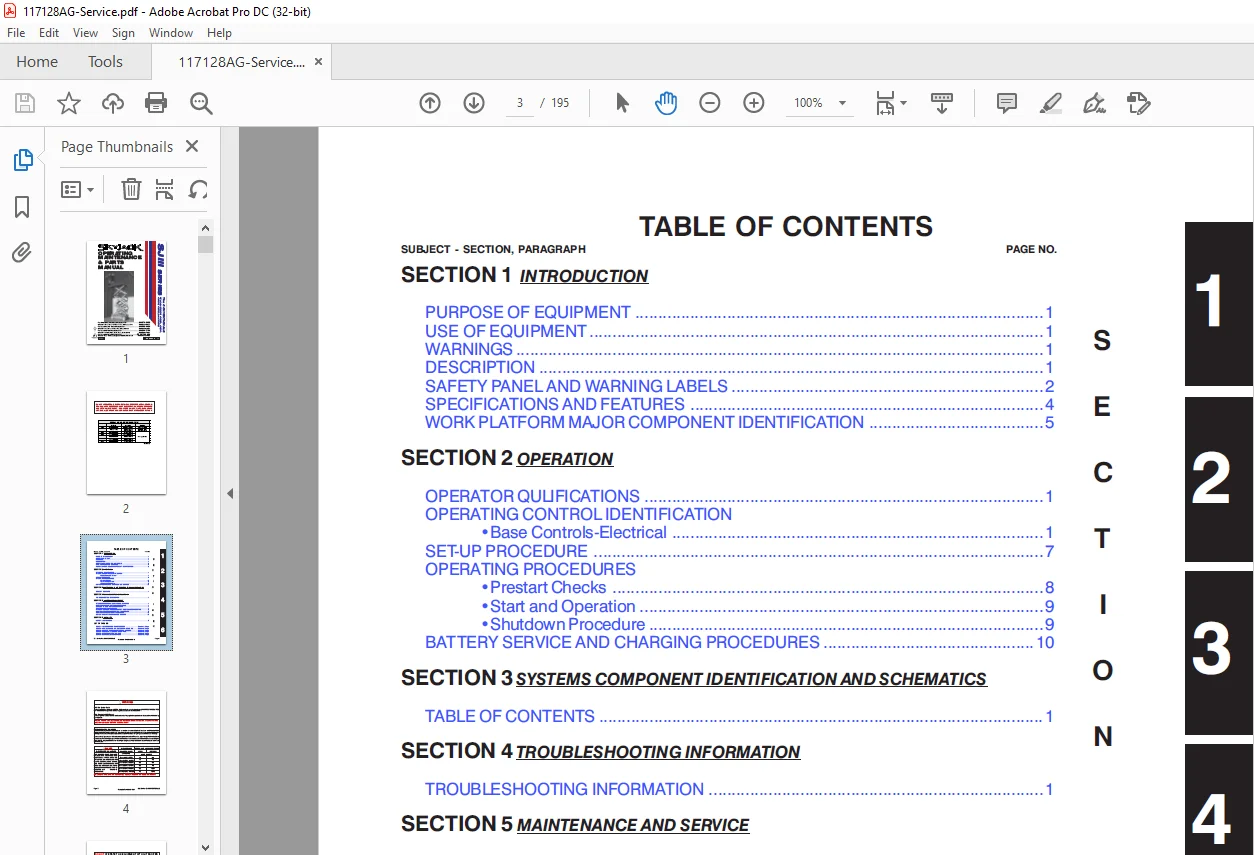

TABLE OF CONTENTS:
Skyjack SJIII Series 3220, 4620, 4626, 4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD
Cover ....................................................... 1 Table of Contents ........................................... 3 Section 1 - Introduction .................................... 7 Section 2 - Operation .......................................12 Section 3 - System Component Identification & Schematics ....24 Section 4 - Troubleshooting .................................65 Section 5 - Maintenance & Service ...........................76 Section 6 - Parts Lists .....................................86
Need help? Contact: [email protected]
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
S.M
