Sony CCD-TR618/TRV98 Hi8 Handycam Service Manual PDF
Original price was: $65.00.$16.95Current price is: $16.95.
Official Sony service manual (Ver. 1.4, 2002) for CCD-TR618, TRV58, TRV68, TRV78, TRV88, TRV98 series Hi8 Handycam camcorders (NTSC/PAL, multiple regions). Complete level 3 repair guide with self-diagnosis codes, disassembly, schematics, adjustments, exploded views & parts lists. Instant high-quality 234-page PDF download.
Description
Sony CCD-TR618/TRV98 Hi8 Handycam Service Manual PDF DOWNLOAD
Description

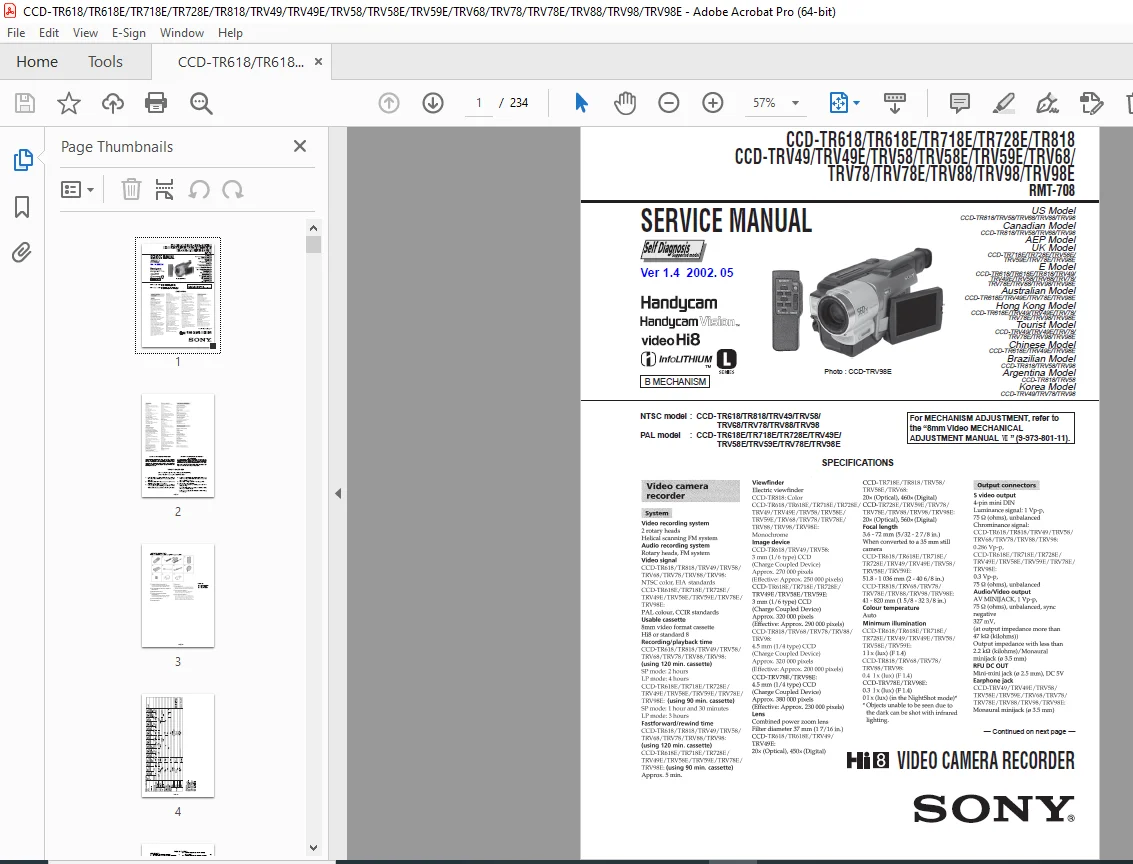

Download the complete official Sony Handycam Service Manual (Version 1.4, May 2002) for the classic Hi8 analog camcorder series, covering CCD-TR618, CCD-TR818, CCD-TR618E/TR718E/TR728E/TR818E, CCD-TRV49/TRV49E, TRV58/TRV58E, TRV68/TRV68E, TRV78/TRV78E, TRV88/TRV88E, TRV98/TRV98E, and regional variants (US, Canadian, AEP, UK, E, Hong Kong, Australian, etc.).
This 234-page level 3 factory service manual is indispensable for technicians and enthusiasts repairing these reliable Sony Video Hi8 Handycams. Includes detailed self-diagnosis function with error code explanations (e.g., C:31:xx, E:61:xx), full disassembly/reassembly procedures, block diagrams, printed wiring boards, schematic diagrams, IC pin descriptions, camera/VCR system adjustments, service notes, exploded views, and comprehensive replacement parts lists.
Ideal for resolving common issues like tape loading/eject failures, dew sensor errors, no power, EVF/LCD faults, zoom/focus problems, battery/charging issues, or mechanism faults on these 20x optical zoom Hi8 camcorders.
Note: For detailed 8mm mechanism adjustments, refer to the separate “8mm Video Mechanical Adjustment Manual IX” (9-973-801-11).
Main Sections
Service Note
- Power supply during repairs
- Self-diagnosis function & codes
- Disassembly flow
- Service mode
Disassembly
- Cabinet removal
- Circuit boards location
- Mechanism deck removal
- Step-by-step disassembly with illustrations
Block Diagrams
- Overall
- Camera
- VCR
- EVF
- Servo
- Audio/Video
Printed Wiring Boards and Schematic Diagrams
- Board layouts (CD, PD, CK, LB, FP, etc.)
- Full schematics by section
Adjustments
- Preparation before adjustment
- Camera system adjustments
- VCR system adjustments
- Servo system adjustments
- Audio system adjustments
- EVF system adjustments
Repair Parts List

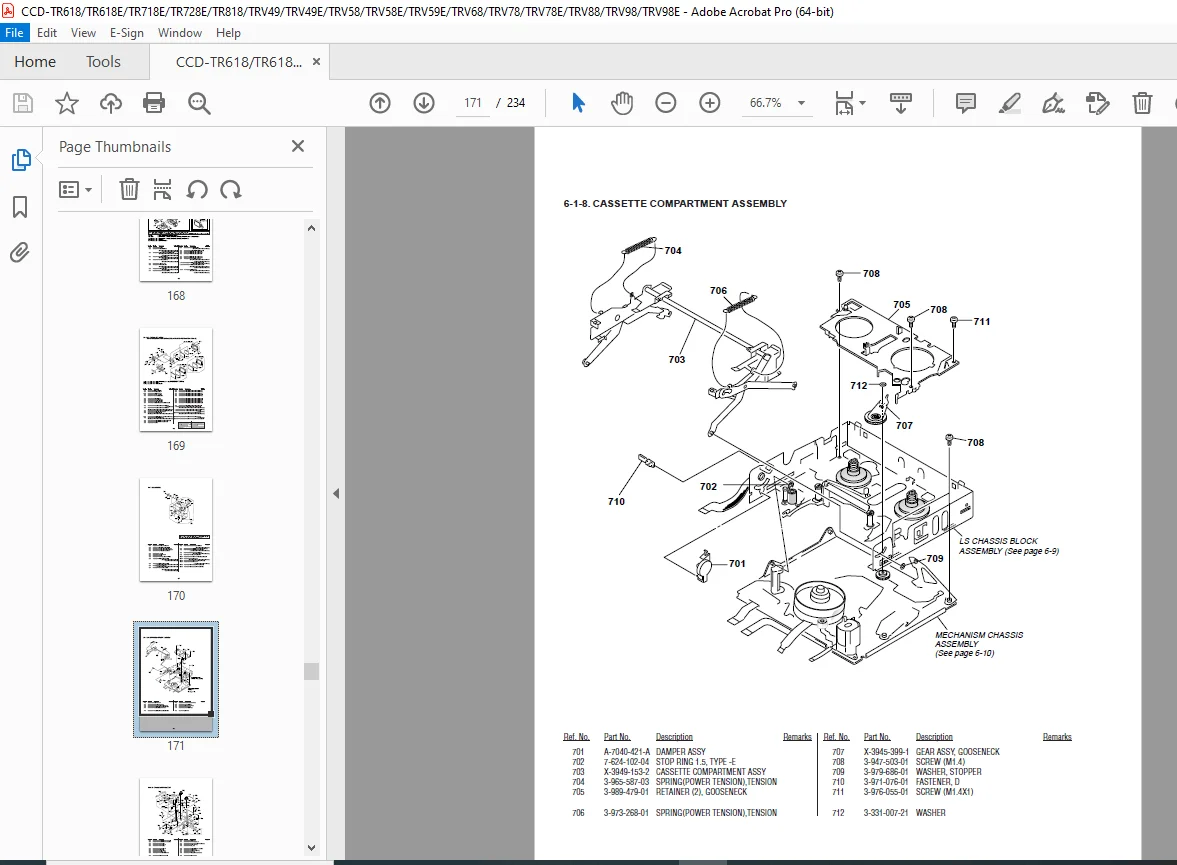

- Complete exploded views
- Mechanical and electrical replacement parts list
File Details
- Manual Name: Sony CCD-TR618 / TRV Series Handycam Service Manual (Level 3, Ver. 1.4)
- Models Covered: CCD-TR618/TR818 (and E variants), TRV49/TRV58/TRV68/TRV78/TRV88/TRV98 (NTSC/PAL, multiple regional codes)
- Year: 2002
- PDF Quality: High-resolution, clear diagrams/schematics, fully searchable text
- Total Pages: 234
Bring your vintage Sony Hi8 Handycam back to life with the authentic factory service manual trusted by professional repair technicians. Instant digital download – start diagnosing and repairing your CCD-TR618 or TRV98 series camcorder today!
