Stihl Mm55 Yard Boss Repair Manual – PDF DOWNLOAD

Description

📘 COMPREHENSIVE DOCUMENT OVERVIEW

This is an official Service Manual specifically for the STIHL Series 4180 Powerhead. 🛠️ Designed for professional technicians and experienced mechanics, this 51-page digital document provides exhaustive details for the maintenance, repair, and overhaul of the powerhead. It serves as an indispensable resource for ensuring optimal performance and longevity of your STIHL equipment.

The manual begins with an essential introduction, outlining the use of the manual, symbols, and the importance of original STIHL replacement parts. Crucial Safety Precautions ⚠️ are detailed, particularly concerning fuel handling and general repair work. The manual then dives into comprehensive Specifications, covering the engine, spark plug (NGK CMR 6H), carburetor settings (including idle speed, low and high speed screw settings), and a detailed list of Tightening Torques for various fasteners, ensuring every component is secured correctly.

A significant portion is dedicated to Troubleshooting 📋, with systematic guides for diagnosing issues related to the Clutch, Rewind Starter, Ignition System, Carburetor, and the Engine itself. These sections list common conditions, potential causes, and recommended remedies, streamlining the diagnostic process.

The manual offers in-depth procedural chapters for major systems:

• Rewind Starter / Shroud: Covers general information, removal/installation, rope rotor, starter rope replacement and tensioning, pawl, and rewind spring replacement.
• Fuel System: Details on the air filter, carburetor (including leakage tests, removal/installation, servicing the manual fuel pump, metering diaphragm, inlet needle, fixed jet, pump diaphragm), idle speed adjustment, factory settings, tank vent, pickup body, fuel hoses, and fuel tank.
• Engine: Comprehensive procedures for compression pressure testing, checking/adjusting valve clearances, rocker arms/pushrods, cam followers, cam gear (including decompression system), muffler/spark arresting screen, clutch (removal, disassembly, assembly, installation, clutch drum, clutch drum bearing), flywheel, crankshaft (including oil seal replacement, crankcase disassembly/assembly), piston, piston rings, and valves/valve springs.
• Ignition System: Information on the spark plug boot and ignition module (including ignition timing, removal, and installation).
• Throttle Control: Covers the throttle trigger, interlock lever, tensioner, adjusting throttle cable, and slide control.
• AV System: Procedures for servicing the anti-vibration system components.

Finally, the manual lists Special Accessories like lubricants and sealants, and a crucial chapter on Special Servicing Tools with part numbers and their applications, which are essential for performing many of the described procedures correctly and efficiently. This document is your go-to guide for professional-level servicing of the Series 4180 Powerhead.

🔧 TECHNICAL SPECIFICATIONS & COVERAGE

• Equipment Model: STIHL Series 4180 Powerhead
• Engine Specifications:
  • Type: STIHL single cylinder four-stroke engine with gasoil mixture lubrication
  • Displacement: 31.4 cm³
  • Bore: 40 mm
  • Stroke: 25 mm
  • Engine Power: 1.0 kW at 7,000 rpm (to ISO 8893)
  • Max. Permissible Engine Speed (without cutting attachment): 10,500 ± 500 rpm (with cut-off in ignition module)
  • Bearings: Heavy-duty ball bearings for crankshaft, needle cages on small and big ends, plain bearings on piston pin.
  • Piston Pin Diameter: 8 mm
• Clutch: Centrifugal clutch, two clutch shoes without linings. Engages at 3,700 rpm.
• Spark Plug: Type NGK CMR 6H, Electrode gap: 0.7 mm.
• Carburetor:
  • Standard Setting (Low speed): Open one full turn
  • Standard Setting (High speed): Open two full turns
  • Idle Speed: 2,800 rpm
• Electrical System: Electronic (breakerless) ignition system, including ignition module and flywheel. Specific air gap settings for ignition module to flywheel.
• Tightening Torques: A detailed table provides specific torque values (Nm) for numerous fasteners and components, critical for proper assembly.
• Special Tools and Equipment: A dedicated section lists over 25 special servicing tools with part numbers and their applications, such as compression testers, pullers, installing tools for seals and piston pins, feeler gauges for valve clearance, and carburetor/crankcase testers. (e.g., Clamp 5910 890 8800, Compression tester 5910 850 2000, Locking screw 4180 890 2700).

📋 MANUAL SECTIONS & PROCEDURES

• Introduction & Safety Precautions: Essential guidelines and warnings.
• Specifications: Engine, spark plug, carburetor data, and tightening torques.
• Troubleshooting: Detailed diagnostic charts for Clutch, Rewind Starter, Ignition System, Carburetor, and Engine.
• Rewind Starter / Shroud: Removal, installation, rope replacement, spring replacement, pawl service.
• Fuel System: Air filter service, carburetor overhaul (leakage test, diaphragm replacement, jet cleaning, idle adjustment), tank vent, fuel lines, pickup body, and fuel tank procedures.
• Engine Overhaul: Compression testing, valve clearance adjustment, rocker arms, cam gear, decompression system, muffler, clutch service (shoes, drum, bearing), flywheel removal/installation, crankshaft and oil seal replacement, piston and ring service, valve and valve spring replacement, crankcase splitting and assembly.
• Ignition System: Spark plug boot service, ignition module replacement, air gap setting.
• Throttle Control: Servicing throttle trigger, interlock lever, cable adjustment, slide control.
• AV System: Anti-vibration element replacement.
• Special Accessories & Servicing Tools: Lists of recommended lubricants, sealants, and required special tools with part numbers.

❌ WHAT’S NOT INCLUDED

• Physical printed manual (this is a digital download only).
• Real-time technical support or direct consultation with STIHL engineers.
• Warranty coverage for repairs performed or parts used.

📊 COMPREHENSIVE RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

📋 SEO Schema for Google:

💬 Customer Questions & Answers:

Q: What specific models and years does this manual cover?
A: This service manual is specifically for the STIHL Series 4180 Powerhead. It covers the entire series, without differentiation by specific manufacturing years.

Q: What types of maintenance and repair procedures are included?
A: It includes extensive procedures such as engine disassembly/assembly, valve clearance adjustment, carburetor servicing and tuning, ignition system testing and replacement, clutch and flywheel service, oil seal replacement, rewind starter repair, and comprehensive troubleshooting guides.

Q: Is this manual suitable for DIY mechanics or is it for professionals only?
A: While very detailed, this manual is geared towards professional technicians and STIHL servicing dealers due to the technical complexity, specific torque requirements, and the necessity of special tools. Experienced DIY mechanics with a good understanding of small engines and access to these tools might find it useful.

Q: What format is this manual in and how do I access it?
A: The manual is in a digital PDF format. You can download it immediately after purchase and will have permanent access to the file.

Q: Are there special tools or diagnostic equipment requirements?
A: Yes, a dedicated section lists over 25 special servicing tools, including part numbers, that are required or recommended for various repair and adjustment tasks. Examples include compression testers, flywheel pullers, seal installation tools, and carburetor testers.

Q: Does this manual include wiring diagrams and hydraulic schematics?
A: The manual includes details for the ignition system, covering connections for the short-circuit and ground wires to the ignition module. As this is a powerhead manual, it does not contain hydraulic schematics. Illustrations are provided throughout for mechanical procedures.

Q: Is the manual language technical or user-friendly?
A: The language is technical and precise, intended for individuals with prior mechanical knowledge and familiarity with service procedures for power equipment.

Q: Can I print this manual or use it offline?
A: Yes, being a PDF document, you can print any or all pages for workshop use and access it offline on any device that supports PDF viewing (computer, tablet, smartphone).

🛠️ PROFESSIONAL ASSESSMENT & USABILITY

• Overall Quality Rating: ⭐⭐⭐⭐⭐ (Factory-level information, comprehensive and accurate)
• Content Classification: Service Manual for STIHL Series 4180 Powerhead.
• Language & Accessibility: Technical, precise, and detailed. Best suited for users with mechanical expertise. English language.
• Professional Recommendation: Highly recommended for professional power equipment service centers, STIHL dealers, and mechanics specializing in STIHL products. An essential tool for accurate repairs and maintenance.
• Technical Depth: Extremely thorough, covering everything from basic adjustments to complete engine overhaul. Includes specific settings, tolerances, and torque values.
• Page Count & Scope: 51 pages of dense, technically rich content focused solely on the Series 4180 Powerhead.
• File Quality & Format: High-quality digital PDF with clear text, diagrams, and illustrations. Searchable and printable.
• Update Status: Based on the © 2002 notice, this covers models around that period and potentially later if the Series 4180 design remained consistent. The manual advises referring to “Technical Information” bulletins for changes since publication.

🎯 IDEAL USE CASES & APPLICATIONS

• Professional Service Shop Operations: Performing routine maintenance, complex repairs, and complete overhauls on STIHL Series 4180 Powerheads.
• Equipment Maintenance Planning: Understanding service requirements and intervals for preventative maintenance.
• Troubleshooting and Diagnostic Procedures: Quickly identifying and resolving operational issues with the powerhead.
• Parts Identification and Ordering: Assisting in identifying correct components, especially when used in conjunction with parts lists (as mentioned in the manual’s introduction). Special tools are listed with part numbers.
• Training and Skill Development: A valuable resource for training technicians on the specifics of the Series 4180 Powerhead.
• Pre-Repair Inspections: Guiding detailed inspections to accurately quote repair jobs and identify all necessary work.

📋 Original Product Description:

Stihl Mm55 Yard Boss Repair Manual

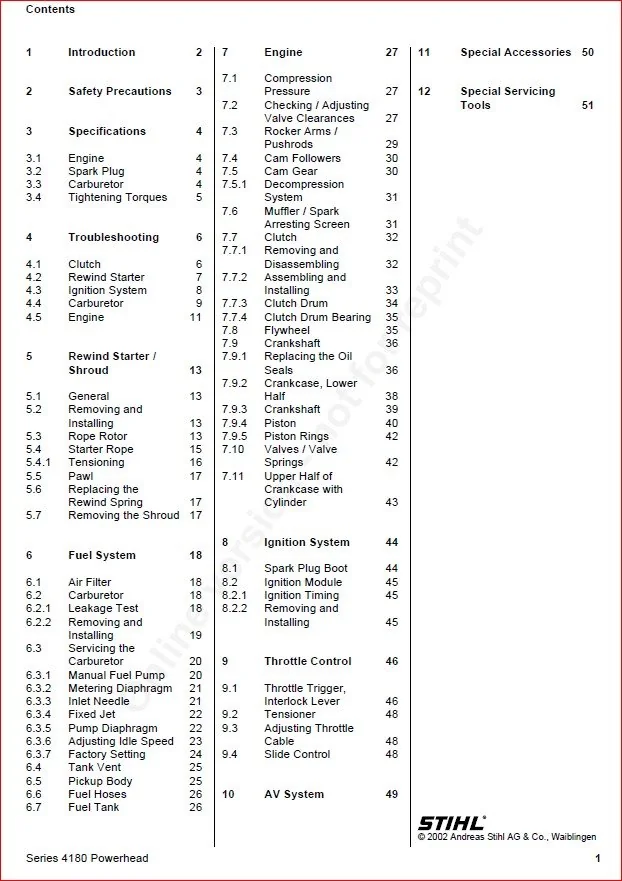

TABLE OF CONTENTS:

Introduction Safety Precautions Specifications Engine Spark Plug Carburetor Tightening Torques Troubleshooting Clutch Rewind Starter Ignition System Carburetor Engine Rewind Starter I Shroud General Removing and Installing Rope Rotor Starter Rope Tensioning Pawl Replacing the Rewind Spring Removing the Shroud Fuel System Air Filter Carburetor Leakage Test Removing and Installing Servicing the Carburetor Manual Fuel Pump Metering Diaphragm Inlet Needle Fixed Jet Pump Diaphragm Adjusting Idle Speed Factory Setting Tank Vent Pickup Body Fuel Hoses Fuel Tank Engine Compression Prssure Checking /Adjusting Valve Clearances Rocker Arms /Pushrods Cam Followers Cam Gear Decompression System Muffler I Spark Arresting Screen Clutch Removing and Disassembling Assembling and Installing Clutch Drum Clutch Drum Bearing Flywheel Crankshaft Replacing the Oil Seals Crankcase, Lower Half Crankshaft Piston Piston Rings Valves I Valve Springs Upper Half of Crankcase with Cylinder Ignition System Spark Plug Boot Ignition Module Ignition Timing Removing and Installing Throttle Control Throttle Trigger, Interlock Lever Tensioner Adjusting Throttle Cable Slide Control AV System Special Accessories Special Servicing Tools

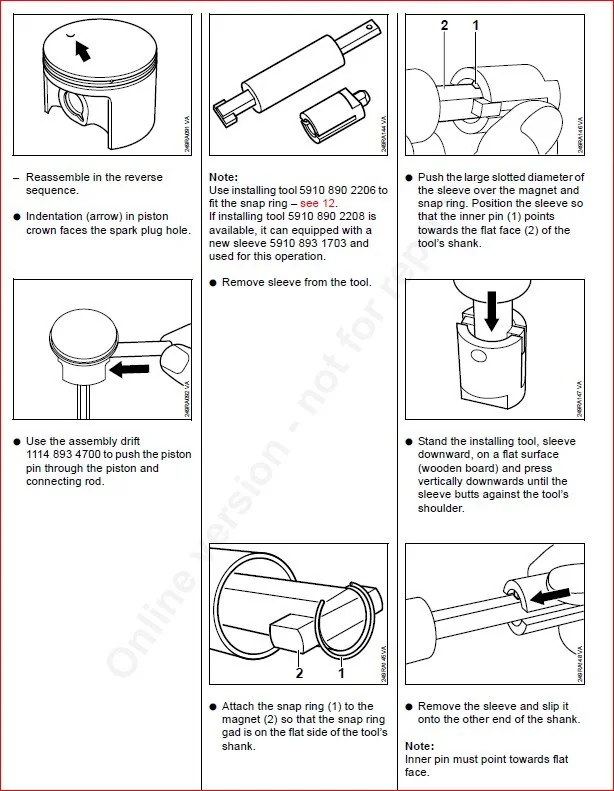

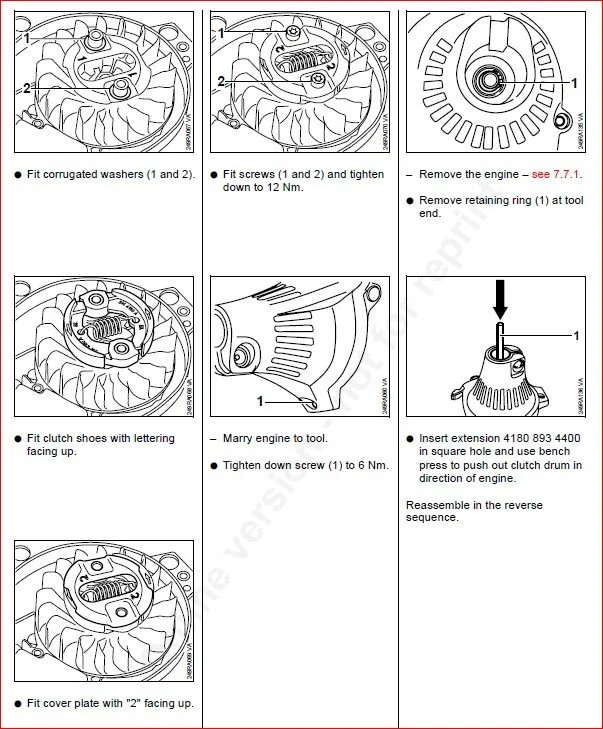

IMAGES PREVIEW OF THE MANUAL:
