Sumitomo SH130-6 Hydraulic Excavator Parts Manual – WCL1306D-0F PDF Download

Description

Sumitomo SH130-6 Hydraulic Excavator Parts Manual (WCL1306D-0F)

This Sumitomo SH130-6 Hydraulic Excavator Parts Manual is the illustrated parts book for book number WCL1306D-0F, covering machines from serial No. 130F6-1101 onward. It is set up for two SH130-6 configurations built for the ASEAN/Indonesian market – the SH130-6 BH (standard boom/arm undercarriage line) and the SH130-6 BB (blade-equipped undercarriage line) – each identified by its own parts-page code (WCLAKNBF2KAABH and WCLAKNBF2KABBH). Anyone stocking parts or servicing this excavator will find this SH130-6 parts manual lays out every part page by area, part number, and quantity exactly as Sumitomo issued it.

• Manual type: Illustrated parts manual (parts catalog)
• Brand / Model: Sumitomo SH130-6 Hydraulic Excavator (BH and BB variants)
• Book No.: WCL1306D-0F
• Serial No. range: 130F6-1101~
• Edition: 1st Edition, dated October 11, 2017
• Language: English part names with Japanese reference text
• Page count: 474 pages
• File format: PDF, instant download

Chapters Covered in This SH130-6 Parts Manual

• DA – Lowers (track frame, rollers, idlers, grouser shoes, traction motor line)
• DB – Swing Frames & Platforms (counterweight, turntable bearing, under covers)
• DC – Rev. Shafts & Clutch (revolving equipment)
• DH – Engines & Power Units (Isuzu EGR-less engine)
• DJ – Controls & Hyd. Lines (service valve control, swing and traction hydraulic lines)
• DN – Operator’s Cab & House (FOPS/OPG cab guards, cab assembly, console box, house)
• DP – Accessories & Name Plates (painting, name plates, rear view mirrors)
• DR – Electric Parts (AM/FM USB radio and related wiring)
• DV – Attachments (Backhoe) (buckets, bucket linkage, cylinder lines, option lines, clamps)
• ZA – Parts Index (cross-reference index of part numbers to part page codes)

Taken together, these sections give a parts counter or workshop a single reference for identifying and ordering the correct Sumitomo part for the SH130-6 undercarriage, upper structure, engine bay, hydraulic lines, cab, electrics, and backhoe attachment, without guessing at part numbers from a worn machine tag.

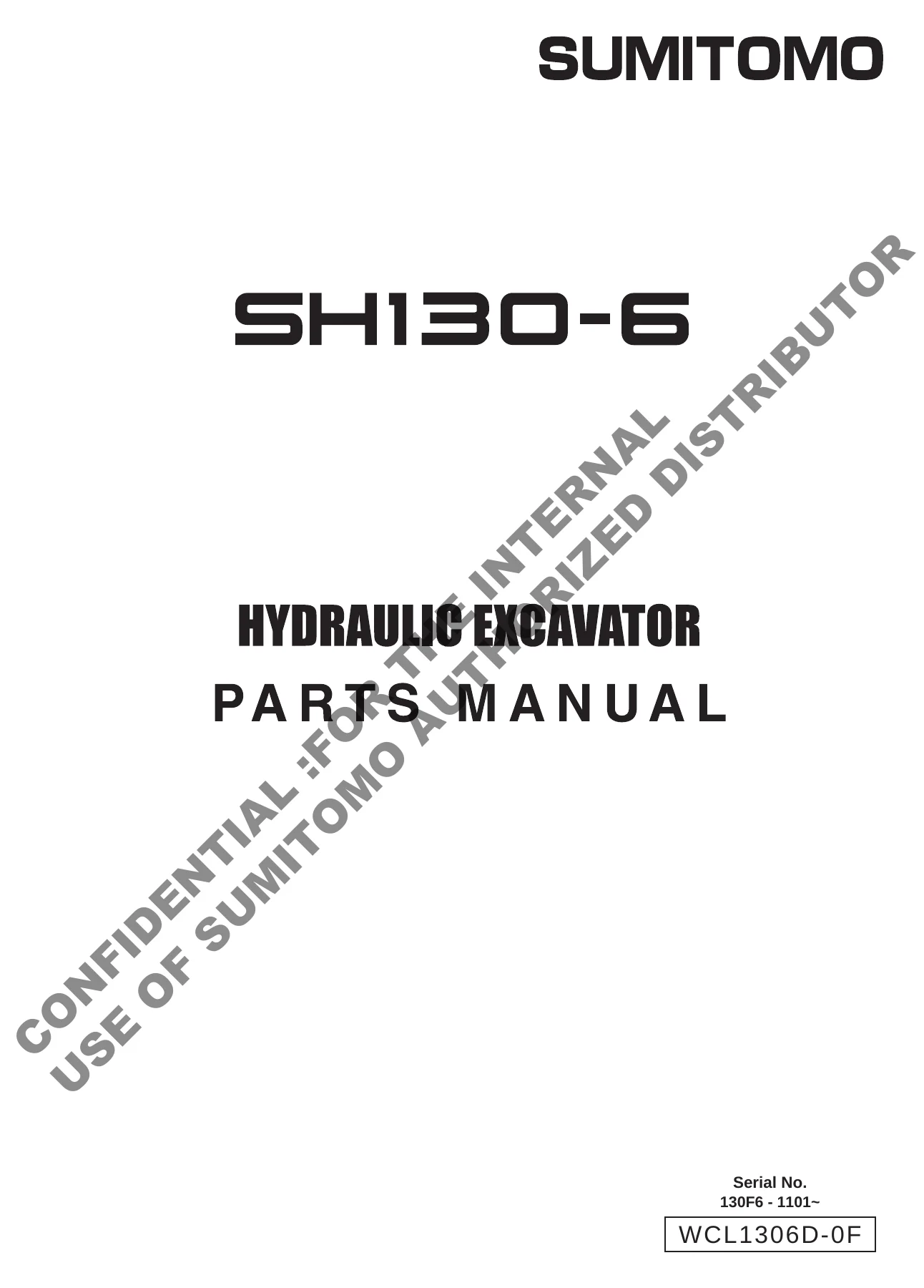

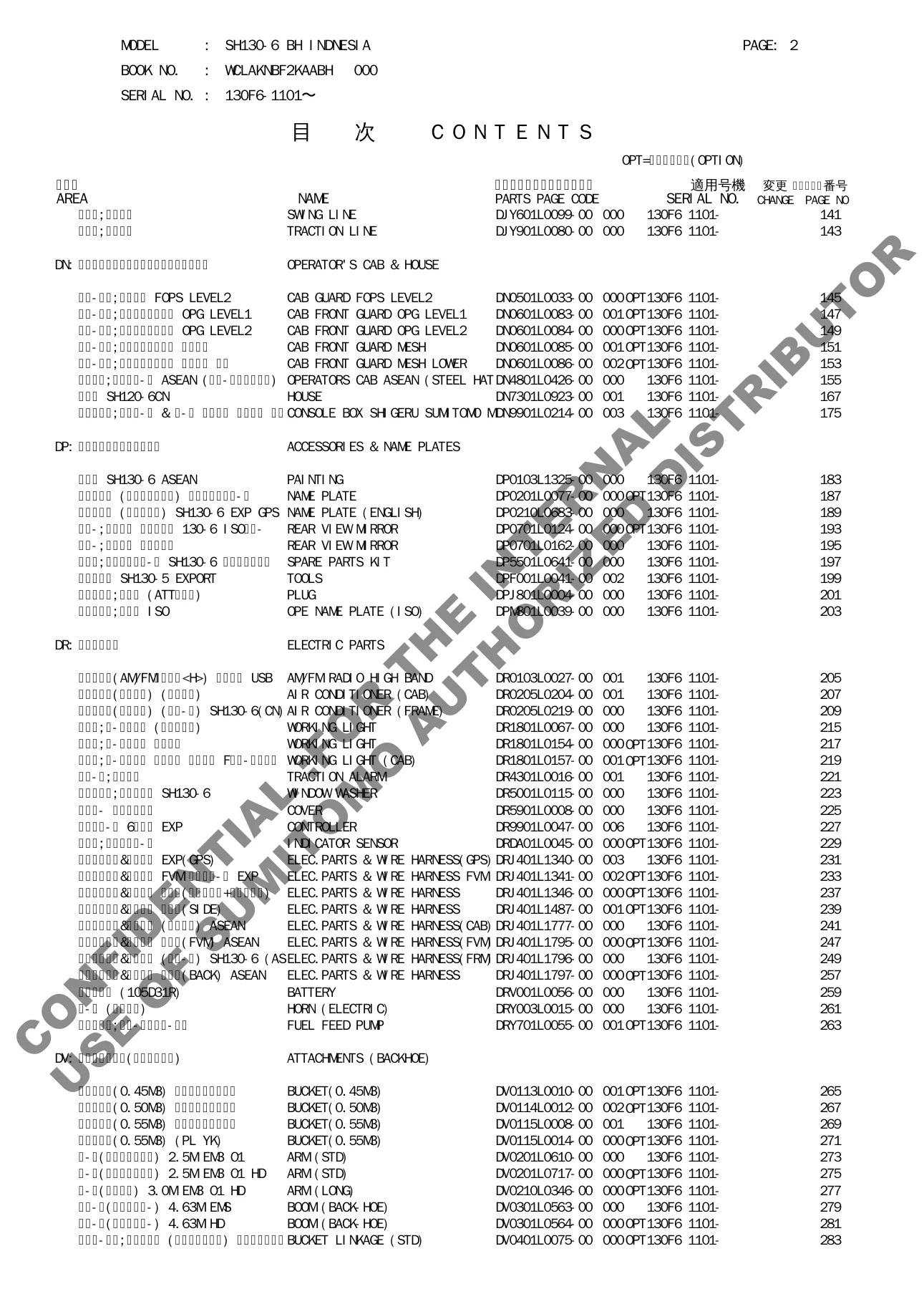

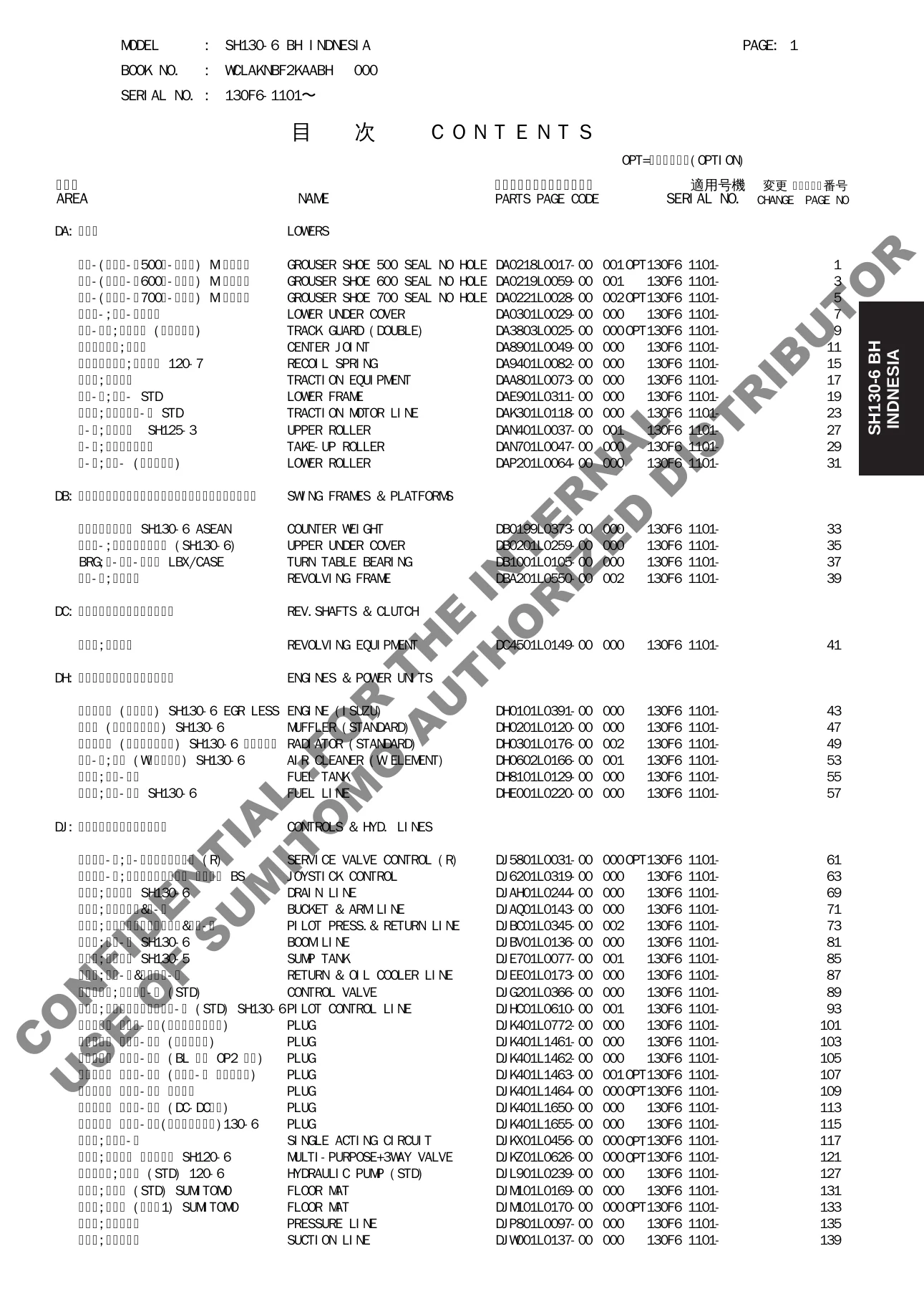

IMAGES PREVIEW
