DESCRIPTION:

Super Pac 400 400P Service Parts Manual – PDF DOWNLOAD

MAINTENANCE & OPERATION INFORMATION

Preparation

• • Read & understand this manual & the CD-IA safety manual before operating vehicle
  • obtain instructions from the site supervisor
  • become acquainted with all vehicle controls

‘This safety alert symbol indicates important safety messages in.

this manual.

When you see this symbol carefully read the  message that follows and be alert to the  possibility of death or injury to yourself and others.                       –

• Daily Walk-Around Inspection
  • Check hydraulic: oil reservoir, maintain level 3″ from top
  • Check tire pressure
  • Check tires for severe cuts
  • Check for loose fittings, covers and guards
  • Check for oil and fuel leaks
  • Check engine oil level
• Start Up
  • Use caution when adding fuel to hot engine•
  • Ensure adequate to protect yourself and others from exhauste missions•

• Check lever on operator’s left This lever must be in neutral, or center position, before starting engine•
• Look for vehicle creep after starting As hydraulic: system increases to operating pressure the parking brakes automatically release.  braking remains only when the left hand control lever is in neutral or center position. While moving, to appl1. the service brakes, move left hand control lever to neutral or center position•.
• Operate steering and slowly engage and disengage left hand control lever to test acceleration and braking action•
• Familiarize yourself with the response to all controls•
• Set desired engine speed using lever on operator’s

• Recommended Operating Practice
  • When drum is engaged, 2 mph travel speed is recommended•
  • Travel speed and direction are controlled by left hand lever, engage

this lever slowly•

• Do not engage when machine is Severe bearing damage will result•
• Use the tie down points provided in the rear Do not tie down over the center joint. Center pin damage can result and front and rear frames c:an slew unless tied down•
• The hydraulic system requires a  II automatic transmission fluid meeting the Allison C-3 orT0-2 specifications•
• Gulf  II meet the C-3 s in Canada and the S.A.

Other manufacturer’s products may also be adequate. Check with CHAMPION SUPERPAC ROLLERS’ Service Department for additional information if required.

FILE DETAILS:

Super Pac 400 400P Service Parts Manual – PDF DOWNLOAD

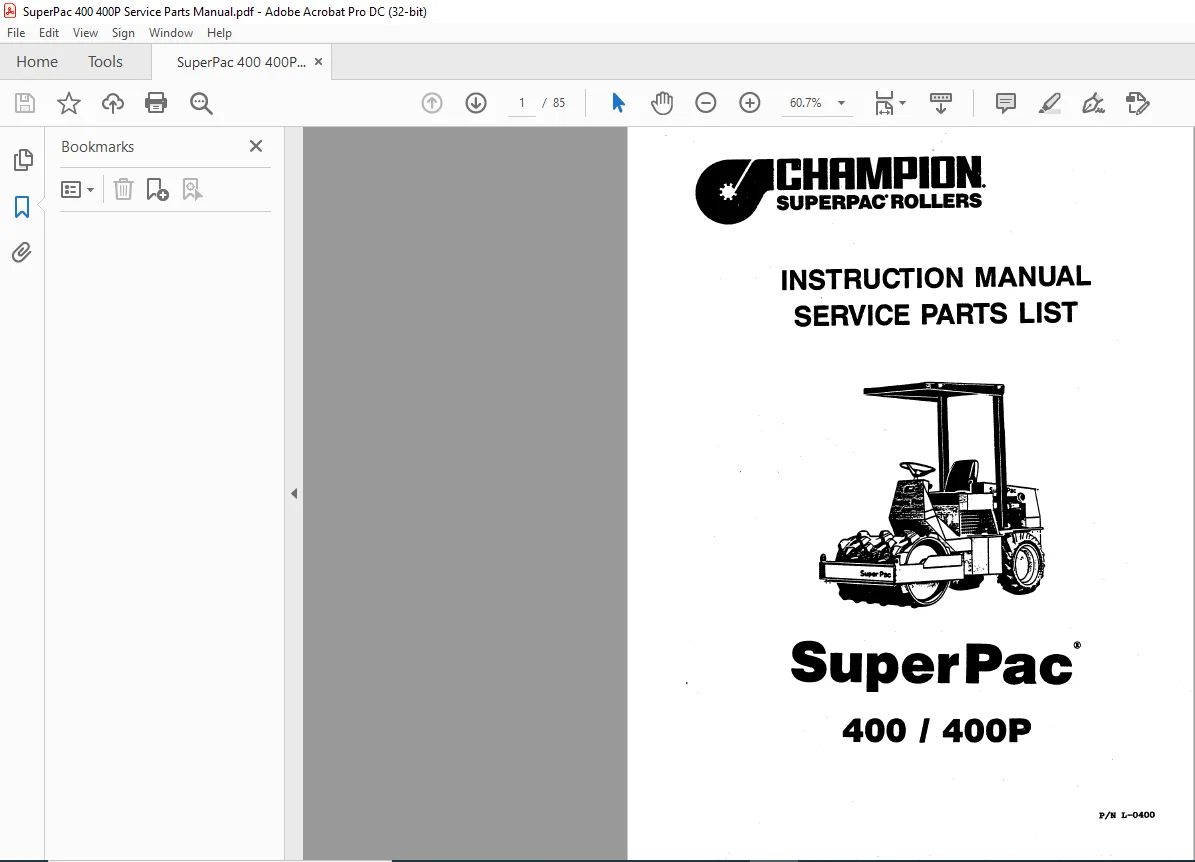

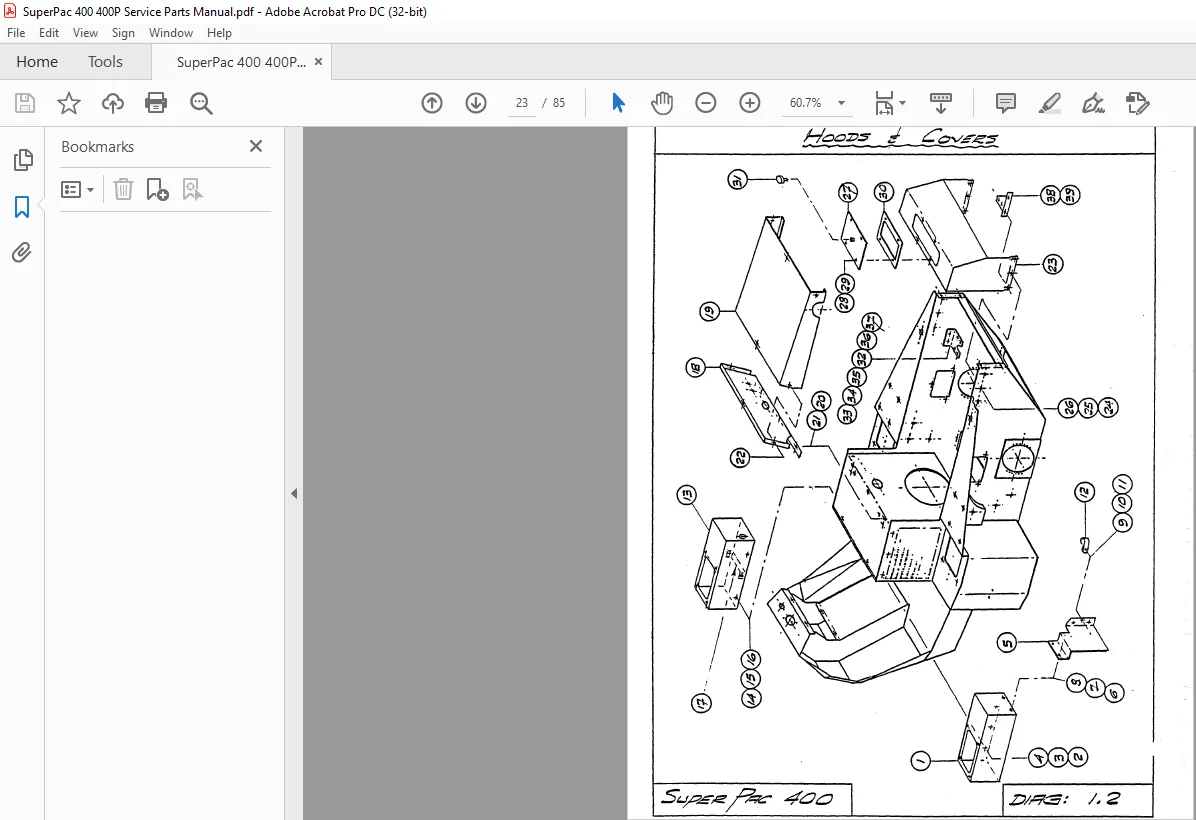

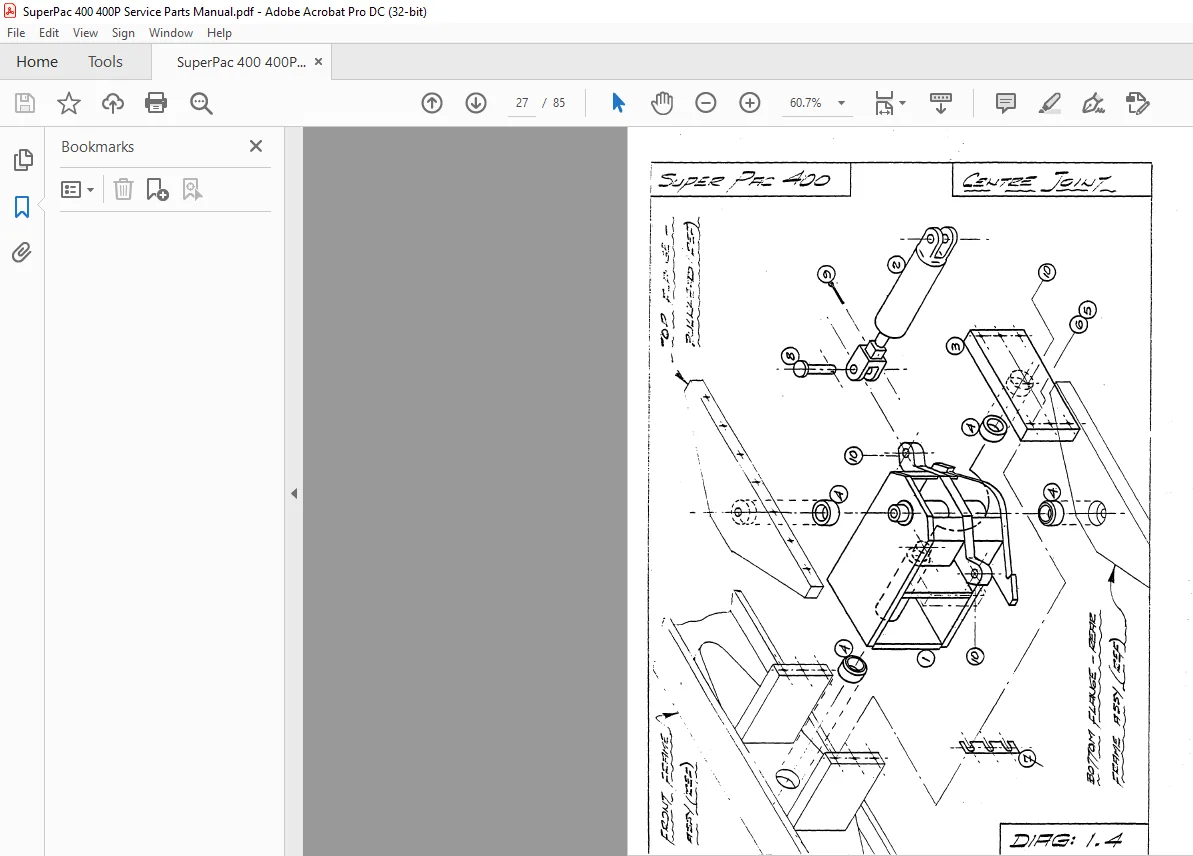

IMAGES PREVIEW OF THE MANUAL:
