Super Pac 420 Service Parts Manual – PDF DOWNLOAD

DESCRIPTION:

Super Pac 420 Service Parts Manual – PDF DOWNLOAD

OPERATOR INFORMATION

•  PREPARATION

• Read all manuals
• Obtain instructions from the site
• Become acquainted with all vehicle

• DAILY WALK-AROUND INSPECTION

• Check hydraulic oil reservoir, maintain level 3″ from
• Check for loose fittings, fasteners, covers and
• Check for oil and fuel
• Check engine oil
• Check hydraulic oil

•   START UP

• Use caution when adding fuel to hot engine.
• Ensure adequate ventilation to protect yourself and others from exhaust
• Check lever on operator’s left This lever must be in neutral, or center position, before starting engine.
• Foil safe brake engages when there is a loss of charge pressure or when engine is shut Left hand control lever must be in neutral or center position before starting or stopping engine.
• Operate steering and slowly engage and disengage left hand control lever to test acceleration and braking
• Familiarize yourself with the response to all
• Set desired engine speed using lever on operator’s

•   RECOMMENDED OPERATING PRACTICE

• When drum vibration is engaged, 2 mph travel speed is
• Travel speed and direction are controlled by left hand Engage this lever slowly.
• Do not engage vibration when machine is Severe bearing damage will result.
• Use the tie down points provided in the front and rear

Do not tie down over the center joint. Center pin damage can result and front and rear frames can slew unless tied down.

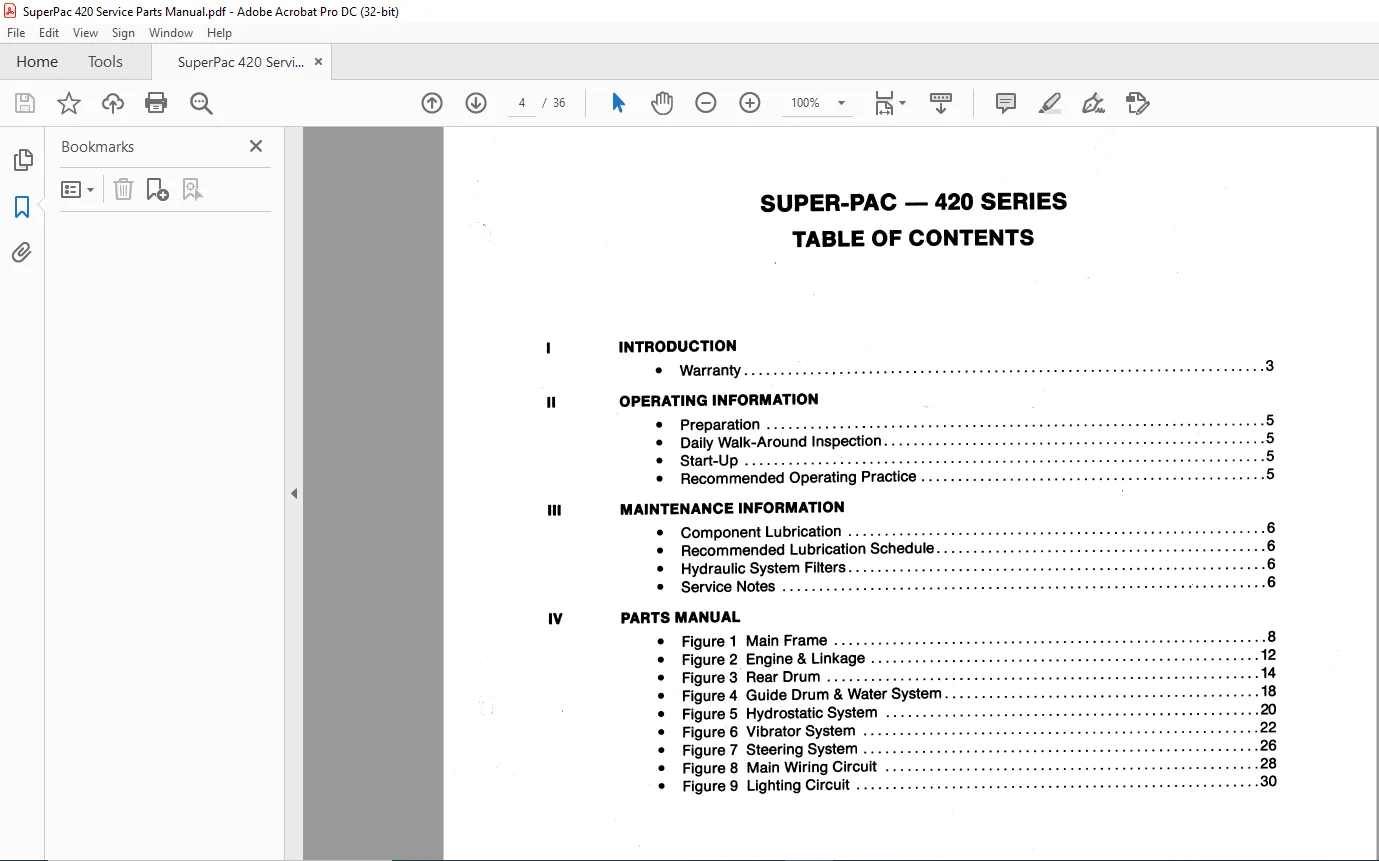

TABLE OF CONTENTS:

Super Pac 420 Service Parts Manual – PDF DOWNLOAD

INTRODUCTION

• Warranty …………•……………….

II         OPERATING INFORMATION

• Preparation ………………………..
• Daily Walk-Around Inspection ………….
• Start-Up …………………………..
• Recommended Operating Practice ……..

Ill        MAINTENANCE INFORMATION

• Component Lubrication ………………
• Recommended Lubrication Schedule ……
• Hydraulic System Filters ………………
• Service Notes ………………………

IV PARTS MANUAL

• Figure 1 Main Frame ………………..

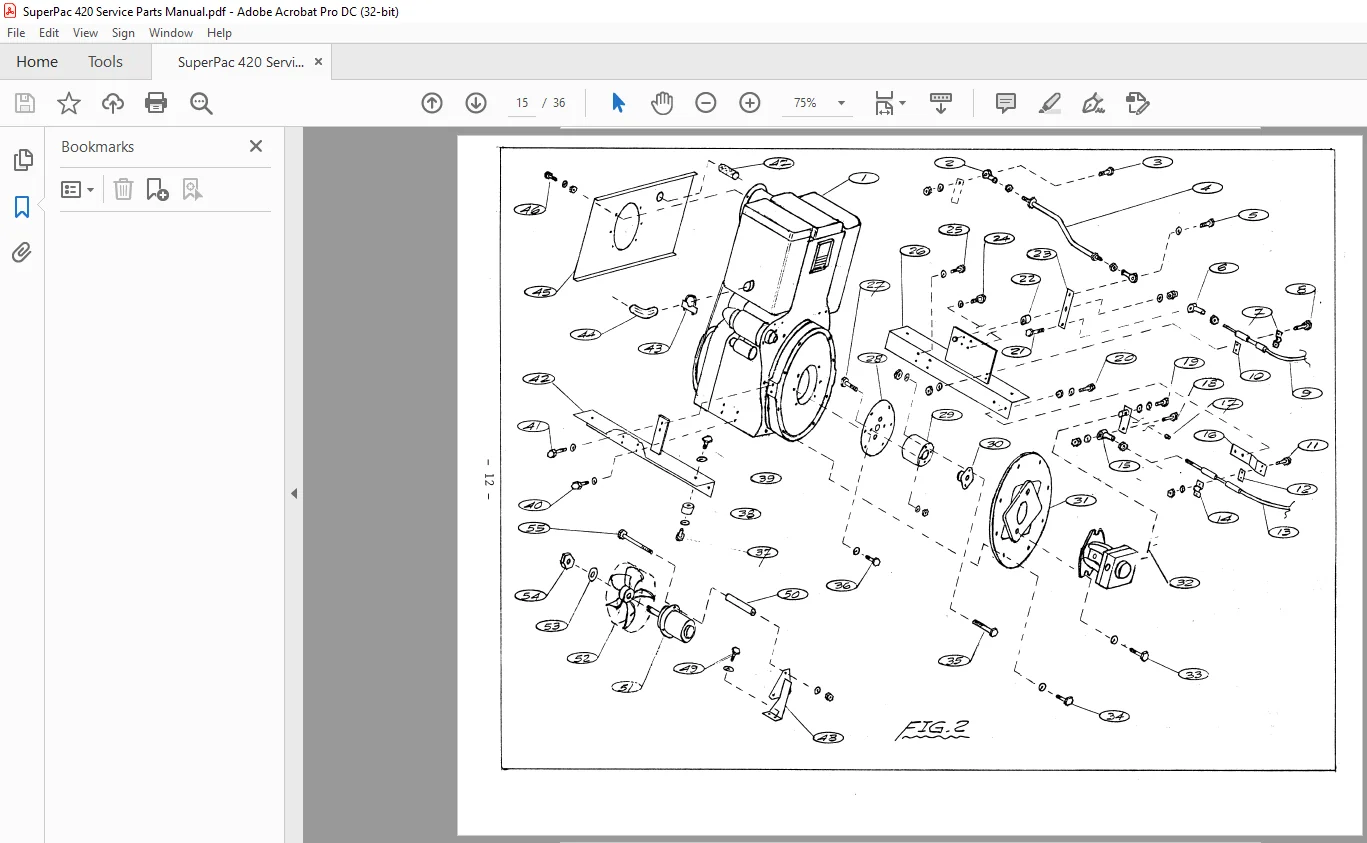

• Figure 2 Engine & Linkage ……………
• Figure 3 Rear Drum …………………
• Figure 4 Guide Drum & Water System …..
• Figure 5 Hydrostatic System ………….
• Figure 6 Vibrator System …………….
• Figure 7 Steering System …………….
• Figure 8 Main Wiring Circuit ………….
• Figure 9 Lighting Circuit ……………..

SUPERPAC 420 SERVICE PARTS MANUAL – PDF DOWNLOAD:

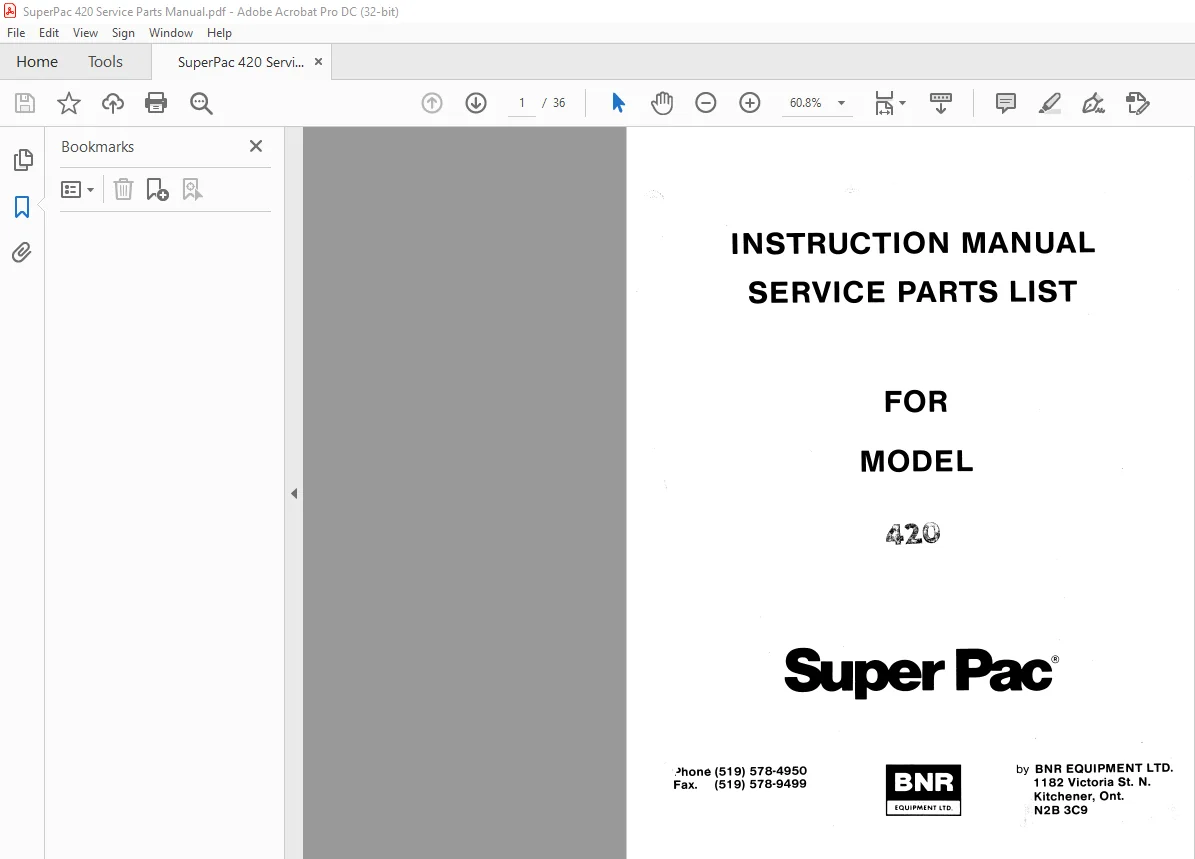

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
