Suzuki LT-F300 LT-F300F King Quad 1999-2002 Service Manual with Supplements

Description

Suzuki LT-F300 and LT-F300F King Quad 300 Service Manual – 1999 to 2002 Coverage

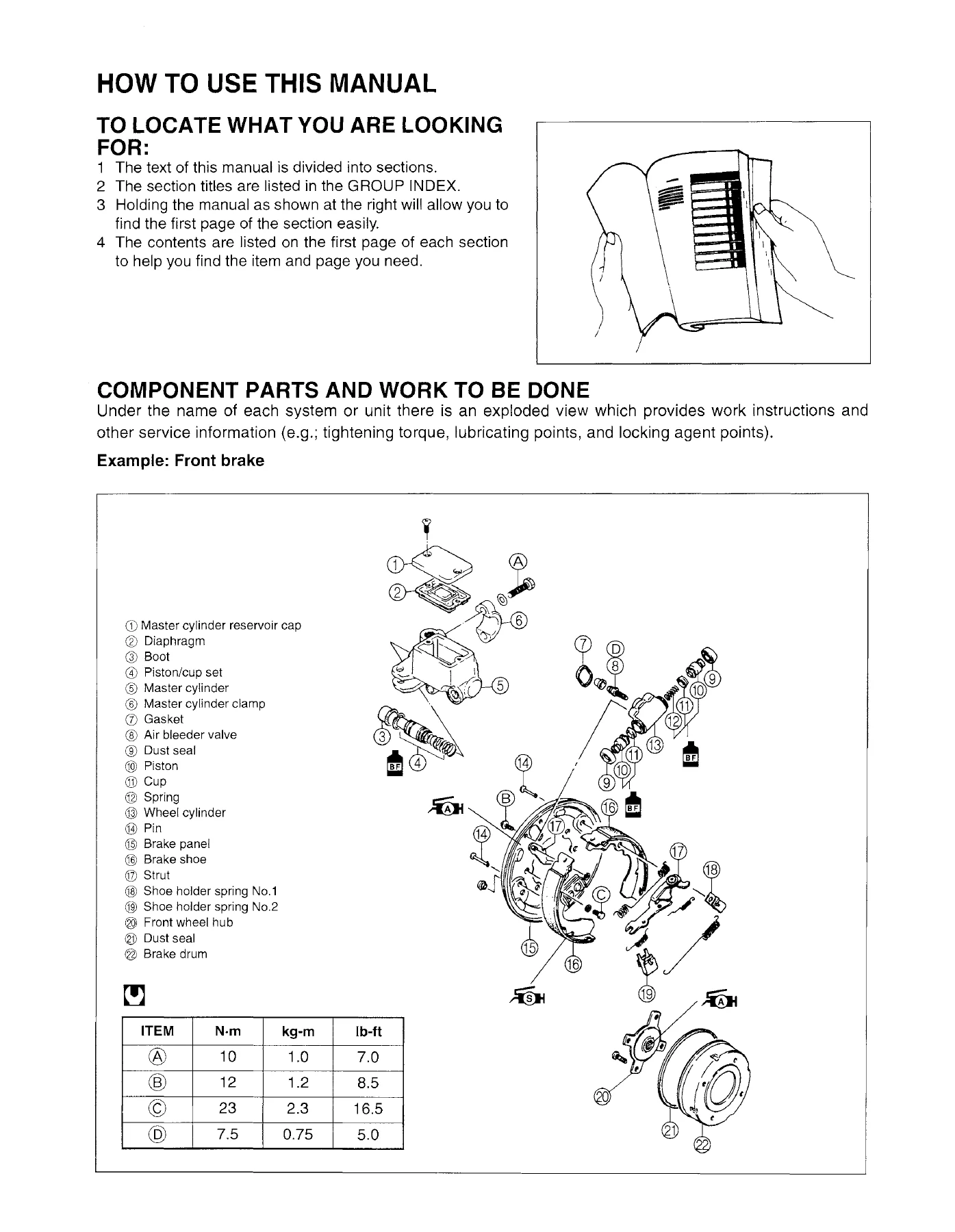

This Suzuki LT-F300 LT-F300F King Quad 1999-2002 Service Manual with Supplements is the full workshop documentation set for Suzuki’s King Quad 300 ATV platform. It bundles the base service manual with the model-year supplements issued for the 1999, 2000, 2001 and 2002 revisions, so a single file carries the service data, torque values and procedures needed to work on either the two-wheel-drive LT-F300 or the selectable four-wheel-drive LT-F300F across that entire span. Each system is broken down with numbered exploded views that place tightening torques, lubricating points, thread-lock and bond-agent calls directly beside the fastener being discussed, so the technician is not forced to flip between a diagram and a separate fastener chart mid-job.

File Details

• Manual type: Service Manual with model-year supplements
• Publisher: Suzuki Motor Corporation, Motorcycle Service Department
• Models: LT-F300 and LT-F300F (King Quad)
• Model years: 1999 (X / 300FX), 2000 (Y / 300FY), 2001 (K1 / 300FK1), 2002 (FK2)
• Language: English
• Page count: 384
• File format: PDF
• Publication number: 99500-42133-01E
• Editions: 4th Edition September 2001 (originally 1st Edition January 1998)
• Country codes used inside: E-03 (USA), E-17 (Sweden), E-24 (Australia), E-27 (New Zealand), E-28 (Canada), E-33 (California USA)

Chapters Covered

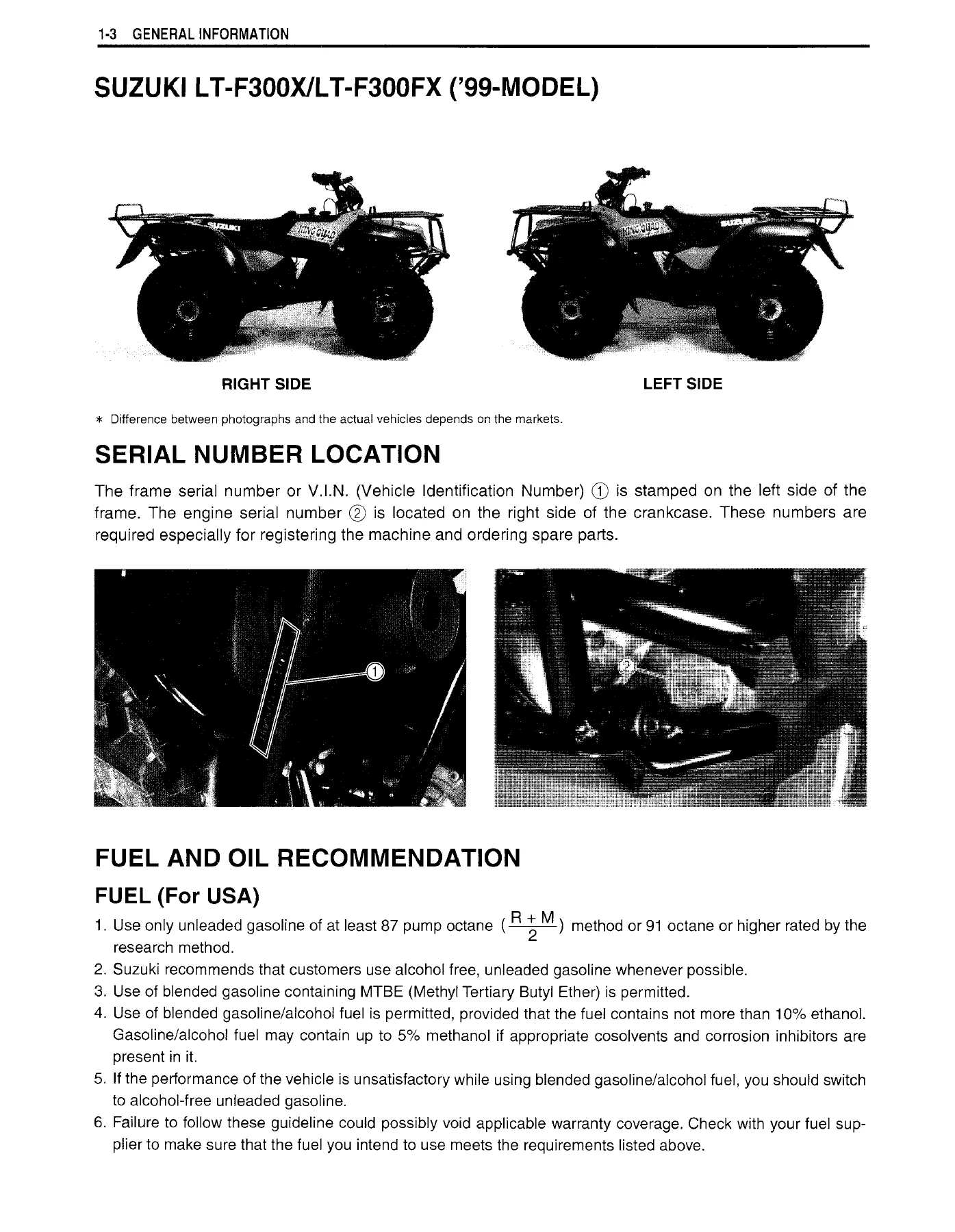

• General Information – warnings, cautions and notes, general precautions, serial number location, fuel and oil recommendation, break-in procedures, information labels, specifications, country and area codes
• Periodic Maintenance – maintenance schedule, battery, air cleaner, exhaust pipe nuts and muffler bolts, valve clearance, engine mount rubber bushing, spark plug, fuel hoses, throttle cable play, engine idle speed, engine oil and oil filter replacement, differential gear oil, spark arrester, clutch, brakes, brake fluid, brake hoses, tires, steering, suspensions, chassis nuts and bolts, general lubrications, compression pressure check, oil pressure check, initial engagement and clutch lock-up inspection
• Engine – components removable with the engine in place, engine removal and installation, engine disassembly, component inspection and service (cylinder head cover, cylinder head, camshaft, cylinder, piston and piston ring, conrod, crankshaft, clutch, starter clutch, generator, oil pump, crankcase bearings, oil jet, gearshift fork and gear, transmission), engine reassembly, recoil starter

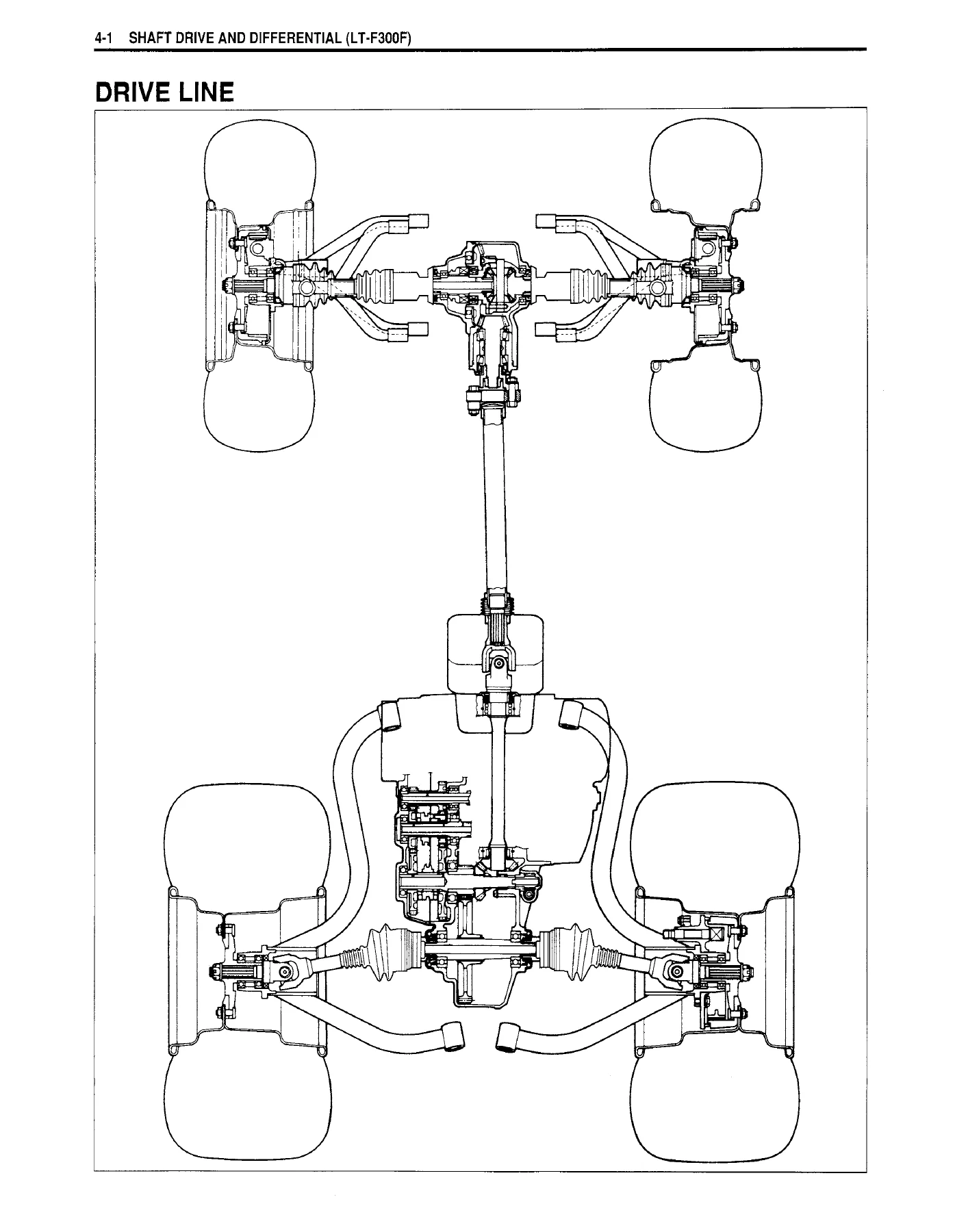

• Shaft Drive and Differential Gears (LT-F300F) – secondary driven output shaft, sub-transmission output shaft, secondary gear shim adjustment, backlash, tooth contact, rear axle, front drive bevel gear housing, front driven bevel gear and differential gears, differential bevel gear case
• Fuel and Lubrication System – fuel tank, fuel line inspection, fuel valve, fuel strainer, fuel pump, carburetor (construction, specifications, I.D. no. location, removal, disassembly, cleaning, inspection, reassembly, remounting), oil cooler, oil indicator light thermo-switch, cooling fan thermo-switch, lubrication system chart
• Chassis – exterior parts, front and rear wheels, tires, front drive shaft (LT-F300F), front brake, front suspension, steering, toe-in adjustment, rear brake, rear suspension, rear axle shaft, lever case, selection cables, trailer
• Electrical System – servicing cautions, component locations, charging system, starter system, ignition system, CDI unit, speedometer, relay, lamps, switches, battery
• Servicing Information – troubleshooting for engine, shaft drive, carburetor, fuel pump, chassis, brakes, electrical and battery, wiring diagram, wire harness and cable/hose routing, special tools, tightening torque, service data
• LT-F300Y / 300FY (2000-Model) supplement – specifications, service data, reverse switch installation, carburetor, wiring diagram, cable routing
• LT-F300K1 / 300FK1 (’01-Model) supplement – specifications, service data, wiring diagram
• LT-F300FK2 (’02-Model) supplement – specifications, service data, tightening torque, periodic maintenance, front disc brake, front suspension, regulator/rectifier, starter system, ignition/starter control relay, CDI unit, wiring diagram, front brake hose routing

What this King Quad 300 service manual gives a technician is a documented path from symptom to fix. The Periodic Maintenance chapter opens with a scheduled-interval chart and then walks through every checkpoint in order, from battery electrolyte to valve clearance, spark plug gapping, oil and filter changes, differential gear oil, brake fluid and shoe wear limits. When the job moves into the engine, the manual provides the exploded assemblies, torque calls, thread-lock references and bearing/shim measurements needed to split the crankcase, service the clutch, rebuild the cylinder head and reassemble the transmission without guessing at the order. The electrical chapter includes color-coded wiring diagrams, ignition coil primary and secondary resistance checks, pick-up coil peak-voltage testing, generator continuity, regulator/rectifier diode testing and the full switch continuity tables – so chasing a no-spark or no-charge fault follows a defined procedure rather than a test-light hunt. For LT-F300F owners, the shaft-drive and differential chapter is the standout section: it details shim-based backlash and tooth-contact adjustment for the front drive bevel gear, secondary gear set, and the front differential, using solder-crush measurement, dial-gauge checks and a full list of replacement shim part numbers and thicknesses.

Repairs and Diagnostics the Manual Enables

The Suzuki LT-F300 LT-F300F King Quad 1999-2002 Service Manual with Supplements supports the work most King Quad 300 owners eventually face: top-end rebuilds, valve adjustment, cam chain and cam chain tensioner service, clutch inspection and lock-up testing, starter motor and starter clutch rebuild, carburetor cleaning and float-height setting, fuel pump diagnosis, brake bleeding and shoe/drum measurement, master cylinder rebuild, toe-in adjustment, front and rear suspension bushing replacement, universal joint and boot service, and the full differential backlash and tooth-contact procedure that many owners cannot find documented anywhere else for the F-model. Compression pressure tests, oil pressure checks, current-leak tests and charging-output measurements are all specified with values, so an owner can verify condition rather than just swap parts.

Why Having the Correct Procedures and Specs Matters

This ATV uses an oil-cooled single-cylinder engine, a centrifugal automatic clutch feeding a five-speed plus reverse transmission with a sub-transmission, and on the LT-F300F a shaft-driven front differential with shim-adjusted bevel gears. Guessing at torque values or shim thicknesses on a setup like this quickly turns a small repair into a costly one. The manual supplies the exact torque figure for each fastener, the correct thread-lock or bond agent where needed, service limits for wear parts, and adjustment values such as toe-in, brake play, float height, valve clearance and clutch engagement speeds. Having those in front of you is what separates a repair that lasts from one that comes back.

IMAGES PREVIEW

Instant PDF Delivery

Your download is delivered immediately after checkout as a PDF, with no shipping and no waiting on a physical book. It opens on any phone, tablet, laptop or desktop and prints cleanly if you prefer paper on the bench. Keep it on the workshop tablet, search it on the fly, or print the section you need and let the rest stay in the file. Whether you are servicing your own King Quad, running a small repair shop, or maintaining a fleet, the Suzuki LT-F300 LT-F300F King Quad 1999-2002 Service Manual with Supplements is the reference that belongs on the shelf – or the hard drive – of anyone working on these machines.
