Suzuki Rg 413 Service Repair Manual 2000 – PDF DOWNLOAD

Description

Suzuki Rg 413 Service Repair Manual 2000

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:1900+
DOWNLOADABLE:YES
FILE TYPE:PDF

SUZUKI RG 413 SERVICE REPAIR MANUAL 2000 – PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Suzuki Rg 413 Service Repair Manual 2000

GENERAL DESCRIPTION CONSTRUCTION AND SERVICING:

The transmission provides five forward speeds and one reverse speed by means of three synchronizers and three shafts-input shaft, countershaft and reverse gear shaft. All forward gears are in constant mesh, and reverse uses a sliding idler gear arrangement. The low speed synchronizer is mounted on counter shaft and engaged with counter shaft first gear or second gear, while the high speed synchronizer is done on input shaft and engaged with input shaft third gear or fourth gear. The fifth speed synchronizer on input shaft is engaged with input shaft fifth gear mounted on the input shaft. The double cone synchronizing mechanism is provided to 2nd gear synchromesh device for high performance of shifting to 2nd gear.

• The countershaft turns the final gear and differential assembly, thereby turning the front drive shafts which are attached to the front wheels. 4WD model is equipped with transfer assembly on transmission being mated to right side of differential output in transmission.
• For servicing, it is necessary to use genuine sealant or its equivalent on mating surfaces of transmission case which is made of aluminum. The case fastening bolts must be tightened to specified torque by means of torque wrench. It is also important that all parts are thoroughly cleaned with cleaning fluid and air dried before reassembling.
• Further, care must be taken to adjust pre-load of counter shaft taper roller bearings. New synchronizer rings are prohibited from being lapped with respective gear cones by using lapping compound before they are assembled.

TABLE OF CONTENTS:

Suzuki Rg 413 Service Repair Manual 2000

GENERAL DESCRIPTION 7A-2
CONSTRUCTION AND SERVICING 7A-2

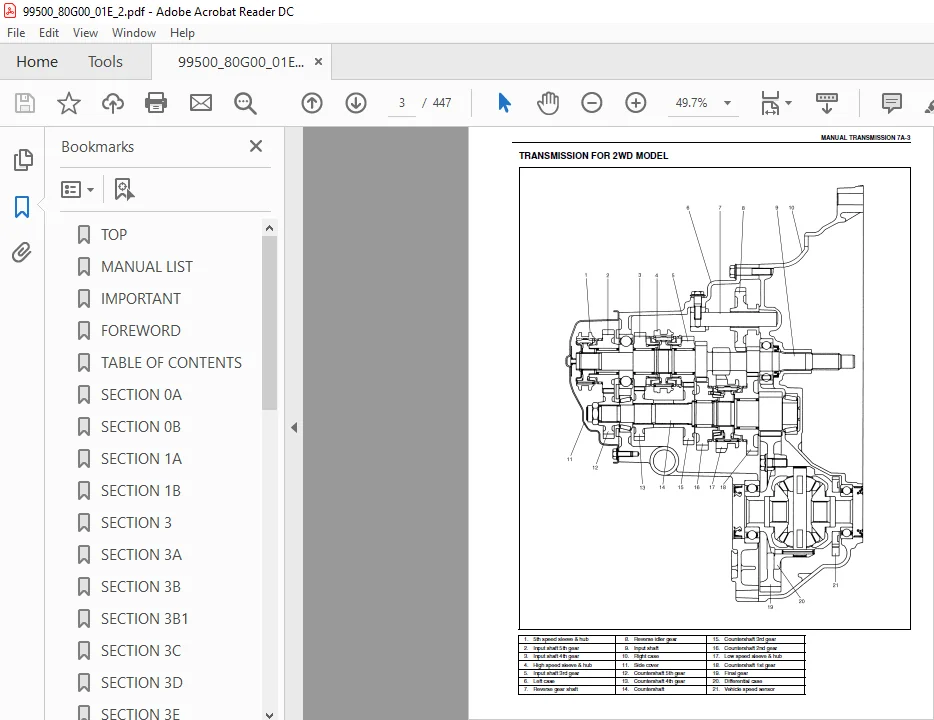

TRANSMISSION FOR 2WD MODEL 7A-3

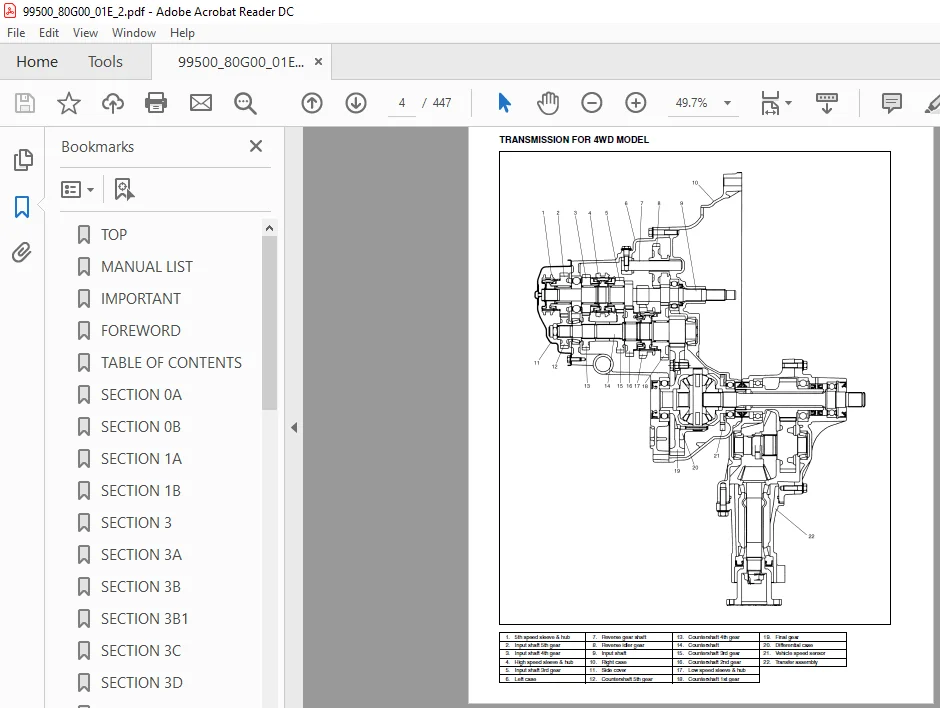

TRANSMISSION FOR 4WD MODEL 7A-4
DIAGNOSIS 7A-5
ON-VEHICLE SERVICE 7A-5
OIL CHANGE 7A-6
DIFFERENTIAL SIDE OIL SEAL 7A-6
GEAR SHIFT CONTROL LEVER AND
CABLE 7A-8
VEHICLE SPEED SENSOR (VSS) 7A-10

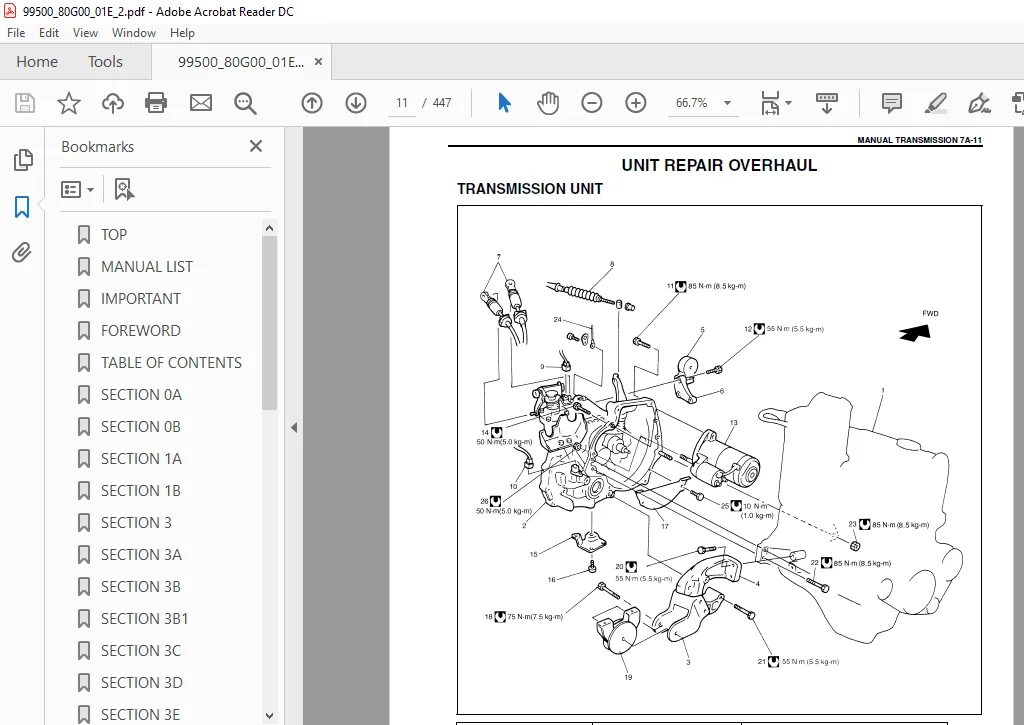

UNIT REPAIR OVERHAUL 7A-11
TRANSMISSION UNIT 7A-11
TRASMISSION CASE 7A-12
INPUT & COUNTER SHAFT 7A-13
GEAR SHIFTER & DIFFERENTIAL 7A-14
TRANSMISSION UNIT 7A-16
UNIT DISASSEMBLY 7A-17
FIFTH GEARS 7A-17
GEAR SHIFTER, INPUT SHAFT AND
COUNTER SHAFT 7A-19
RIGHT CASE 7A-20
SUB ASSEMBLY SERVICE 7A-21
RIGHT CASE 7A-21
LEFT CASE 7A-21
INPUT SHAFT ASSEMBLY 7A-22
COUNTER SHAFT ASSEMBLY 7A-25
GEAR SHIFTER 7A-29
DIFFERENTIAL ASSEMBLY 7A-31
UNIT ASSEMBLY 7A-34
DIFFERENTIAL TO LEFT CASE 7A-34
FIFTH GEARS 7A-36
GEAR SHIFT AND SELECT SHAFT
ASSEMBLY 7A-39
TIGHTENING TORQUE SPECIFICATION 7A-40
REQUIRED SERVICE MATERIAL 7A-41
SPECIAL TOOL 7A-41

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
