SUZUKI V STROM 650 TECHNICAL INFORMATION SERVICE MANUAL – PDF DOWNLOAD

Description

SUZUKI V STROM 650 TECHNICAL INFORMATION SERVICE MANUAL – PDF DOWNLOAD

DESCRIPTION:

SUZUKI V STROM 650 TECHNICAL INFORMATION SERVICE MANUAL – PDF DOWNLOAD

1. INTRODUCTION AND CONCEPT

1) Nothing To Stop You Sport Enduro Tourer. What else can we call the 2004 Suzuki V-Strom 650, also known as the DL650? It is a machine built for adventuring fun, whether that means climbing a mountain pass on a twisty two-lane paved road, exploring the center of an ancient city, cruising along the Autostrada to the seashore, or simple showing up at work with a mile-wide grin. Or all of the above.

Every day, or on two weeks of serious vacation. Alone, or with company. All in a middleweight package that delivers in-town versatility and sporty on-road performance, with low seat height, wind protection, highway touring comfort and serious range. Ready for two-wheeled adventure? With the new V-Strom 650, there’s nothing to stop you.

2) Concept

• “The Middleweight Sport Enduro Tourer” The V-Strom 650(DL650)’s product concept is “The middleweight Sport Enduro Tourer”. In other words, the V-Strom 650 inherits the V-Strom1000’s product concept “Sport Enduro Tourer” and is even more user-friendly.
• The V-Strom 650 has been designed to be competitive in the 650cc class in terms of high power output, convenience for touring and versatile performance. To achieve these objectives, the development team clearly identified the following three main aims: Sporty Performance The V-Strom650’s engine maximum output and torque are higher than those of any other competitors.
• And the V-Strom650 is equipped with 6-speed transmission while the competitors have 5-speed transmission. The primary ratio and 1st to 6th ratios are same as SV650’s, however, the final ratio is different from SV650’s in order to achieve greater versatility.
• The V-Strom650 equips sporty suspension. Front fork preload is adjustable. And the hydraulic remote control adjustment is adopted for the rear suspension. Rebound damping adjustment is equipped. The V-Strom650 uses 43mm-diameter-stanchion-tube front forks-the same as V-Strom1000-in order to obtain rigidity and absorb road shocks effectively.
• Rake and trail have been adjusted for sport riding. The frame and swingarm are based on the V-Strom1000’s and are lightweight. The twin-spar aluminium-alloy frame provides the right amount of rigidity for smooth handling.

Touring performance

Fuel tank capacity is 22 liters for long cruising range. The carrier and the luggage tie-down hooks are designed to make it easy to fix luggage. Top and pannier cases will be available as optional parts.

User-friendly performance

A height adjustable screen is newly equipped with the V-Strom650. It contributes to wind protection and it can be adjusted in 3 steps. The distance between the lowest position and highest is 50 mm. This way, the model presents enjoyable performance for riding on a highway straightaway, an urban street or any other road. A low and narrow seat contributes to riding comfort and user-friendly performance. Seat height is 820mm. The seat height is low enough for beginners or female riders. The instrument cluster has been newly designed for easy reading. Newly equipped LCD panel displays odometer, dual tripmeters, water temperature gauge, fuel gauge and clock

TABLE OF CONTENTS:

SUZUKI V STROM 650 TECHNICAL INFORMATION SERVICE MANUAL – PDF DOWNLOAD

1. INTRODUCTION AND CONCEPT
1) Nothing To Stop You
2) Concept
3) Concept Chart
2. STYLING DESIGN
1) Overview
2) Fuel Tank
3) Luggage Rack
4) Windscreen
5) Low And Narrow Seat
6) High-mounted Muffler
7) Slim And Compact Front Fairing And Side Covers
3. ENGINE DESIGN
1) Overview
2) Cylinder Head
3) Camshaft
4) Conrod
5) Transmission
6) Fuel Injection
7) Suzuki Dual Throttle Valve (SDTV)
8) Auto Fast Idle System
9) O2 Feedback System For Lower Emissions
4. CHASSIS DESIGN
1) Overview
2) Frame
3) Swingarm
4) Front Suspension
5) Rear Suspension
6) Brakes
7) Tires
5. ELECTRICAL DESIGN
1) Overview
2) Sporty And User-friendly Design With Adventurous Image
3) Newly Designed ECM (Engine Control Module)
6. SPECIFICATIONS
Questions? Email us: [email protected]

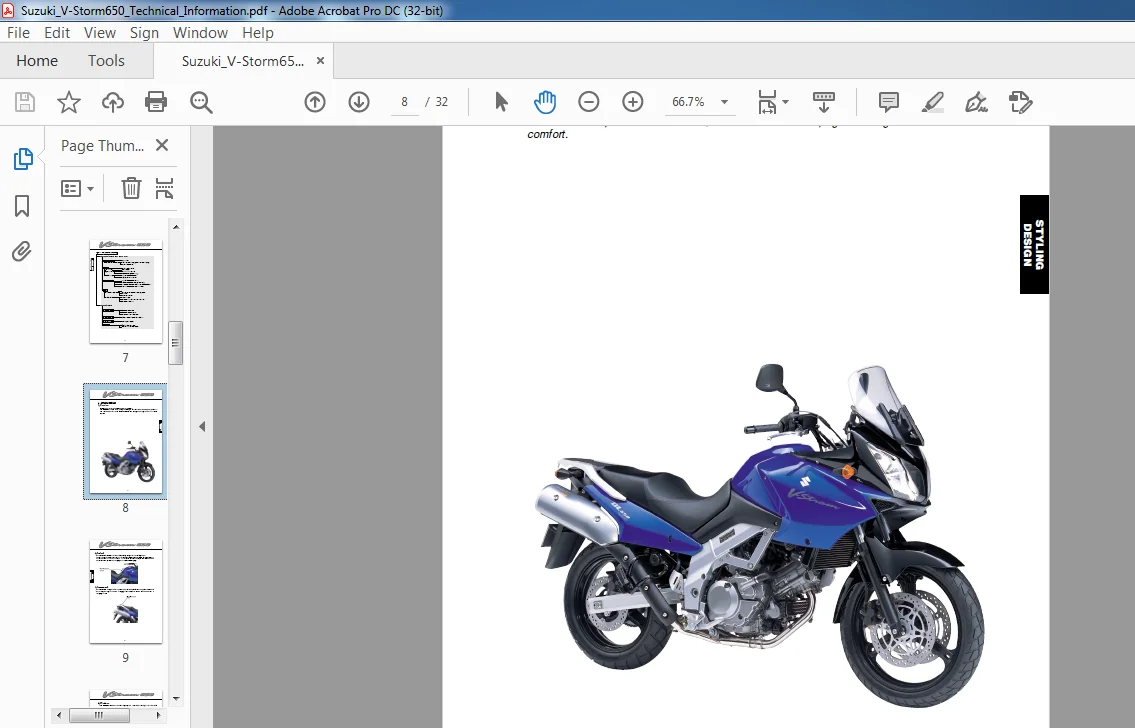

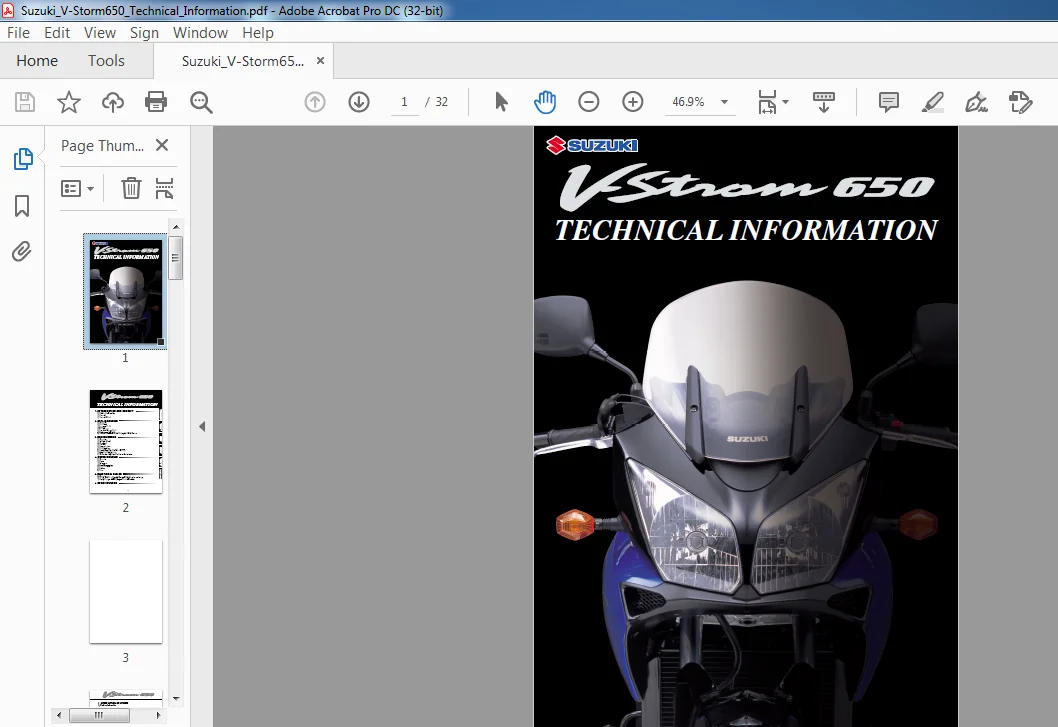

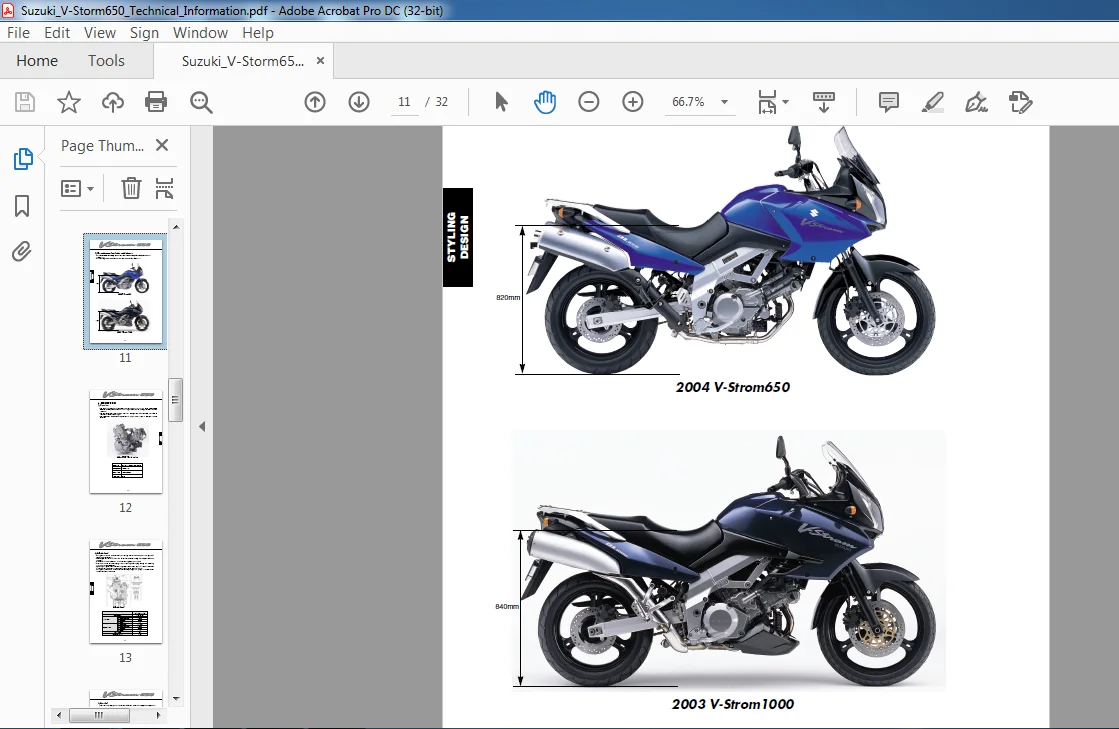

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
