Suzuki VZ800 Marauder Service Manual 1997-2002 – VZ800V W X Y K1 K2 Repair Guide PDF

Description

File Details

• Manual Type: Service Manual
• Brand: Suzuki
• Model: VZ800 Marauder
• Coverage Years: 1997-2002
• Language: English
• Page Count: 315
• File Format: PDF

Models Covered

This Suzuki VZ800 Marauder service manual covers the following model designations across all listed model years:

• VZ800V — 1997 Model
• VZ800W — 1998 Model
• VZ800X — 1999 Model
• VZ800Y — 2000 Model
• VZ800K1 — 2001 Model
• VZ800K2 — 2002 Model

This manual also includes country and area code information covering Europe, North America, Australia, and other markets, allowing you to identify the correct specifications for your region.

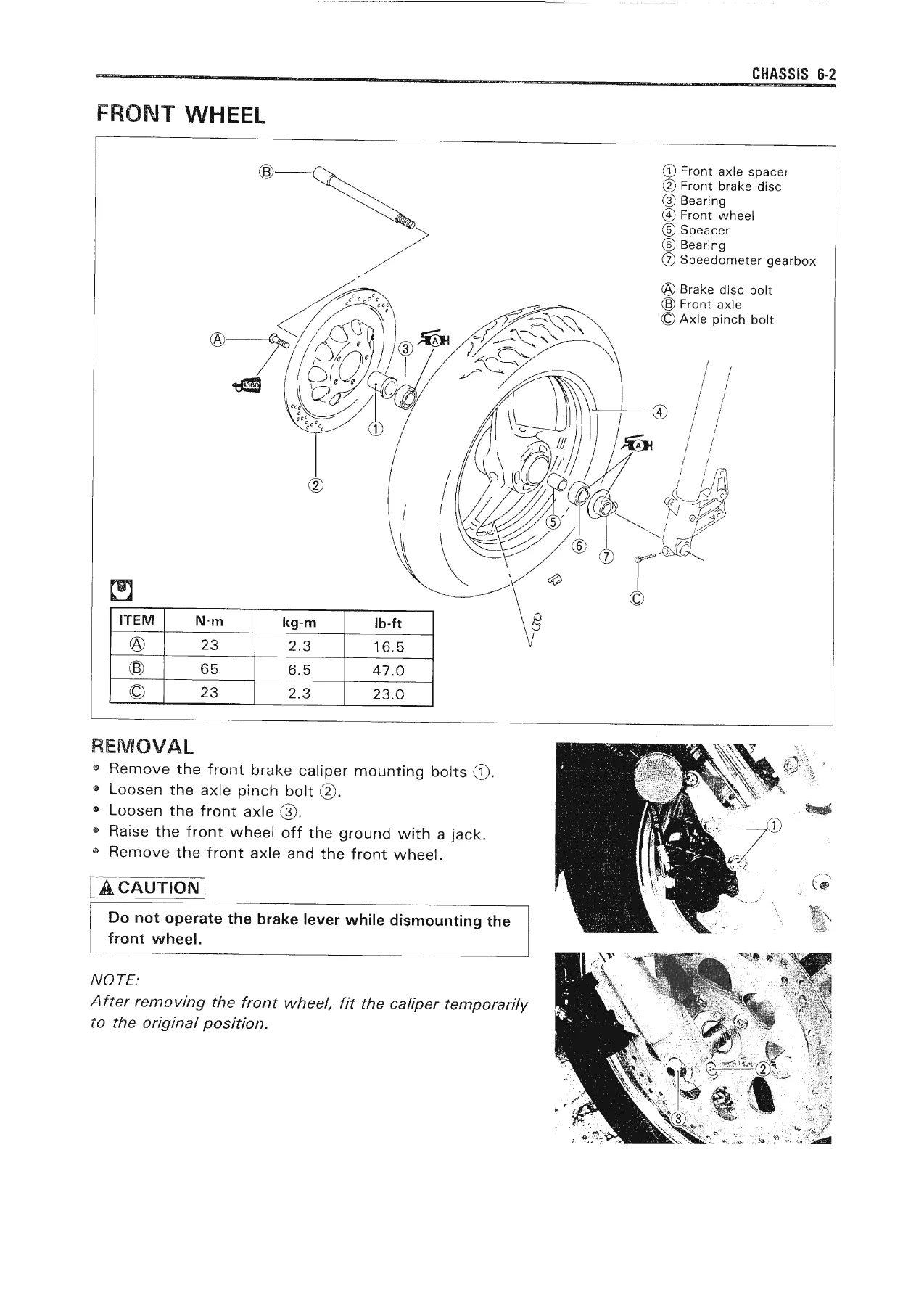

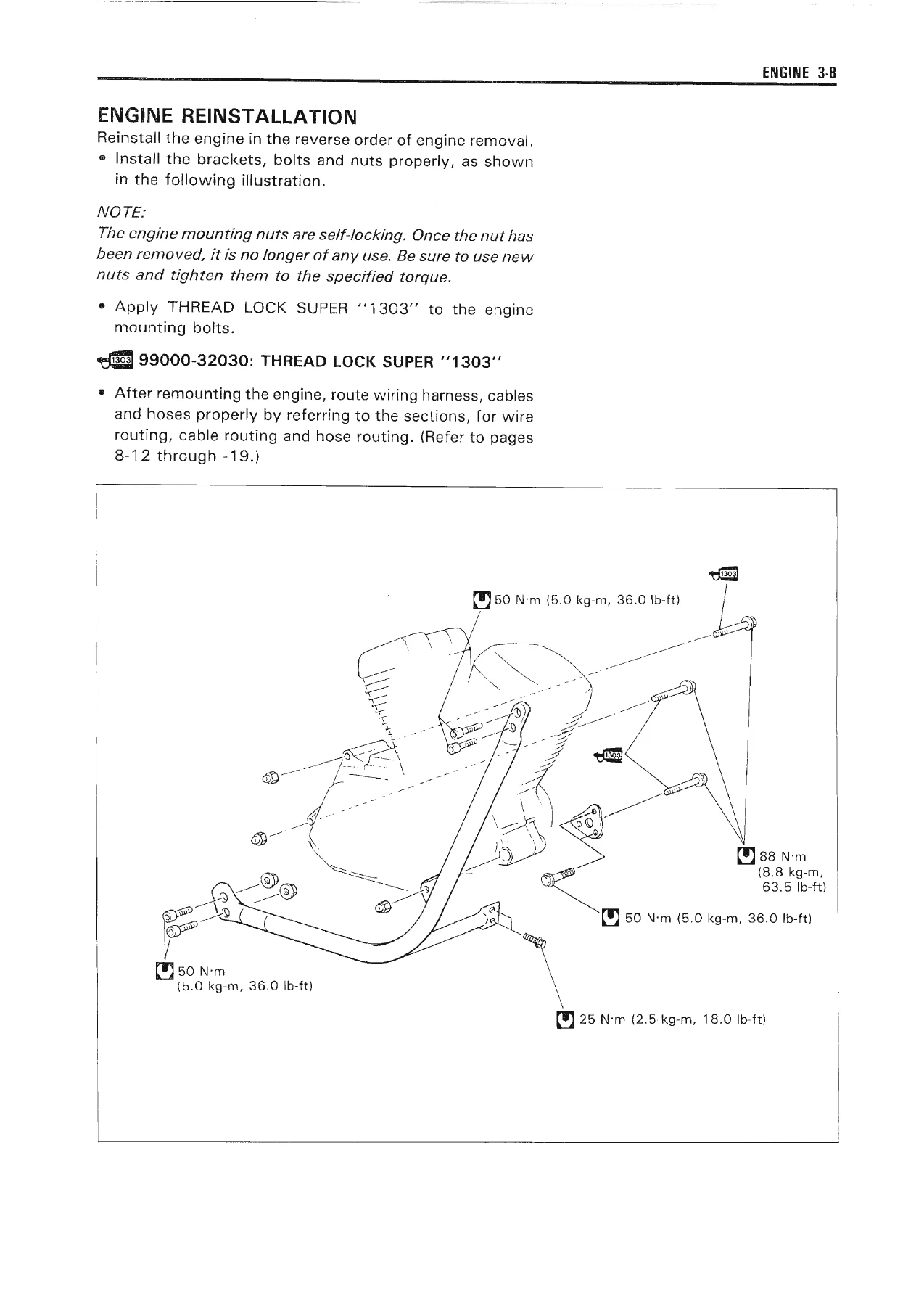

IMAGES PREVIEW

Chapters Covered

The Suzuki VZ800 Marauder repair guide is organized into the following major sections, each containing detailed procedures, specifications, and illustrations:

• General Information: Warnings and cautions, general precautions, serial number location, fuel/oil/engine coolant recommendations, break-in procedures, cylinder identification, information labels, specifications, country/area codes
• Periodic Maintenance: Maintenance schedule chart, lubrication points, air cleaner service, valve clearance inspection and adjustment, spark plug service, engine oil and filter replacement, fuel hose inspection, carburetor adjustment and synchronization, clutch adjustment, engine coolant change, drive chain service, brake inspection and adjustment, tire inspection, steering check, front fork inspection, rear suspension inspection, exhaust pipe bolt tightening, chassis bolt and nut torque, compression pressure check, oil pressure check
• Engine: Components removable with engine in place, engine removal and reinstallation, engine disassembly, cylinder head cover and rocker arm service, camshaft inspection, cam chain tensioner and guide, cylinder head/valve/valve spring service, cylinder and piston inspection, conrod and crankshaft service, clutch service, generator/signal generator/starter clutch, oil pump, transmission, gear-shifting fork, oil jet and nozzle, engine reassembly procedures
• Fuel and Lubrication System: Fuel pump operation and inspection, fuel tank and fuel valve removal, carburetor construction and specifications, diaphragm and piston operation, slow system, transient enrichment system, main system, starter system, float system, carburetor removal and disassembly, cleaning and inspection, needle valve inspection, fuel level inspection, float height adjustment, throttle position switch inspection, carburetor reassembly and remounting, carburetor balancing, lubrication system
• Cooling System: Description, construction, engine coolant specifications, radiator and water hose removal/inspection/installation, cooling fan removal/inspection/installation, cooling fan thermo-switch service, engine coolant temperature switch service, water pump removal/inspection/disassembly/reassembly/installation
• Chassis: Exterior parts removal and remounting, front wheel removal/inspection/reassembly, brake disc service, speedometer gearbox, front axle, tire and wheel service including tire removal and installation, front brake pad replacement, brake fluid replacement, caliper service, brake disc inspection, master cylinder service, front fork removal/disassembly/inspection/reassembly/remounting, steering stem service and adjustment, rear wheel removal/inspection/reassembly, rear brake service, rear suspension removal and inspection
• Electrical System: Complete electrical system coverage
• Servicing Information: Additional service data and procedures
• Emission Control Information: Emission control system service information
• VZ800W (’98-Model): Model-specific information
• VZ800X/Y/K1/K2 (’99, ’00, ’01, ’02-Models): Model-specific information

Engine and Performance Specifications

The Suzuki VZ800 Marauder is powered by a four-stroke, water-cooled, OHC, 45-degree V-twin engine with a piston displacement of 805 cm³ (49.1 cu. in.). The engine runs an 83.0 mm bore and 74.4 mm stroke. Front cylinder carburetion is handled by a MIKUNI BDS36SS, while the rear cylinder uses a MIKUNI BS36SS. The transmission is a 5-speed constant mesh unit with a 1-down, 4-up gearshift pattern.

Periodic Maintenance Quick Reference

The Suzuki VZ800 Marauder service manual includes a complete periodic maintenance chart with intervals specified in kilometers, miles, and months. Key service items include air cleaner element inspection and replacement, valve clearance inspection, spark plug inspection and replacement, engine oil and filter changes, fuel hose inspection, engine idle speed adjustment, throttle cable play, carburetor synchronization, clutch adjustment, radiator hose inspection, engine coolant change, drive chain cleaning and lubrication, brake inspection, brake fluid and hose replacement, tire inspection, steering inspection, front fork and rear suspension inspection, exhaust pipe bolt tightening, and chassis bolt and nut torque checks.

Why This Manual Matters

Whether you are performing routine maintenance, diagnosing a running issue, or undertaking a full engine rebuild, having the correct Suzuki VZ800 Marauder service manual is essential. This manual provides the exact torque specifications, service limits, adjustment values, and step-by-step procedures that generic repair guides simply cannot match. From valve clearance adjustments to crankshaft bearing selection, every critical measurement and procedure is documented with clear illustrations and exploded views.

The Suzuki VZ800 Marauder repair guide covers the engine, fuel system, cooling system, chassis, and electrical system in comprehensive detail. Special tools are called out where required, and caution notes highlight potential hazards to both the mechanic and the motorcycle. The manual is written for persons with enough knowledge, skills, and tools to service Suzuki motorcycles properly, but it is equally valuable for the dedicated owner who wants to understand their machine inside and out.

Your Instant Download

This Suzuki VZ800 Marauder service manual is delivered as an instant PDF download. No shipping, no waiting — you get immediate access to the complete 315-page document after payment. The PDF works on any device: laptop, desktop, tablet, or smartphone. You can print individual pages or the entire manual for use in the workshop. Keep it on your phone for quick reference during roadside adjustments or print the sections you need for a weekend rebuild project.
