T53-L-11C L-11D L-13B L-13BA L-703 Aviation Engine Maintenance Manual TM 55-2840-229-23-1
Original price was: $49.95.$29.95Current price is: $29.95.
Detailed Aviation Unit and Intermediate Maintenance Manual covering T53-L-11C, T53-L-11D, T53-L-13B, T53-L-13BA and T53-L-703 engine assemblies. This Volume 1 PDF contains Engine-General, Compressor Section and Combustion Section material with inspection, troubleshooting, testing, disassembly, repair, assembly, installation and preservation procedures.
Description
T53-L-11C L-11D L-13B L-13BA L-703 Aviation Engine Maintenance Manual TM 55-2840-229-23-1
This extensive aviation engine maintenance reference covers the T53-L-11C, T53-L-11D, T53-L-13B, T53-L-13BA and T53-L-703 engine assemblies at Aviation Unit Maintenance and Aviation Intermediate Maintenance levels. The manual combines engine description and operating data with practical procedures for inspection, servicing, troubleshooting, testing, removal, disassembly, cleaning, repair, replacement, assembly, installation, preservation and storage.

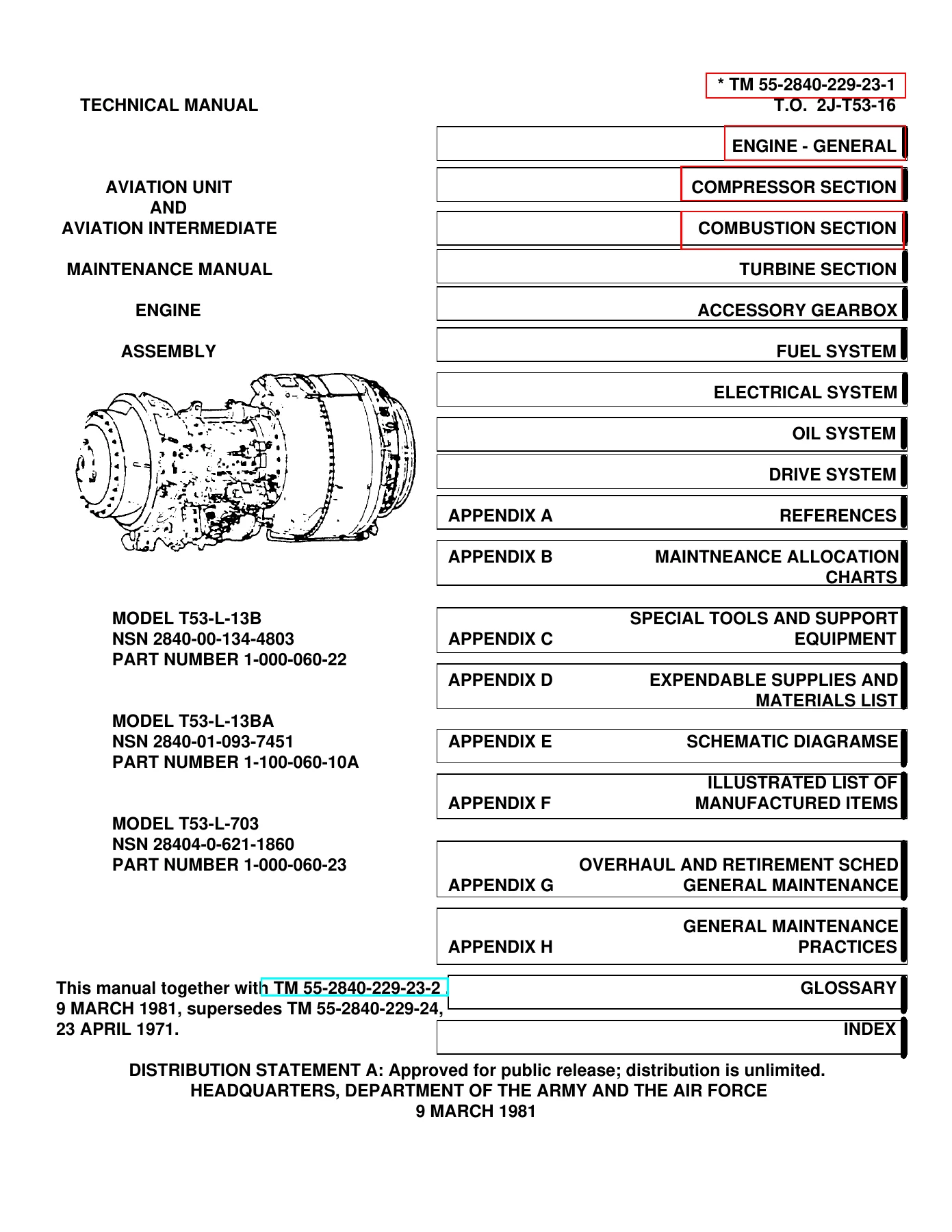

The T53-L-11C L-11D L-13B L-13BA L-703 Aviation Engine Maintenance Manual TM 55-2840-229-23-1 is Volume 1 of the two-volume TM 55-2840-229-23 publication. This volume contains the warning material, contents information and Chapters 1 through 3. The companion -23-2 volume contains Chapters 4 through 9 and the appendixes, so buyers needing those later chapters should note that they are not part of this PDF.
Engine Systems and Maintenance Scope
Chapter 1 develops the engine as a complete system before moving into the dedicated compressor and combustion chapters. It describes the major sections and assemblies, starting and main fuel systems, lubrication, electrical equipment, internal cooling and pressurization, anti-icing, interstage air bleed, and the variable inlet guide vane system used on the T53-L-13B/703 configurations. Model differences and engine leading particulars are included so procedures and limits can be related to the applicable configuration.
The manual identifies the T53-L-11 series and T53-L-13B/703 engines as free-type power turbine turboshaft engines for helicopter applications. Its maintenance coverage is organized around accessory gearbox, compressor, combustor, turbine, electrical, fuel, lubrication and drive-system work. Procedures that require Aviation Intermediate Maintenance are identified as AVIM tasks, while procedures without a specified higher level are treated as Aviation Unit Maintenance tasks.
Inspection, Troubleshooting and Engine Testing
A major portion of this T53 engine maintenance manual is devoted to condition assessment rather than simple component description. Preventive and special inspections address events and symptoms that can directly determine whether further repair, testing or removal is required. Subjects include dropped-engine inspection, prolonged storage, suspected compressor stall, inlet blockage, sand and dust ingestion, hot-end condition, compressor condition, bearing-seal problems, overspeed, overtemperature, contaminated fuel or oil, overtorque, sudden stoppage, excessive G-loads and aircraft mishap conditions.
Engine testing material covers operating limits, vibration evaluation, test requirements, test schedules and performance calculations. The manual includes model-specific charts and limits for shaft horsepower, N1 and N2 operation, exhaust gas or turbine gas temperature, fuel flow, torque and other parameters. Ground testing with a mobile trailer assembly is also addressed, giving technicians a structured reference for checking engine condition after maintenance or when investigating performance concerns.
Compressor and Combustion Maintenance

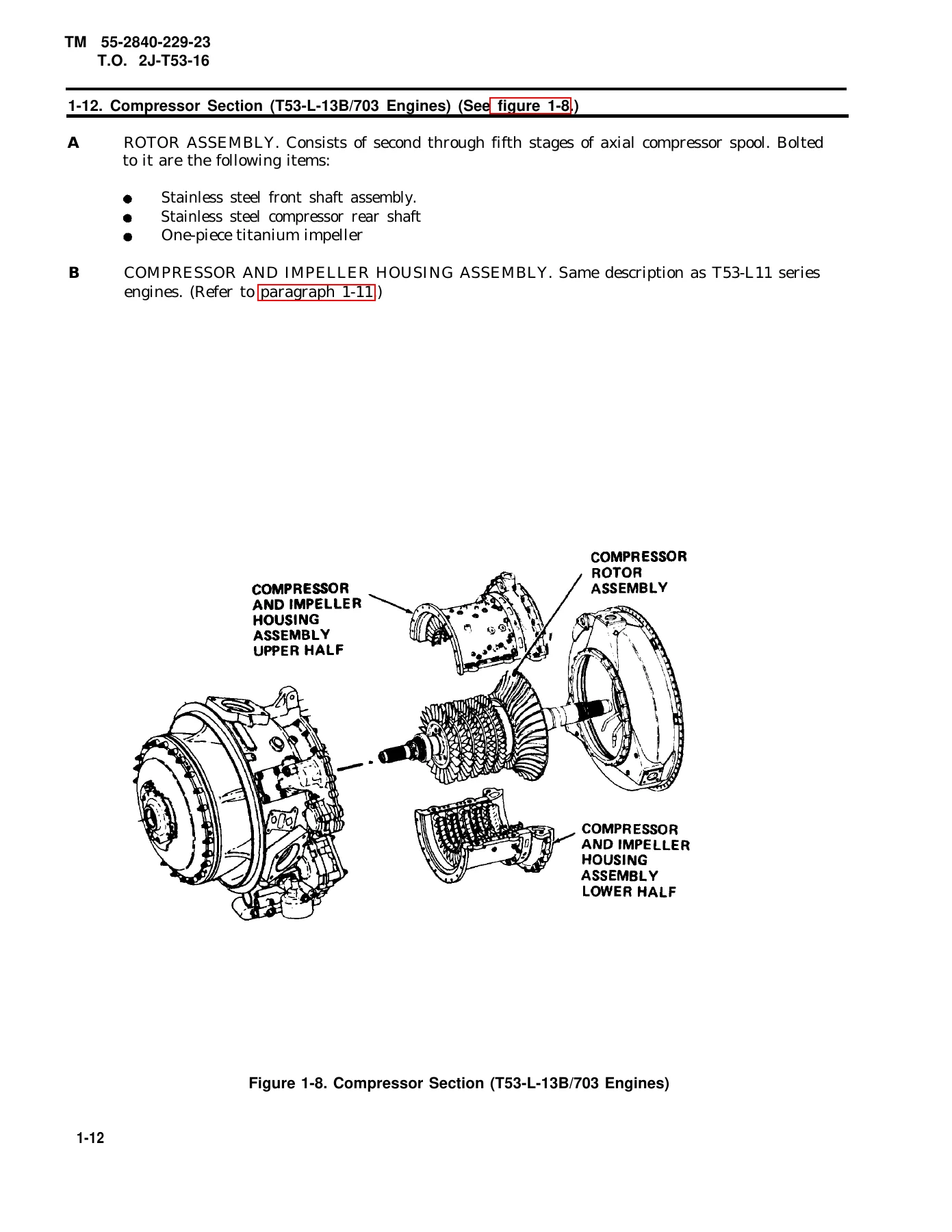

Chapter 2 concentrates on preservation and maintenance of the compressor section. Coverage includes the air inlet area, inlet guide vanes, compressor rotor blades, inlet housing, variable inlet guide vane components, compressor and impeller housings, compressor rotors and centrifugal impellers, the air diffuser, overspeed governor and tachometer drive, torquemeter-related adjustments, and interstage bleed components. The procedures span cleaning, clearance checking, inspection, disassembly, repair, blade replacement, assembly, installation, operational checks and pressure testing where specified.
Chapter 3 provides similarly detailed treatment of the combustion section. It includes inspection and repair of combustion chamber housings and liners, removal and installation of related deflectors and seals, combustion chamber disassembly and assembly, drain-valve inspection and functional testing, flow-divider-related work on applicable engines, exhaust diffuser inspection and repair, support cone procedures, fireshield and V-band inspection, and associated brackets, clamps, tubes and related hardware. The manual distinguishes between T53-L-11-series procedures and T53-L-13B/703 procedures where their construction or maintenance requirements differ.
Chapters Covered
- Chapter 1 – Engine-General
- General Information
- Equipment Description and Data
- Repair Parts, Special Tools, TMDE and Support Equipment
- Flight Safety Parts
- Service Upon Receipt
- Preventive Maintenance Inspections
- Troubleshooting
- General Maintenance Procedures
- Engine Testing
- Chapter 2 – Compressor Section
- General Maintenance Information
- Air Inlet Area, Inlet Guide Vanes and Compressor Rotor Blade Cleaning
- Inlet Housing Assembly Inspection
- Inlet Guide Vane Cleaning and Inspection
- Variable Inlet Guide Vane Assembly Inspection
- Inlet Guide Vane Actuator Removal, Inspection, Disassembly, Repair, Assembly and Installation
- Compressor and Impeller Housing Removal, Cleaning, Inspection, Repair and Installation
- Compressor Rotor and Centrifugal Impeller Clearance Checks
- Compressor Rotor Blade Cleaning, Inspection, Repair and Replacement
- Compressor Rotor Subassembly Inspection
- Centrifugal Compressor Impeller Inspection and Repair
- Air Diffuser Inspection
- Overspeed Governor and Tachometer Drive Maintenance
- Torquemeter Adjustment
- Interstage Bleed Actuator and Bleed Band Maintenance
- Chapter 3 – Combustion Section
- General Maintenance Information
- Combustion Chamber and Housing Inspection
- Combustion Chamber Housing Repair
- Combustion Chamber Liner Inspection and Repair
- Air Deflector and Combustion Chamber Deflector Maintenance
- Combustion Chamber Disassembly and Assembly
- Combustion Chamber Drain Valve Removal, Inspection, Functional Test and Installation
- Flow Divider and Drain Valve Assembly Procedures for T53-L-13B/703 Engines
- Exhaust Diffuser Inspection and Repair
- Exhaust Diffuser Support Cone Disassembly, Inspection and Assembly
- Fireshield, V-Band, Oil Strainer Housing Adapter and Power Turbine Tube Inspection
- Bracket and Clamp Assembly Removal, Inspection and Installation
Together, these three chapters provide a working maintenance reference from whole-engine description and fault investigation through detailed compressor and combustion-section maintenance. Numerous component illustrations, exploded views, system schematics, inspection illustrations and maintenance tables support the written procedures and make it easier to identify assemblies, understand system routing and follow configuration-specific work.
IMAGES PREVIEW
Model-Specific Technical Information
The manual separates specifications and construction differences where necessary. It identifies T53-L-11C and T53-L-11D as T53-L-11 series engines and provides dedicated information for the T53-L-13B and T53-L-703. Engine leading particulars include dimensions, weights, rotational directions, specified fuel and oil, compressor ratios, operating temperature ranges and other performance information. The manual also documents differences in turbine arrangement and rated shaft horsepower, with figures and diagrams showing the configurations of major components.

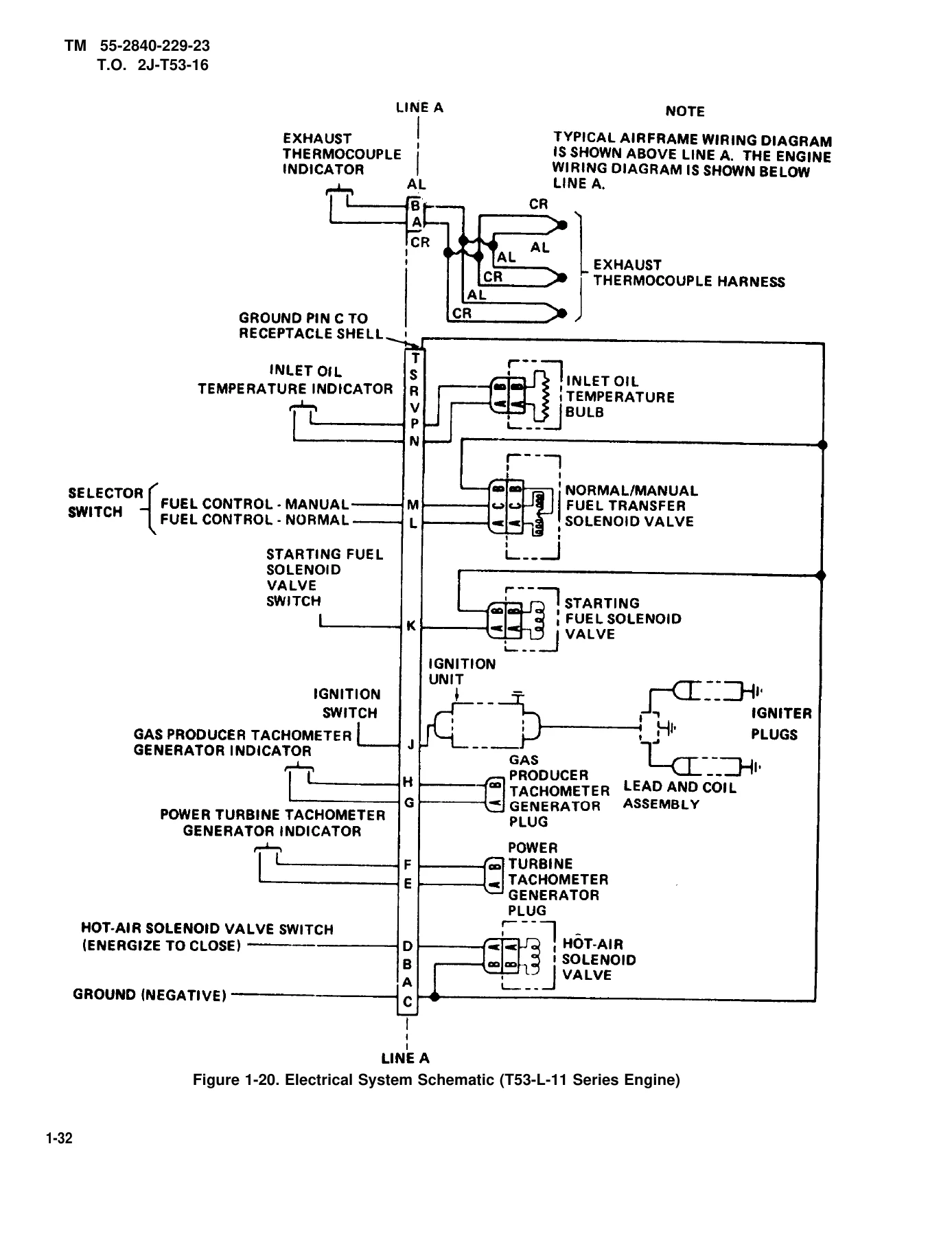

System illustrations include lubrication flow diagrams, electrical schematics, internal cooling and pressurization paths, anti-icing equipment, interstage air-bleed operation and inlet guide vane control. These diagrams complement the inspection and maintenance procedures by showing how individual parts interact within the complete engine.
File Details
- Manual type: Aviation Unit and Intermediate Maintenance Manual
- Equipment: Engine Assembly
- Models: T53-L-11C, T53-L-11D, T53-L-13BA, T53-L-13B, T53-L-703
- Technical manual: TM 55-2840-229-23-1
- Air Force reference: T.O. 2J-T53-16-1
- Original date: 9 March 1981
- Latest included change: Change 25, 25 March 1999
- Language: English
- PDF file: 850 pages
- Format: PDF
Maintain, Inspect and Troubleshoot with the Correct Procedures
The T53-L-11C L-11D L-13B L-13BA L-703 Aviation Engine Maintenance Manual TM 55-2840-229-23-1 gives technicians a detailed reference for diagnosing engine problems, evaluating overlimit or damage events, performing scheduled and special inspections, checking operating performance, and carrying out authorized compressor and combustion-section maintenance. Its configuration-specific instructions, inspection limits, test information and illustrated procedures help ensure that work is based on the applicable published maintenance data rather than assumptions.
After purchase, the manual is delivered instantly as a PDF with no shipping delay. It can be opened on compatible computers, tablets and phones and printed when a paper reference is useful at the workbench or maintenance area.
