TCM FRB 8 Series Electric Reach Truck Service Manual – SEB-7A0AE PDF Download

Description

About This TCM FRB 8 Series Service Manual

This is the TCM Corporation service manual for the FRB 8 and FRHB 8 series electric forklift trucks of the reach type, covering trucks in the 1.0 to 3.0 ton class. Every truck in this series runs an AC drive motor managed by an inverter controller, and every model in the range is fitted with electric power steering (EPS) as standard, so the material here is written around the electrical and hydraulic architecture those trucks share. The document is identified as No. SEB-7A0AE and is dated November 2008.

The manual opens with service-safety cautions, moves through the fundamental bench skills you need before touching a reach truck (bearing, O-ring and oil seal installation, LOCTITE use, tightening torques, cleaning practice), and then breaks down the machine system by system. Motors, controller, drive unit, steering, brakes, hydraulics, load handling, battery/charger – all are given their own general description and maintenance chapter, followed by an extensive troubleshooting guide organised by error code and by symptom. If you own, service or maintain an FRB 8 or FRHB 8 series reach truck, this is the reference document the work is built around.

File Details

• Manual type: Service manual (workshop / repair)
• Brand: TCM Corporation
• Series: FRB 8 / FRHB 8 (reach type electric forklift truck)
• Document number: SEB-7A0AE
• Issued: November 2008
• Language: English
• File format: PDF
• Page count: 214 pages

Chapters Covered in the FRB 8 Series Service Manual

• 01. Cautions to take when servicing the truck
• 02. Basic servicing knowledge – installing bearings, O-rings, oil seals, using LOCTITE, power wrench use
• 03. Cleaning – general metallic parts, bearings, rubber parts
• 04. Standard bolt tightening torques, by strength division and thread size
• 05. Lubrication – hydraulic oil tank, drive unit, power steering actuator case, greasing points
• 06. Parts list – fuses, oil tank suction filter, lights, disk brake pads, tyres
• 1. Battery and battery charger (option) – battery cells, case locking device, receptacle remover, battery care, adding electrolyte, recharging, specific gravity correction, charger transformer and diodes, tap changing
• 2. Motors – drive motor (FRB10-FRHB18 and FRB20-FRHB30), pump motor, EPS motor, motor maintenance and troubleshooting guides, bearing service, motor removal and reinstallation
• 3. Controller – main controller layout, accelerator, LCD panel and key pad functions
• 4. Drive unit – construction, replacing the drive wheel, adjustment after reassembly (drive pinion preload, bevel gear engagement and backlash, gear oil filling), troubleshooting
• 5. Steering system – steering wheel, torque sensor, steering angle sensor, EPS actuator, rear axle, lock cylinder (with air bleeding), caster wheel, trail wheel
• 6. Brake system – brake calipers, brake pedal, adjusting pedal height, adjusting brake clearance and braking force, replacing brake pads, adjusting the brake switch

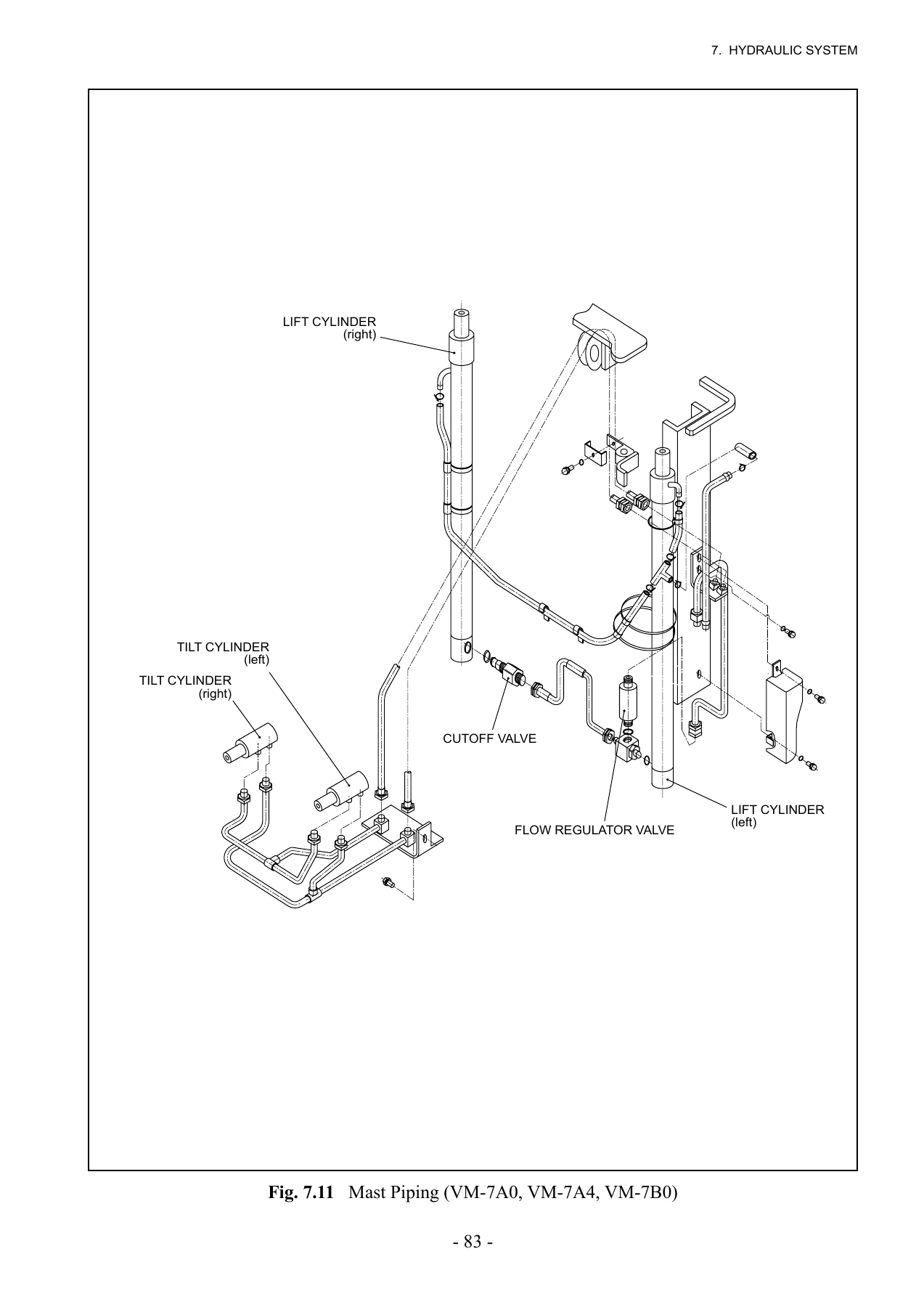

• 7. Hydraulic system – oil tank, main pump, control valve, valve control, lift cylinder and cut-off valve, flow regulator valve, tilt cylinder, reach cylinder, hydraulic oil change, strainer replacement, oil pressure measurement and adjustment, valve switch adjustment, hydraulic piping
• 8. Load handling system – outer and inner channels, carriage, roller location, adjusting the lift cylinder rod with shims, adjusting carriage height, replacing carriage and mast rollers, shim procedure
• Troubleshooting guide – how to read LED error codes, error code table, troubleshooting by error code, troubleshooting by problem, LCD panel system errors
• Parameter setting – parameter setup screens, key pad operation, level-setting notes, password setup
• Description of the functions – steering SSC, torque boost, interlocks, suspension lock, regenerative control, front brake control
• Electric wiring – controller internal wiring, frame and head guard harnesses, LCD panel, centre cover, battery switch, brake switch, valve switch, brake harnesses, overall wiring diagrams

Read end to end, this TCM FRB 8 series service manual gives a technician the whole working picture of a reach truck – not just the isolated repair steps, but the reasoning behind them. You get the safety framework that governs lifting and supporting a reach truck, the fundamentals that make bearing and seal work reliable, the lubrication chart that keeps wear down, and then the full system coverage: how the 3-phase AC drive motor is controlled by the inverter, how the pump motor and EPS motor are managed through the controller, how the drive unit reduces motor speed through its gear train, how the EPS actuator steers the drive unit, how the brake caliper clamps the disc on the motor shaft, and how the hydraulic circuit feeds the lift, tilt and reach cylinders through the control valve and flow regulator. Everything is anchored to the truck’s own service data – torque values, clearances, pressure settings, voltage checkpoints, oil capacities – so you are never guessing.

Diagnostics and Error Codes Included

A large portion of the 214-page SEB-7A0AE service manual is given over to troubleshooting. The guide starts by showing you how the controller CPU board flashes error codes through an orange LED, and how those codes map to the LCD panel display. From there it builds out into an error code table and a series of step-by-step diagnostic flows – covering low voltage, main contactor faults, travelling FET module faults, drive motor thermosensor faults, load handling FET faults, pump motor current sensor faults, EPS motor and torque sensor faults, steering angle potentiometer faults and CAN communication faults, among others. Each entry lists the problem, the probable cause, the resetting conditions and the corrective action, so you can work from a symptom or a stored code down to the failed component without dismantling anything unnecessarily.

The manual also includes a companion troubleshooting-by-problem section for cases where no error code is present – blank LCD panel, MD contactor not working, truck travelling but not accelerating, a single lift/tilt/reach/ATT lever failing to respond, slow lift speed, pump motor not stopping. That structure means you can use the FRB 8 series manual as a live diagnostic tool, not just a reference for planned repairs.

Models Covered by This Manual

The TCM FRB 8 series service manual covers the following reach truck models: FRB10-8c, FRB10-8, FRHB10-8, FRHB10-8c, FRB13-8, FRHB13-8, FRB13-8c, FRHB13-8c, FRB14-8, FRHB14-8, FRB15-8, FRHB15-8, FRB18-8, FRHB18-8, FRB20-8, FRHB20-8, FRB25-8, FRHB25-8, FRB30-8 and FRHB30-8. Throughout the text the models are grouped by tonnage, with 1.0 to 1.8-ton trucks and 2 to 3-ton trucks generally treated separately for capacities, torques, cylinder bores and drive wheel dimensions, so you can locate the correct values for your specific machine quickly.

What You Can Do With This Manual

The FRB 8 series service manual supports the full range of workshop work on these trucks: routine servicing and lubrication, drive wheel and caster wheel replacement, brake pad replacement and brake adjustment, hydraulic oil changes and strainer replacement, relief valve pressure measurement and adjustment, lift cylinder and piston service, mast roller and carriage roller replacement, shim adjustment of the lift cylinder rod, steering torque sensor replacement and neutral adjustment, steering angle potentiometer neutral adjustment, drive unit gear oil filling and bevel gear backlash adjustment, EPS motor and pump motor removal, and battery electrolyte top-up and recharging.

On top of that, the electric wiring chapter – with controller internal wiring, the frame harness, the LCD panel harness, the centre cover harness, the battery switch, brake switch, valve switch and brake harnesses, plus the overall wiring and circuit diagrams – lets you trace circuits, verify checkpoints and diagnose the controller and motor systems with confidence instead of swapping parts.

Why the Correct Procedures and Specs Matter on a Reach Truck

A reach truck is a load-bearing, high-reach, high-cycle machine. A brake clearance set wrong, a bevel gear backlash left out of tolerance, a lift cylinder cut-off valve assembled incorrectly, a torque value guessed at – each of these can become a safety problem or an expensive failure. The TCM FRB 8 series service manual states the values and clearances TCM specifies, including preload figures for the drive pinion, backlash limits for the bevel gear, torque values for the drive wheel hub bolts and brake pad lock bolts, relief pressure settings by model group, hydraulic oil capacities by mast lift height, insulation resistance thresholds for the motors, and voltage checkpoints for the potentiometers and sensors. Working from the manual’s numbers is the difference between a repair that holds and one that comes back.

The manual is also the map for the electrical side. Because this series uses an inverter-controlled AC drive motor, a chopper-controlled pump motor and an H-bridge EPS controller, fault finding is largely an exercise in reading codes and following voltage checkpoints. The error code table plus the wiring diagrams give you exactly that pathway.

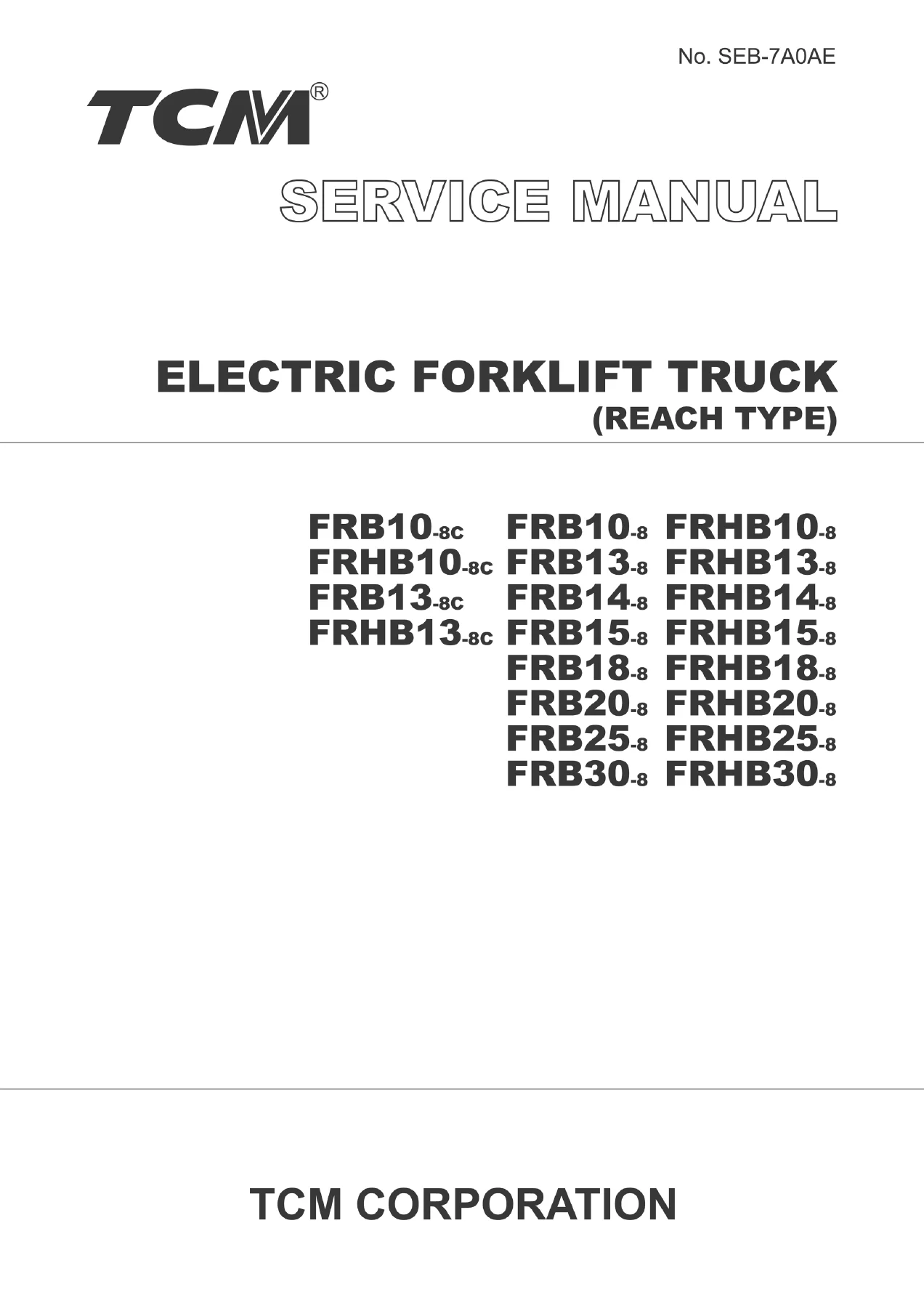

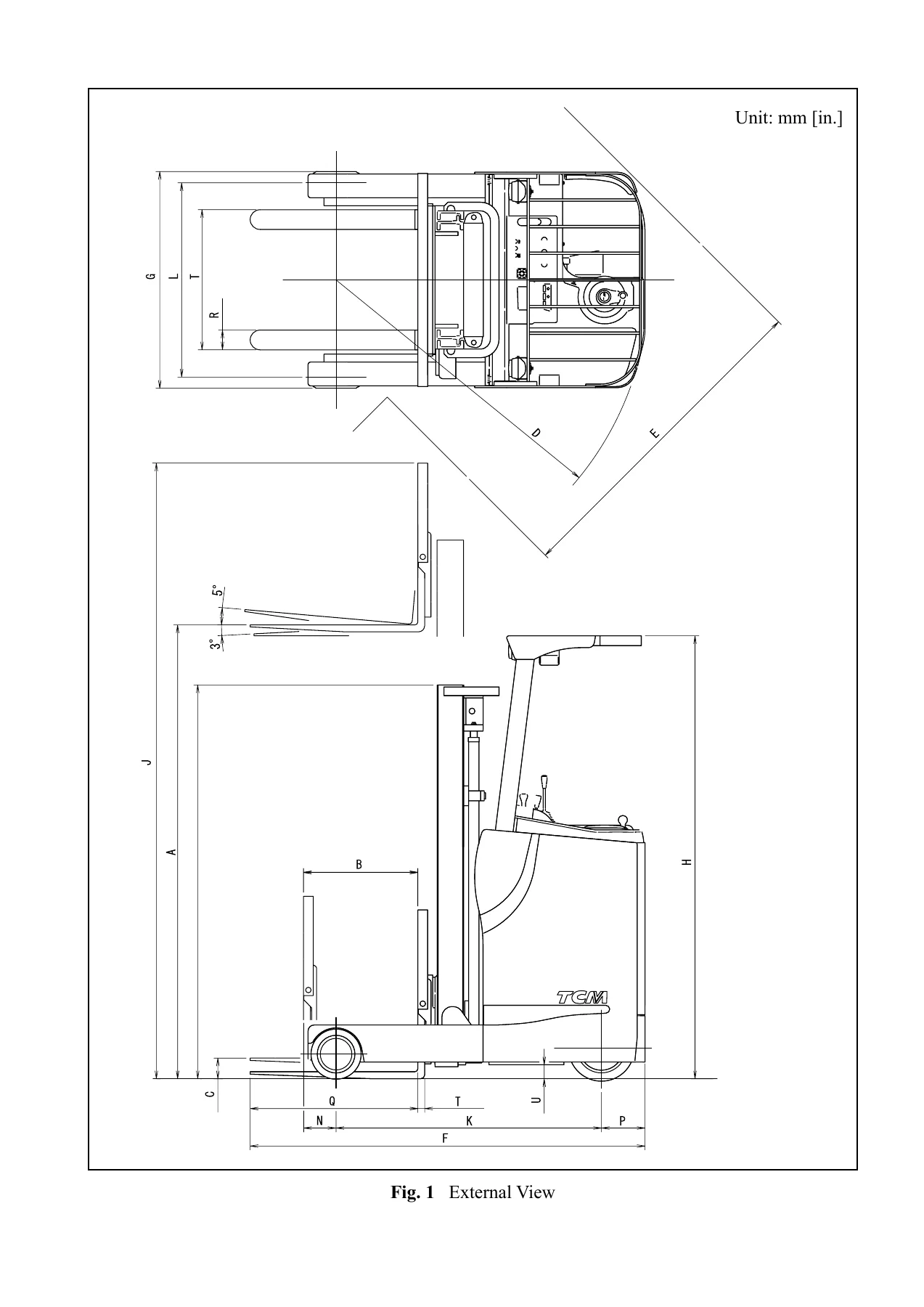

IMAGES PREVIEW

Instant PDF Delivery – TCM FRB 8 Series Service Manual SEB-7A0AE

This TCM FRB 8 series service manual is delivered as an instant-download PDF. There is nothing to ship and nothing to wait for – checkout completes and the file is available to you straight away. You can open it on any device, search and jump between chapters, print individual pages or whole sections for the workshop bench, and keep it on your laptop or tablet while you are working on the truck. Whether you are a fleet workshop, an independent forklift technician, or an owner-operator maintaining your own FRB 8 or FRHB 8 series reach truck, having the SEB-7A0AE service manual to hand means you approach every job with TCM’s own procedures, torque figures, clearances and error-code diagnostics instead of working blind.
