TCM Isuzu C240 Diesel Engine Shop Manual – Complete Forklift Engine Service PDF

This TCM Isuzu C240 Diesel Engine Shop Manual is publication No. ME-C240PKJBE, dated June 2002, issued directly by TCM Corporation and compiled from Isuzu Corporation’s own workshop manual (Publication No. IDE-2220). It was written specifically to cover maintenance procedures for the Isuzu C240 diesel engine as fitted to TCM’s forklift truck range, and it reads that way from the first page: every torque spec, clearance, and repair step is tied to how this engine actually sits in a TCM lift truck chassis.

• Manual type: OEM-compiled shop/service manual
• Brand/Engine: Isuzu C240 diesel
• Publisher: TCM Corporation
• Publication No.: ME-C240PKJBE
• Date: June 2002
• Language: English
• Page count: 211 pages
• Format: PDF download

TCM Forklift Models Covered by This C240 Engine Manual

The manual opens with the exact truck-to-engine applicability chart, so a technician can confirm fitment before starting any job. This TCM Isuzu C240 Diesel Engine Shop Manual applies to the following TCM forklift models:

• FHD15Z7, FHD18Z7, FHD15Z8, FHD18Z8
• FD15C9H, FD15T9H, FD18C9H, FD18T9H
• FCD15Z8, FCD18Z8, FA15D
• FD20Z2S, FD23Z2S, FD25Z2S, FD28Z7S, FD30Z7S
• FD20Z3, FD23Z3, FD25Z3, FD28Z8, FD30Z8
• FD20Z4, FD23Z4, FD25Z4, FD28Z9, FD30Z9
• FD20Z5, FD23Z5, FD25Z5, FD28Z5, FD30Z5
• FD20C6, FD20T6, FD25C6, FD25T6, FD30C6, FD30T6
• FCD20Z7, FCD23Z7, FCD25Z7, FCD28Z7, FCD30Z7

Chapters Covered in the C240 Shop Manual

• Section 1 – General Information: main data and specifications, design features and general outline, tightening torque specifications for standard bolts and major part fixing points
• Section 2 – Maintenance: periodic service items, fuel filter replacement (disposable cartridge spin-on type), fuel injection nozzle testing and adjustment, injection starting pressure and cap nut torque, overflow valve check
• Section 3 – Engine Assembly (1) Disassembly
• Section 4 – Engine Assembly (2) Inspection and Repair
• Section 5 – Engine Assembly (3) Reassembly
• Section 6 – Lubricating System
• Section 7 – Cooling System
• Section 8 – Fuel System
• Section 9 – Engine Electricals
• Section 10 – Troubleshooting: illustrated flowcharts for abnormal engine noise (gas leakage noise, continuous noise) tracing checkpoints such as exhaust manifold, cylinder head gasket, fan belt, cooling fan, water pump bearing, alternator, and valve clearance through to the specific remedy
• Section 11 – Special Tool List
• Section 12 – Conversion Table

Together these twelve sections take a technician from confirming which TCM truck the engine belongs to, straight through a full teardown and rebuild, and back out into the electrical and cooling systems that keep the C240 running once it’s back in the mast.

What the Isuzu C240 Diesel Engine Shop Manual Covers Technically

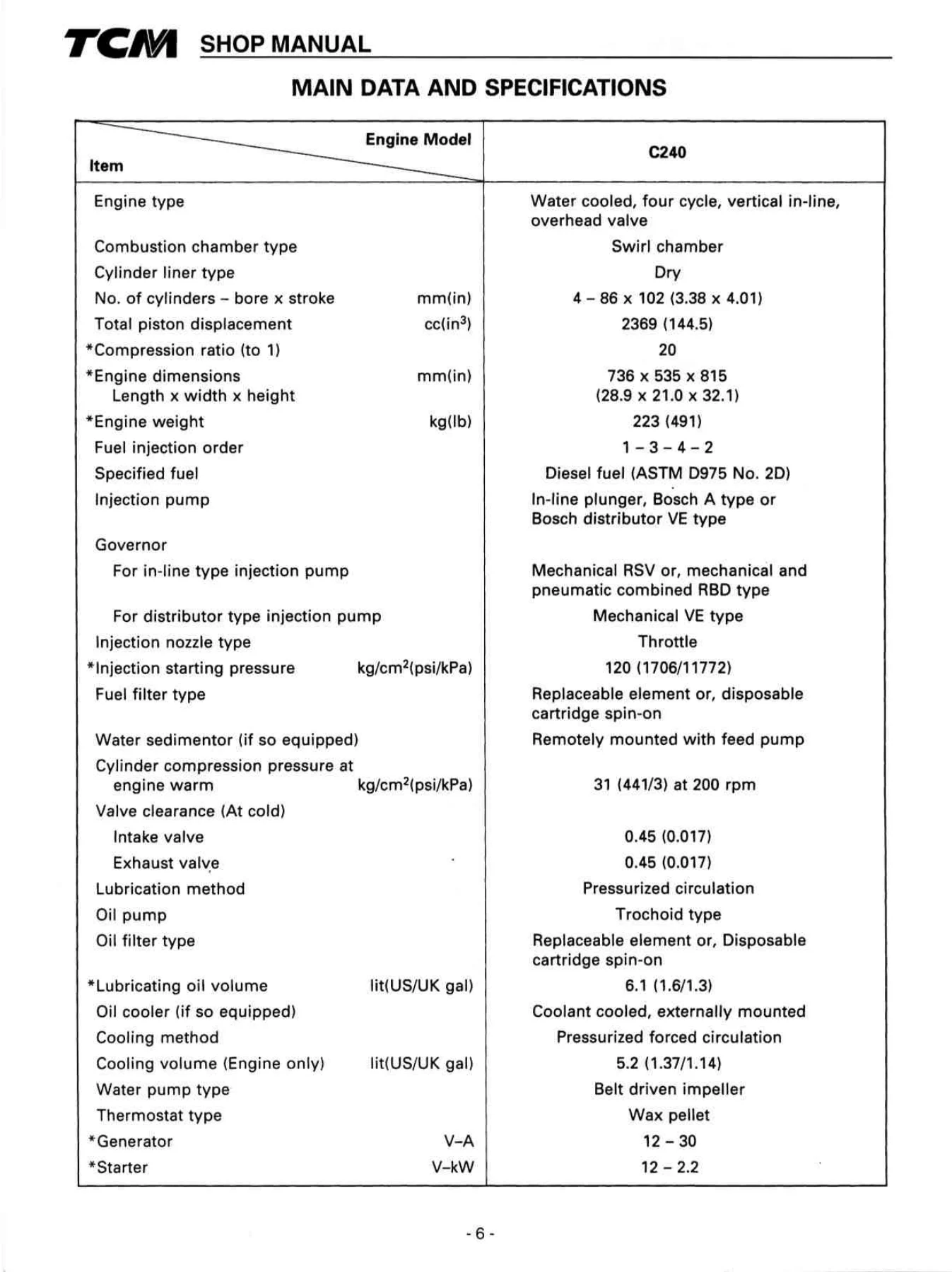

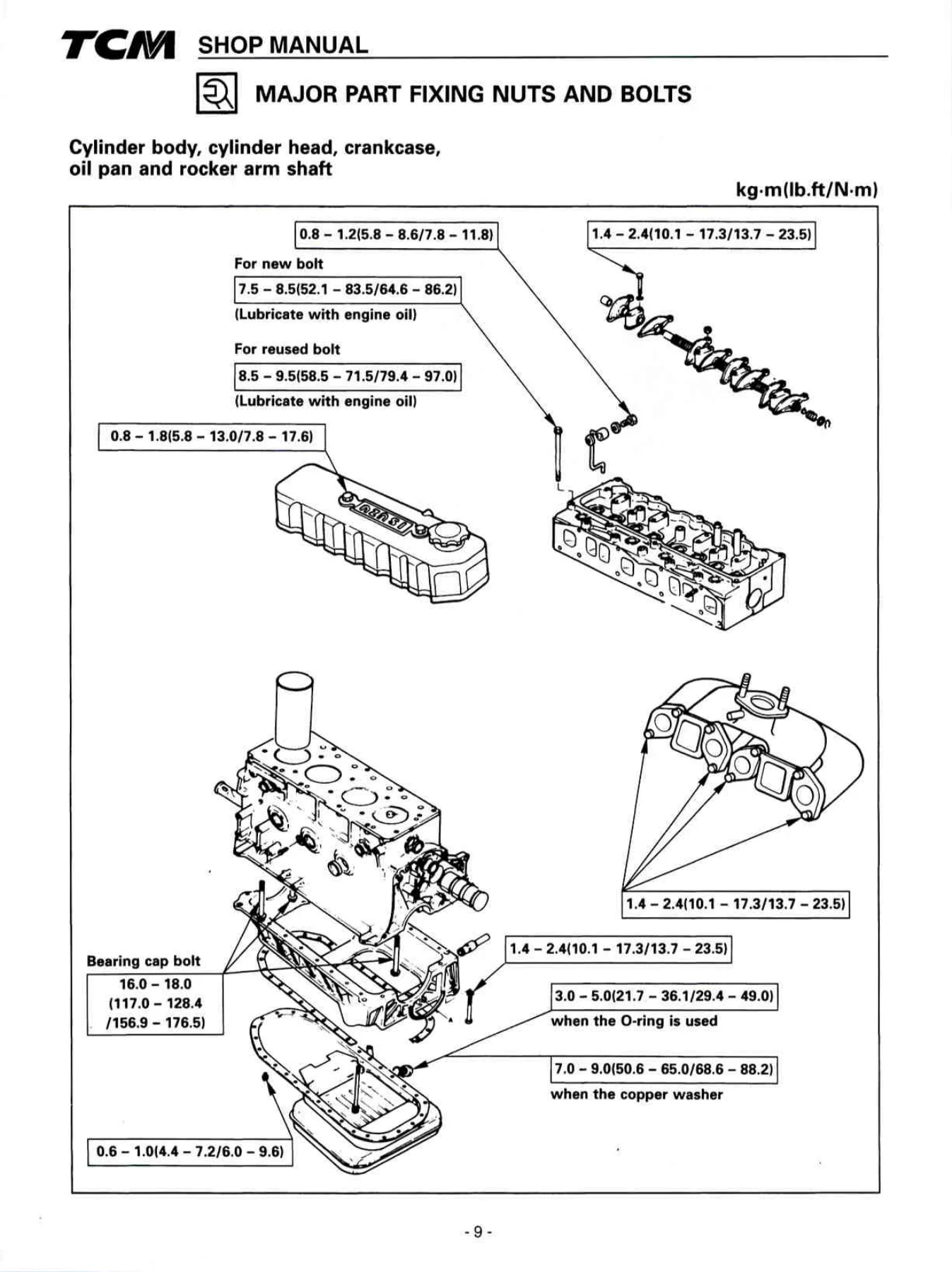

The main data and specifications table alone is worth the download: bore and stroke (86 x 102 mm), total displacement (2369 cc), 20:1 compression ratio, fuel injection order 1-3-4-2, injection pump type (in-line Bosch A type or Bosch distributor VE type), governor types for each pump configuration, injection starting pressure (120 kg/cm²), valve clearance at cold (0.45 mm intake and exhaust), lubricating oil volume, cooling volume, generator and starter ratings are all listed for the standard C240 build. Standard bolt tightening torque tables run from M6 through M24, split by 4T low-carbon, 7T high-carbon, and 9T alloy steel grades, and a separate major-part fixing torque diagram covers the cylinder head, crankcase, oil pan, rocker arm shaft, and exhaust manifold bolts with different values for new versus reused bolts.

Fuel system procedures are illustrated step by step, including disposable spin-on fuel filter removal and installation, injection nozzle tester hookup, correct versus incorrect spray pattern identification, and cap nut torque after adjusting injection starting pressure. The troubleshooting section works as a flowchart: each checkpoint carries an OK/NG decision that routes the technician to the trouble cause and the exact remedy, rather than a generic list of possible faults.

IMAGES PREVIEW

Why This TCM Isuzu C240 Shop Manual Matters

Because this is the TCM-published version cross-referenced against Isuzu’s own C240 workshop data, the torque values, clearances, and pressures are matched to how the engine is actually installed and maintained in TCM’s own forklift line, rather than a generic industrial-engine reprint. Getting valve clearance, injection pressure, and bolt torque right the first time avoids comebacks, and having the correct fuel filter and nozzle testing procedure on hand saves guesswork mid-job.

Instant Download of the TCM Isuzu C240 Diesel Engine Shop Manual

This TCM Isuzu C240 Diesel Engine Shop Manual is delivered as an instant PDF download immediately after checkout – no shipping, no waiting. Open it on a laptop, tablet, or phone at the machine, or print the pages you need for the bay. It’s yours to keep and reference for as long as you’re running this engine.
